This is a low-power and non-dangerous toy. I am not responsible for any modifications that could cause harm to anyone.

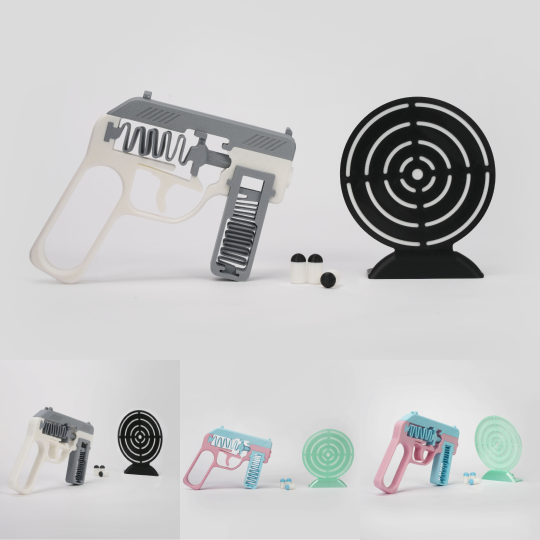

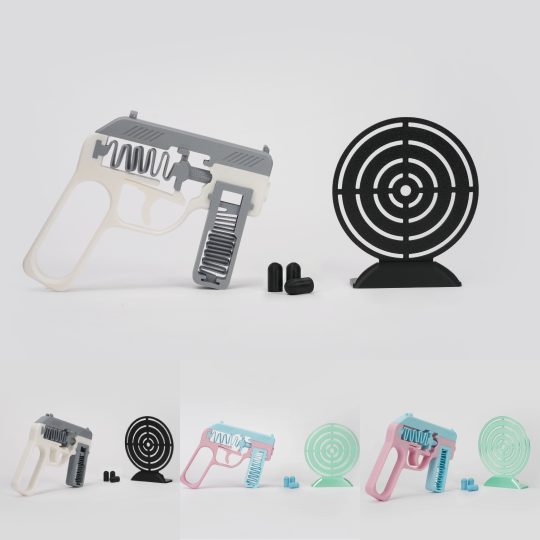

Spring Gun V3 - Shoots fake bullets with magazine

*** UPDATE 10/11/2024 (see below) ***

Hi everyone, I present to you version 3 of the spring gun, I have read many of your comments regarding the problems with version 2.  One of the most frequent was the breaking of the main body in the finest part just after the trigger, this part has been reinforced.  Also, the reloading system was very uncomfortable and has been improved by adding the upper slide with anti-slip grips that allows a better grip.

If you like this new project and what I post, please consider supporting me by leaving a like, a comment, and a boost.

Assembly guide

Below is the guide to assemble the spring gun v3 but if you prefer I have also added a pdf in the appropriate section for more convenience.

Differences from previous versions

In v1 you had to reload one shot at a time and the bullet pointing downwards fell out of the barrel, a problem solved in v2 where I introduced the magazine with the spring that holds the bullet, finally v3 which facilitates reloading and the problems of fragility of the main body

Conclusion

In conclusion, I think this version is much better than the previous version, I had a lot of fun making and using it. I also made a new v3 target that takes up less space and is more scenic when hit. I will end by reminding you that this is a toy and shoots dummy bullets, hollow and rounded to avoid any kind of injury. Thank you for your support and I hope you enjoy it 😁❤️

UPDATES

*** UPDATE 10/11/2024 ***

Reading your comments, many of you are experiencing the same problem, the fake bullets are not coming out of the barrel of the main body. That is why I have added a print profile ("Spring Gun Body Fixed") to print only the main body of the gun in which I have reduced the barrel diameter. I hope this solves the problems you are experiencing, I have not had any after properly removing the supports. Let me know in the comments and this solves it otherwise I will need to modify the spring inside the magazine which may create too much friction.

*** UPDATE 06/11/2024 ***

I added an extended 6/7 bullet magazine and a magazine cover that allows easy reloading of bullets
