Box Divider for Filament Storage Parametric

Parametric Box Separator Generator 🪟

This model allows you to create a customizable box separators. Ideal for organizing items within a defined space, you can modify dimensions and features to fit your needs.

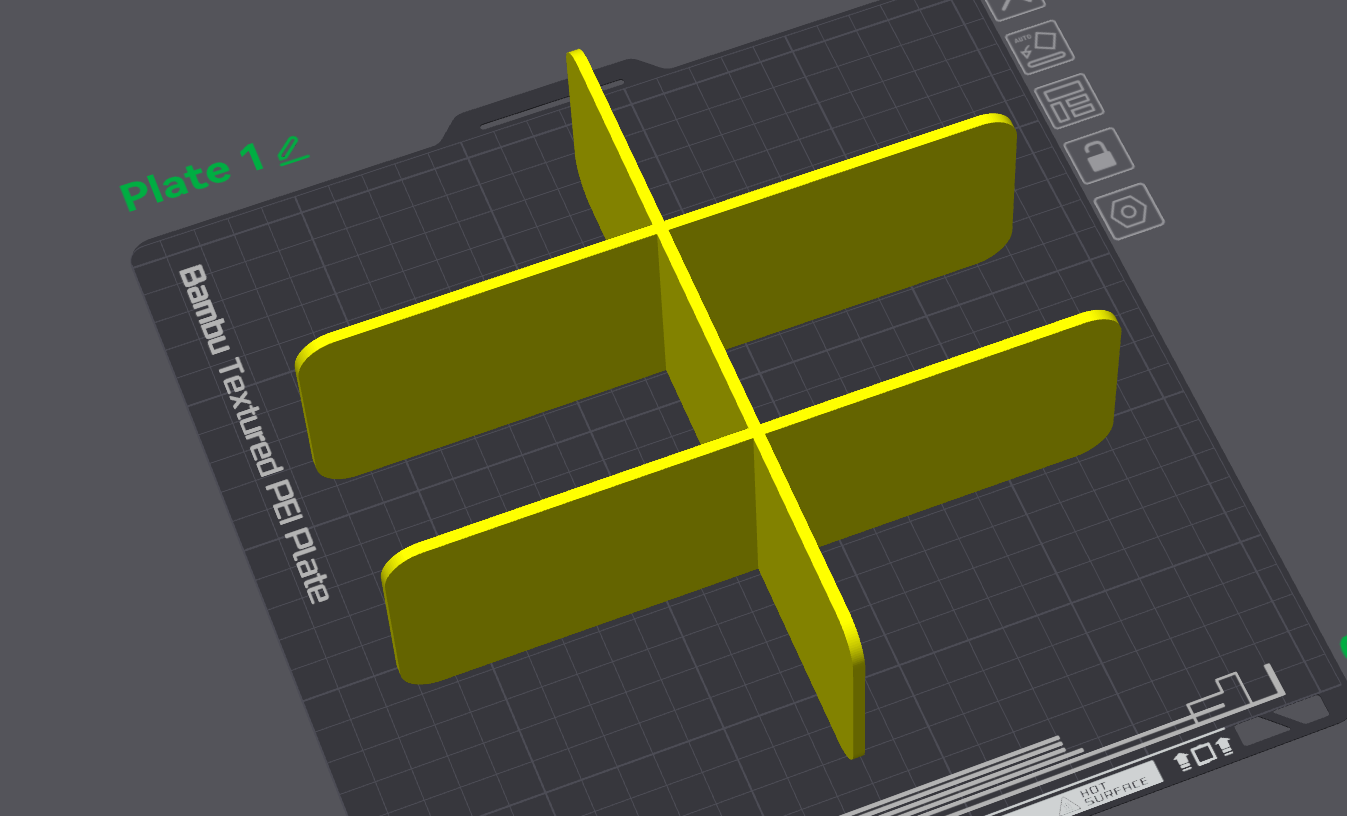

The main photo model was created with the default settings and is configured to fit the Bambulab filament refill box.

V3 is now available :
You can now generate separate parts with an interlocking system.
You can add a contour

Parameters

Box Parameters:
- Depth, Width, and Height of the box.
Separations Parameters:
- Number of separators along the depth and width.
Walls Parameters:
- Height, Width, and Fillet (rounded edges) of the walls.
- Option for a bottom fillet on the walls.
Floor Parameters:
- Option to include a floor.
- Width and Fillet of the floor.
Contour Parameters
- Option to include contour
- Outer fillet of the contour
Interlock Parameters
- Interlock render choice
- Interlock clearance to modify assembly fit
