MT Column SQ - 943mm Tall Rotating Display Table

Needed a Rotating display / work table at waist height that I could move around, so I designed this column.

The Table top is 235mm x 235 mm.

The column comes in 5 pieces, uses around 3kg of filament and takes 2 to 3 days to print.

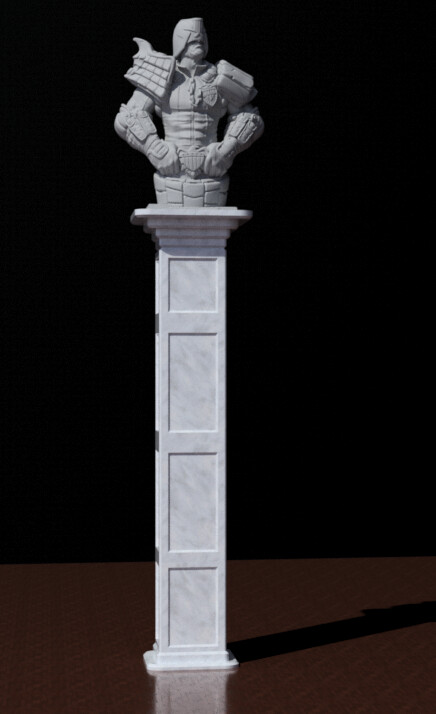

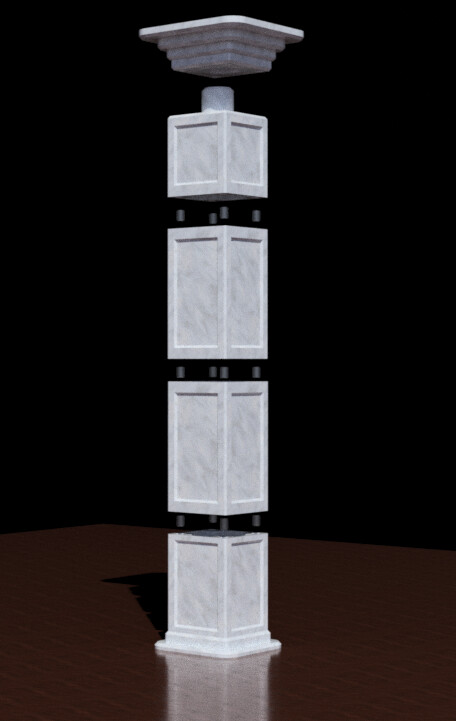

The column in the picture uses two Main Columns, One Top Column, One Base, One Table Top and 14 Dowels.

Each piece connects via a 15mm diameter x 20mm long printed dowel, you will need to print 12 of these and just glue them in, also print two extra to use as locking pins for the table top.

The Table Top sits on the top column and rotates smoothly, I have put dowel holes in the column top piece and also a handy storage hole for two locking pins.

If you want it to rotate don't glue the Table Top on! :)
