UPDATE 20.09.2024

• 6x3mm Magnet Variant added

INTRODUCTION

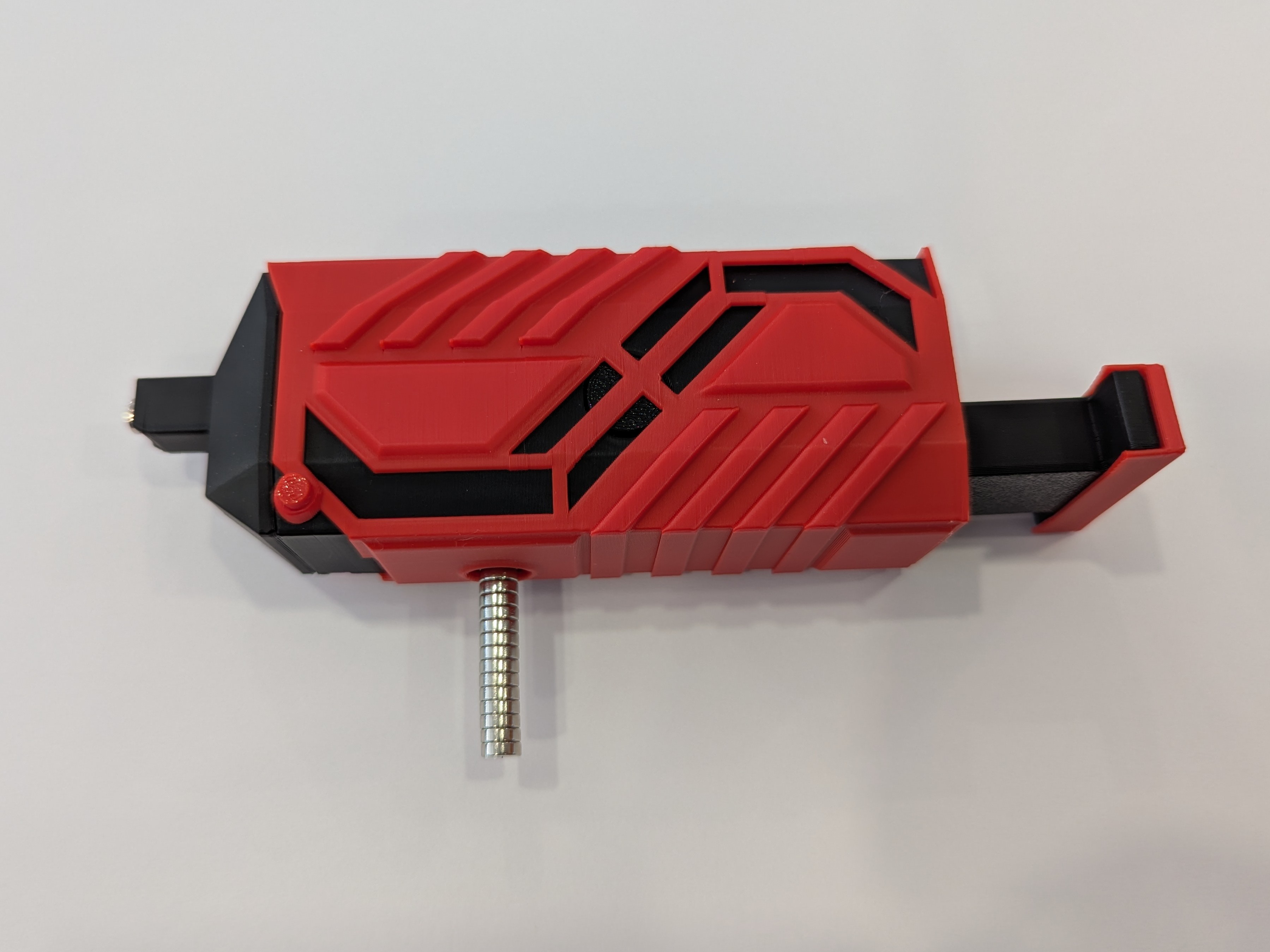

v2 of my Magnet Insertion Tool, with

• optimized Tip size
• trigger suspension
• self reloading Magnet Magazine

HARDWARE

Magnet sizes currently tested and supported:

• 5x1mm
• 6x2mm
• 8x2mm
• 6x3mm

Magnets i used:

5x1mm (reflink)

6x2mm (No longer available on Amazon)

8x2mm (No longer available on Amazon)

FILAMENT

i used this PLA+ but any other Pla should work as well

PLA+ (reflink)

Other Hardware you need:

• 2x M3x6mm
• 3x M3x10mm
• Rubberband
• 3x Magnets of selected size

ASSEMBLY

There is a PDF attached to the files with assembly instructions as well as some simple Assembly steps shown in the Video

I reccomend printing 2 tools. 1 for each pole of the magnet. I printed one in Red and one in blue.
