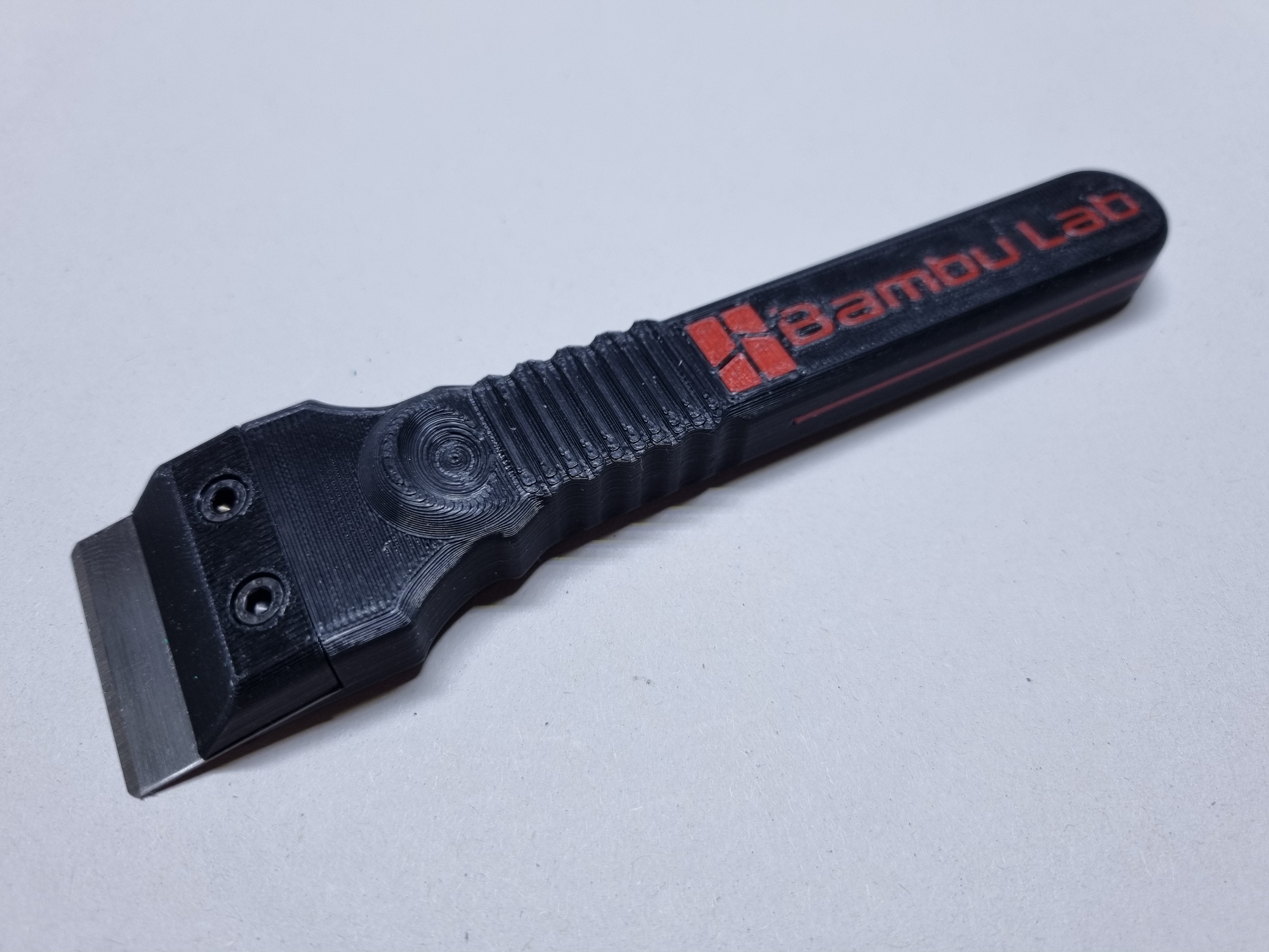

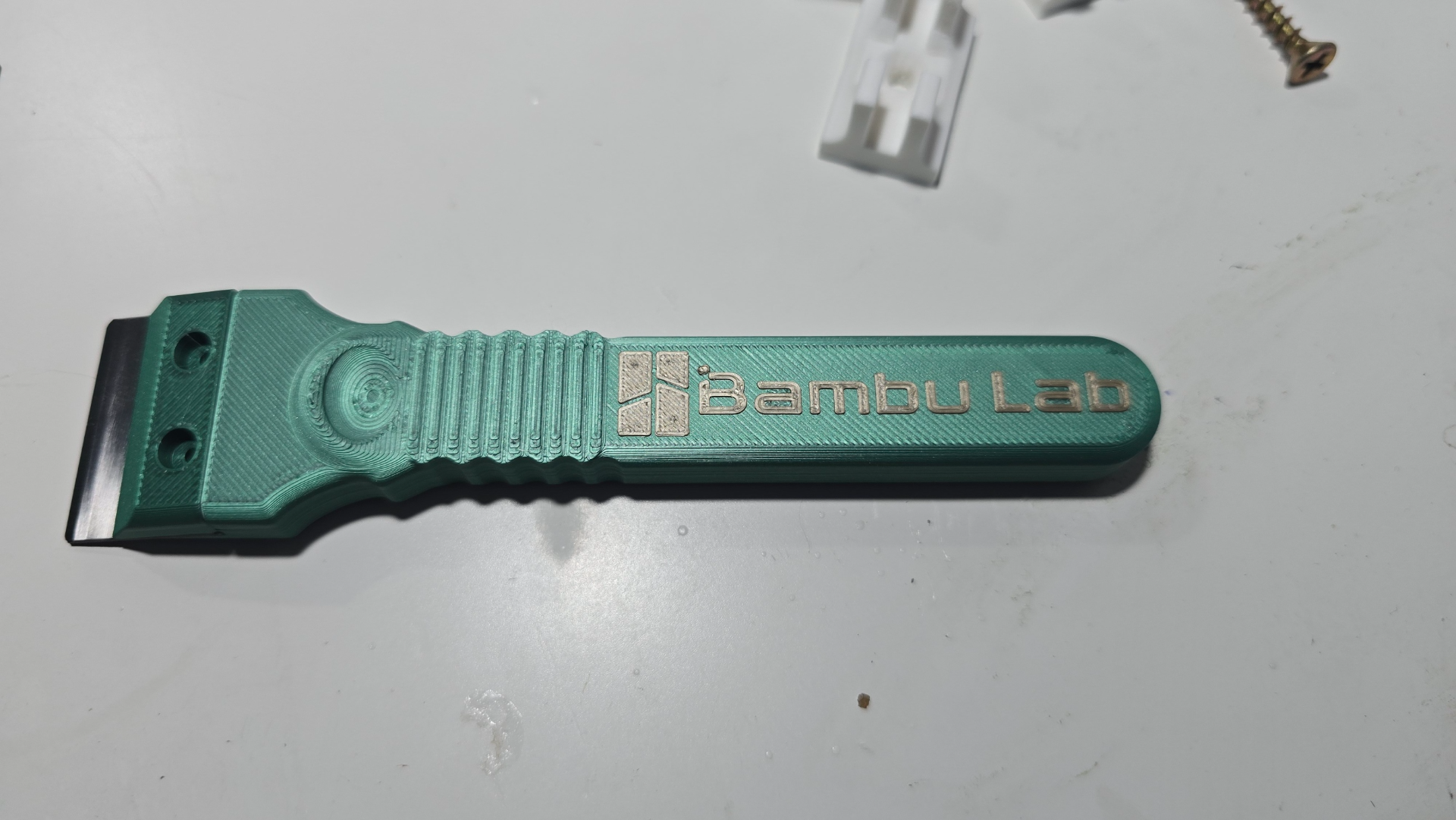

Simple 3D Print Scraper Tool for Bambu Lab A1 Series Blade

1. Prepare the Parts: Gather all the necessary components listed below.
2. Insert the Blade: Align the blade from the Bambu Lab A1 series tool box with the mounting holes on the scraper handle.
3. Attach the Screws: Insert the two M2x8mm screws through holes the blade cover, blade it self and handle.
4. Add the Washers: Place a flat washer on each screw after passing through the handle.
5. Secure with Nuts: Tighten the nuts from bottom onto the screws to firmly secure the blade in place.
6. Check Tightness: Ensure all components are securely fastened and the blade is firmly attached.

Parts Needed:

• 2 x M2x8mm screws BUY HERE
• 2 x Flat washers BUY HERE
• 2 x Nuts BUY HERE
• 1 x Blade (from Bambu Lab A1 series printers tool box) BUY HERE
• Scraper handle (recommended to be 3D printed using PETG filament for enhanced strength)


Community creations:
Bambu Lab Scraper by VPrint - Holder (Plonkydonk28) - CLICK HERE
