Description

After searching for a drybox I found the Ikea 365+ 10.6l to be the best option and I didn't like the available models to convert it in a drybox… so I designed this lightweight and fast printing model to meet my needs for Bambu Lab Spools.

Info:

• Printed in Bambu Basic PLA (White):

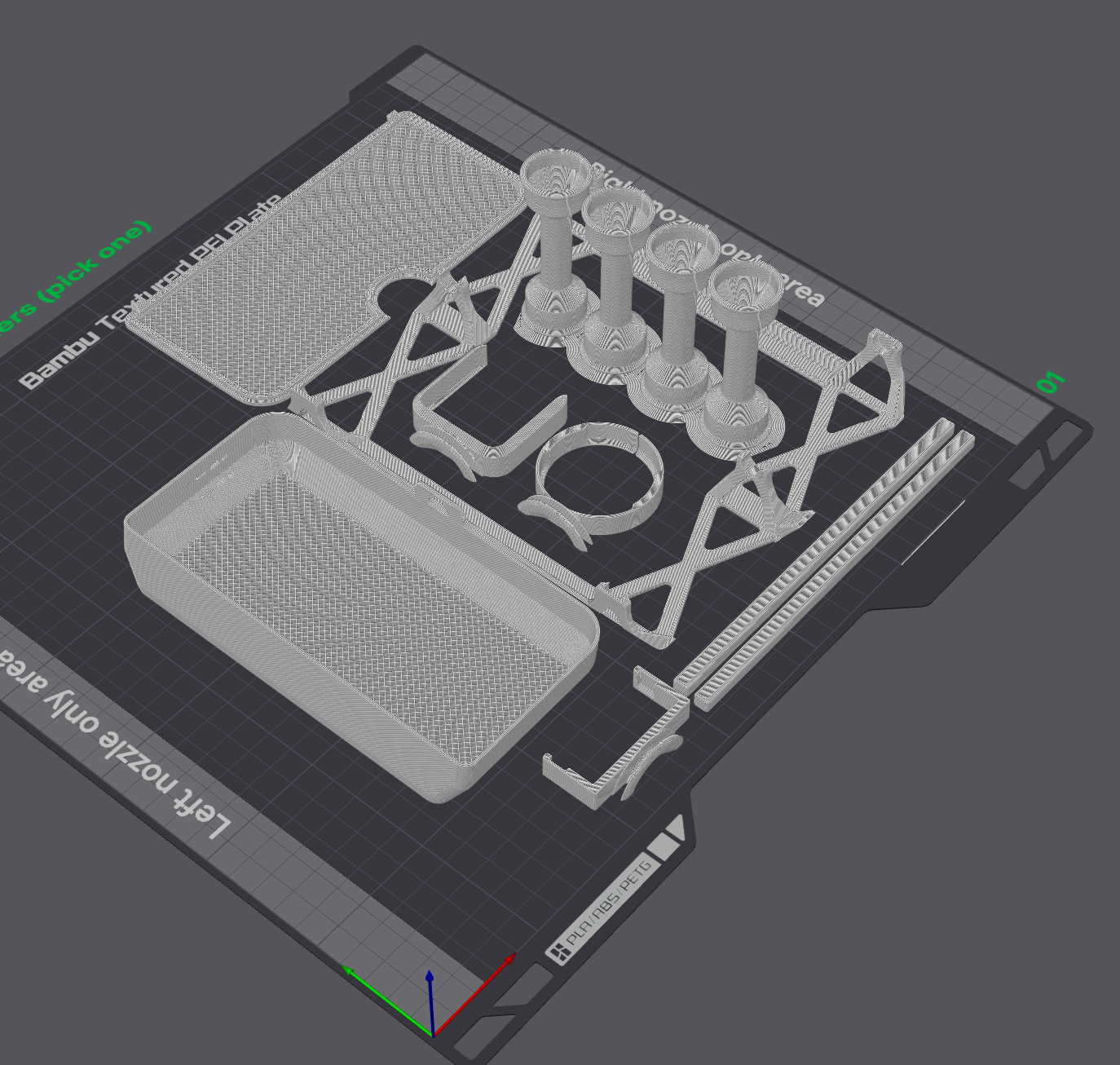

  • 110,41 g of consumption and 3h15m of printing time in X1C with 0.4 mm nozzle for configuration in the 3mf file shared .
  • No supports.
• Model details:
  • The shafts can be replaced by ⌀8 mm rods. Debur might be needed on the bed side of the shafts to adjust the bearings fitting.
  • The seams of the rollers are twisted to avoid bumping the spools at the same time. Rollers were designed and tested with Bambu Lab Spools only, so feel free to improve them.
  • Desiccant box max capacity is 275 ml and contains markers for 100 ml / 200 ml to give more control of the amount of placed beads.

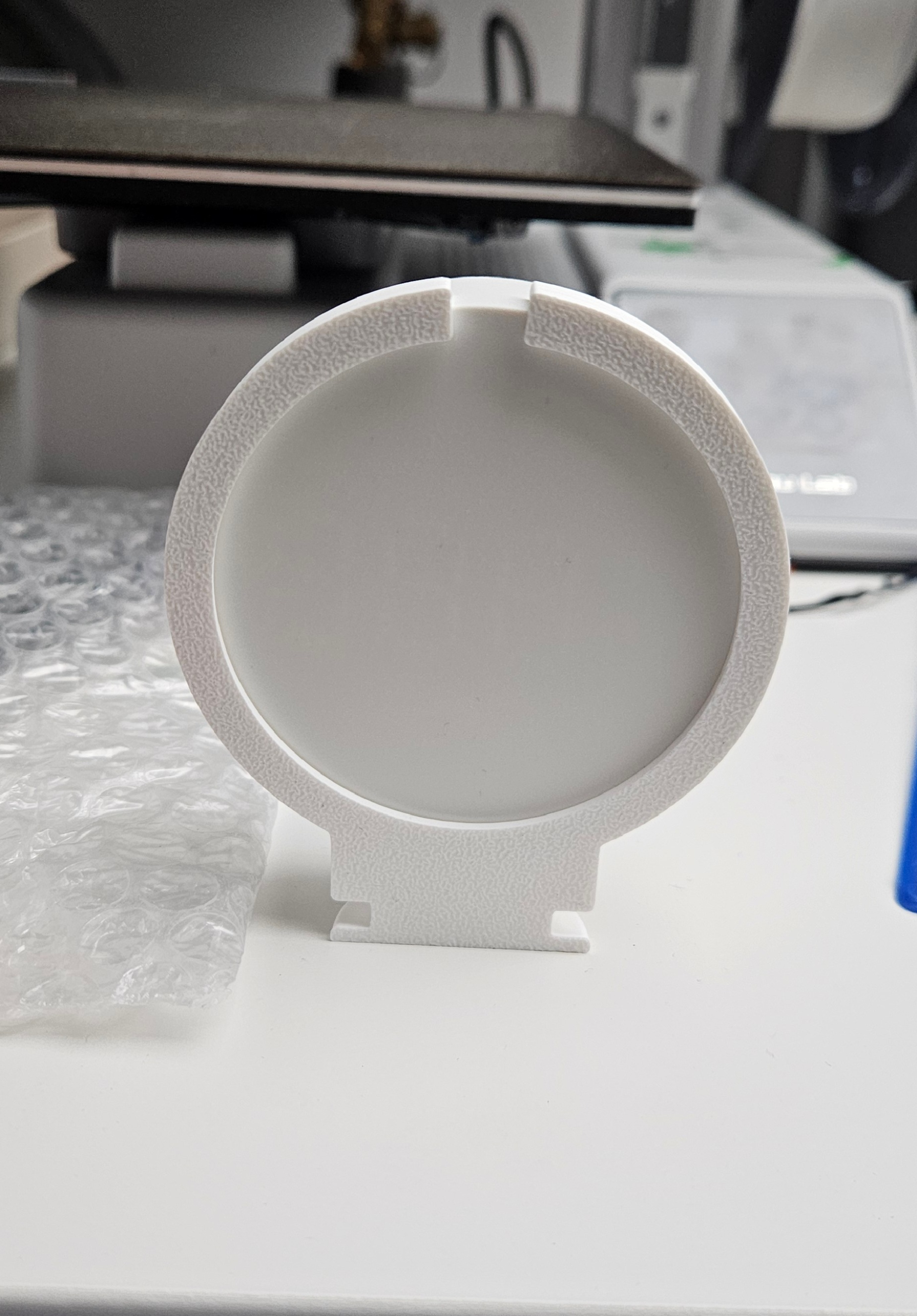

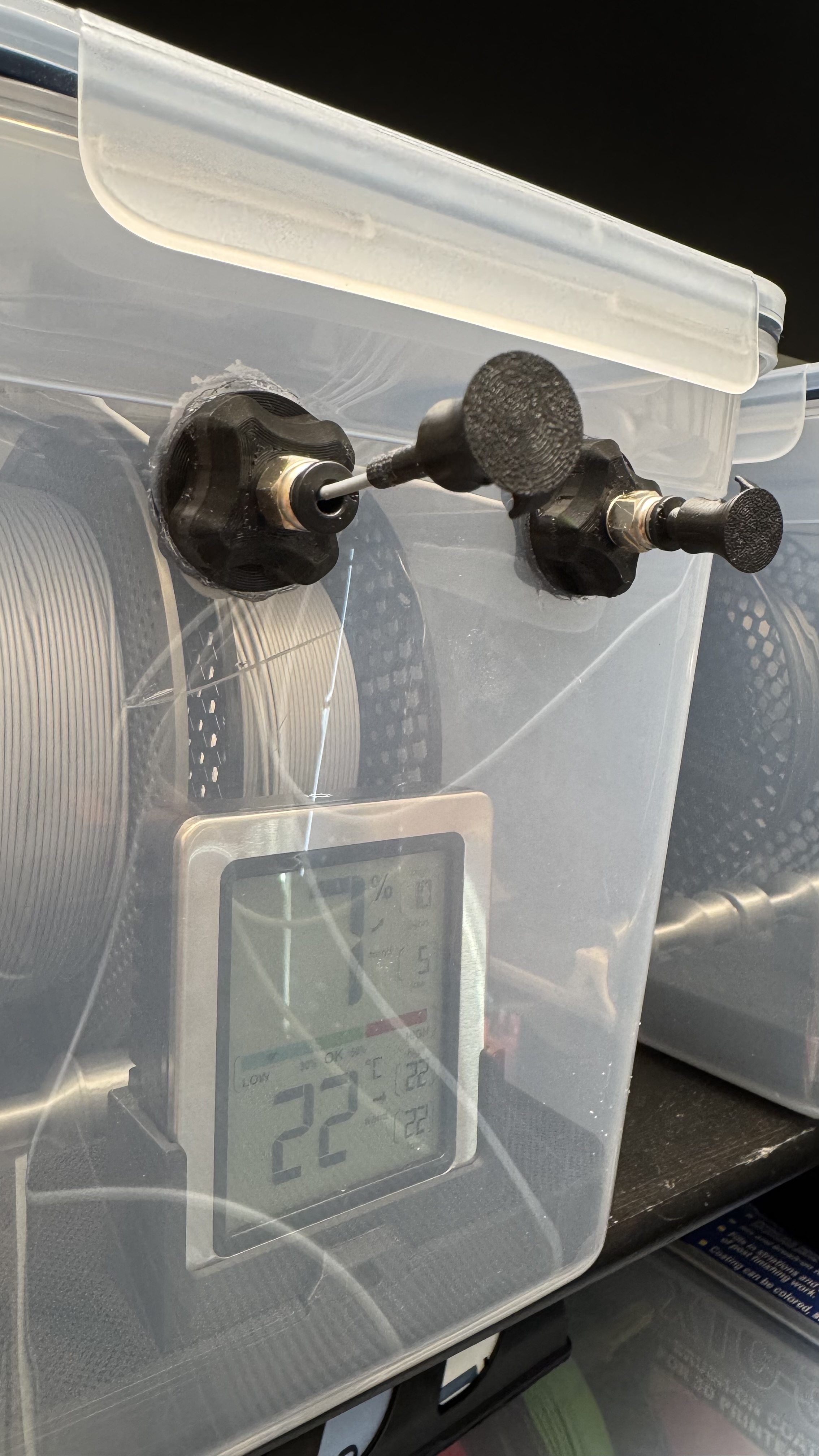

  • Hygrometer holder is designed for the rounded model and can accept many tabs position. Also it is not fixed and can be rotated or replaced for different model holder.
  • Update: Added hygrometer holders for rectangle and square types. All holders can be used as standalone holders.
• Bill of Materials:
  • 8 x 608zz bearings
  • 1 x Round/Rectangle/Square Hygrometer

Feel free to improve and share your insights.
