My best functional weapon for now.

BE CAREFUL, IT'S DANGEROUS !!!!
the assembly video is coming on my youtube channel !!
you need minimu 250mm print plate

To do it you need: (everything is pictured at the end)
26.5inch crossbow rope
some 12inch arrows

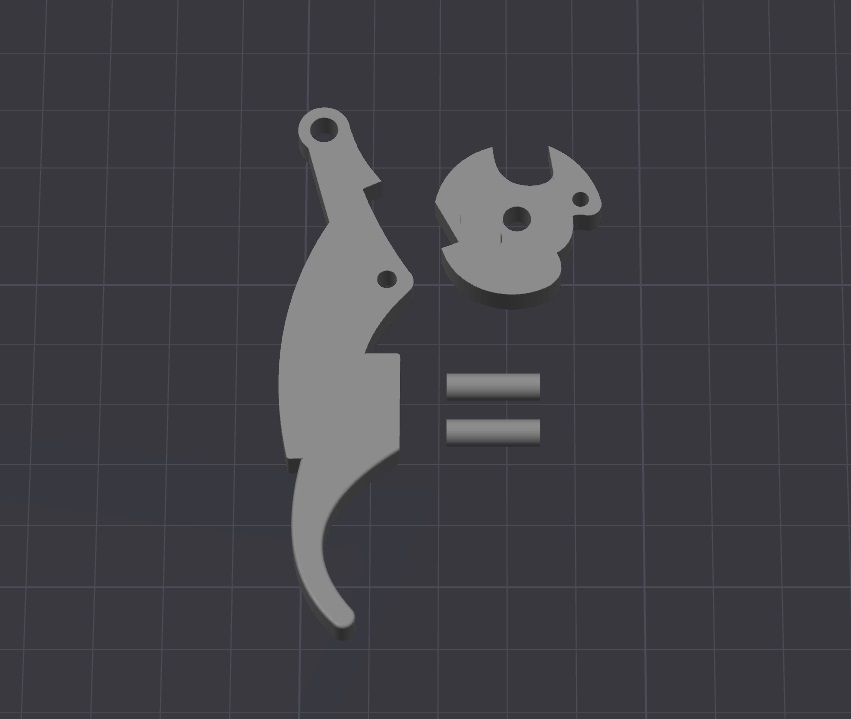

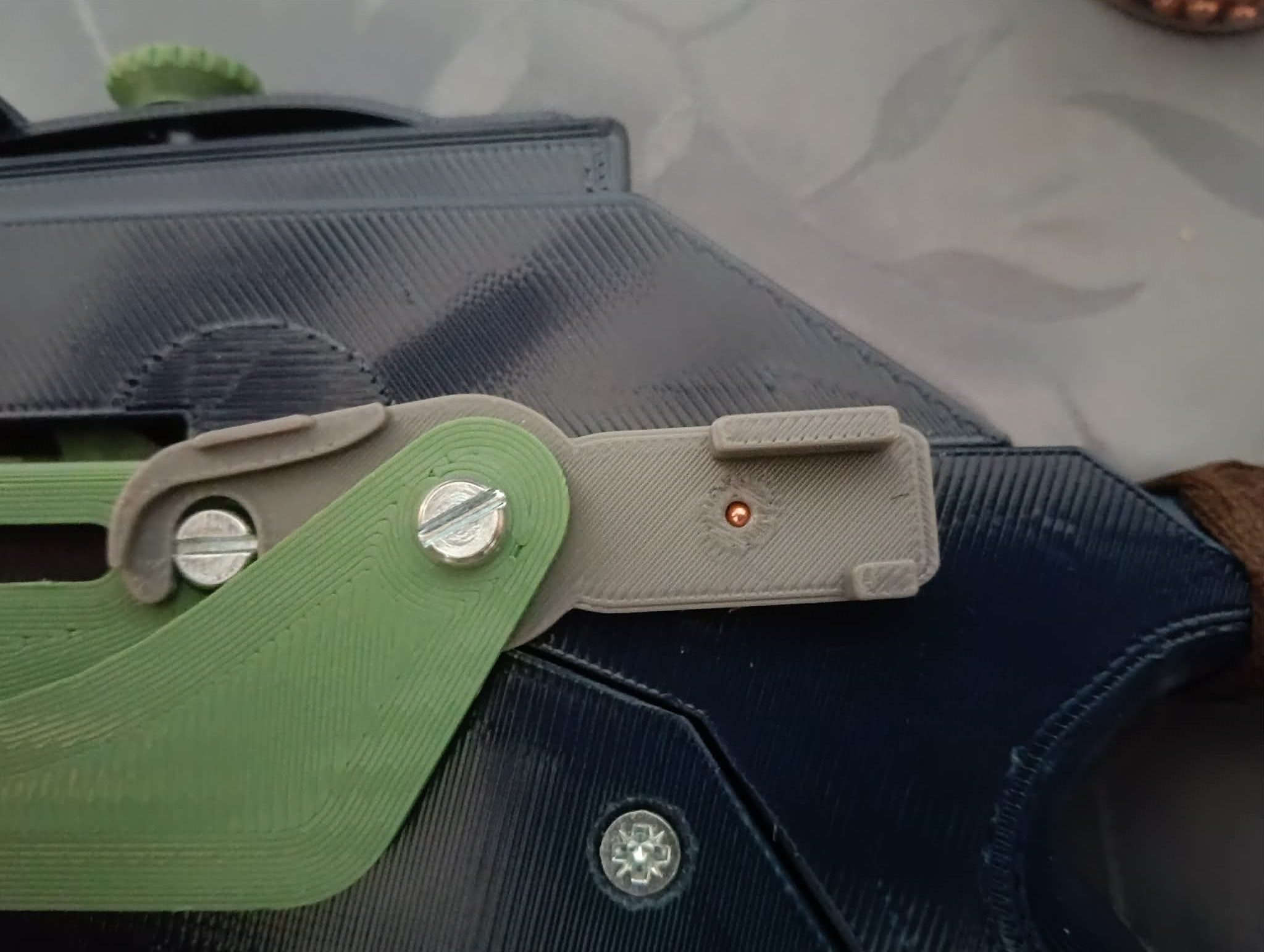

crossbow trigger (you absolut need the same)
one M8x30 screw and nut
some M4 screw and nut
2-M4x40
1-M4x35
1-M4x25
2-M4x12
6-M4x10

Trigger AliExpress:
[https://a.aliexpress.com/_EHsnS5w](https://a.aliexpress.com/_EHsnS5w)

Trigger amazon: (english amazone)

[https://a.co/d/acTyAkf](https://a.co/d/acTyAkf)

Rop AliExpress:
[https://a.aliexpress.com/_EwPnRqC](https://a.aliexpress.com/_EwPnRqC)

Rop Amazon:
[https://amzn.eu/d/cKynnlT](https://amzn.eu/d/cKynnlT)

Arrow AliExpress:
[https://a.aliexpress.com/_EJRWLRi](https://a.aliexpress.com/_EJRWLRi)

Arrow Amazon:
[https://amzn.eu/d/0wfejQA](https://amzn.eu/d/0wfejQA)

Box m4 screw Amazon:

Out of stock

bow absolut need to be print in PETG:
strong in 12 walls and 100% infill
light in 10 walls and 20% infill

you need a little TPU part for the bow but if you don't have you can use a 2mm soft plastic to protect the bow from the M8 screw.

The rest can be print in PETG or PLA:
strong in 12 walls and 20% infill
light in 2 walls and 15% infill
