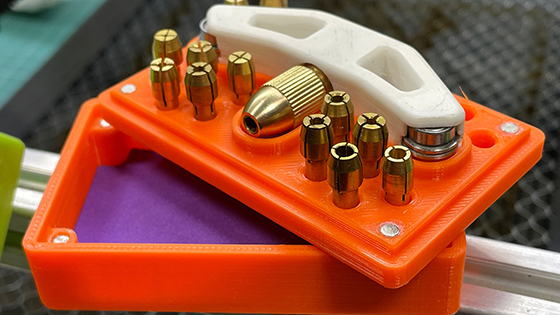

The Wishbone tool turned out to be so successful that I decided to make a case for he. Moreover, it was high time to put things in order among the collets, otherwise there are already a lot of them and until you pick up the right one, you have to pretty much rummage around. I have already made similar cases but for other lathe collets . They are very convenient to use.

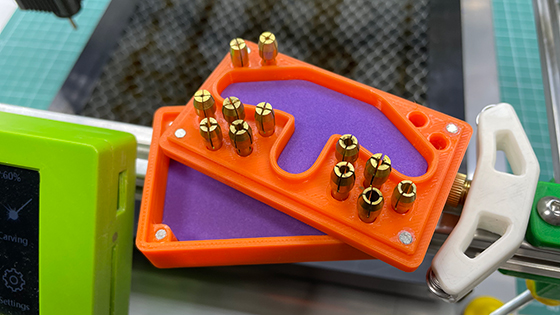

The project contains two variants of cases, with and without foam rubber backing. The thickness of the foam rubber is 2 mm. There are also different lengths of nuts for collets, and I made this project for the one I have available. But if you have other dimensions, the project has attached files in STEP format, which you can easily change to fit your size.

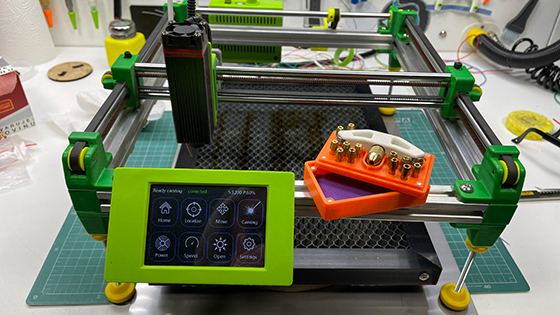

I cut out the substrates with a laser , in the archive there are DXF files.

And if you don’t know anything about Wishbone and what it is for, then this video will clarify the situation for you.

See the video for details:

If you liked this thing - let me know by putting like!


Parts links below:

• Mini Drill Chuck Adapter Collet
• Mini Drill Chuck Adapter Collet 10
• Round Magnet 3x3 mm
• Foam Rubber
• Sealant Glue
• TopZeal Filament PETG

Links to used tools:

• NOGA deburring tool and Blades
• Reamer Tool Set

Required files:

project-files.zip
