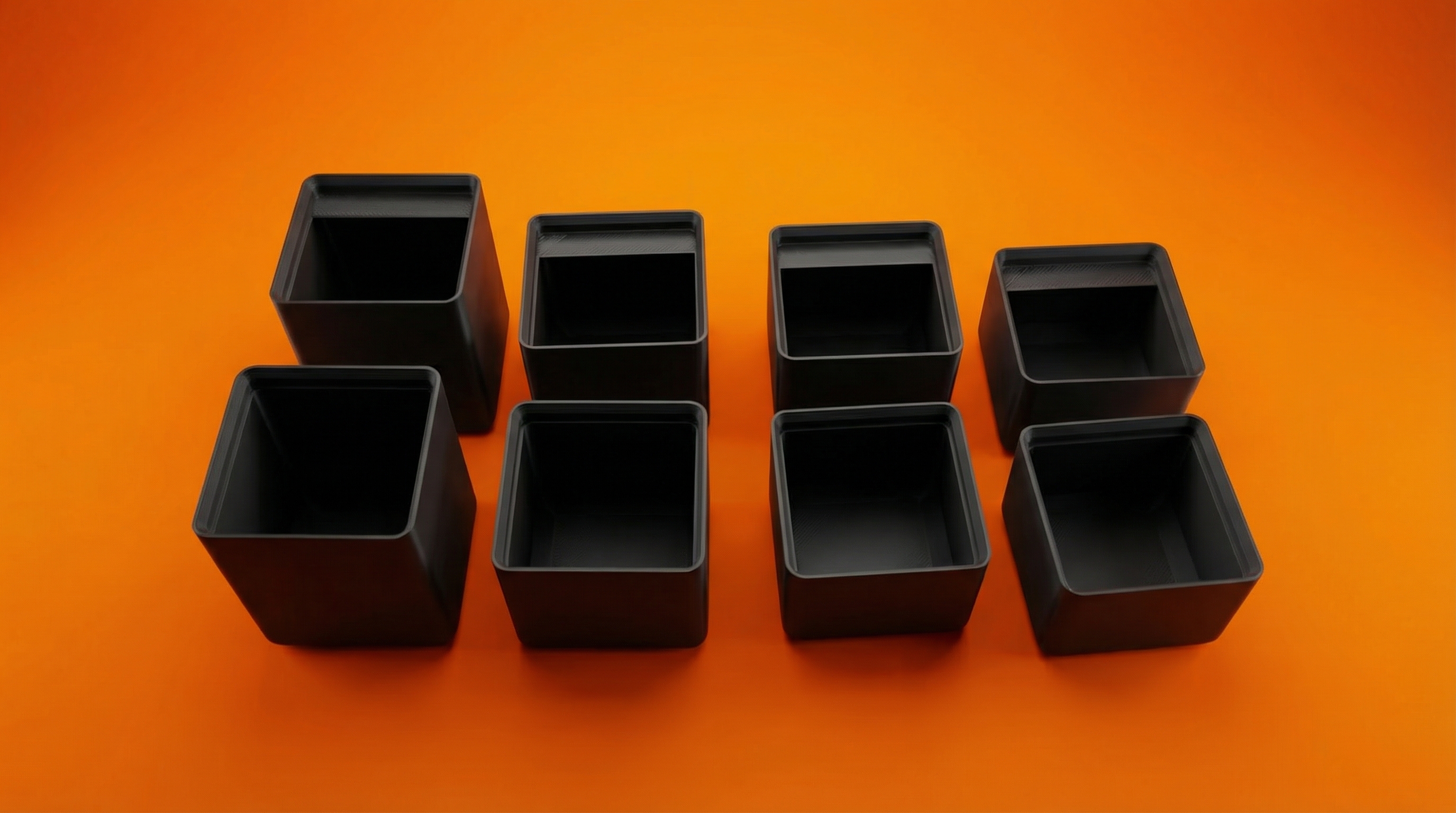

After watching standard 1x1 bins print infill layer after infill layer that could have been used for storage, this is one of the first 3D print models I've designed. I've since refined it, with the following features:

• 0.84mm thick walls - a 0.4mm nozzle will do this in 2 passes
• 0.75mm thick base - designed for 3 layers of 0.25mm (but prints fine with 0.20mm layers)
• Label shelf versions have 7mm wide label areas designed for 6mm wide labels
• No magnet holes
• Changes to fillets and chamfers
• Other minor changes

It is highly recommended to print 2 more at a time for a more consistent outer wall surface gloss. With just one bin, you might see that some sections are more glossy than others due to your filament profile's layer time limitations.

Check out this collection for my other Gridfinity models and

check out this collection for my other Honeycomb Storage Wall models.

And 2 years later, I had another go at it! Check out the spiral vase mode variants here
