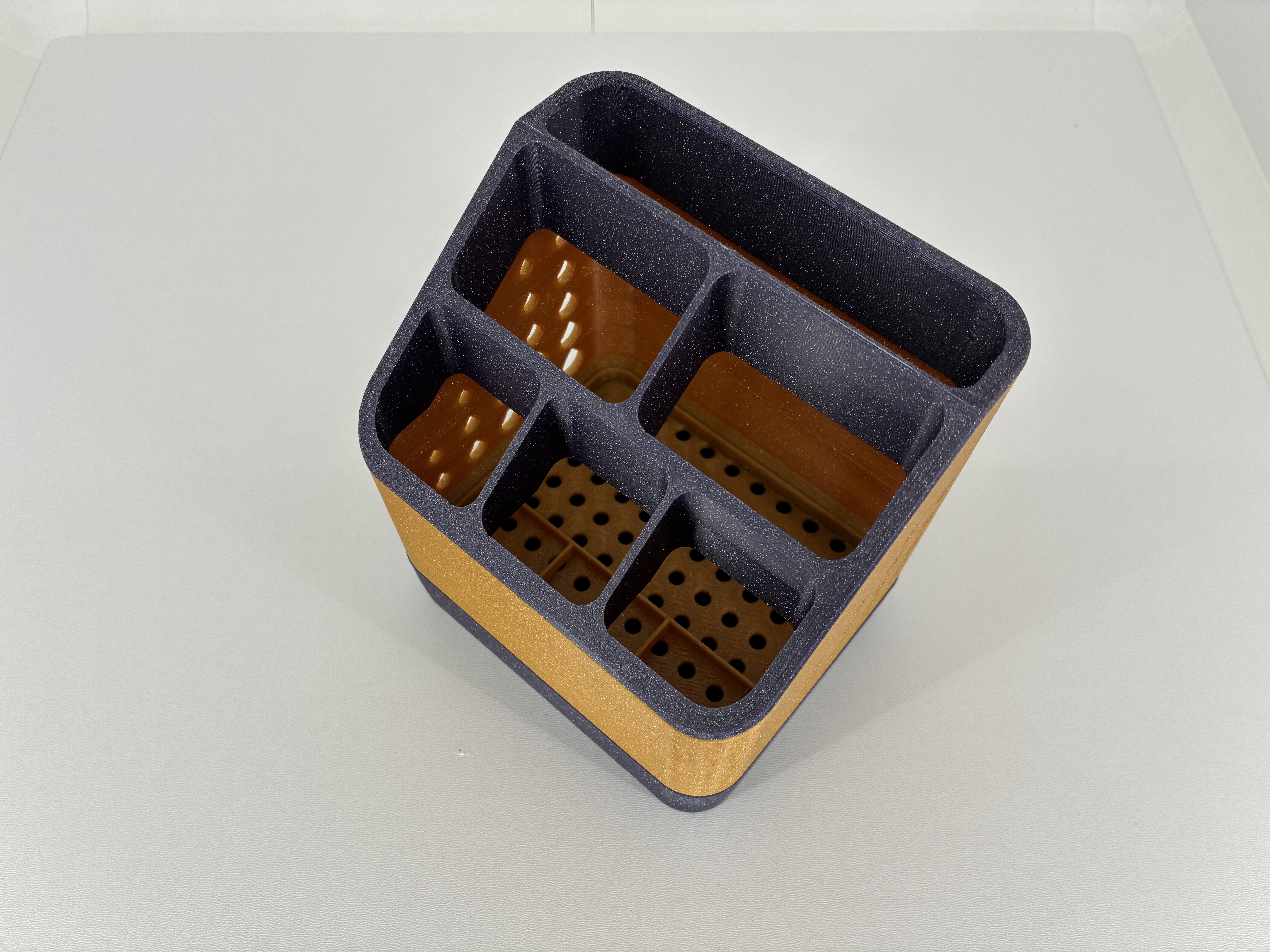

Cutlery drainer

Cutlery drainer.

Dimensions:

width: 80 mm
depth: 100 mm
height: 133 mm

Larger version dimensions:

width: 120 mm
depth: 100 mm
height: 133 mm

Higher version:

width: 80 mm
depth: 100 mm
height: 153 mm

Extra large:

width: 120 mm
depth: 140 mm
height: 153 mm

The overlay is printed at a large angle, so that the print is successful, it is printed together with the support, which must be removed after cooling.

Part of the overlay is printed at a large angle, so support is required. On plate 2, I used a normal support as standard. On plate 3, I added the same part with a dedicated support, which gives slightly better quality, but the support is a bit more difficult to remove.

Note:

In the comments, you can see that some people are trying to print scaled dimensions, and from what I've noticed, with varying results. Therefore, as the author, I advise against scaling and recommend that you write to me if you want a different size - I will try to provide the model in the specified sizes (of course, in such cases, please be patient).

If you are printing from a material that is even slightly transparent, use a printing profile with three layers so that the fill pattern is not visible. From my experience, I can tell you that the basic colors from Bambu are slightly transparent and the matte colors are very opaque. My model is printed with matte colors and only two layers.

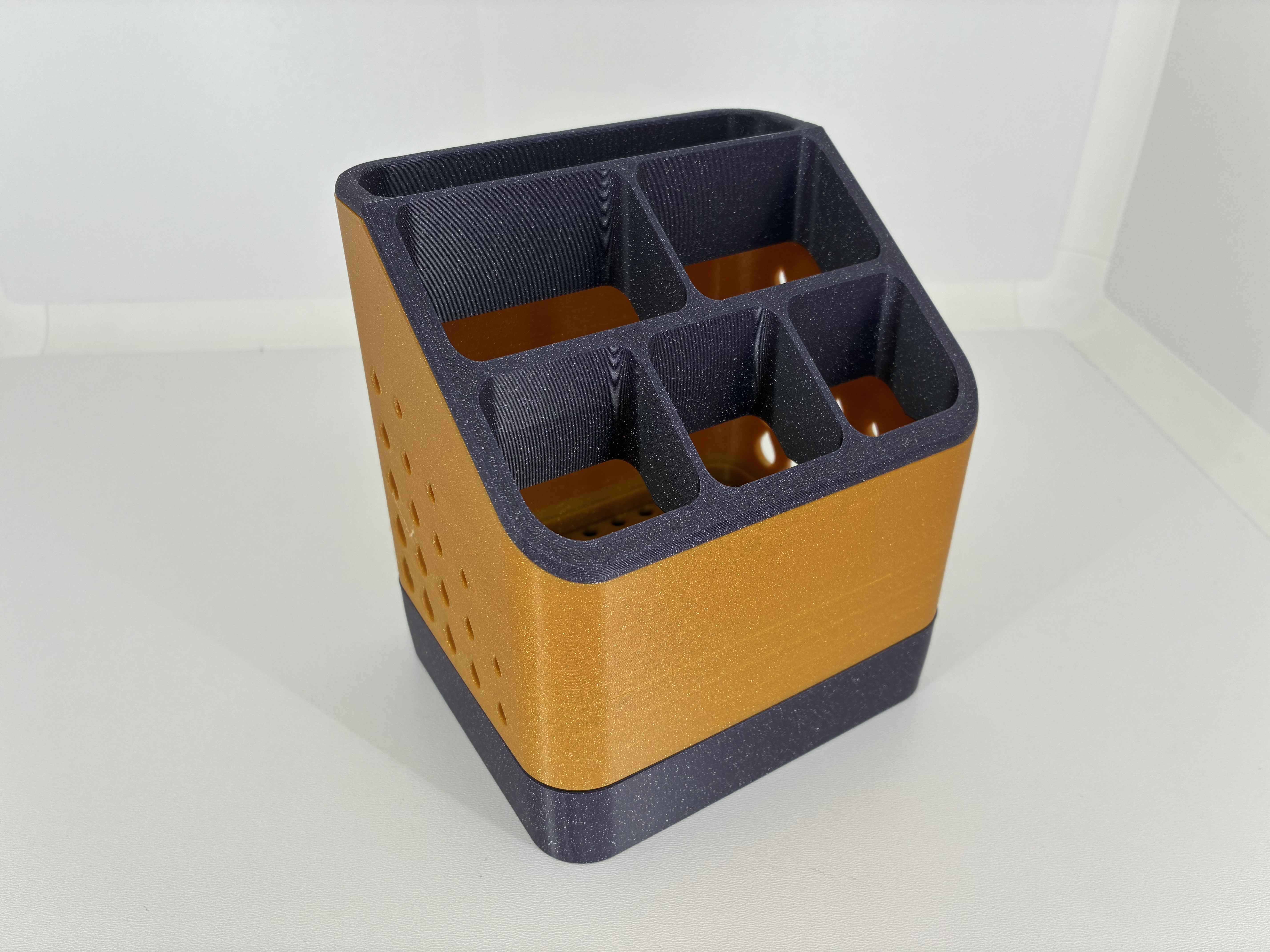

My gray print shows delicate shaded stripes, this is caused by different printing speeds, in the final printing profile I reduced the speed of the outer wall to 100mm/s to make the color uniform.

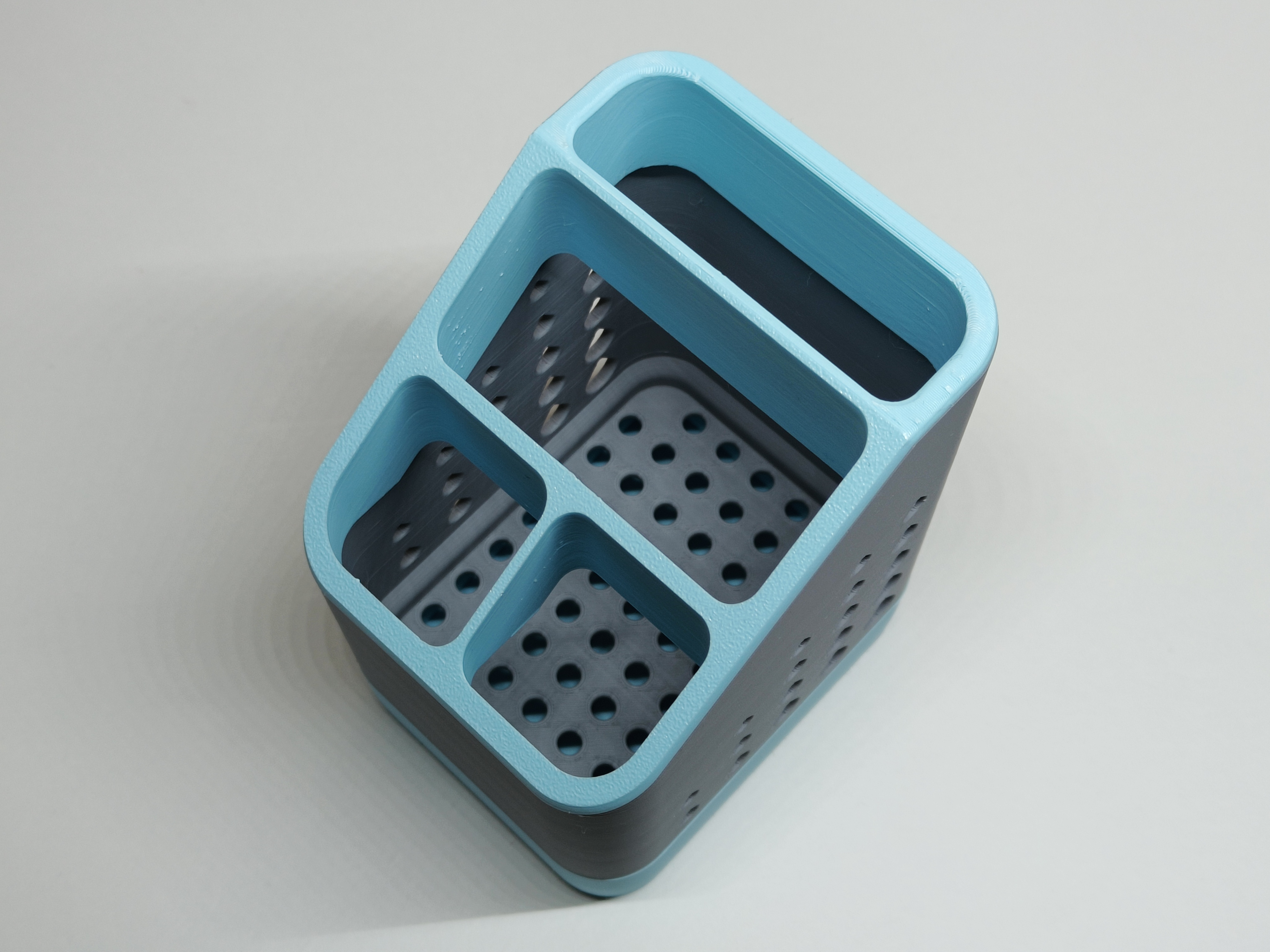

The grid at the bottom is not mandatory, it is added to keep the cutlery in its compartment.

Before you start printing, make sure you have a clean plate (Wash it in warm soapy water or IPA).

If you have printed it, please leave a rating.
