Modelo 3D Wall hook por Greg Verin no MakerWorld

Descrição

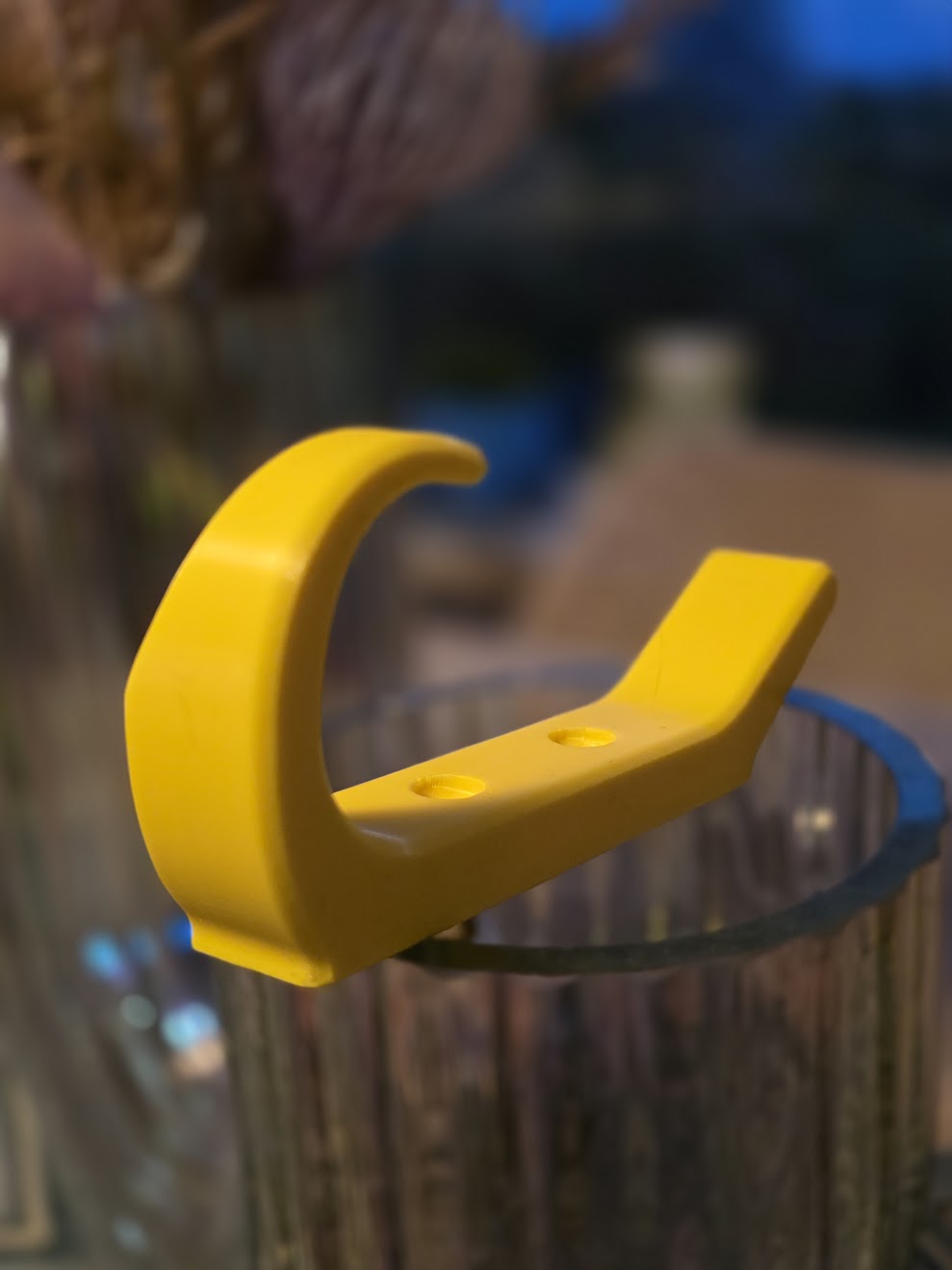

I was searching for a proper way to store/hang the jackets/coats - as we are quite demanding for aesthetics, this is what I designed and printed. I decided to make the lower hook thinner for smaller things, whereas the top is thicker and less pointy for hoods.

Initially I planned to also cover the hole for screw, but after finding the oxidized screws, I decided to leave it as is.

It is to be used with fi~ 3.8-4 mm conical screw (max head diameter 8mm, hole opening is 4mm).

Printed for test in basic PLA, final ones printed using PLA-CF, that guarantees that layer lines disappears and additionally improves stiffness.

Printed with 8 wall loops as well as 8 layers top/bot to further improve the mechanical durability.

I printed two mirrored variants and mixed them on the wall. Both are provided on separate plates.



Update: as there were questions for no hole versions (for velcro/tape mounting) - I added them, as well as updated the profile with combined variants.

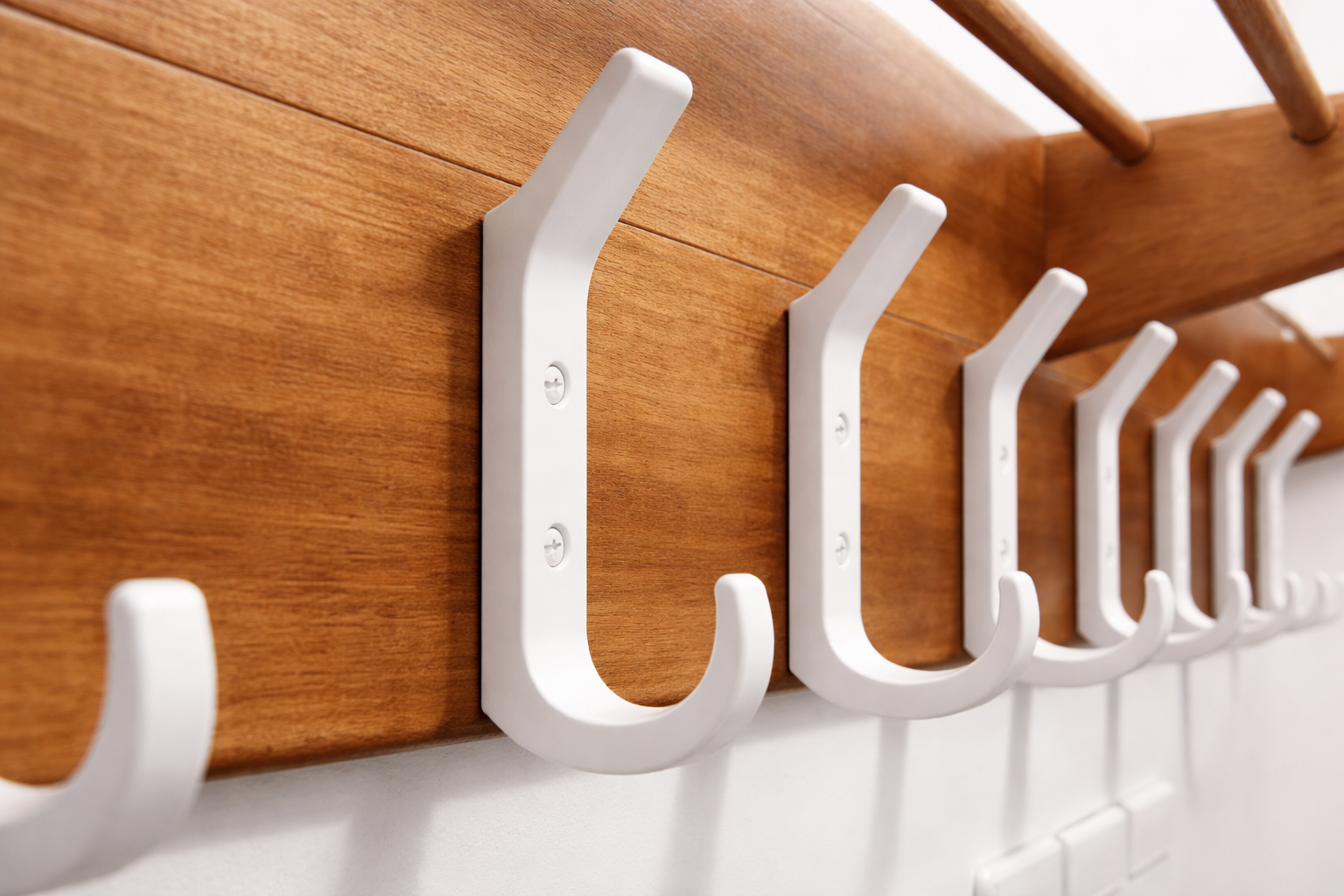

Also - as a user of this hooks from picture - after two years no wear or tear visible :)

MakerWorld

Wall hook

Publicado em 18 de mai de 2024

1,180
Curtidas
5,897
Downloads
3,200
Coleções
3,596
Impressões
Categoria Other House Models
Tags
hook wall coat hanger coat hanger towel
Licença Standard Digital File License
