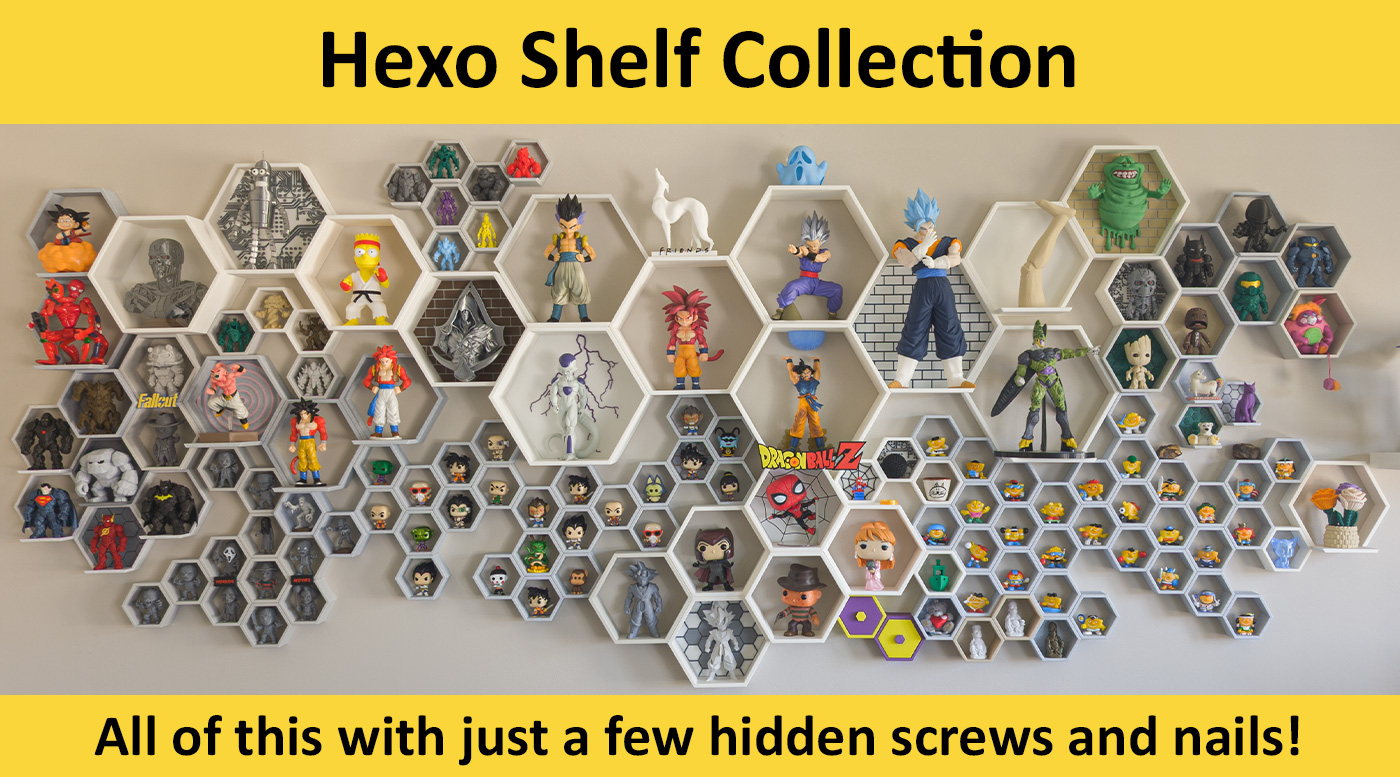

While there are many honeycomb shelf designs available, I couldn’t find one that fully matched what I had in mind.

My goal was to create a truly modular system that can be expanded over time without drilling additional holes and, most importantly, without any visible screws.

With this design, just two nails or screws can securely support multiple shelves and significantly more weight than you might expect.

Printing details

Support is required for the Solid Shelf, but only on the bottom part. I’ve added a support blocker for the top section, since supports there would only ruin the print.

I also enabled ironing on the top surfaces of the Solid Shelf to improve the appearance. Feel free to disable it if you prefer a faster print or a different finish.

For the best print quality, please follow the settings in the print profiles.

Required Components

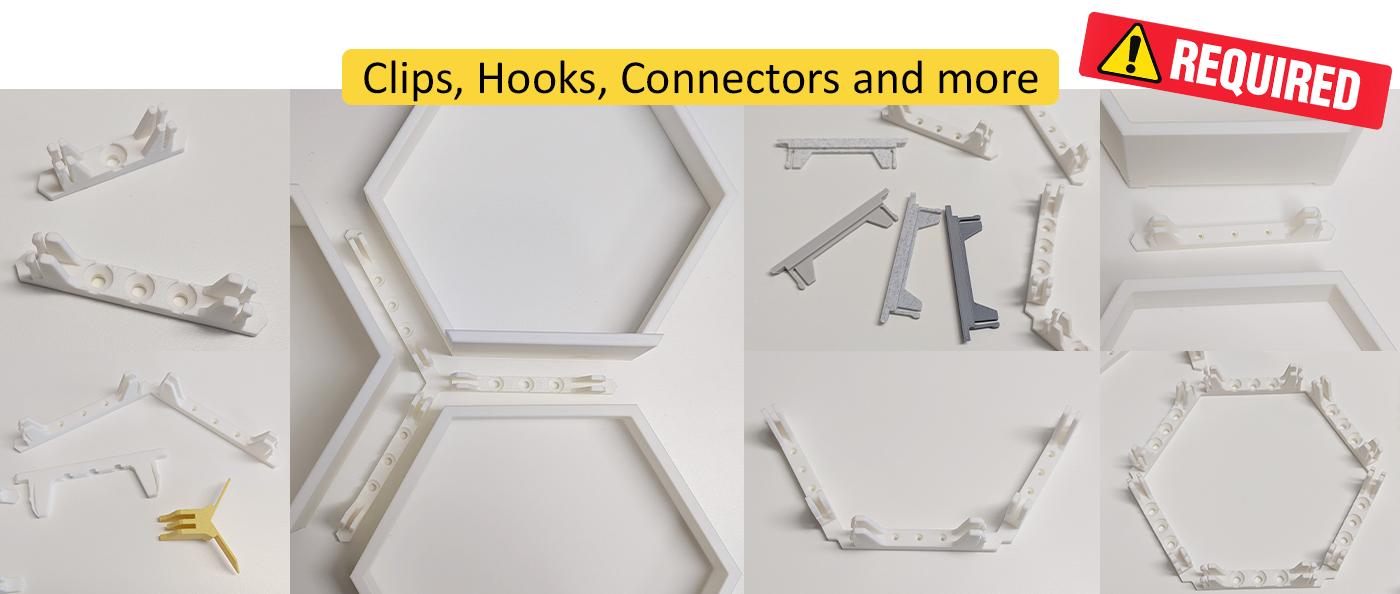

Important: Hexo Clips are required to assemble the shelves.

Use the Clips to cover the external edges of the shelves, and the Connectors to join multiple shelves of the same size. The same Connector can also be used as a wall Hook to fix the shelves to the wall.

You can use either nails or screws. Print the version that best fits your needs.

• Clips are available here: [https://makerworld.com/en/models/2352863](https://makerworld.com/en/models/2352863)

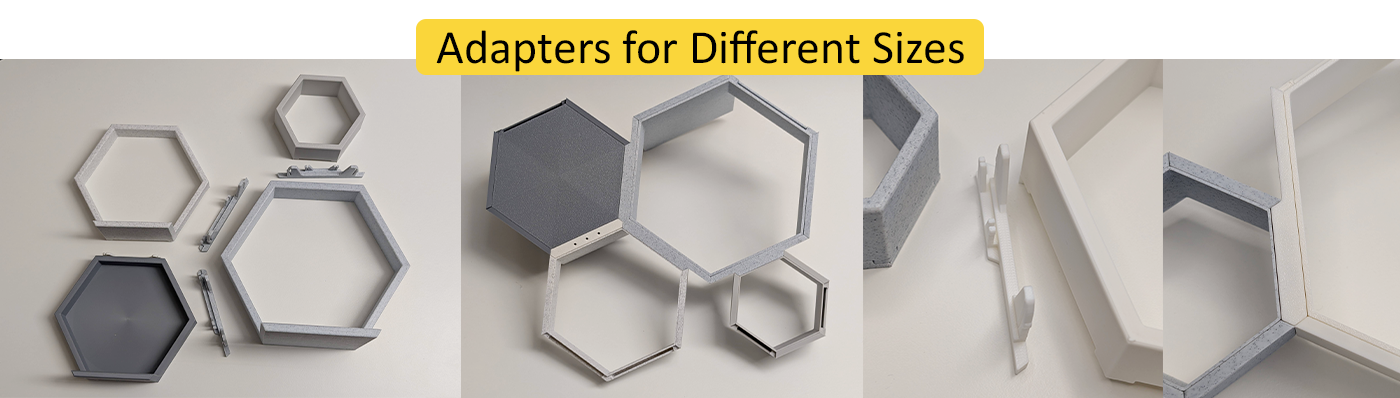

Adapters are only required if you want to connect Hexo shelves of different sizes.

Use Adapters to connect different sizes, combine variants to build your own unique and spectacular display!

• Size Adapters are available here: [https://makerworld.com/en/models/2115832](https://makerworld.com/en/models/2115832)

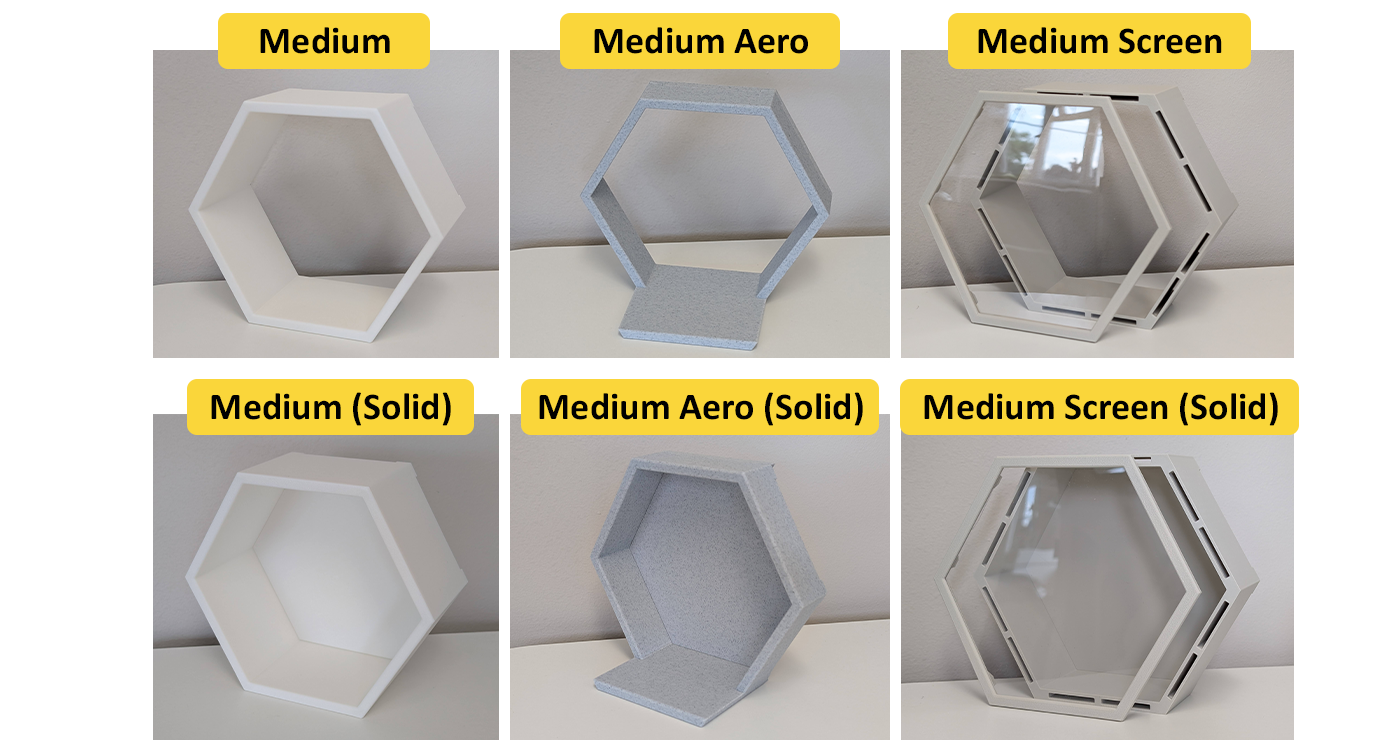

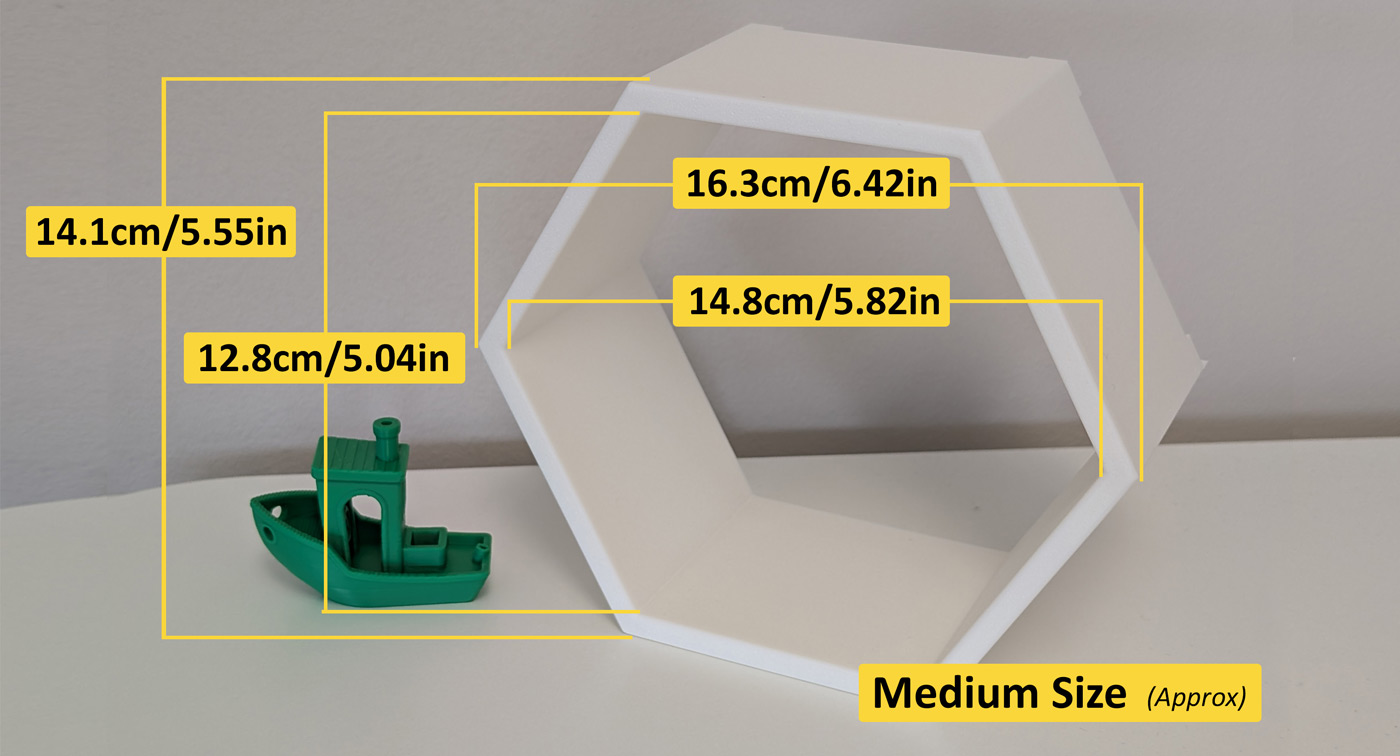

Here are all the available versions of the Medium Shelf

• Medium Choose the print profile you prefer, with or without a back panel.
• Medium Aero is available here: [https://makerworld.com/en/models/1383339](https://makerworld.com/en/models/1383339)
• Medium Screen is available here: [https://makerworld.com/en/models/1717127](https://makerworld.com/en/models/1717127)

Available Depth Sizes:

• 35 mm / 1.38 in
• 55 mm / 2.17 in
• 65 mm / 2.56 in
• 75 mm / 2.95 in
• 90 mm / 3.54 in

Follow us on

Assembly instructions

[https://makerworld.com/en/collections/2285984](https://makerworld.com/en/collections/2285984)

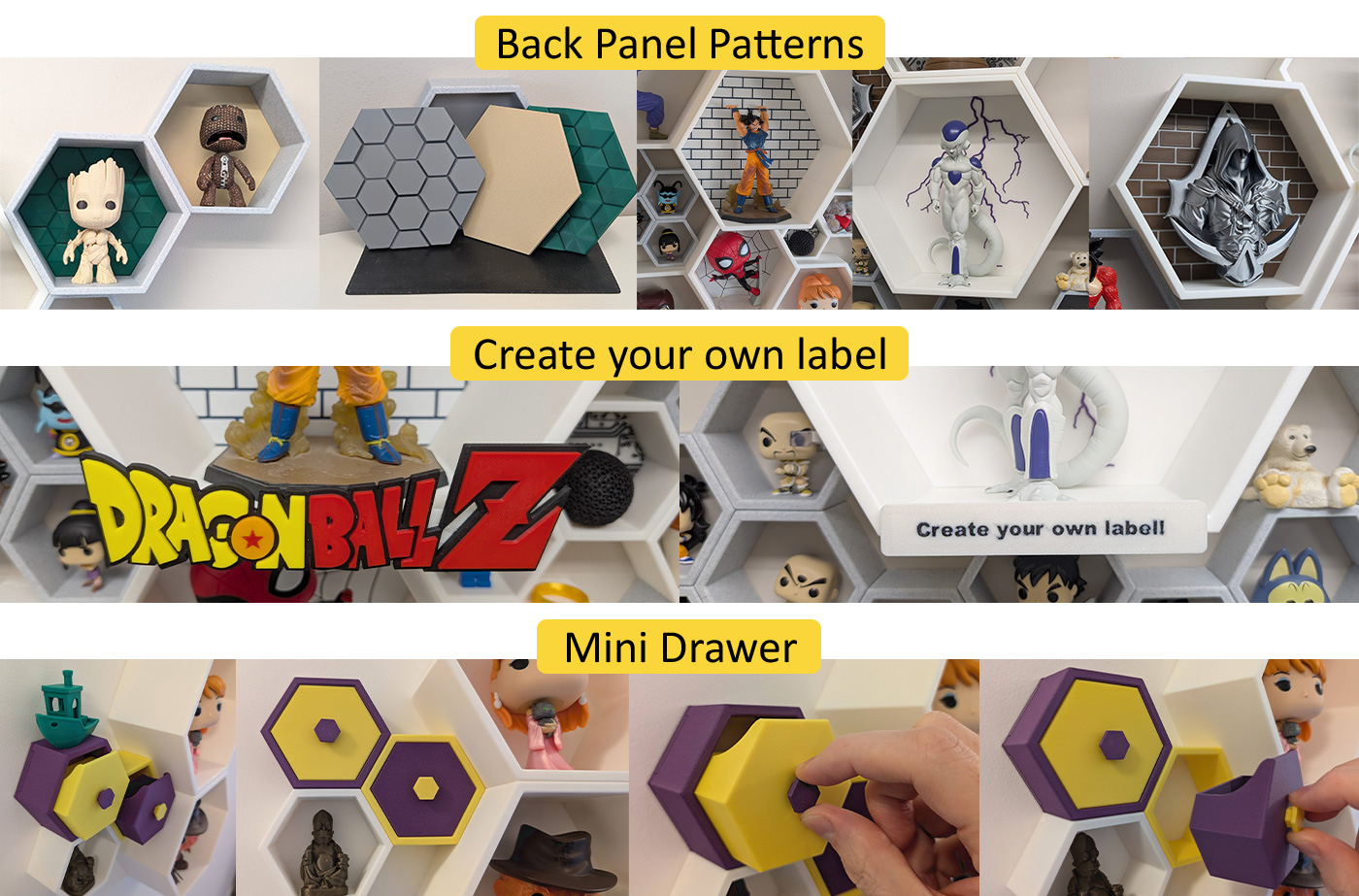

Optional Components

• Back Panels are available here: [https://makerworld.com/en/models/1654320](https://makerworld.com/en/models/1654320)
• Labels are available here: [https://makerworld.com/en/models/2253931](https://makerworld.com/en/models/2253931)
• Mini Drawer is available here: [https://makerworld.com/en/models/626189](https://makerworld.com/en/models/626189)
