The Layerform Modular Clock is a fully illuminated wall and desk clock built around a reusable internal platform.

Choose from four interchangeable frame styles and a growing collection of traditional, decorative, educational, sports, and children’s clock faces. The clock’s internal structure remains the same, allowing you to change its appearance without rebuilding the complete clock.

The initial complete-build profile includes the Tight Rib frame and Traditional Arabic clock face. Additional profiles contain the full frame collection and the available clock-face library.

Features

• Approximately 253 mm outside diameter
• Illuminated clock face
• Four interchangeable exterior frame styles
• Swappable clock faces
• Silent-sweep, high-torque quartz movement
• Wall-mounted or freestanding desk use
• Concealed lighting and movement hardware
• Snap-fit removable bezel
• Rear cable routing at the 6 o’clock position
• Heat-set inserts and machine screws for a durable, serviceable assembly
• Designed and physically print-tested as a complete system

New clock faces can be added to the collection without changing the clock’s underlying architecture.

Required hardware

Fasteners

• 10 × M3 heat-set inserts
• 10 × M3 × 8 mm button-head screws

Distribution:

• 3 heat-set inserts and screws for the front carrier/upframe
• 7 heat-set inserts and screws for the rear backplate

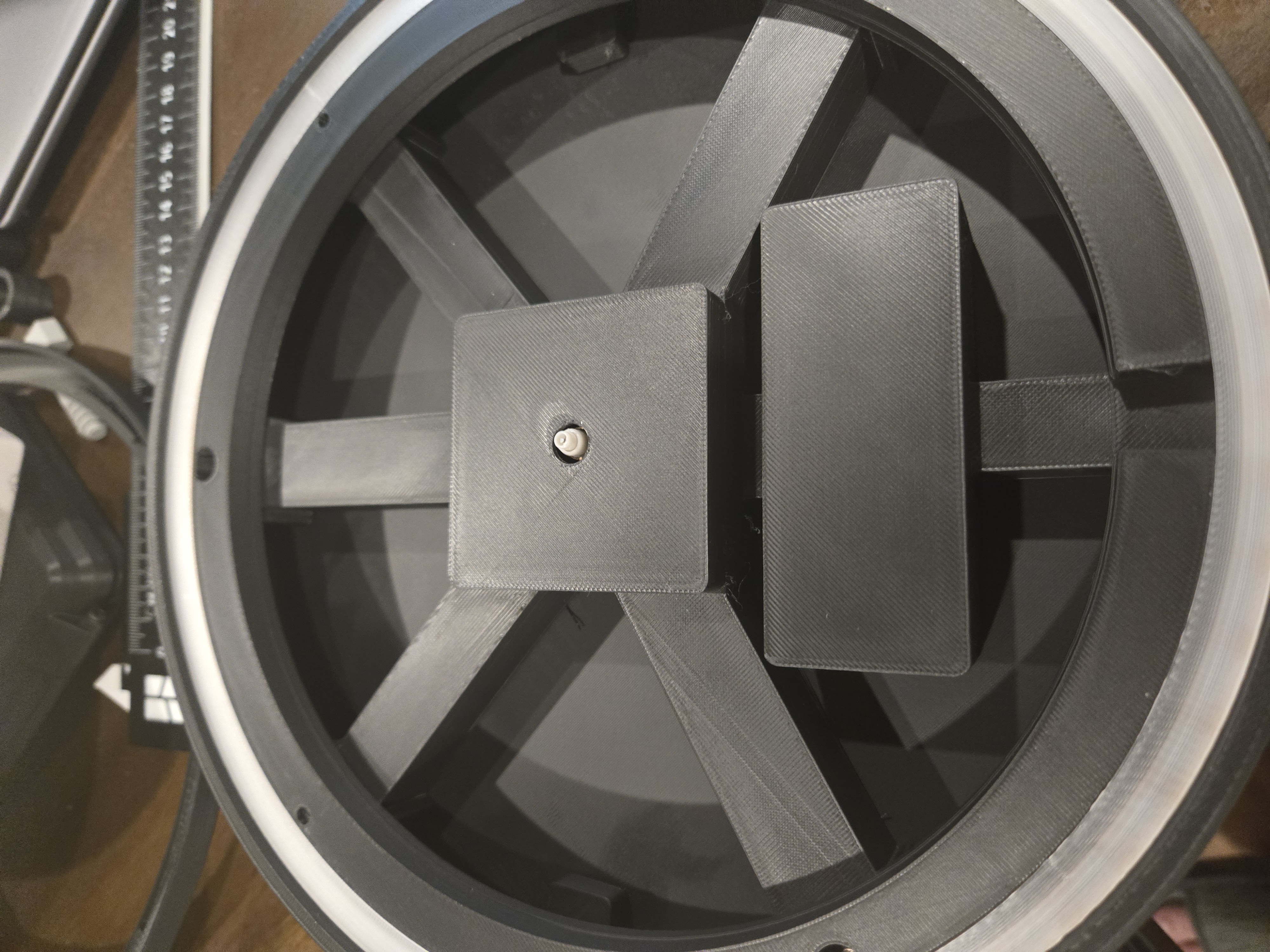

Black screws were used on the backplate and silver screws on the carrier in the pictured build, but screw color is cosmetic.

Clock movements

Standard and relatively flat clock faces

Use the EMOON High-Torque 12888 silent-sweep movement with a 5/8-inch total shaft.

Amazon – EMOON 5/8-inch movement

• ASIN: B089245T7F
• Total shaft: 5/8 inch
• Threaded shaft: 5/16 inch
• Recommended by the manufacturer for faces up to approximately 1/8 inch thick
• Includes multiple hand styles and mounting hardware

Faces with raised artwork near the center shaft

Use the EMOON High-Torque 12888 silent-sweep movement with a 3/4-inch total shaft.

Amazon – EMOON 3/4-inch movement

• ASIN: B07WDN9XH9
• Total shaft: 3/4 inch
• Threaded shaft: 7/16 inch
• Recommended by the manufacturer for approximately 1/8- to 1/4-inch dial thickness

The longer version should be used for faces such as the Circle Game face where raised artwork surrounds the movement shaft.

Lighting

Use the 5V USB lighting set used during development:

Amazon – LED lighting used for this clock

The strip must fit the clock’s 8 mm internal LED channel. The USB controller and cable are housed in the integrated rear lighting compartment.

Other items

• 1 × AA battery for the movement
• Soldering iron with heat-set insert tip
• Small Phillips or hex driver appropriate for the selected M3 button-head screws

Follow the movement manufacturer’s battery and installation instructions.
