Half-height stackable battery beer crate for LR44

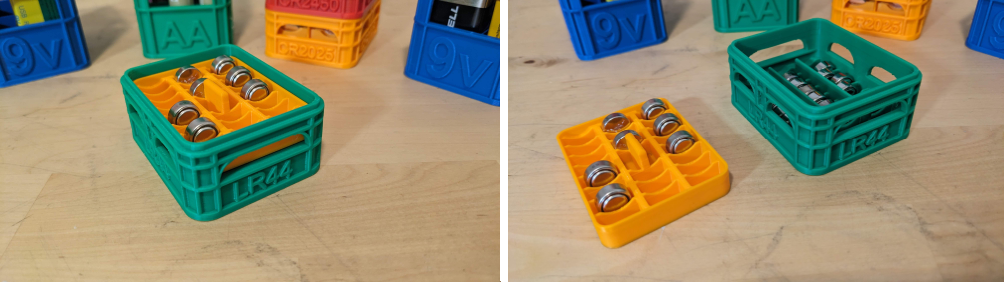

A new approach, based on my previous CR2032 battery crate, is to create an additional layer for the tiny LR44 batteries, by using an insertable organizer.

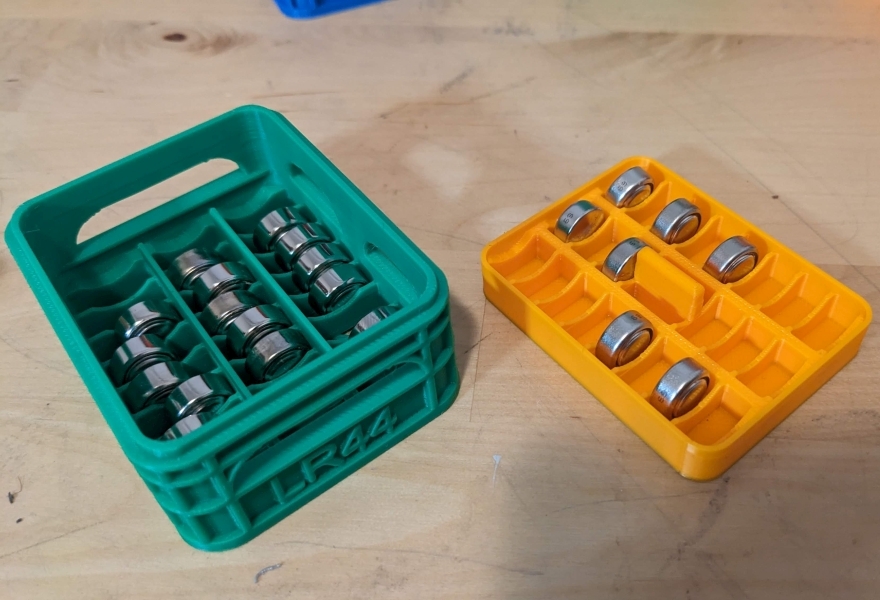

The main crate can hold a maximum of 24 coin cells, and the insertable organizer holds an additional 22 coin cells, for a grand total of 46 coin cells.

But again, same advice I gave with the other battery crate designs; while it is tempting to put all coin cells in 1 crate, they are a bit tricky to pull back out when closely packed. It's a lot easier if you leave one section empty between coin cells.

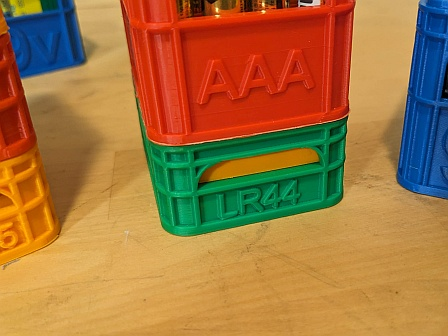

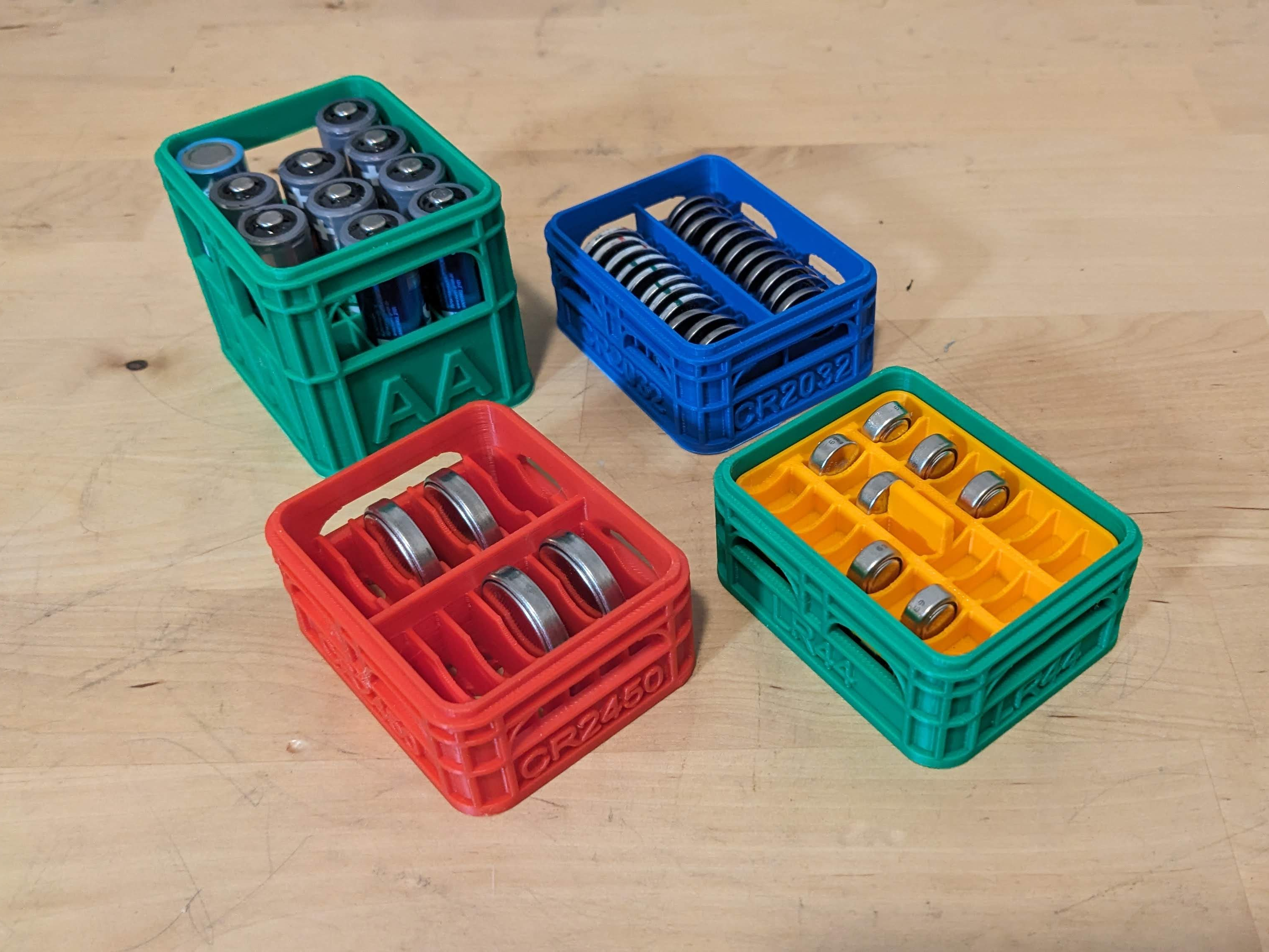

The new LR44 crate shares the same dimensions and stacking option as the other crates, making them fully compatible. The print profile is stable and easy, without the need for any removable supports.

Mixed bag prototype

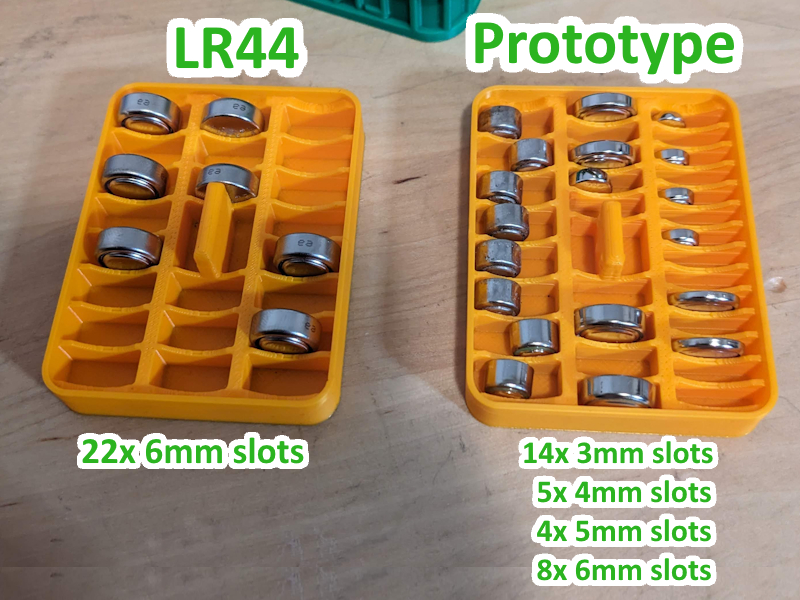

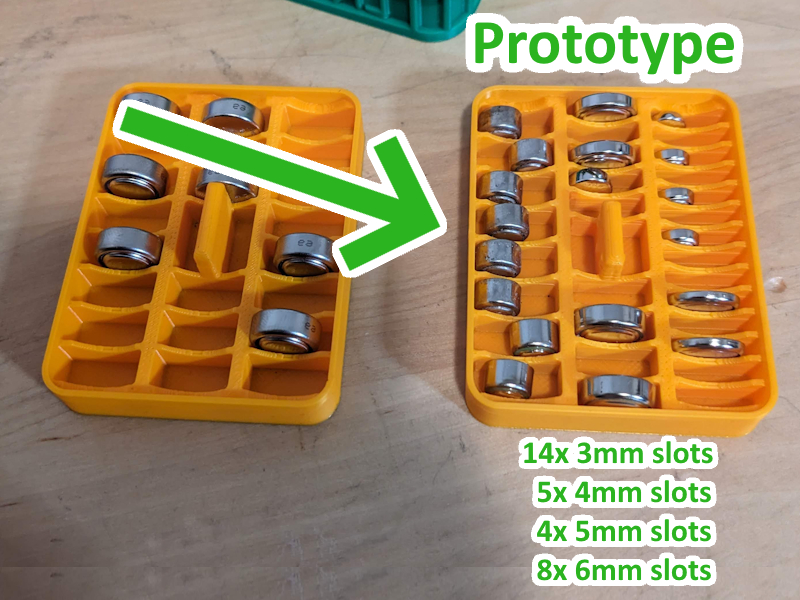

As a sort of bonus prototype, I've also made an insert for a wide selection of other (less common) coin cells I had laying around (LR621, LR626, LR754, LR1120, LR1130, LR41, LR43). Of this completely random stack of coin cells, some of them shared a similar diameter. My prototype insertable organizer is divided in 4 sections, each with a specific gap diameter. I ended up with:

• 14 slots of 3mm diameter (LR621, LR626 and LR1120)
• 5 slots of 4mm diameter (LR1130 and LR41)
• 4 slots of 5mm diameter (LR43)
• 8 slots of 6mm diameter (LR754)
