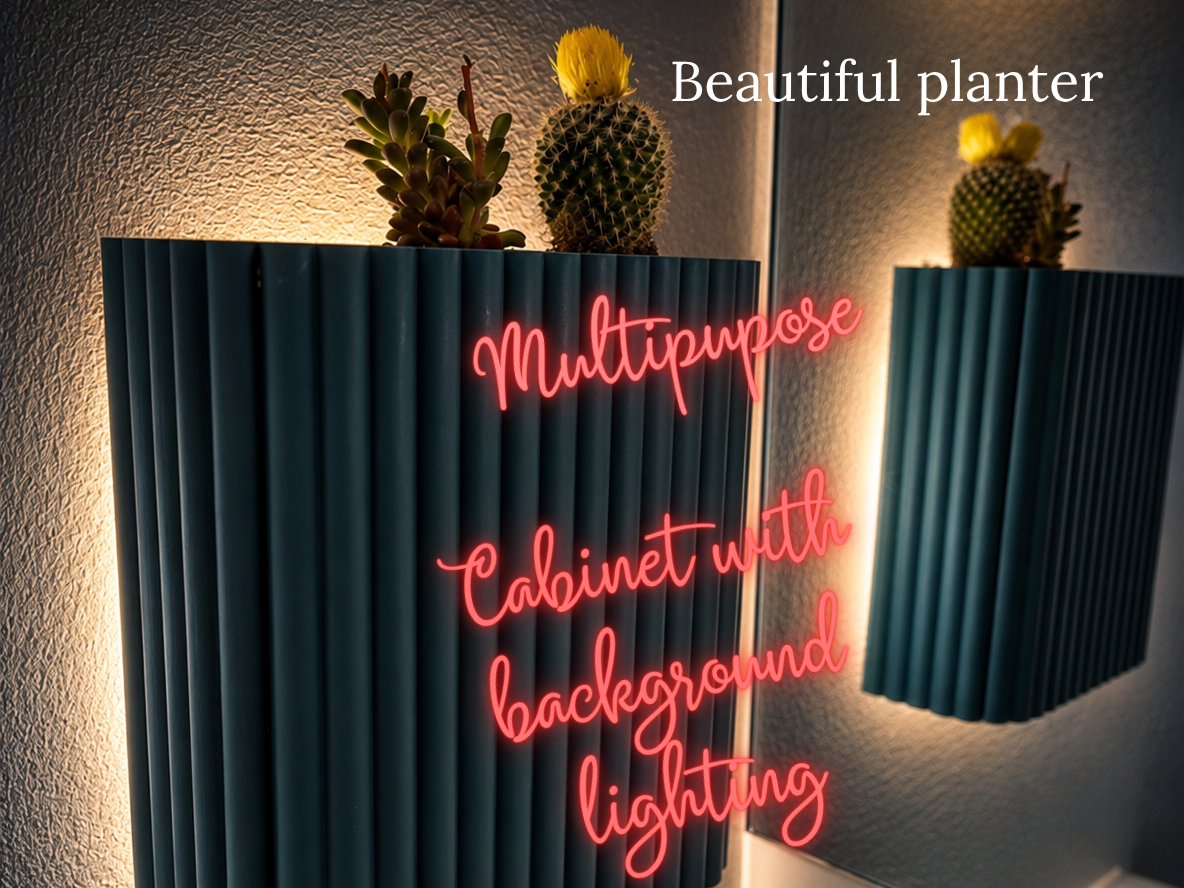

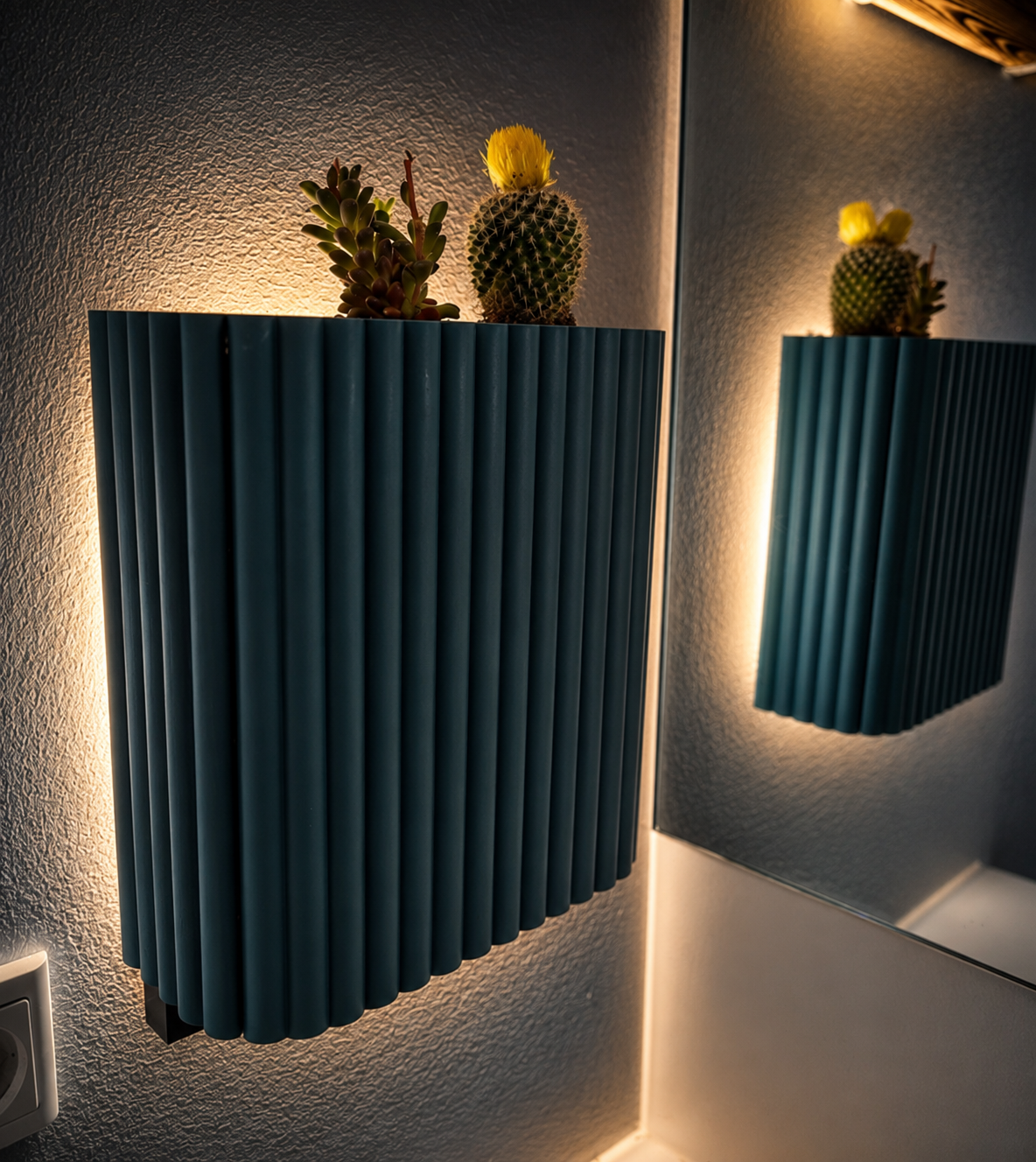

Multi-Function Storage Cabinet with Hidden Planter & LED Lighting

One cabinet. Endless possibilities.

This modular wall cabinet is designed to fit your needs, whether you're organizing everyday essentials, creating a stylish bathroom organizer, or adding ambient lighting to your home. With interchangeable doors, customizable inserts, and multiple lighting options, you can build the version that perfectly matches your space.

Modular Interior

Choose the insert that best suits your needs:

• 🪥 Toothbrush organizer
• 🔑 Key storage
• 📦 Small item storage
• 🛠️ General-purpose storage

The cabinet can be printed with two different door styles, allowing you to customize both the appearance and functionality to suit your home.

and a left and right side hinge print profile.

Integrated LED Lighting

Transform your cabinet into a practical night light or decorative feature with several lighting options:

• 🔋 Battery powered
• 🔌 USB-C powered
• ⚡ Directly powered from a wall outlet

The lighting system can also be configured with:

• Adjustable brightness
• Optional PIR motion sensor
• Always-on lighting (depending on your chosen electronics)

Build the version that best fits your needs.

Hidden Planter

The top of the cabinet doubles as a decorative planter, adding a touch of nature to any room.

Two planter options are included:

• 💧 Water-retaining insert for plants that require more moisture.
• 🌵 Standard insert (no insert) for low-maintenance plants such as cacti, succulents, mosses, or other small decorative plants.

Choose the insert that best matches your favorite plants.

Required Parts (Motion Sensor Version)

If you want to build the cabinet with battery-powered motion sensor lighting, you will need:

Hardware

• 6 × 4 × 1.5 mm magnets
• 4 × 6 × 2.5 mm magnets
• Super glue
• Optional low-profile screw for the battery holder
• Approximately 20 cm of 1.75 mm filament for the printed door hinge

Electronics

• 1 × 18650 battery holder
• 1 × USB-C charging and protection module
• 1 × MT3608 step-up converter
• 1 × MOSFET trigger module
• 1 × SR501 PIR motion sensor
• 2 × 15 cm 10 mm COB LED strips
• 22 AWG flexible stranded wire
• Optional 3-pin Dupont connector for the PIR sensor

Direct Power Version

If you prefer to power the cabinet directly from a USB power supply or wall adapter, you only need:

• 40 cm of 10 mm COB LED strip or REGB LED

This version eliminates the need for batteries, charging electronics, motion sensors, and step-up converters, making it a quick and simple build.

Build Guide

A complete PDF Build Guide is included with this project.

Inside the guide you'll find:

• Step-by-step assembly instructions
• Wiring diagrams
• Electronics assembly
• Recommended components with purchase links
• LED setup options
• Helpful tips and additional information

Whether you build the simple storage version or the fully featured motion-sensing illuminated cabinet, the guide will walk you through the entire process from start to finish.

Print it your way. Customize it your way.

From a simple storage cabinet to a fully illuminated smart organizer with a hidden planter, this project is designed to be as flexible as your imagination.

Happy printing! 🌿💡
