1/72 M4A3E2 Jumbo

A completely original M4A3E2 Jumbo model in 1/72 scale!

I took a few notes from other 1/72 models on Maker World, and decided to make the construction and design of this tank a little bit similar to those designs (for example, the turret rotation mechanism). Other than taking inspiration from others, this model is created by me. This model sacrificed a bit of detail in order to make it multicolor while being AMS-free!

Want it in 1/48 scale? Just scale it up to 149.99%. It's not recommended to print it in 1/100, but if you also want it in 1/100, scale it down to 71.99%

Assembly

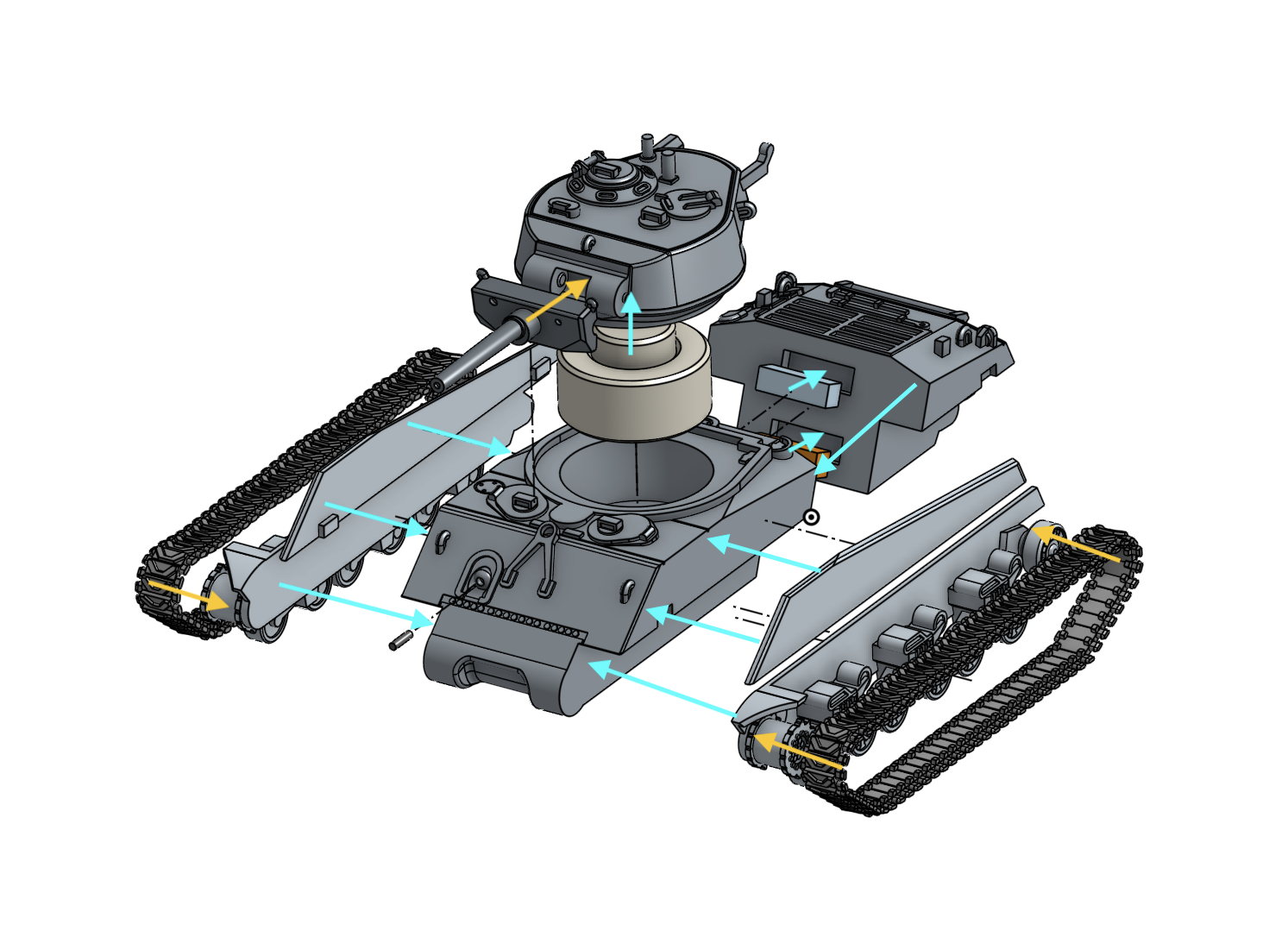

General

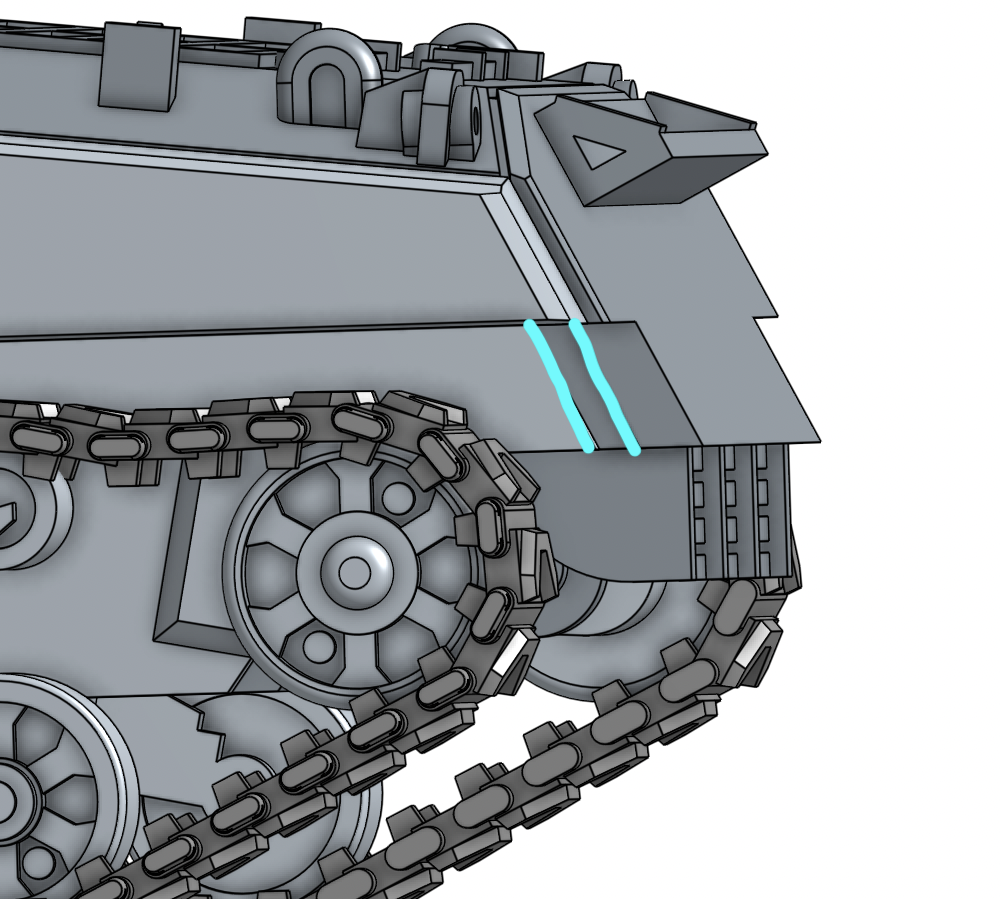

Blue lines indicate that you will need glue to assemble the parts. Yellow lines indicate that you don't need glue, as they are either moving parts or parts that don't require glue.

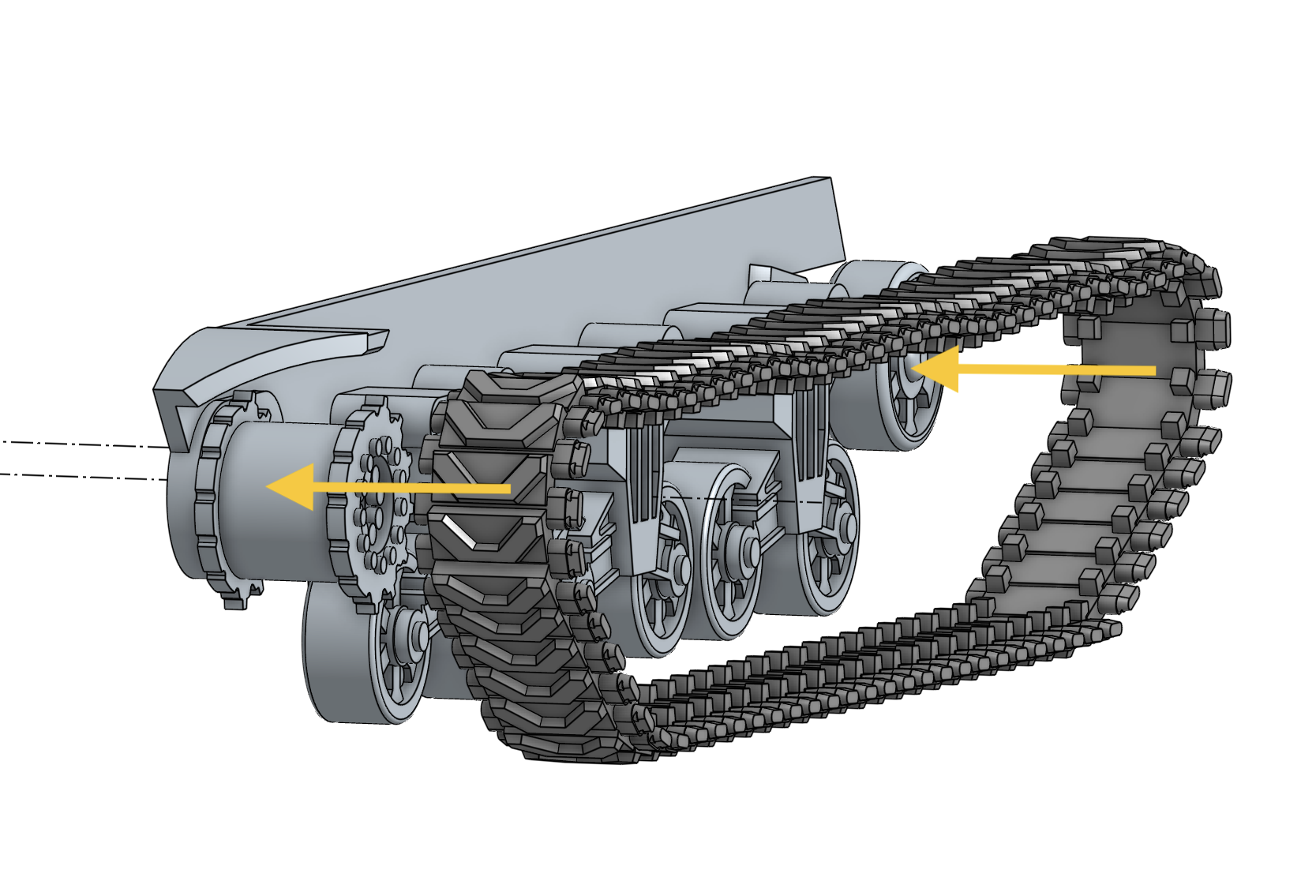

Tracks

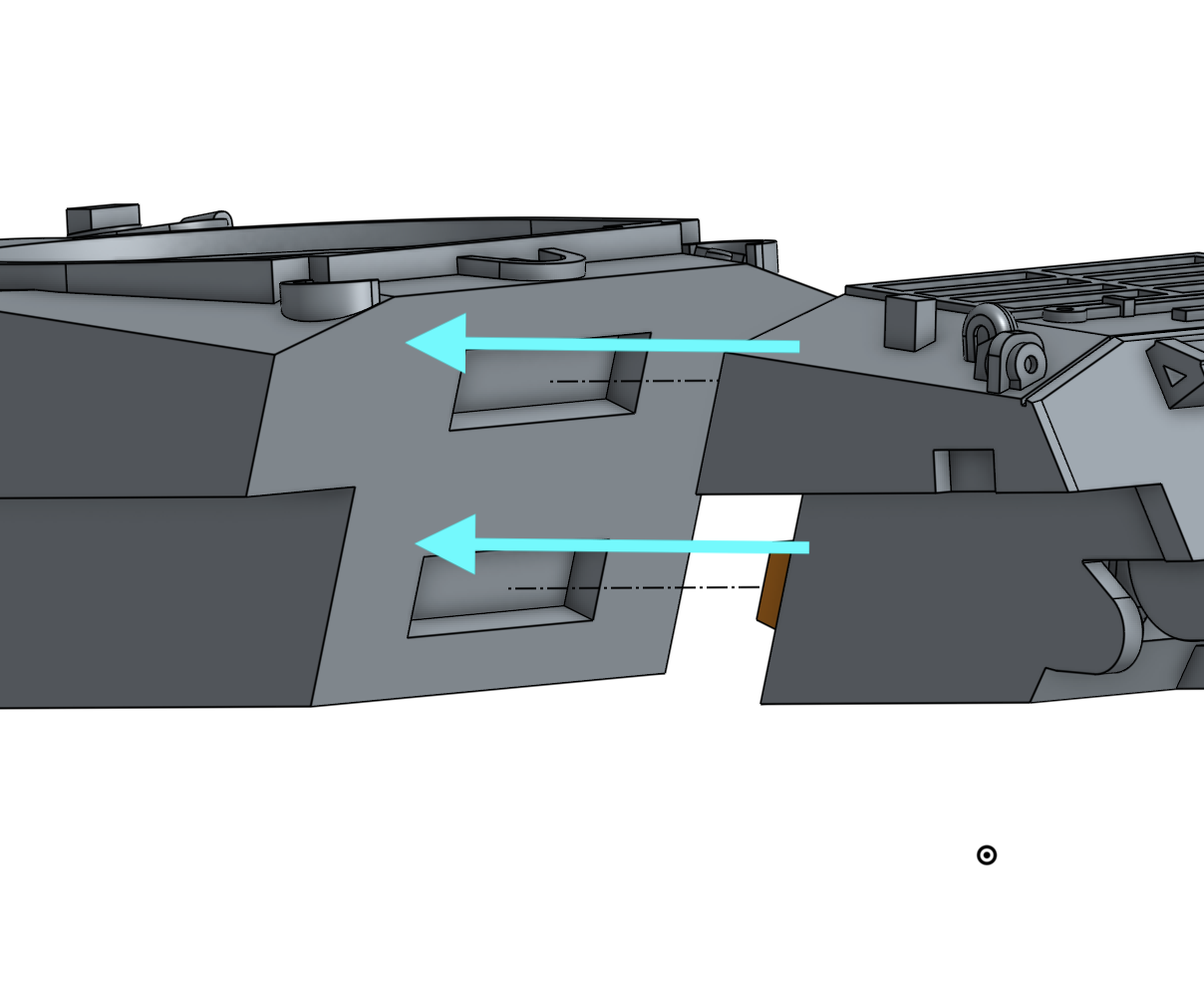

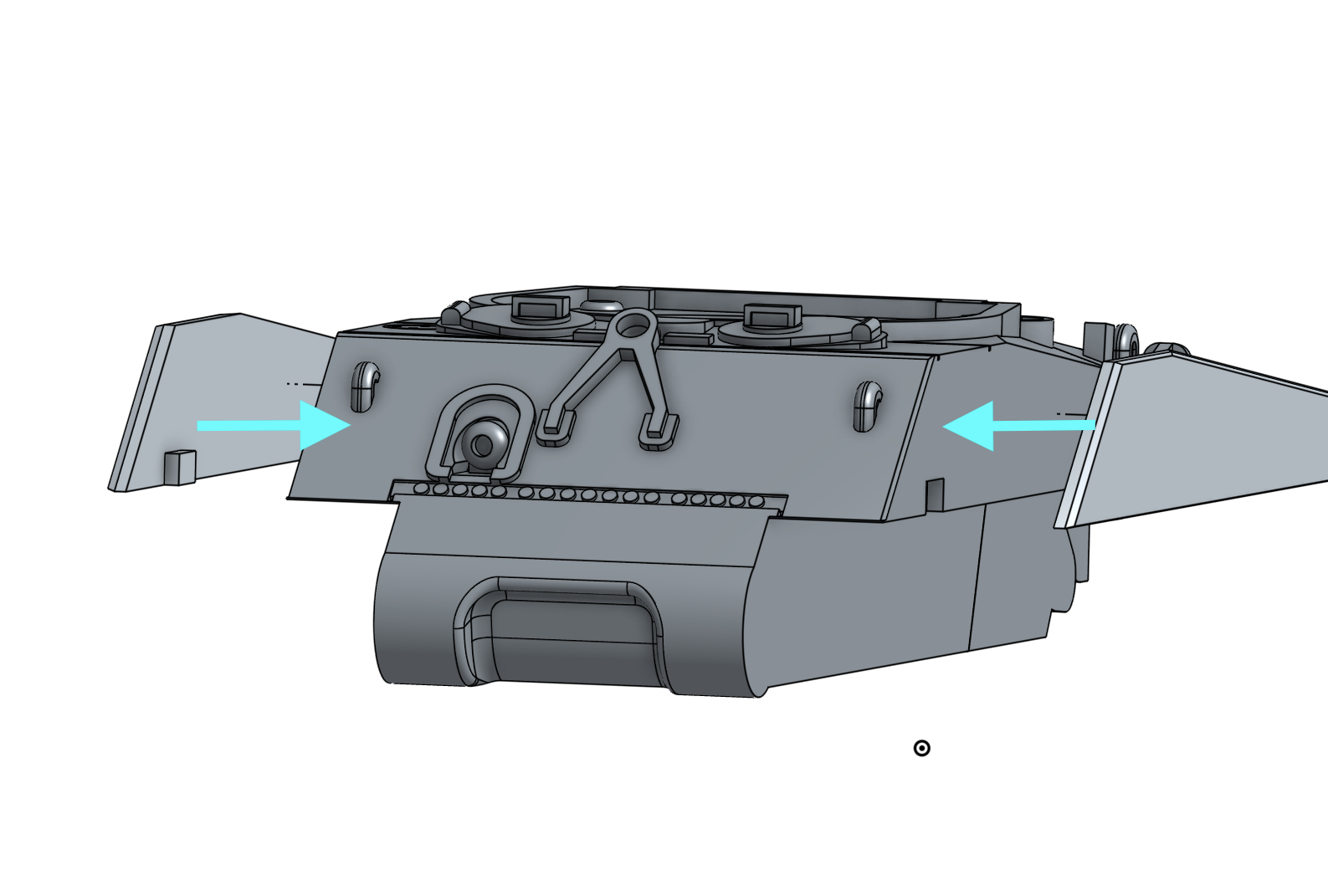

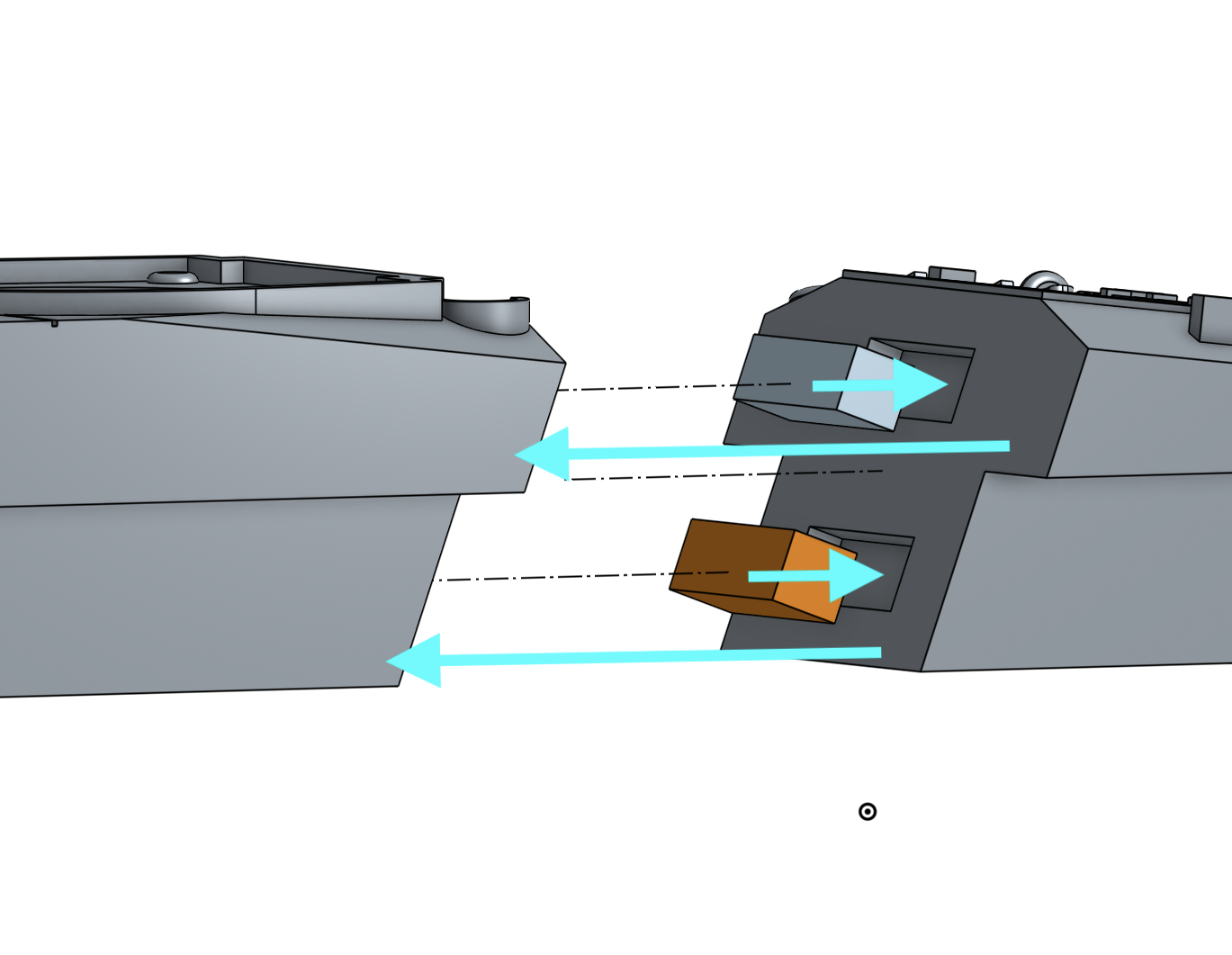

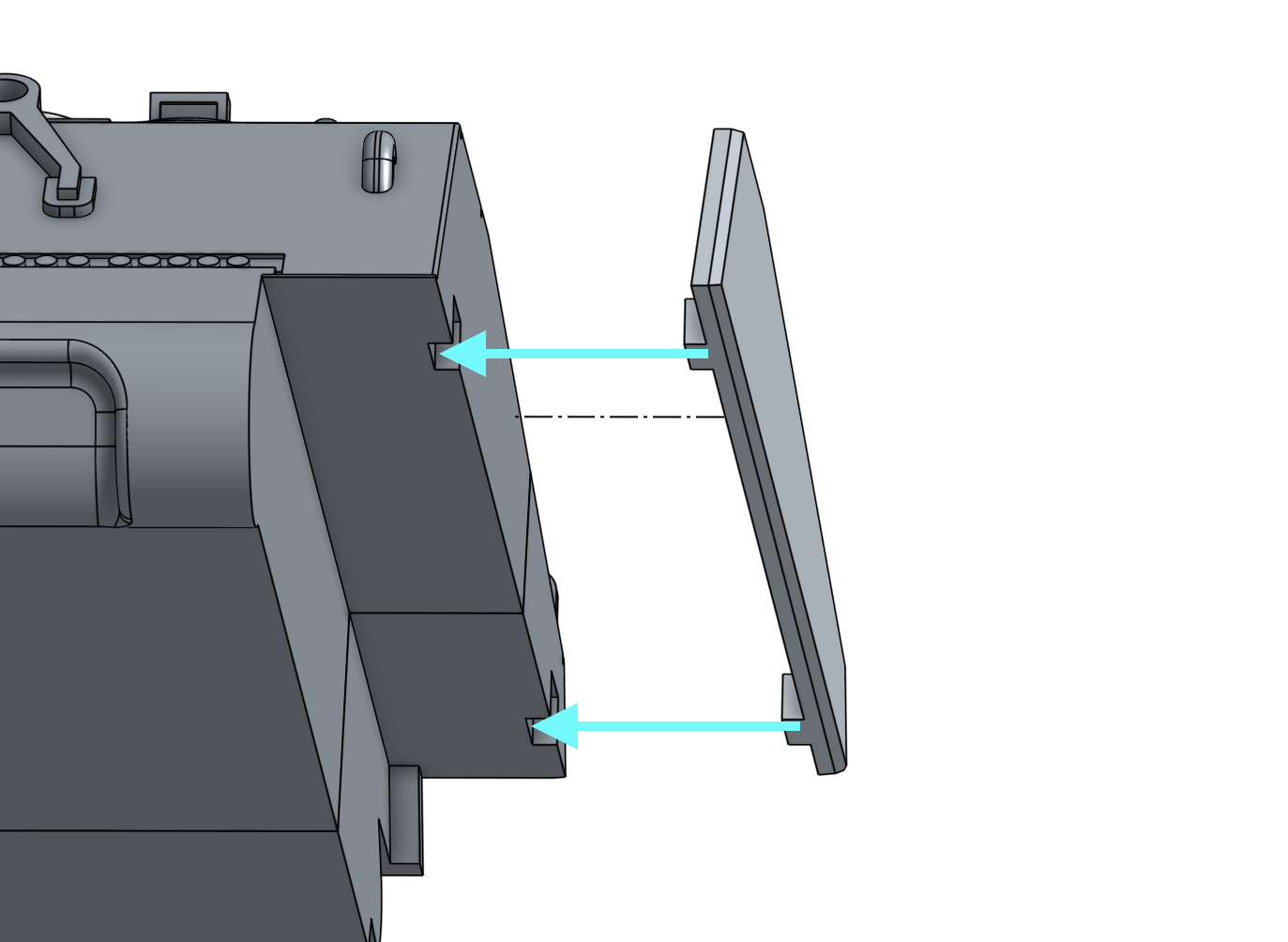

Hull

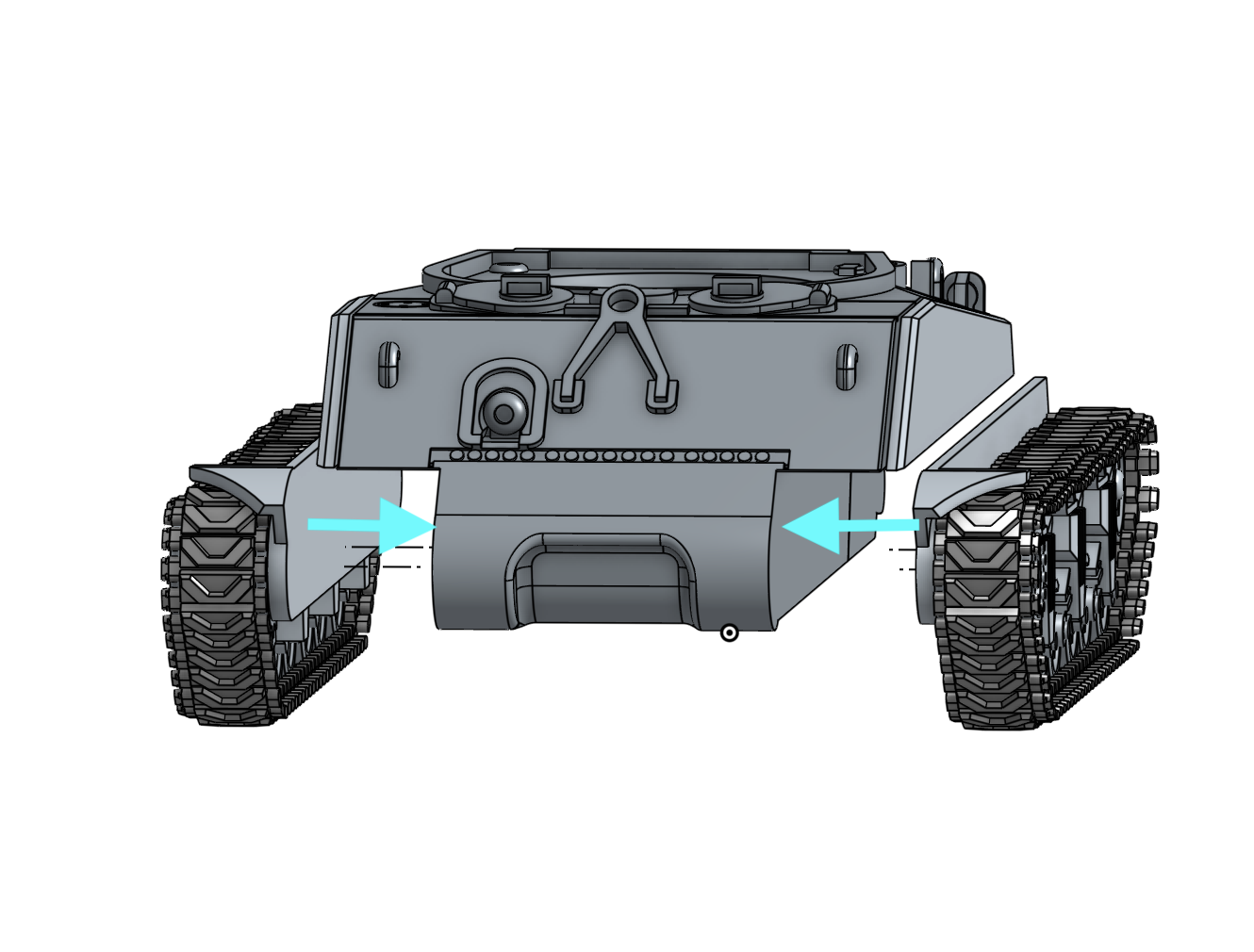

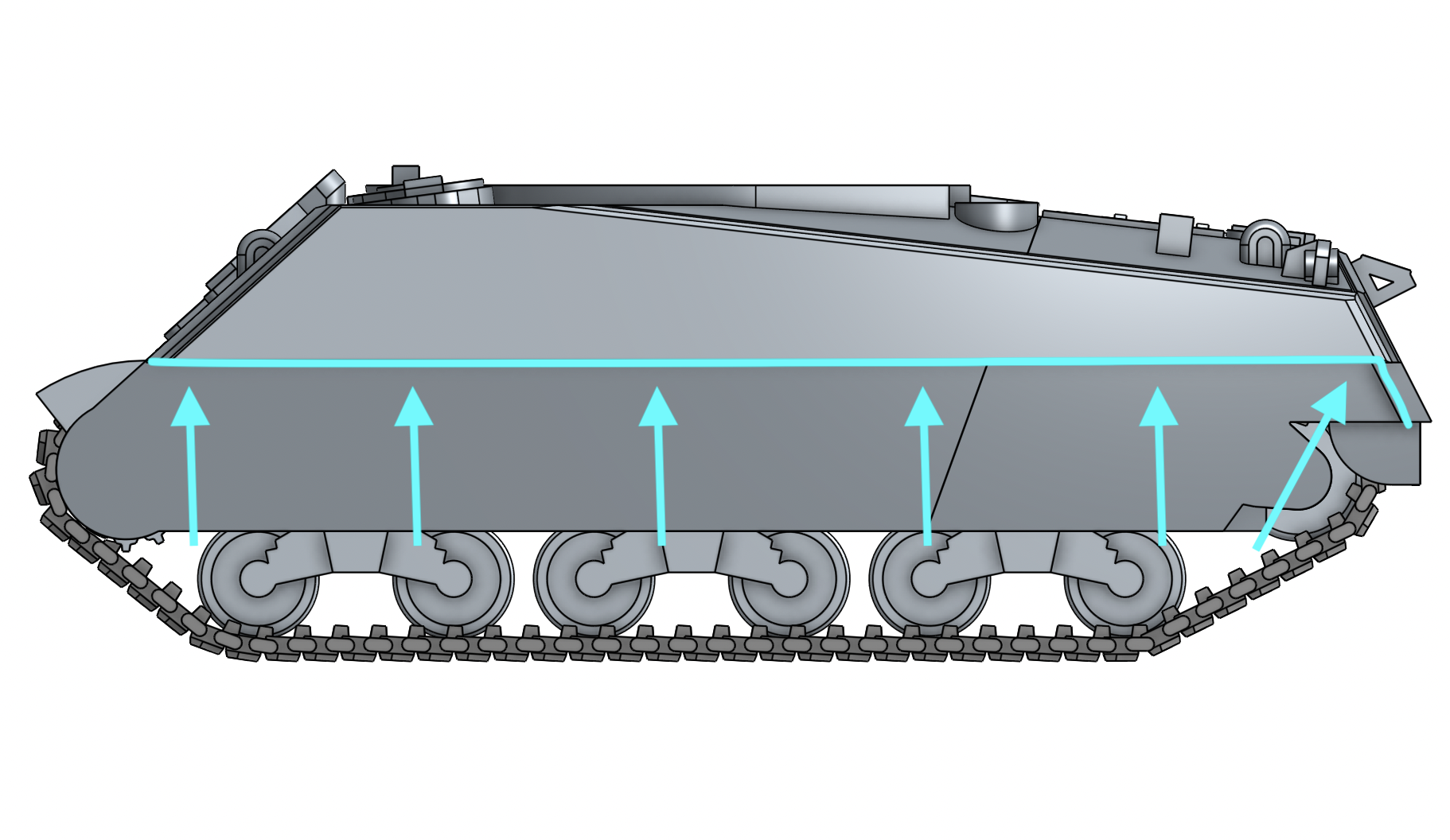

Tracks-to-hull

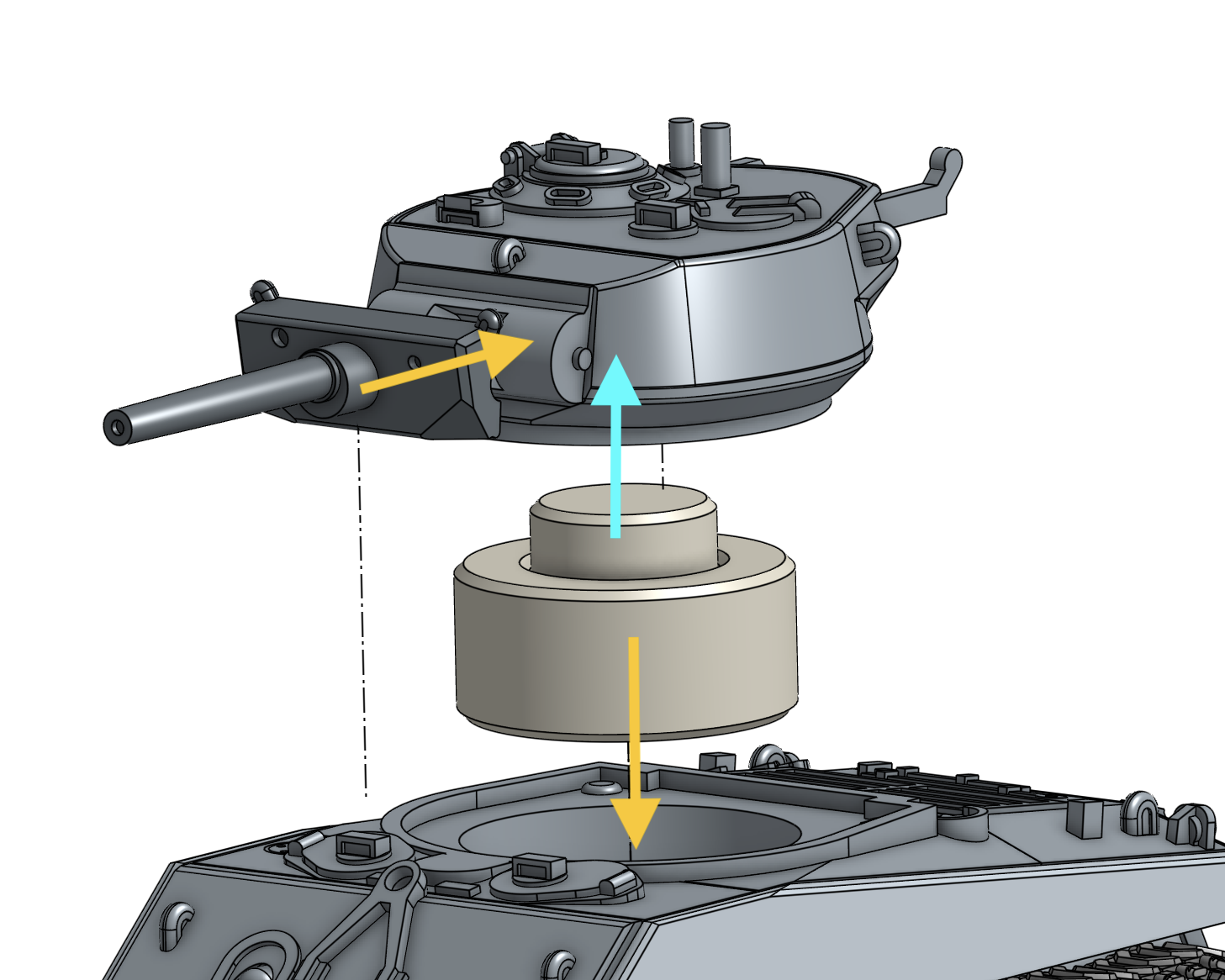

Turret

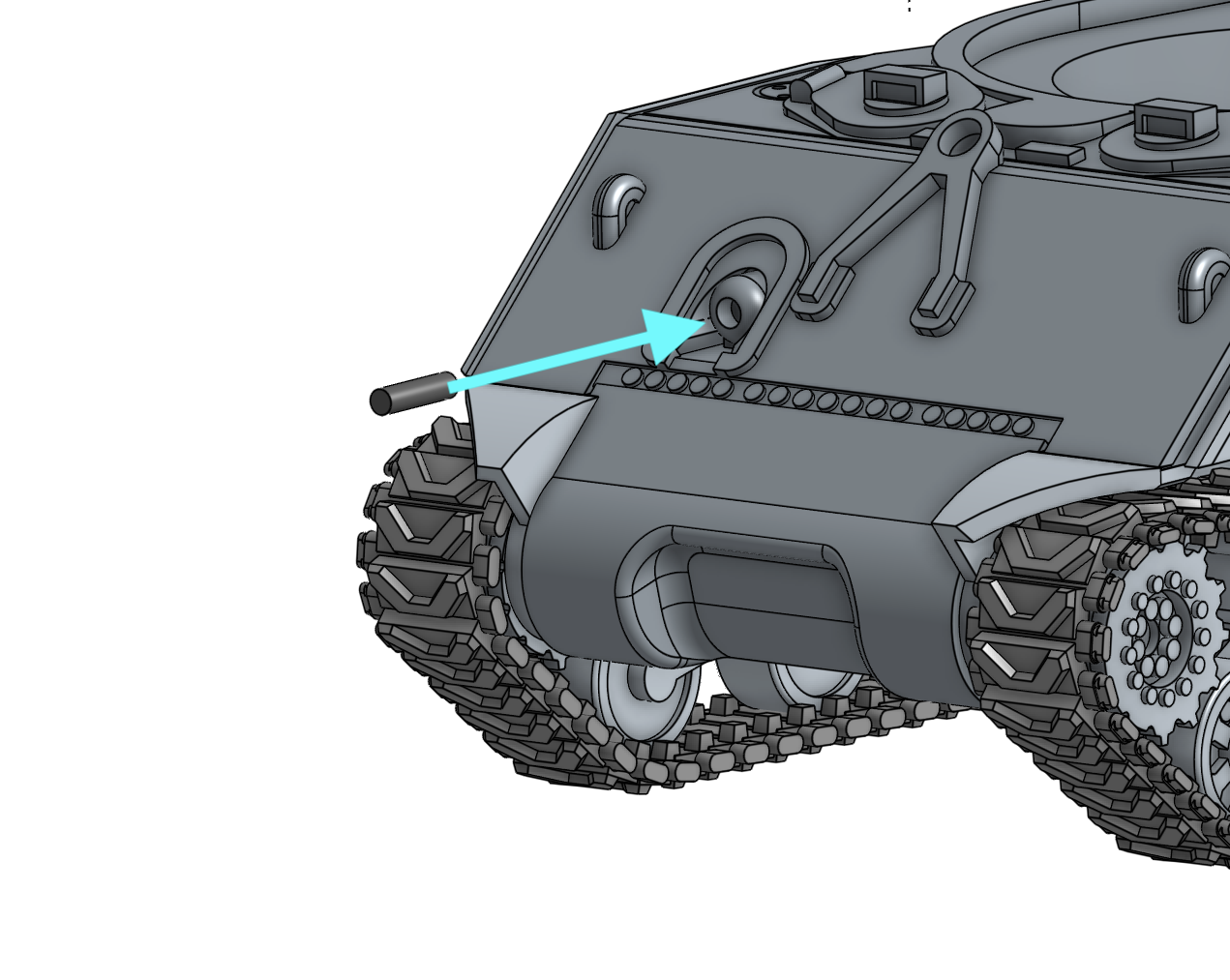

Hull MG

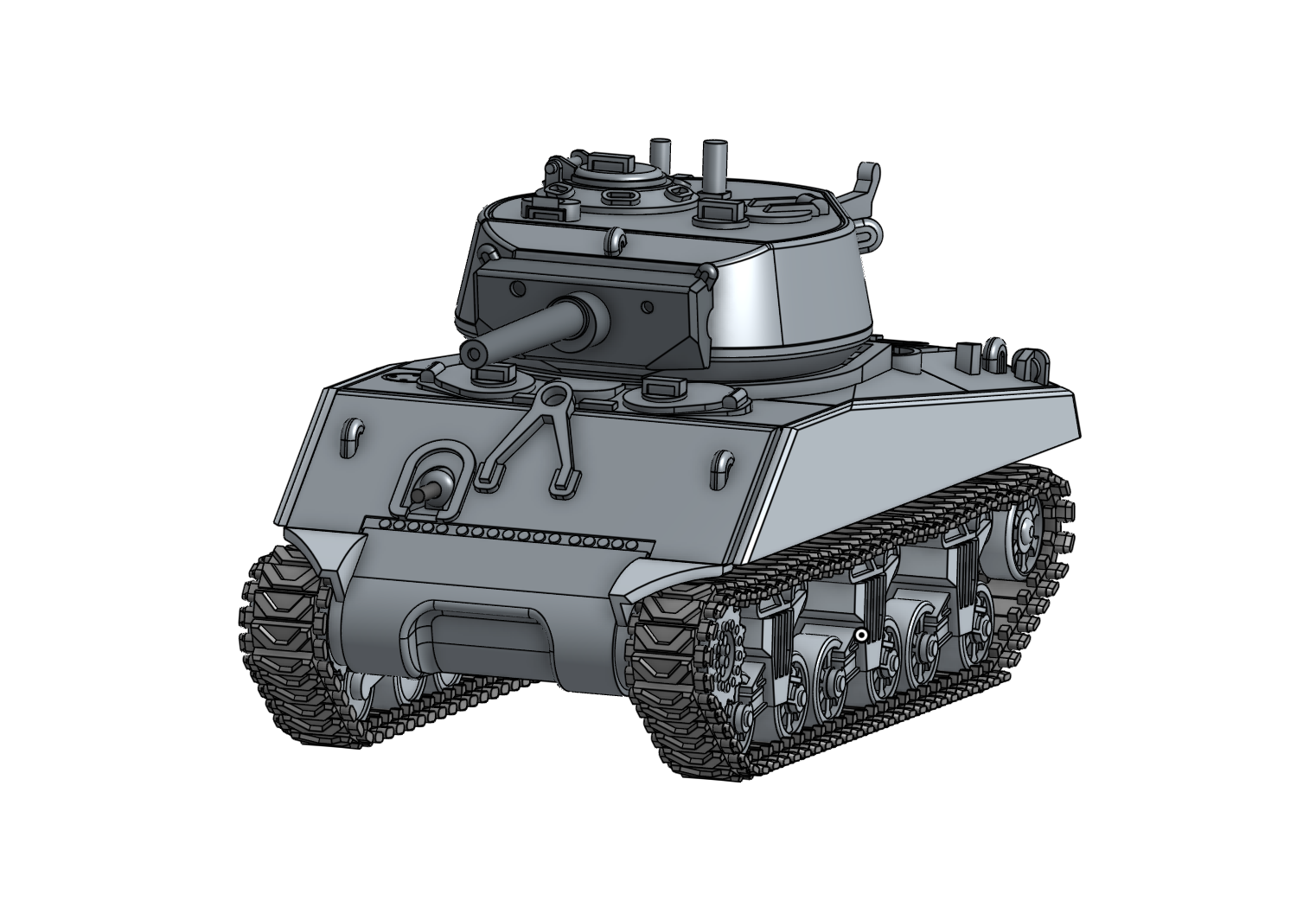

It's complete!
