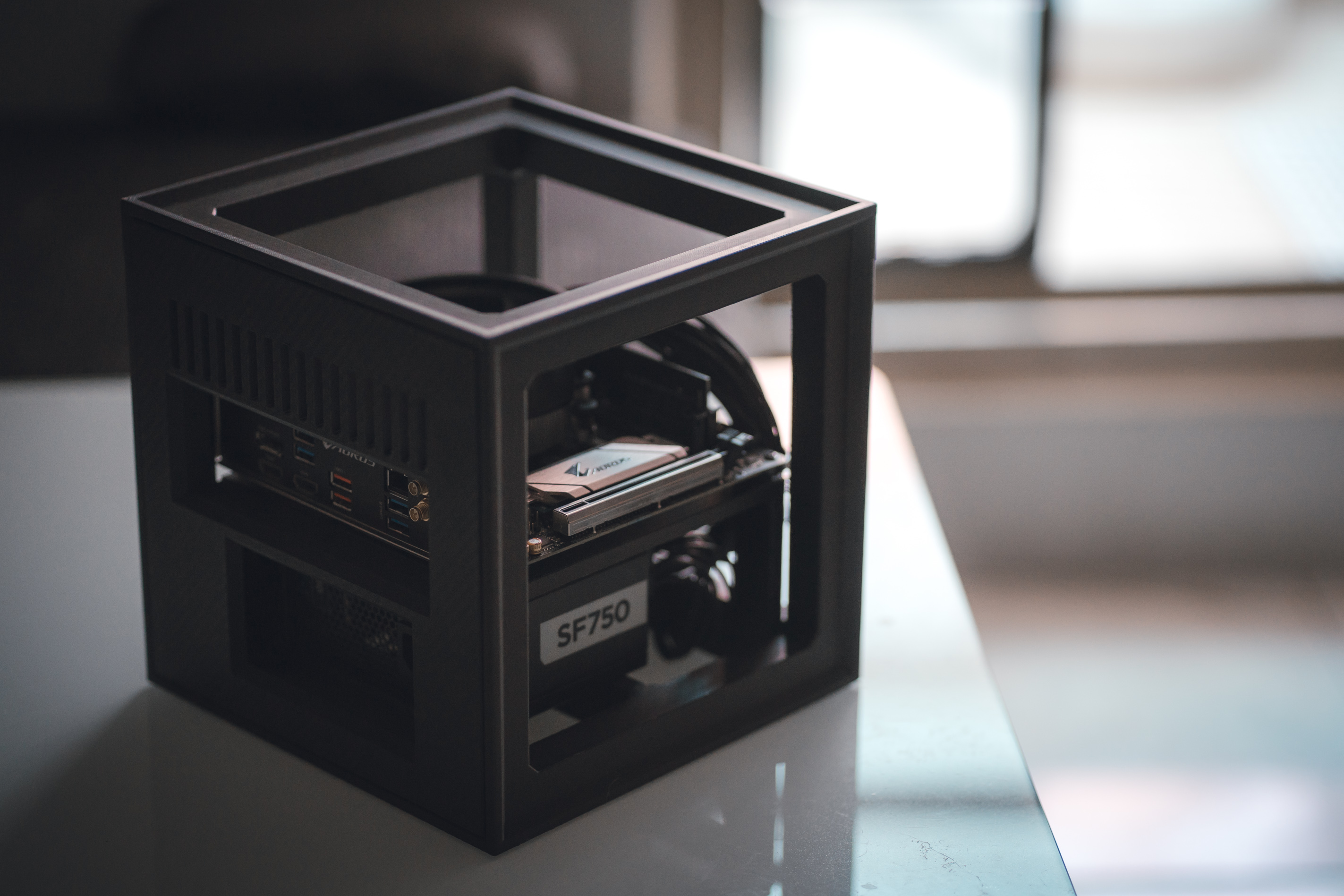

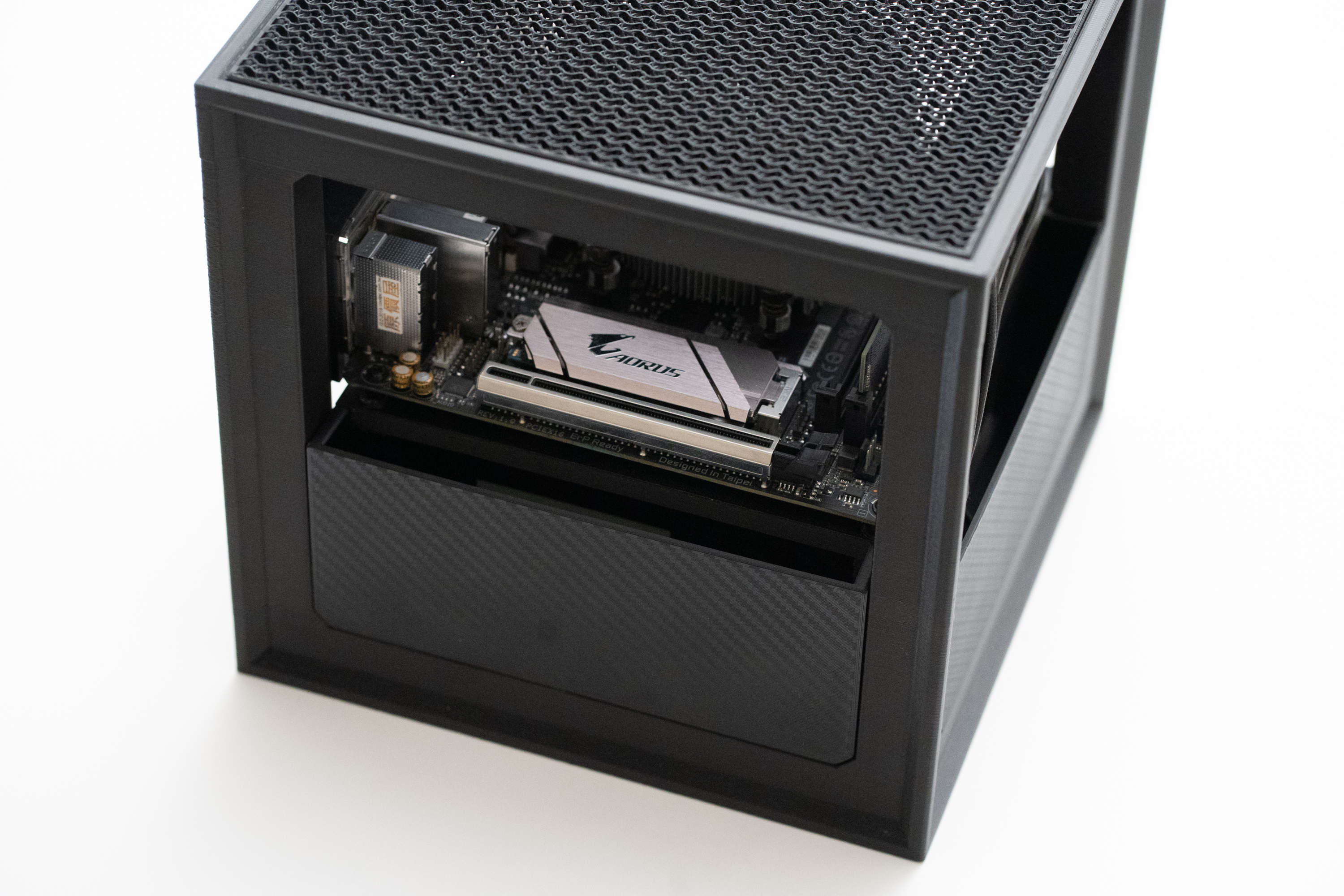

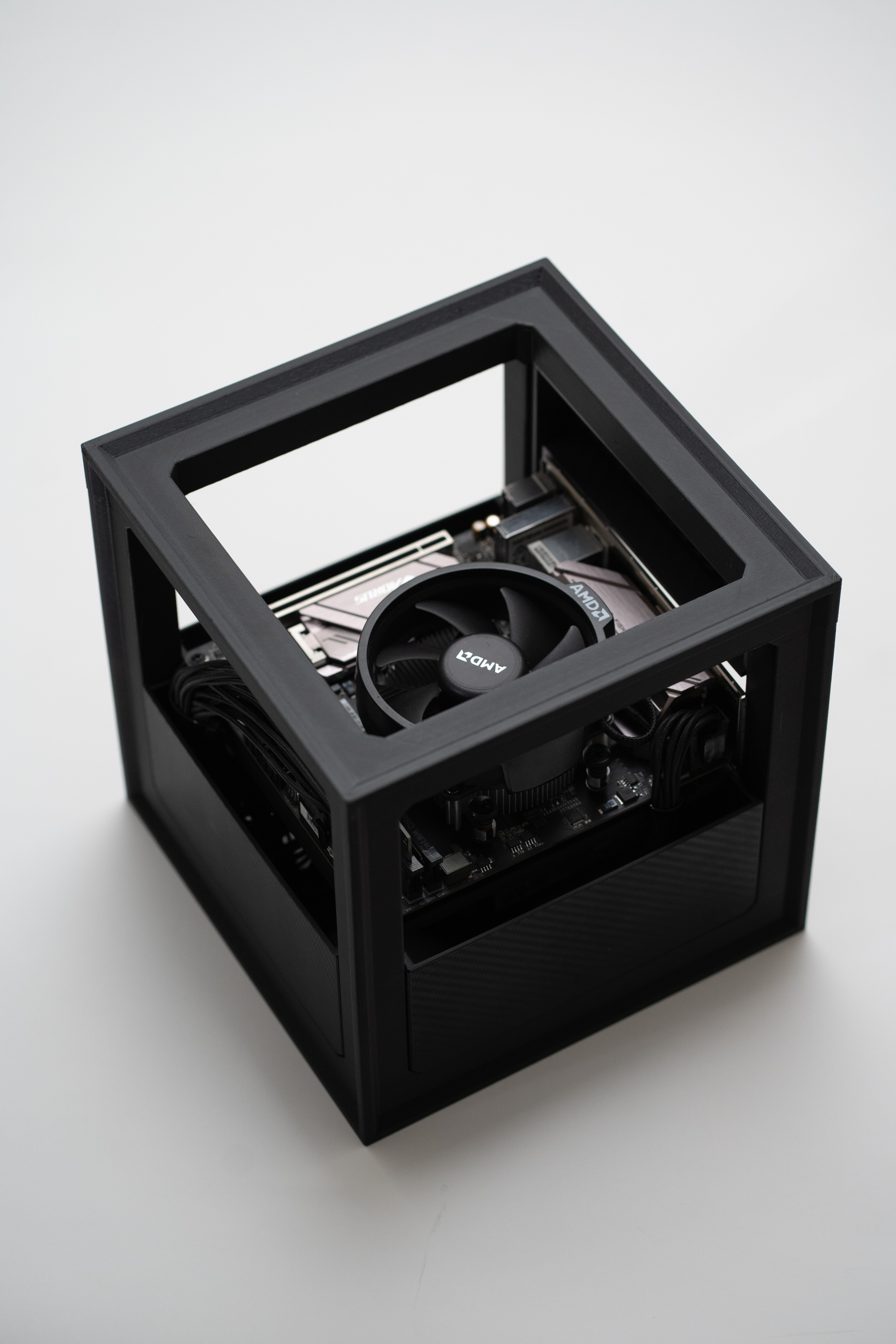

Cube is a minimalist open-frame ITX case that can also be used as a practical test bench.

Its open-frame design provides good airflow while making hardware installation, removal, and replacement quick and convenient. It is suitable for hardware testing, system display, or anyone who prefers a clean and simple desktop setup.

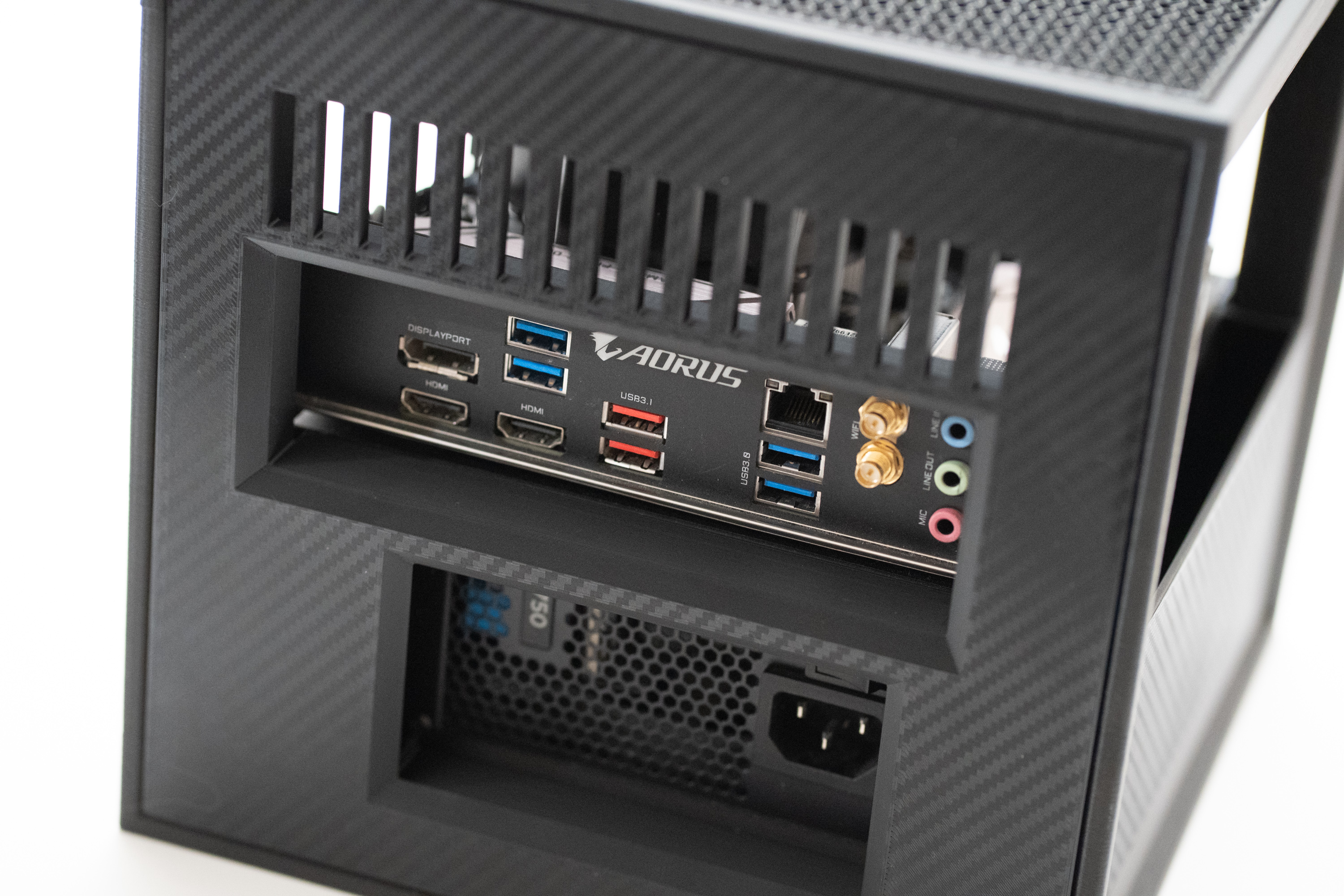

In addition to the main case, I also designed several optional accessories, including quick-release panels, an I/O-side cover, and a bottom plate for hiding the power supply cables underneath. Each accessory can be installed as needed.

Specifications

• ITX motherboard
• SFX power supply
• Graphics cards / PCIe cards cannot be installed (sorry)
• motherboard screws × 8
• No motherboard standoffs required

Panel:

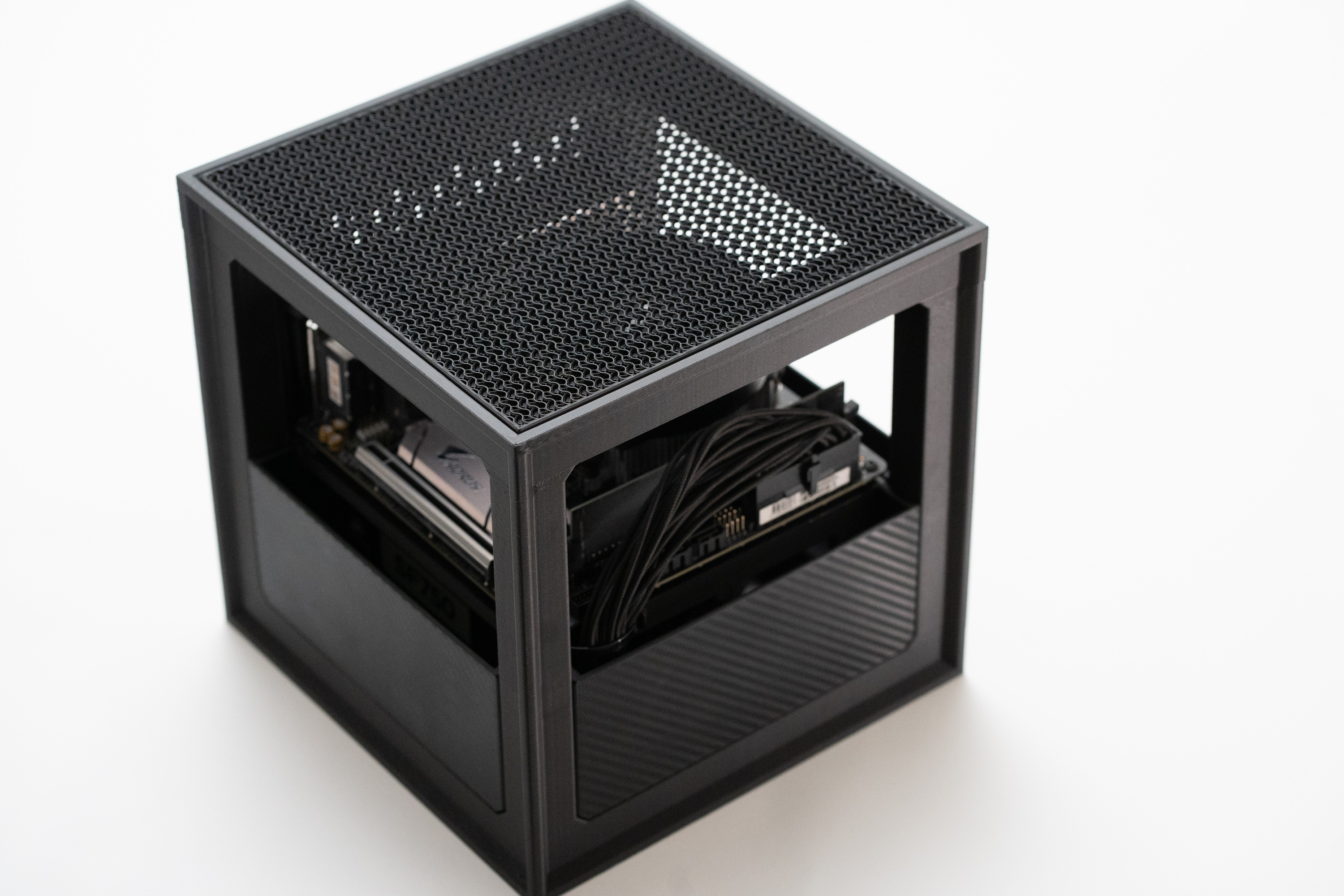

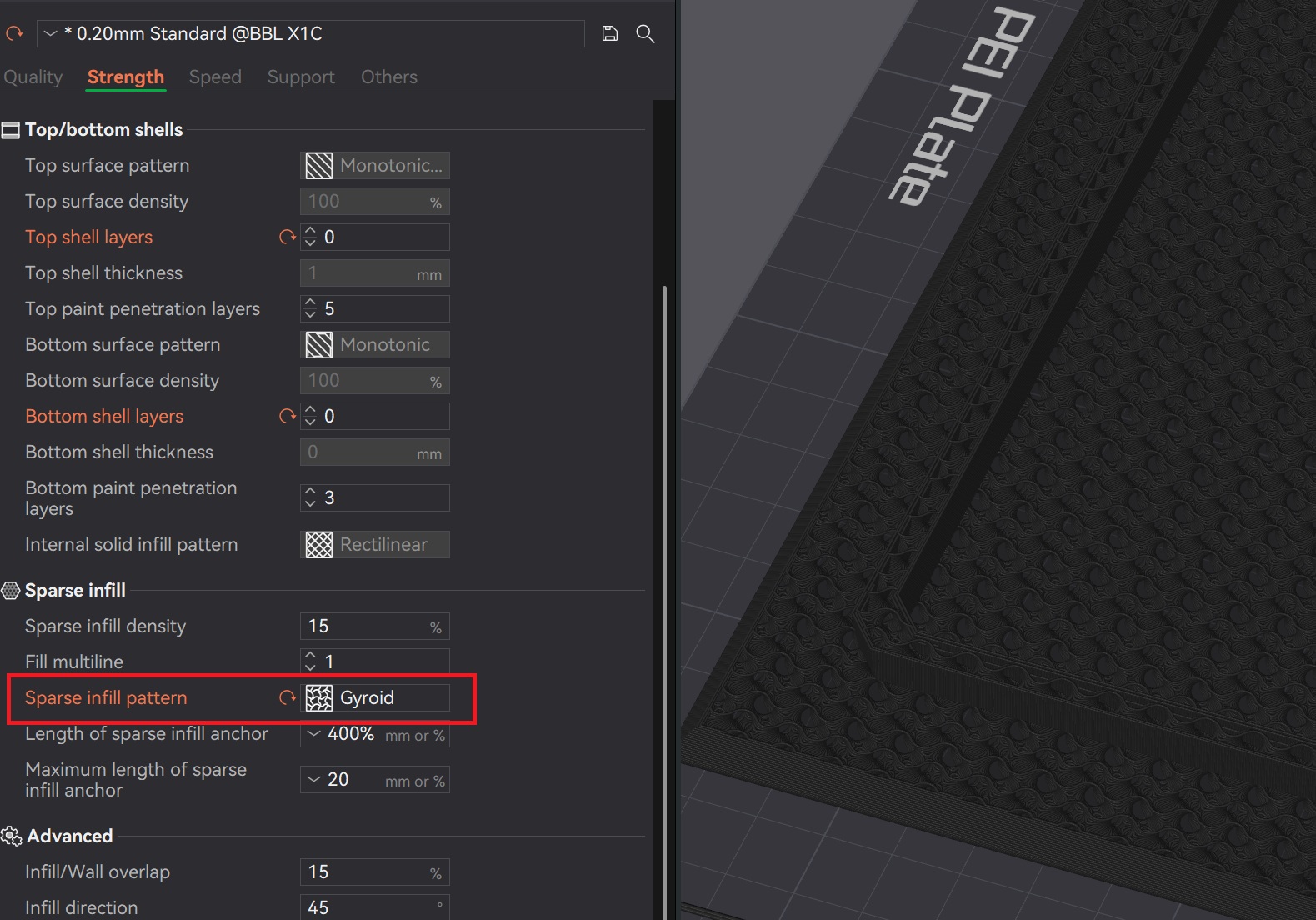

You can use the infill settings in the print settings to customize the pattern of the panel:
