AI Buddy is an open-source AI companion powered by the DFRobot UNIHIKER K10 and the Xiaozhi Framework. Build your own customizable AI chatbot with interchangeable animal enclosures including Bunny, Cat, Fox, and Giraffe. The project combines 3D printing, electronics, PCB design, and AI into a fun STEM project for makers, students, and educators.

Supplies

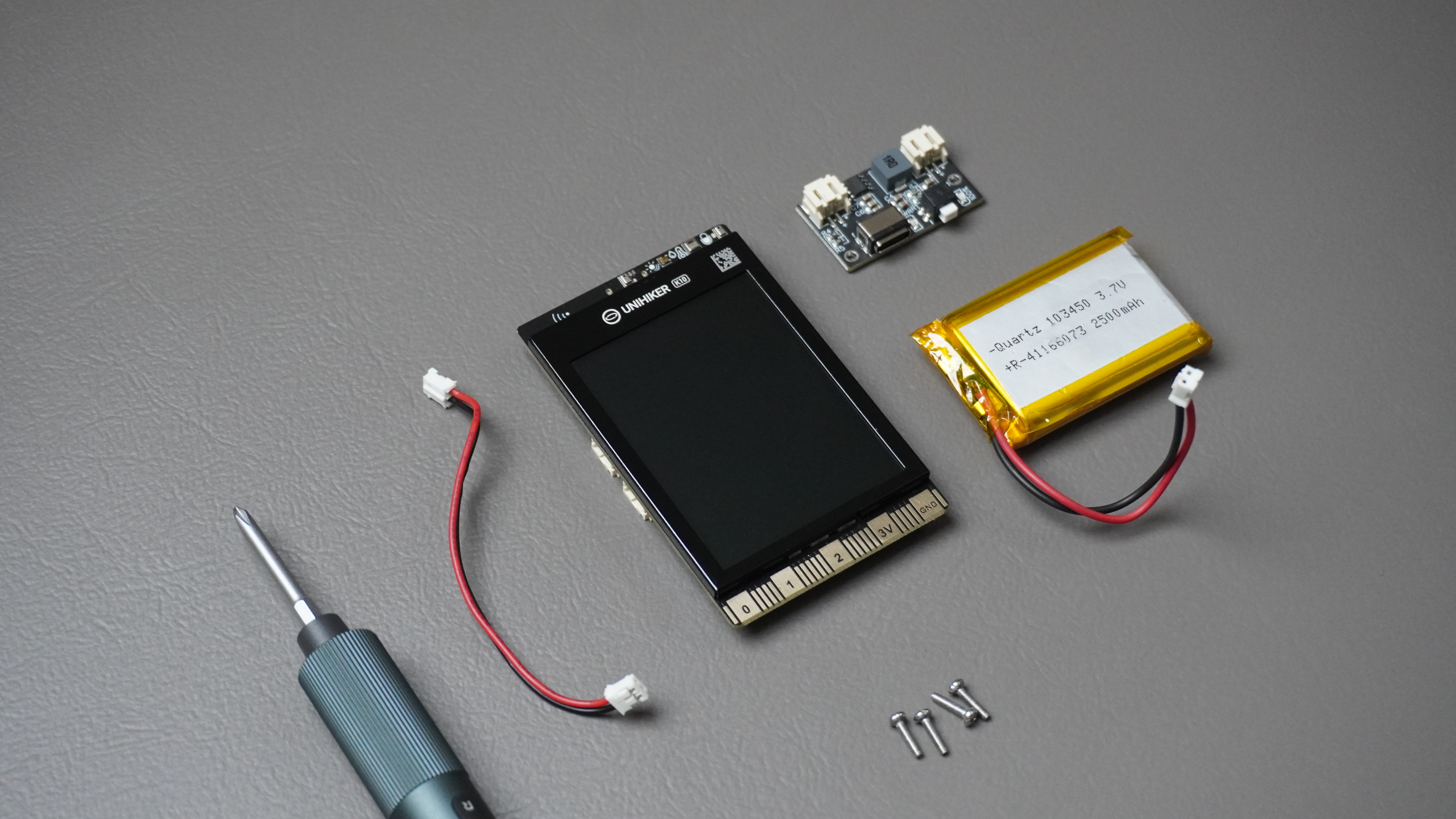

To build AI Buddy, you'll need:

Electronics

• 1× DFRobot UNIHIKER K10
• 1× Custom BMS PCB
• 1× 3.7V Li-Po Battery
• 1× M2 Screw Kit

Tools

• 3D Printer
• Precision Screwdriver Kit

Assembly

Assembly is quick and beginner-friendly:

1. 3D print all enclosure parts.

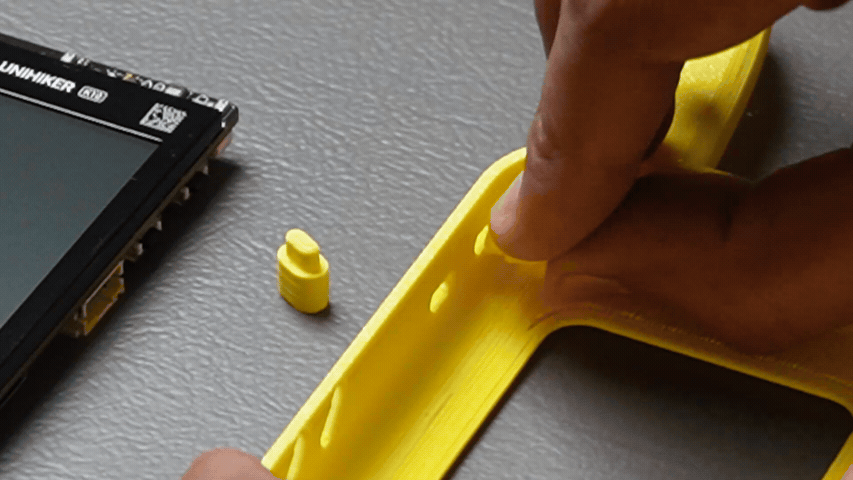

2. Install the two button extensions into the front housing.

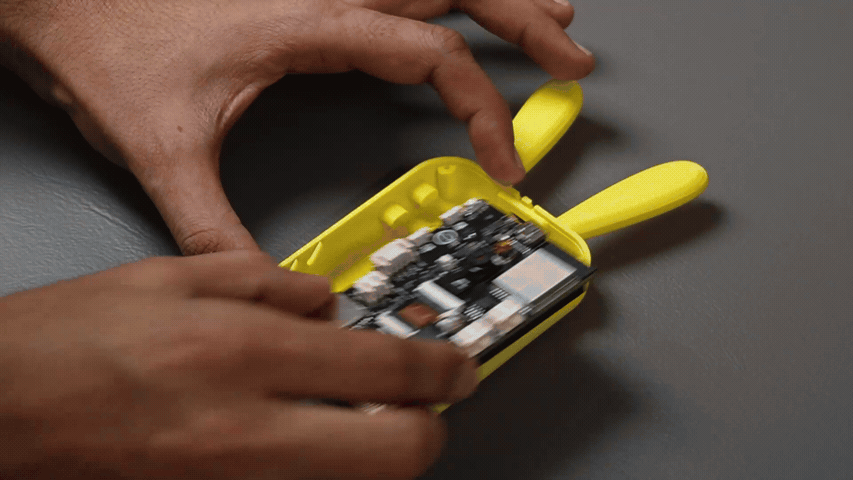

3. Insert the DFRobot UNIHIKER K10 into the housing.

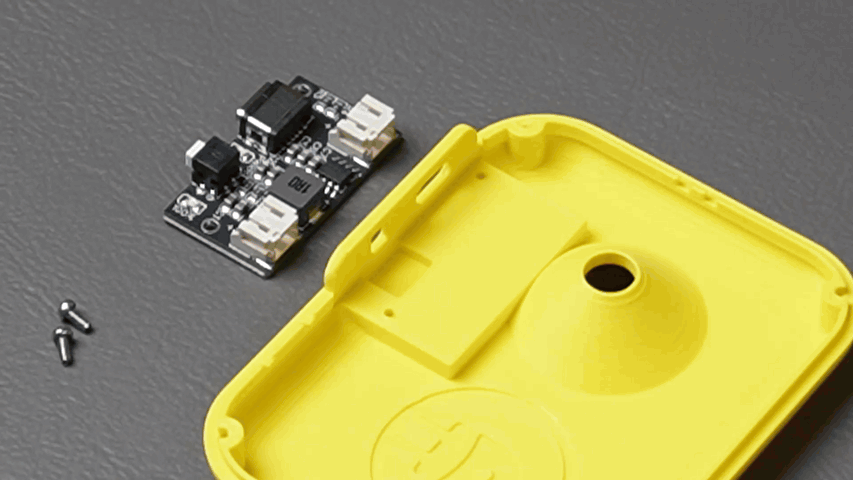

4. Mount the custom BMS onto the rear cover using two M2 screws.

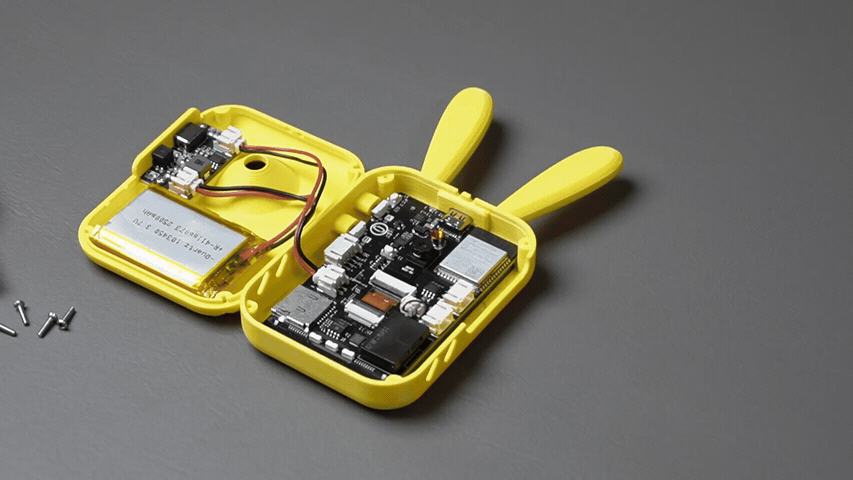

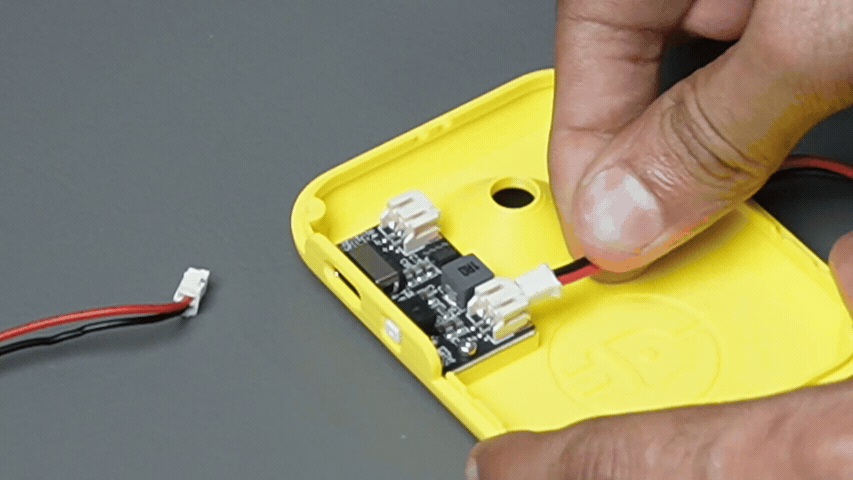

5. Connect the Li-Po battery to the BMS.

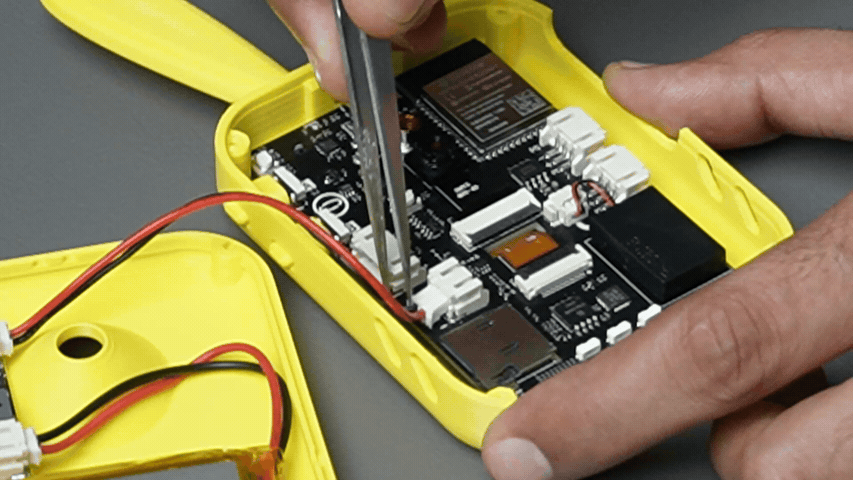

6. Connect the BMS output to the UNIHIKER battery connector.
7. Place the battery inside the enclosure.
8. Close the enclosure and secure it with four M2 screws.

Your AI Buddy hardware is now complete!

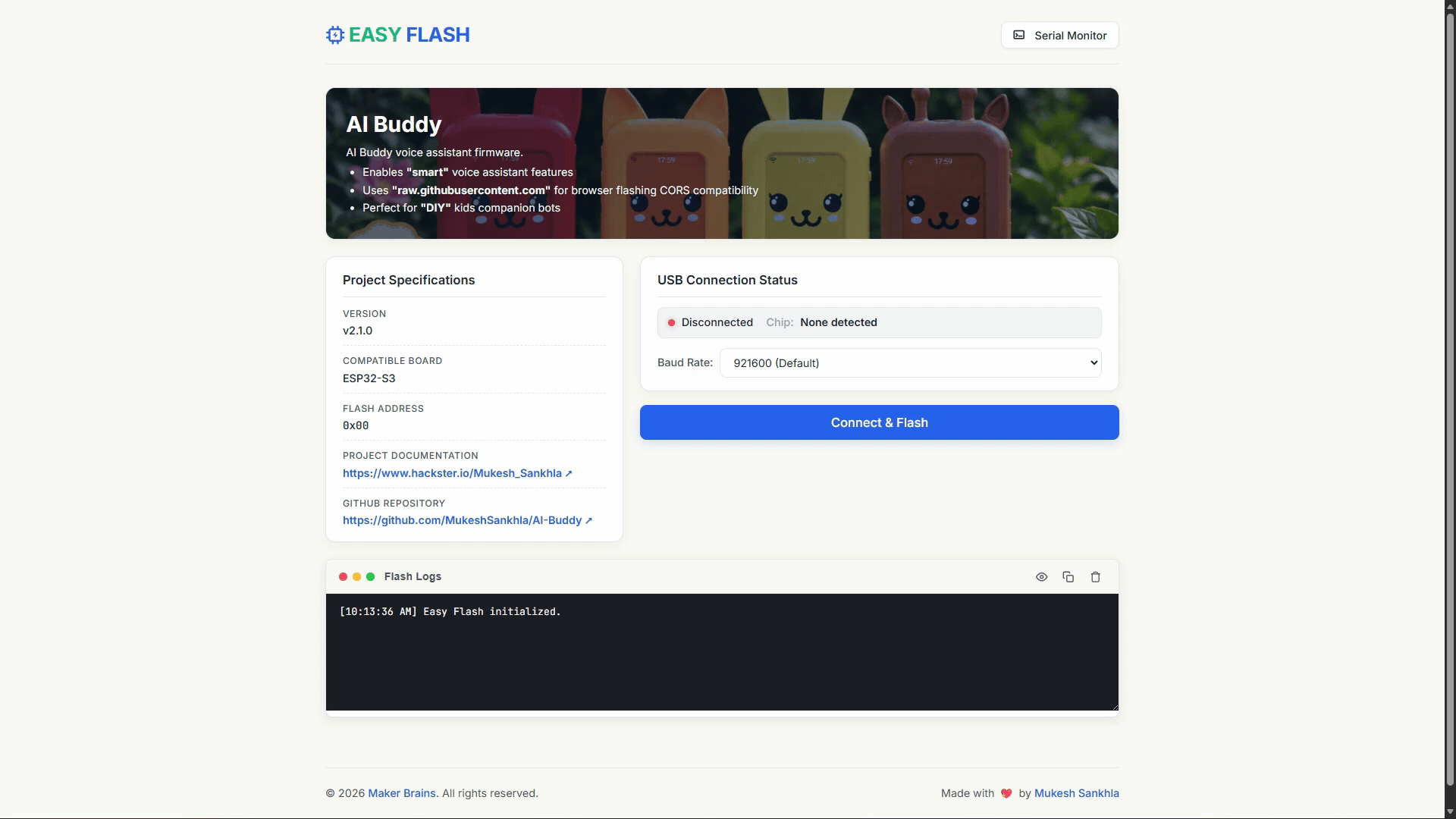

Easy Flash Firmware

No Arduino IDE, PlatformIO, or code compilation is required.

Simply:

1. Connect AI Buddy to your computer using a USB Type-C cable.
2. Open the Easy Flash website.
3. Click Connect & Flash.
4. Select your device's serial port.
5. Wait about a minute while the latest firmware is downloaded and installed automatically.

After flashing, AI Buddy will boot into Wi-Fi setup mode, where you can connect it to your network and link it to your Xiaozhi account.

Easy Flash:
[https://mukeshsankhla.github.io/EasyFlash/#/project/ai-buddy](https://mukeshsankhla.github.io/EasyFlash/#/project/ai-buddy)

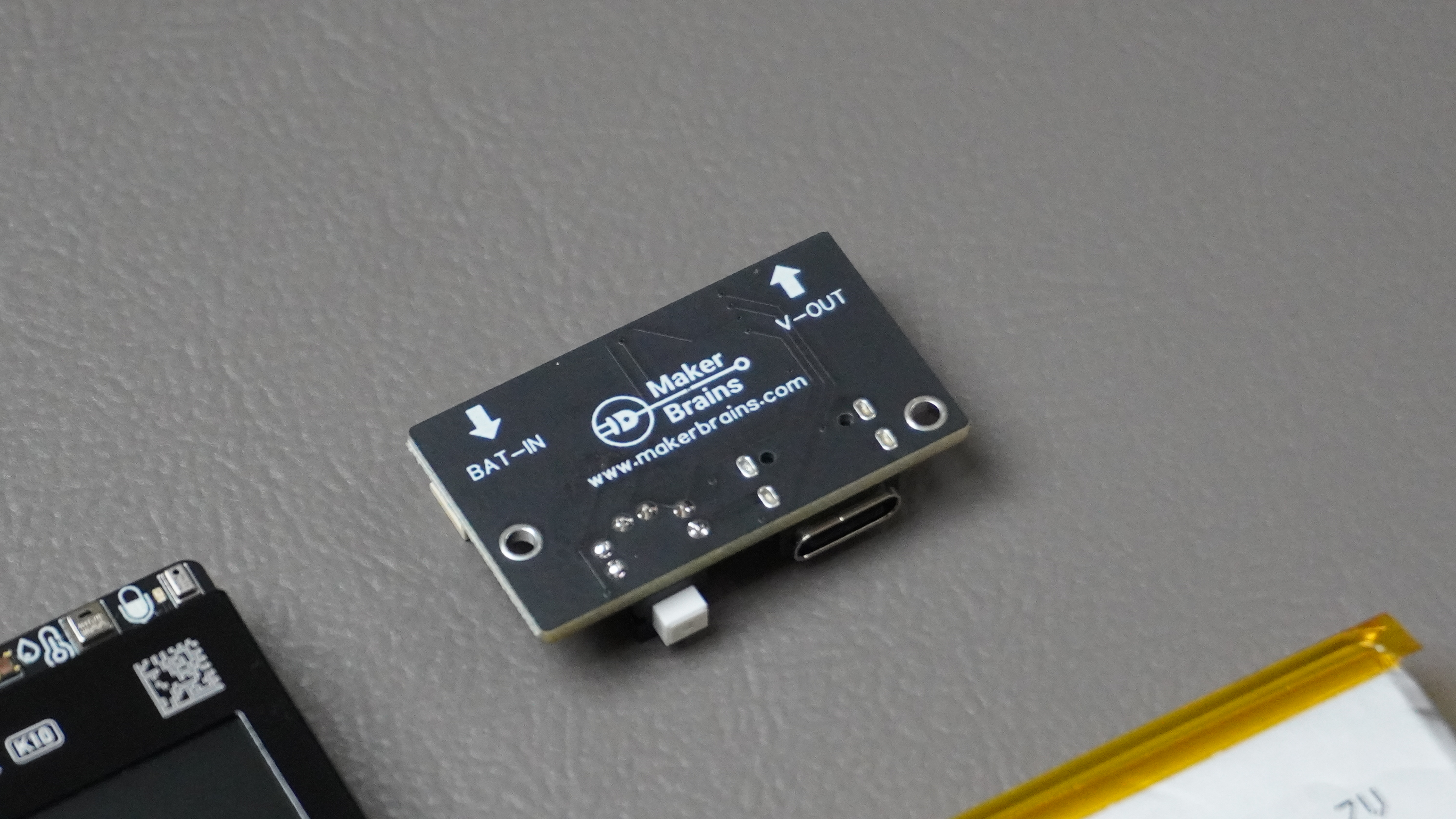

Custom BMS PCB

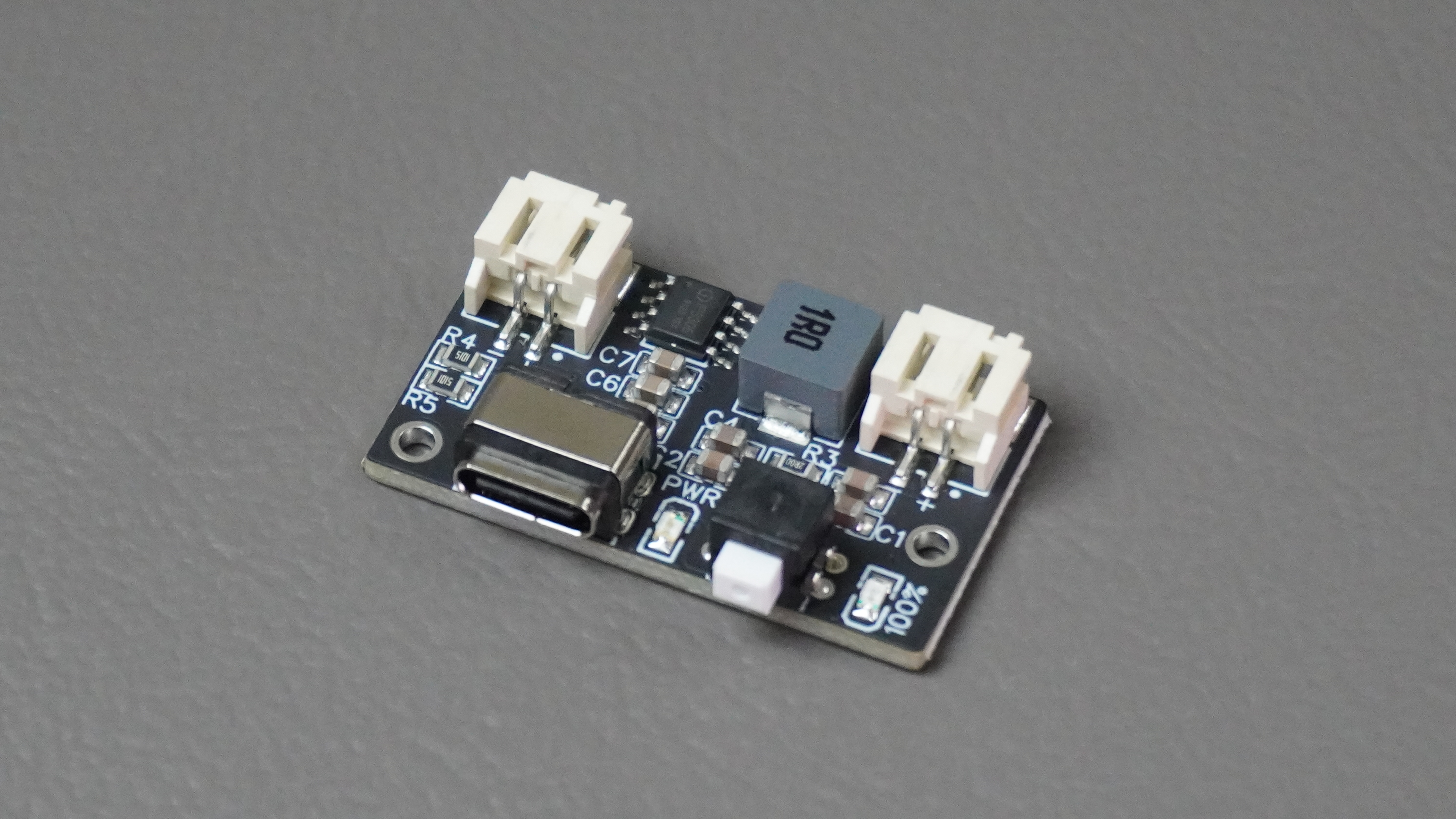

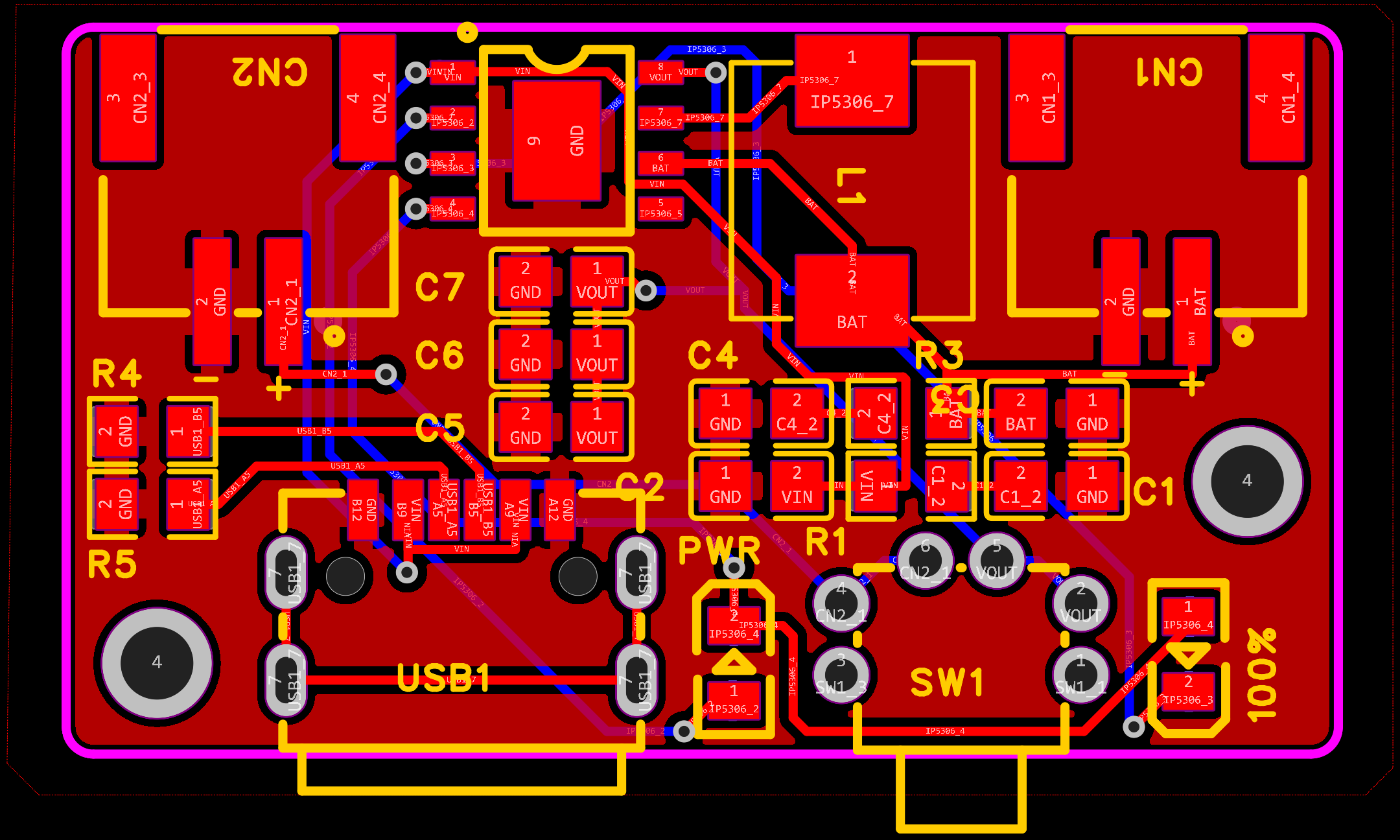

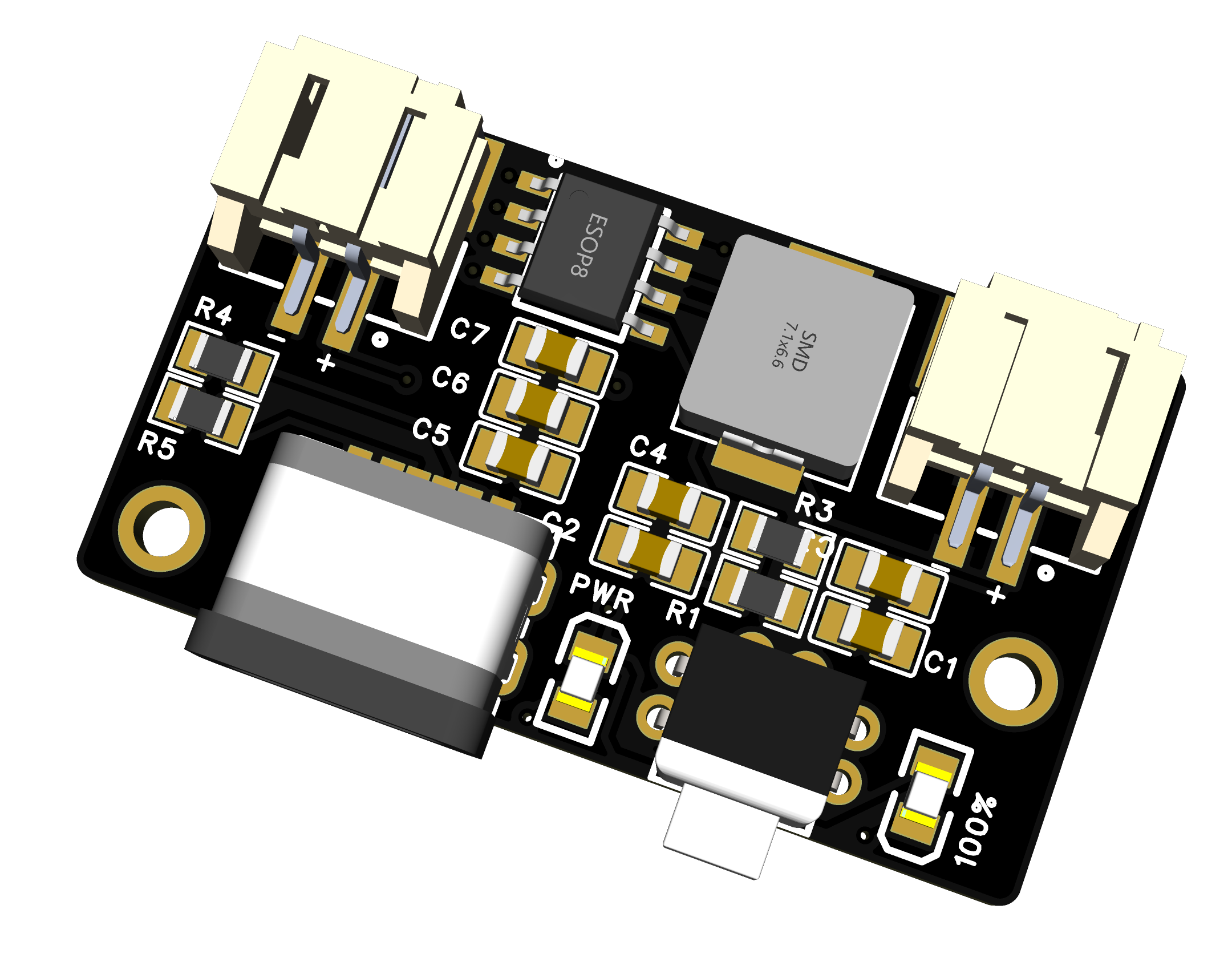

To make AI Buddy fully portable, I designed a custom IP5306-based Battery Management System (BMS).

The BMS provides:

• USB Type-C charging
• Battery protection
• On-board power button
• Plug-and-play JST connectors for the battery and UNIHIKER K10

The PCB was designed in KiCad and professionally manufactured and assembled by NextPCB.

Gerber files, BOM, Pick-and-Place files, and KiCad source files are included, so you can easily manufacture your own PCB or modify the design to suit your needs.
GitHub Repo: MukeshSankhla/AI-Buddy
