These support parameters are summarized and optimized by myself after referencing countless experienced makers.This test model is designed for real-world printing scenarios, featuring flat planes, inclined slopes, curved surfaces, as well as curved geometry with varying radii and angles.

The core goal is to enable clean manual removal of supports without any tools, while maintaining flawless surface quality on contact areas.If you find this resource useful, kindly leave a like/ Boost Me. Thank you!

Attention!

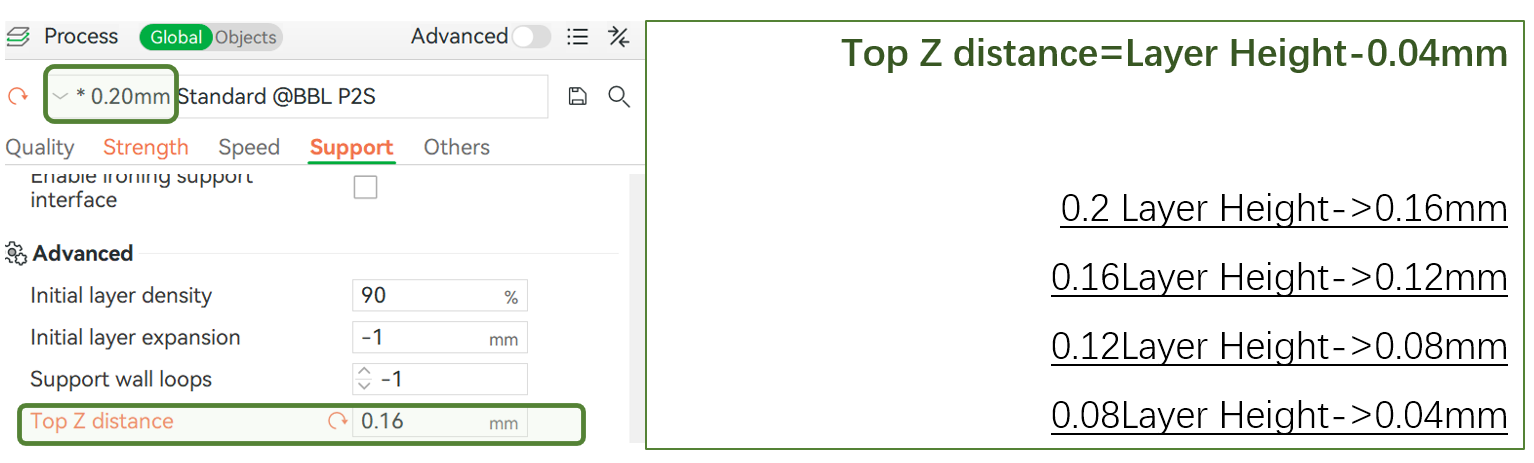

The settings in this configuration are optimized for a 0.2 mm layer height.If you wish to test other layer heights, adjust the "Top Z distance" parameter as shown in the figure below. Leave all other parameters unchanged.
