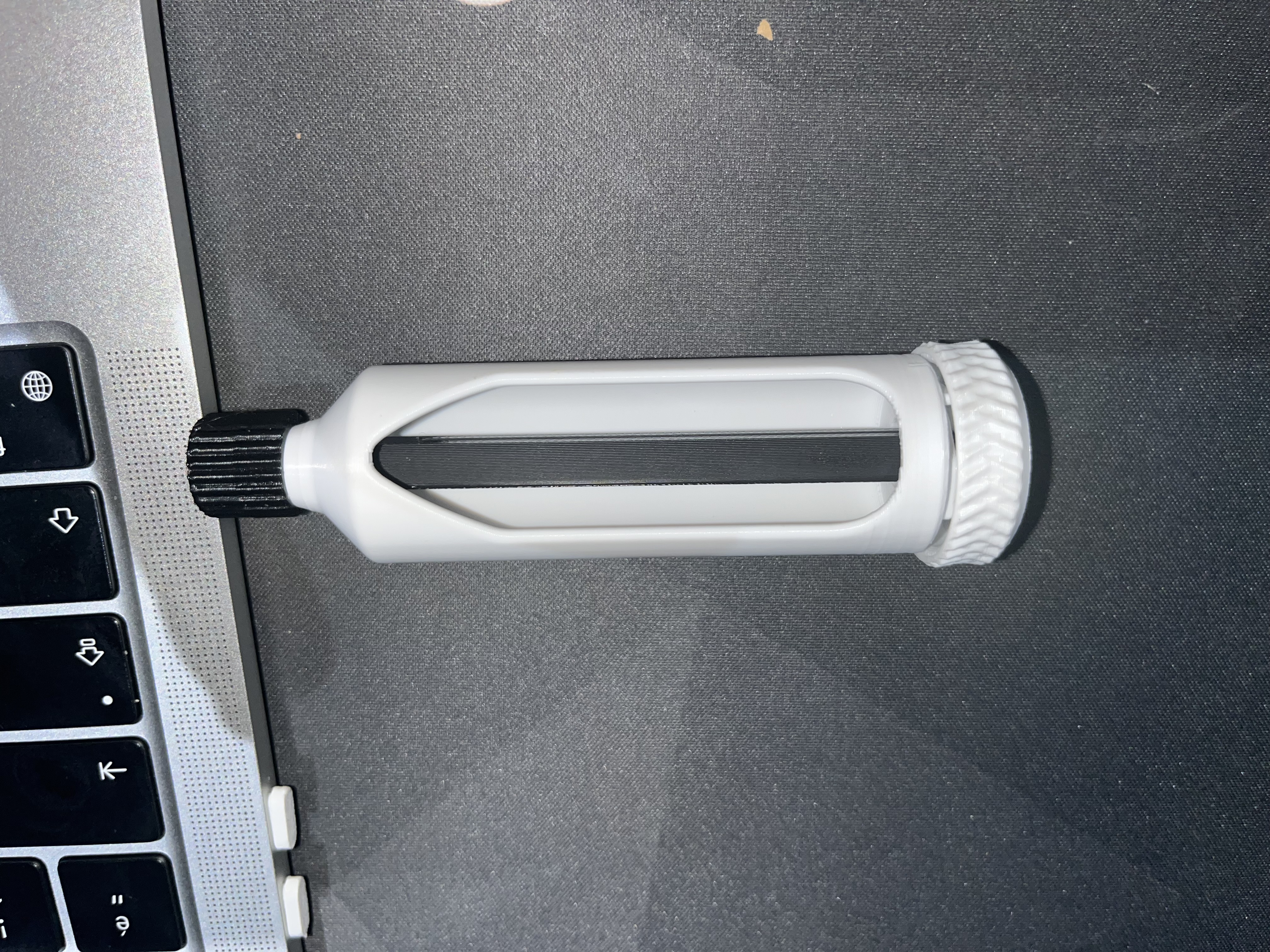

Ratcheted Toothpaste Tube Squeezer

I loved the concept behind Luke's 3D's original model but it didn't fit my daughter's toothpaste. I also found the model quite hard to assemble as the tolerances were tight and there was little to no horizontal expansion (elephant's foot) compensation built in.

So while I was lengthening the model I decided to make the following improvements:

Increased shaft and body length by 10mm
Increased tube slot width on the shaft and body slightly
Added chamfer to all surfaces that touch the build plate to compensate for horizontal expansion
Added a bump on the shaft to prevent the tip from coming out while removing the tube
Stiffened up the ratchet arms
Improved aesthetics (subjective :))
Less post processing is required for assembly

NOTE: You need to remove the support material from the bottom of the main tube in order for the ratchet mechanism to work correctly.

Assembly instructions:

Insert the shaft into the knob
Slide the ratchet, flat side down, onto the shaft.
Insert the shaft into the body
