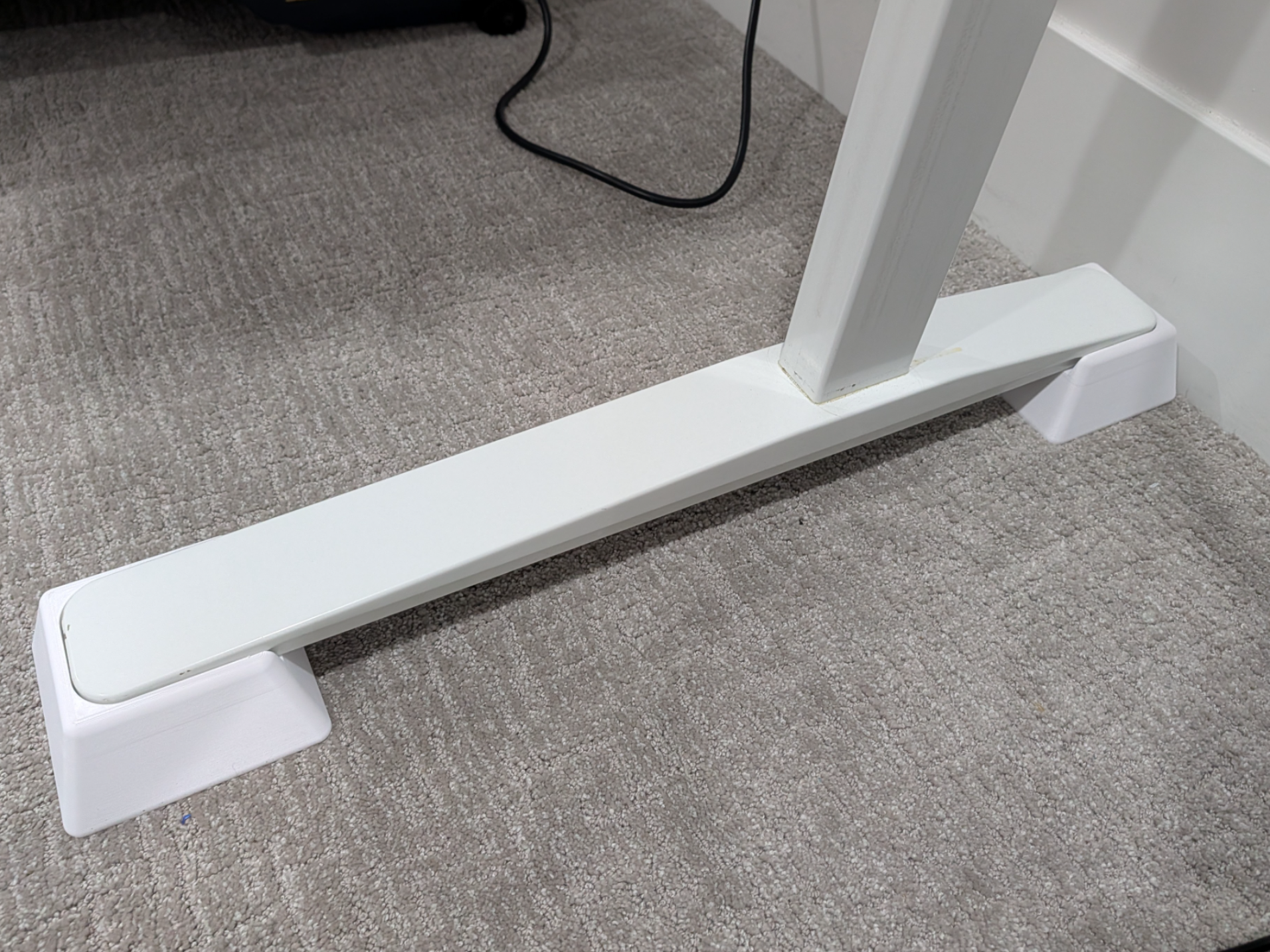

A heavy-duty riser designed for the Uplift V2 standing desk. There are 3 different height options: 2 in, 2.5 in, or 3 in. Each riser cups the metal foot on three sides for lateral stability.

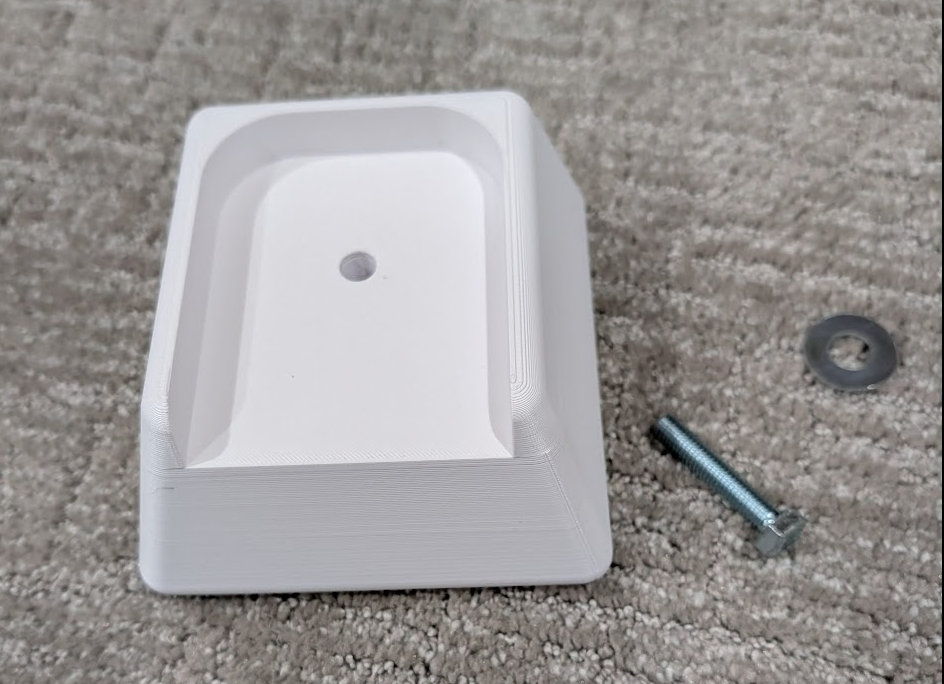

The bottom features a flat counterbore to seat an M8 washer, keeping the clamping force evenly distributed across the plastic.

Hardware Needed:

• M8 bolt 40mm length
• M8 washer (26mm max outer diameter)

Print Instructions:

• Material: PETG or stronger. (Skip PLA—it will creep and eventually crack under the desk's weight).
• Strength: Use 10 wall loops and 30% infill
• Supports: Turn on standard supports for the counterbore. You want that ceiling to print perfectly flat so the washer sits flush.
