A reference chart for which socket to use in a pinch. It covers sizes from 3 - 33mm / 3/32 - 1-¼". Great for those of us with a collection of random, assorted sockets instead of a giant fancy set. Or, for those with the big fancy set but the one size you need always seems to be missing when you need it!

Gaps in the chart on the SAE side reflect typical sets, you can always size up if the exact size you need isn't there (eg, you can try the ¾" size if you are looking for an 18mm).

Print Profiles:

2-Colour AMS

Plate 1: Small Chart measures 7 x 8cm (2-¾" x 3")

Plate 2: Large Chart measures 16 x 17cm (6-¼" x 6-½") and has a hole for hanging on the wall

Plate 3: Large Chart w/ extruded text measures 16 x 17cm (6-¼" x 6-½") and has a hole for hanging on the wall

No AMS

Plate 1: Large Chart w/ extruded text (16x17cm) – pause included at 4.2mm (layer 21)

After print pauses, change filament manually. Please be careful not to move print head or bed during filament change.

UPDATES:

JULY 5 2026 Typo corrected: 4mm = 1/8" not 1/6"

JULY 11 2026 Typo corrected: 5mm = 3/16 not 3/32"

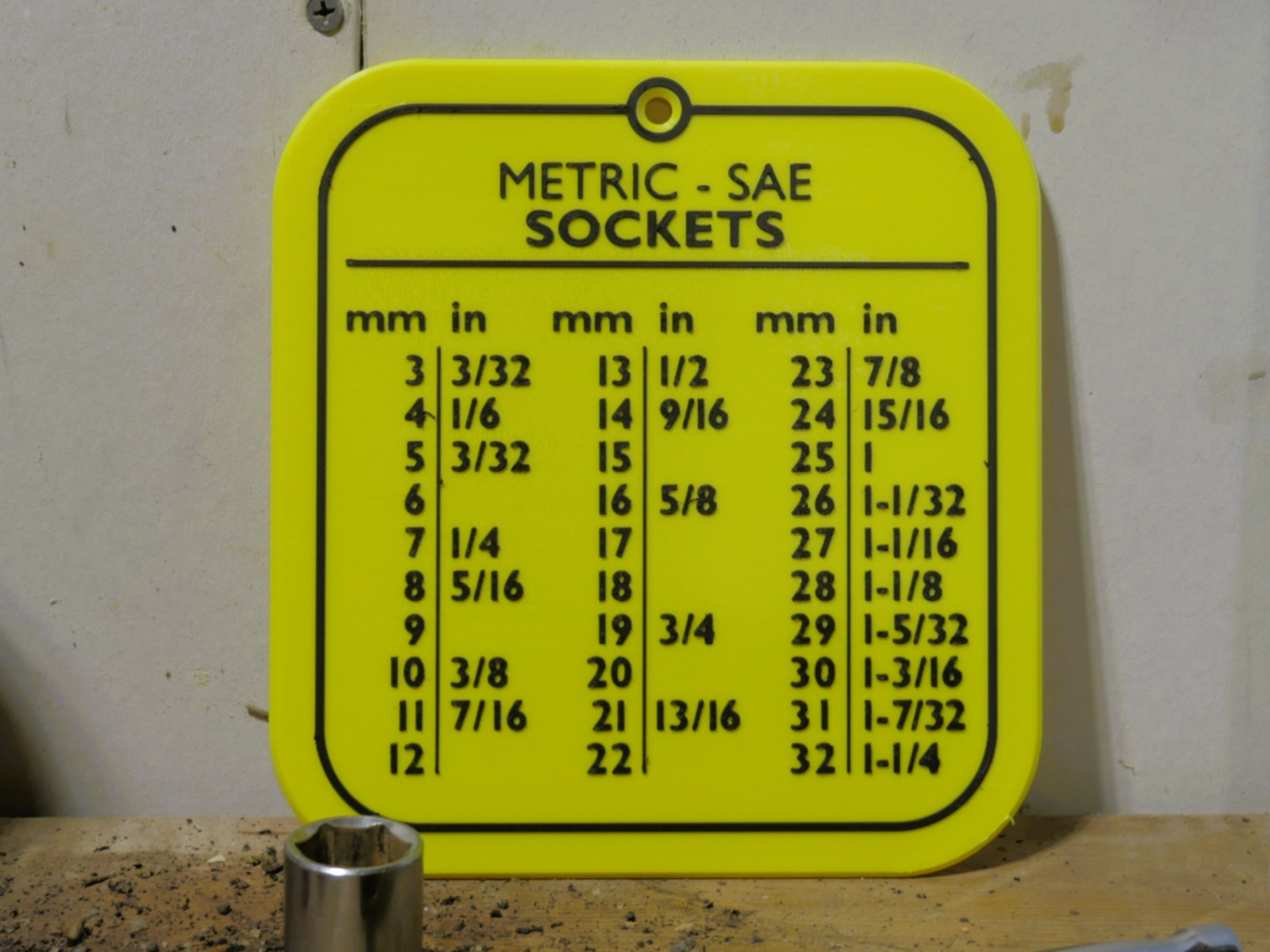

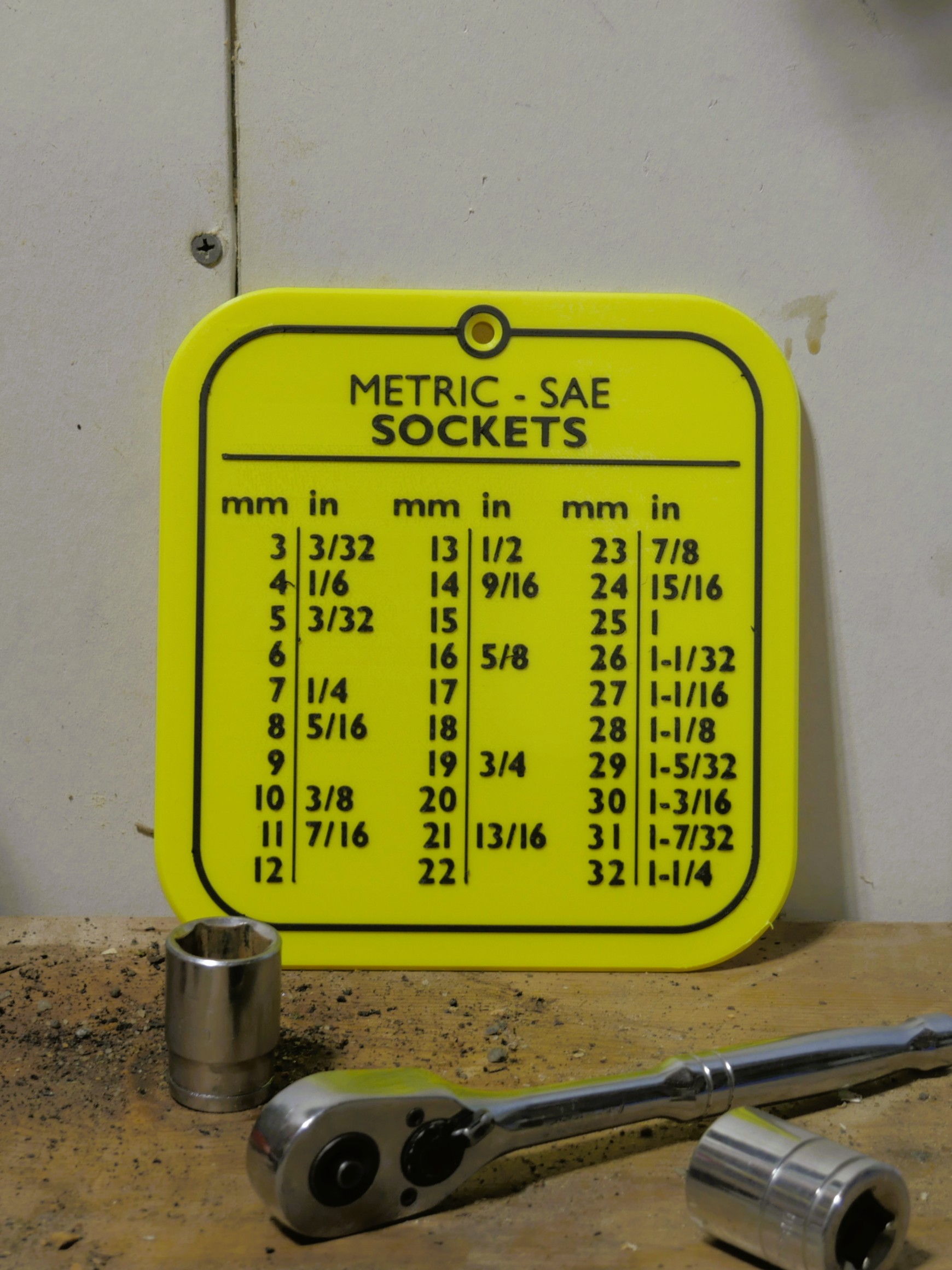

(model photos still show the typos, better photos of the updated model coming soon…!)
