Add a decorative button to clothing, costumes, scarves, or accessories—without making permanent holes in the fabric.

This model uses a two-piece magnetic design. A magnet is installed inside the decorative button, while a matching backing piece holds a second magnet. Simply place the fabric between the two pieces and the magnets keep the button securely in place.

Features

• Parametric design for easy customization
• Adjustable button diameter
• Adjustable magnet diameter
  • Magnet holes have 0.05mm added clearance above the magnet diameter to allow for easy press fitting
• Adjustable magnet thickness
  • Magnet thickness have 0.1mm added clearance above the magnet thickness to allow for clearance after press fitting
• Two styles included:

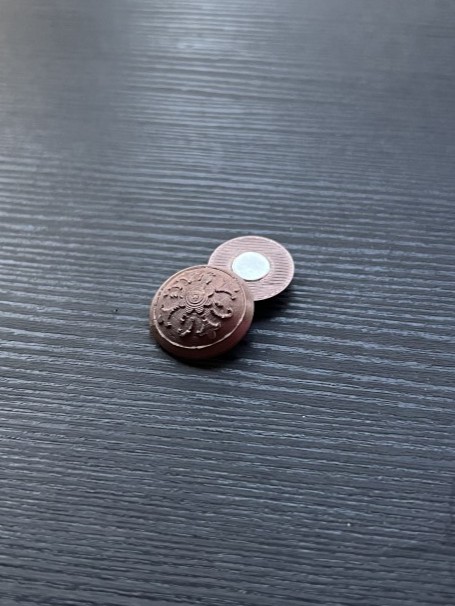

  • Decorative Victorian-style embossed face

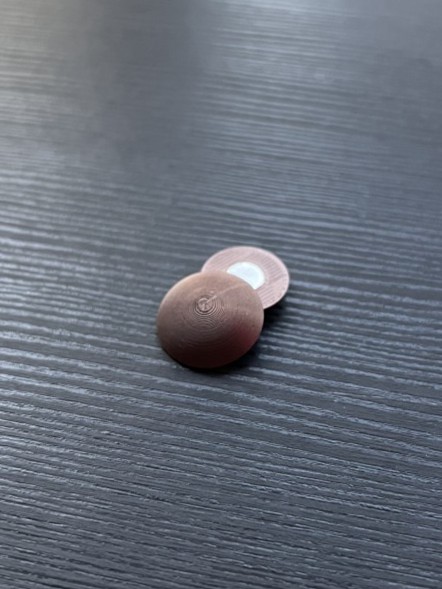

  • Plain smooth face
• Ready-to-print preset sizes for 8mm x 3mm magnets:
  • Normal (22 mm)
  • Large (30 mm)
• Magnet holes have 0.05mm added clearance above the magnet diameter to allow for easy press fitting.
• Pin hole for a tack to easily remove the magnet from the backing piece

Assembly

1. Press or glue a magnet into the decorative button.
2. Ensure the magnets are oriented with their polarity correctly so they attract before permanently installing them.
3. Install a matching magnet into the backing piece.
4. Place your fabric between the button and backing piece to attach.

If you customize the model, be sure to leave enough wall thickness around the magnet pocket to maintain strength.

I hope you enjoy it! If you find it useful, I'd appreciate a like, download, make, or boost. I'd also love to see photos of your finished prints and any custom sizes or uses you come up with.
