Modelo 3D Flat ventilation duct connectors por yegorich555 no MakerWorld

Descrição

In my location PVC connectors for kitchen hood ventilation are quite expensive so much cheaper to print it yourself.


There are models:

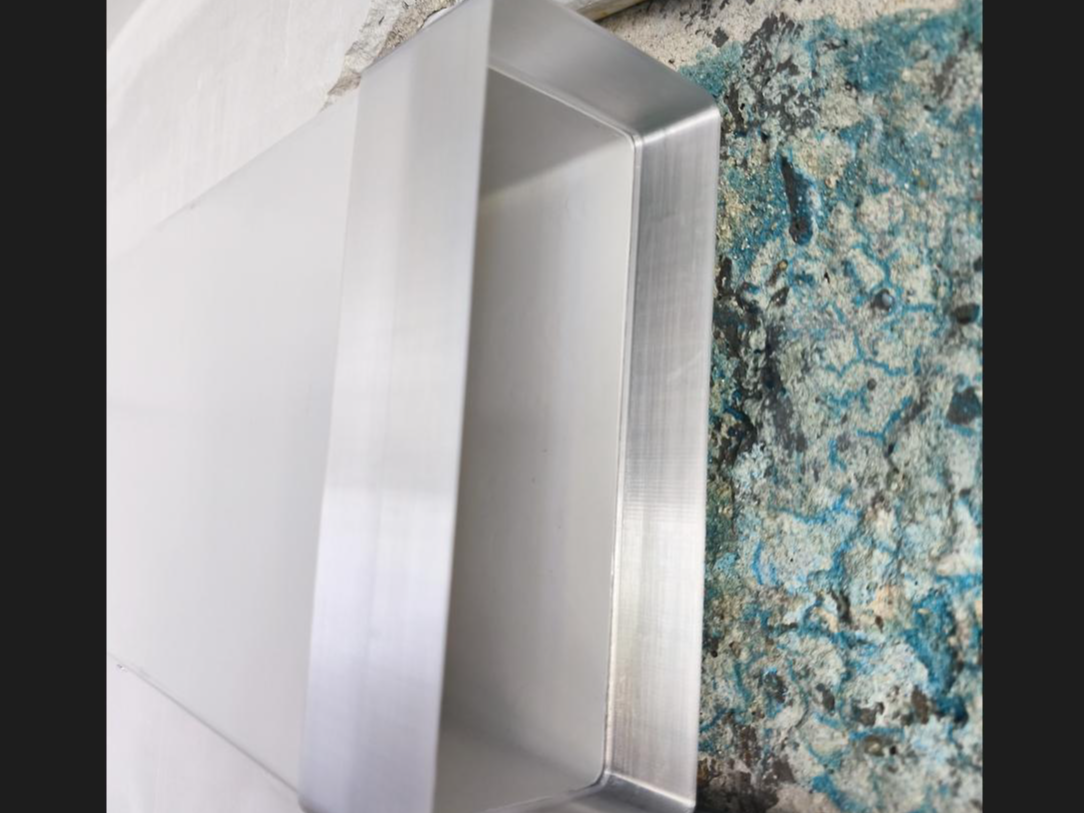

  1. Rectangular 204x60 mm - outer connection
  2. Rectangular 220x90 mm - outer connection

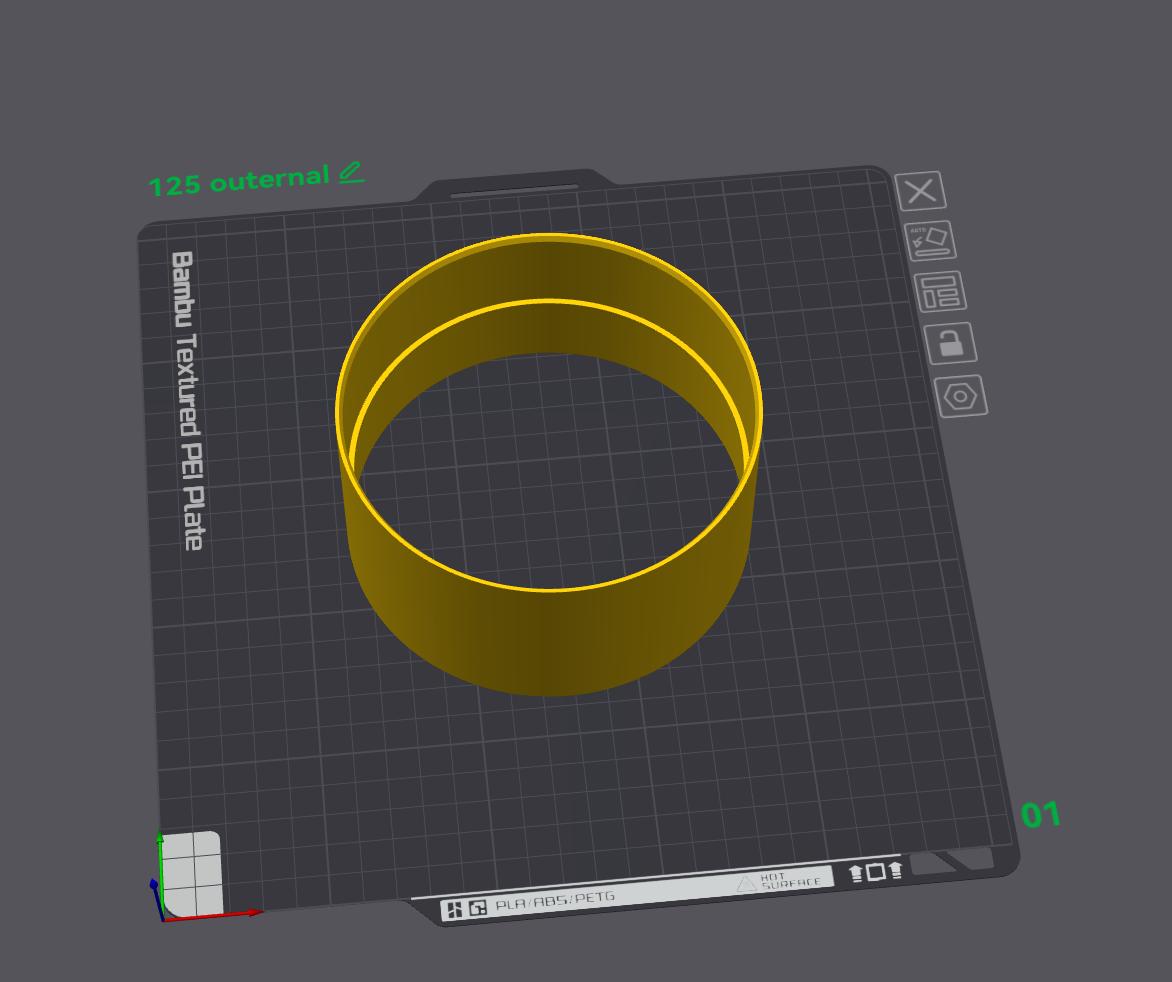

  3. Circle 125 mm - outer connection

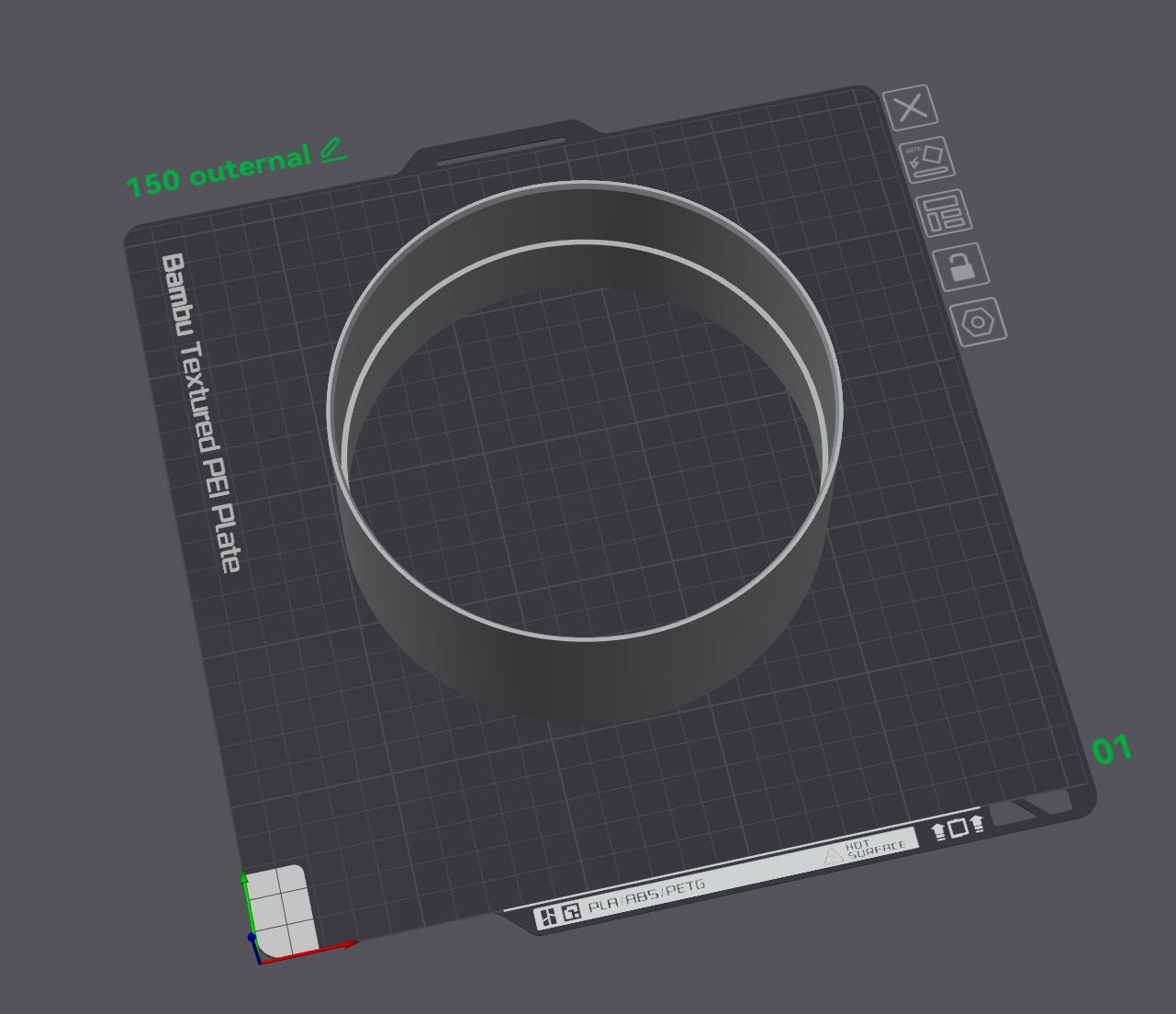

  4. Circle 150 mm - out connection

Other Sizes & Notes:

  • All connectors have borders inside and bevels (for smooth connection)
  • Connection length: 30 mm
  • Total connector length: 62 mm
  • Wall thickness: 2.2 mm

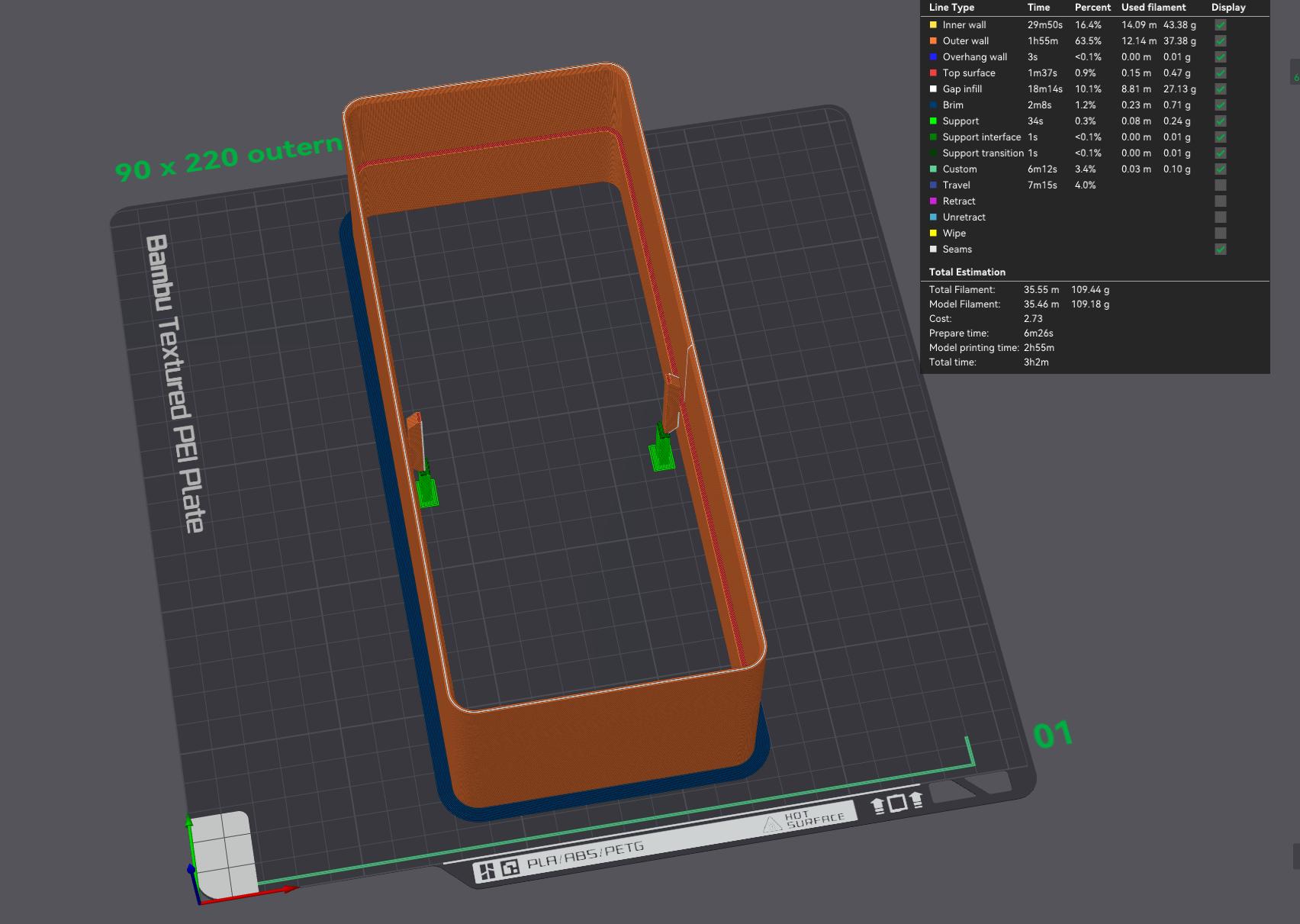

  • Updated:  Added 2 pins for rectangular connectors to prevent body bending (if you don't, just remove in slicer - see last photo)



If you need different sizes or type of connections (including internal connection), please let me know!

Don't hesitate to like printed model - it gives me tokens for buying filament :)
