Toolify3d (Tool grid) extension holders

Here we have my ¼, 3/8 and ½ extension holders

all my extensions are Snap-On, thus these have been primarily designed to fit snap on.

i will test with other extensions as they become available and update this description accordingly.

Designed to fit my Toolify3d boards/baseplates (see below for link) but these will fit any toolgrid style board featuring 9.5mm between holes which i believe includes genuine toolgrid boards and likely any other creators boards doing toolgrid style items.

These fit side by side to maximum as much space used as possible in your tool box

These screw to my boards (and any other 5mm+ boards) with a 4mm x 10mm cap head thread forming/self tapping screw (or genuine toolgrid screw)

me being cheap… i use cheap  black ones from amazon searching 4x10mm screw and finding the black cap heads

its worth noting that the maximum head seize should not exceed 8.5mm diameter

I print these in PETG, as it was the cheapest being able to get Sunlu HS PETG refills at 4kg for £30. i have also printed them in PLA/PLA+ without issues.

Currently i have ¼ uploaded only as I'm not 100% happy with 3/8 and ½ ones.  these will follow in a few days

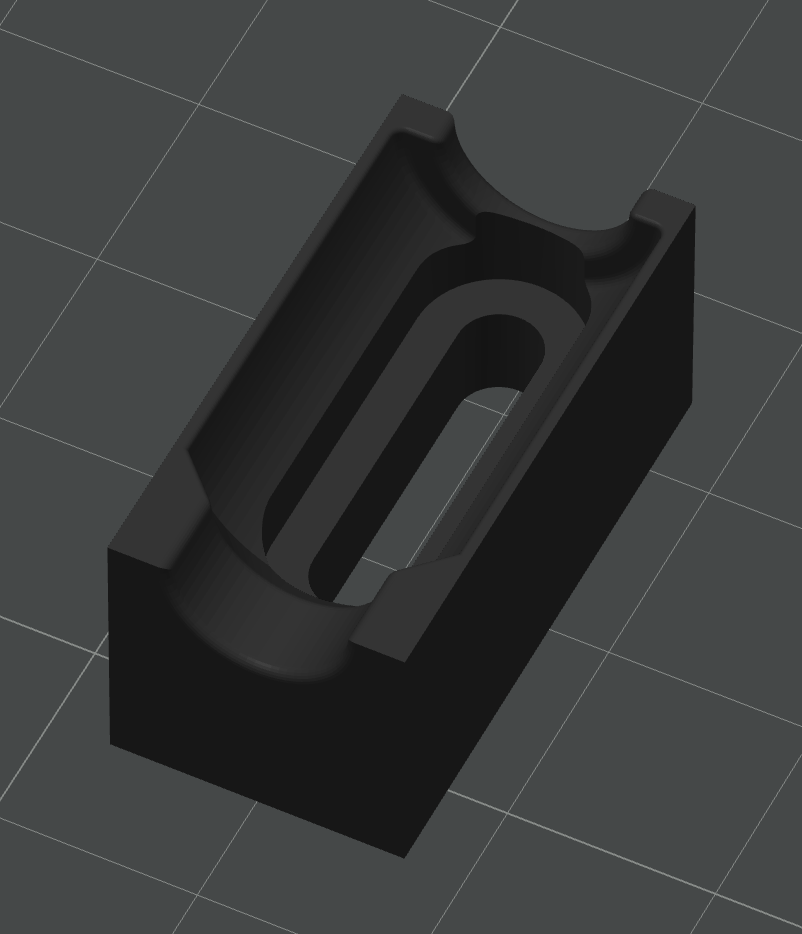

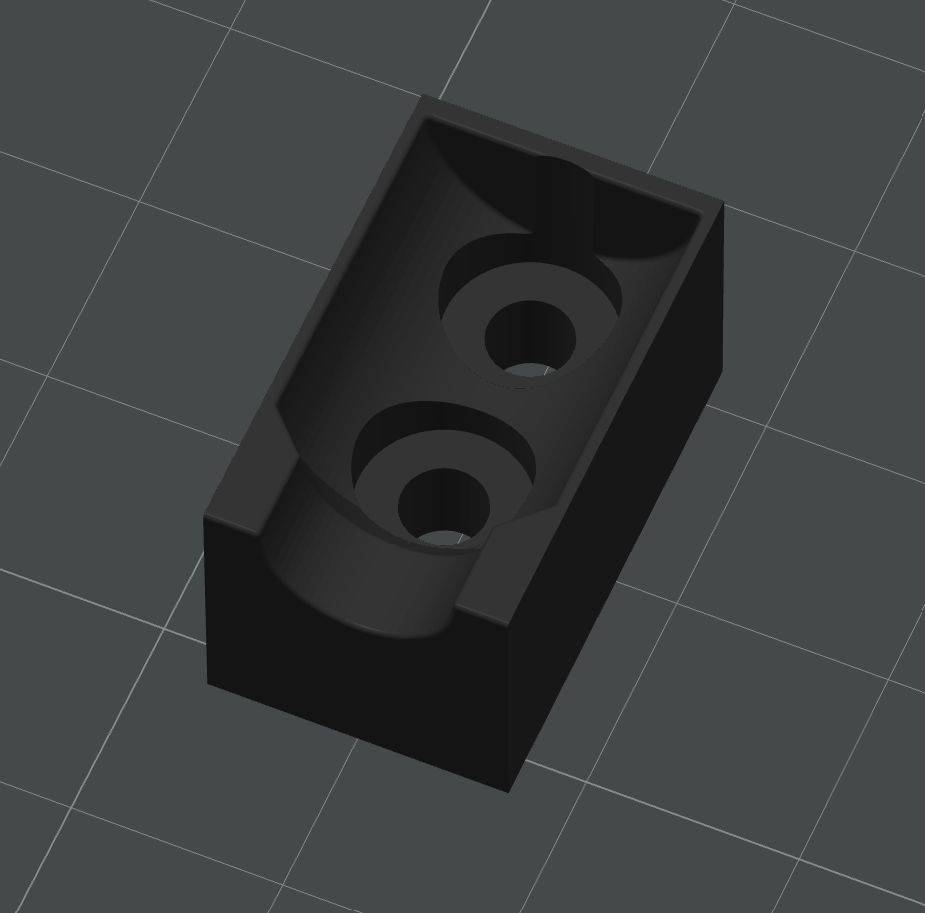

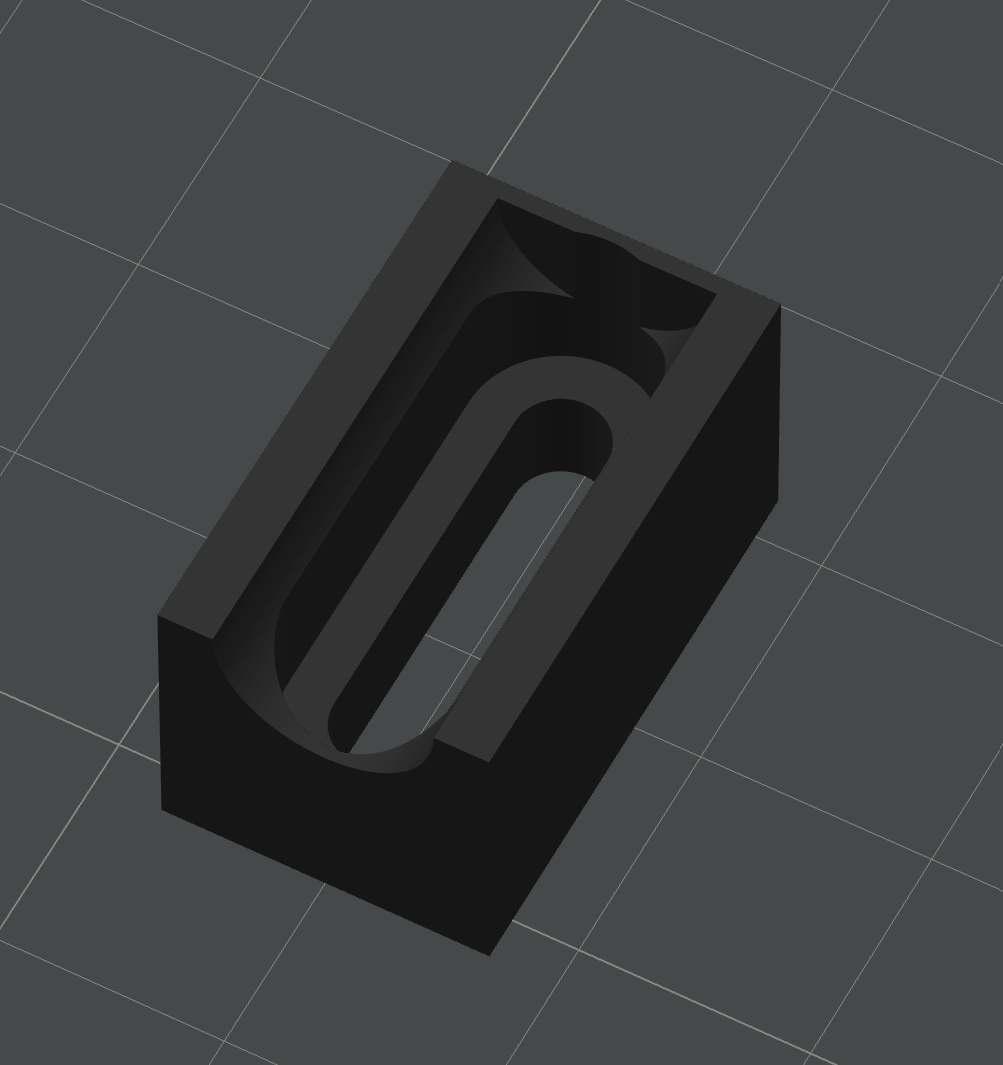

The main print profiles are the base to hold the bottom of the extension which is a fixed position to help you align everything neatly and the other profile is the tip holder which has an elongated hole to make sure whatever size extension your holding will secure to at least one hole in the board

the additional profiles so far:

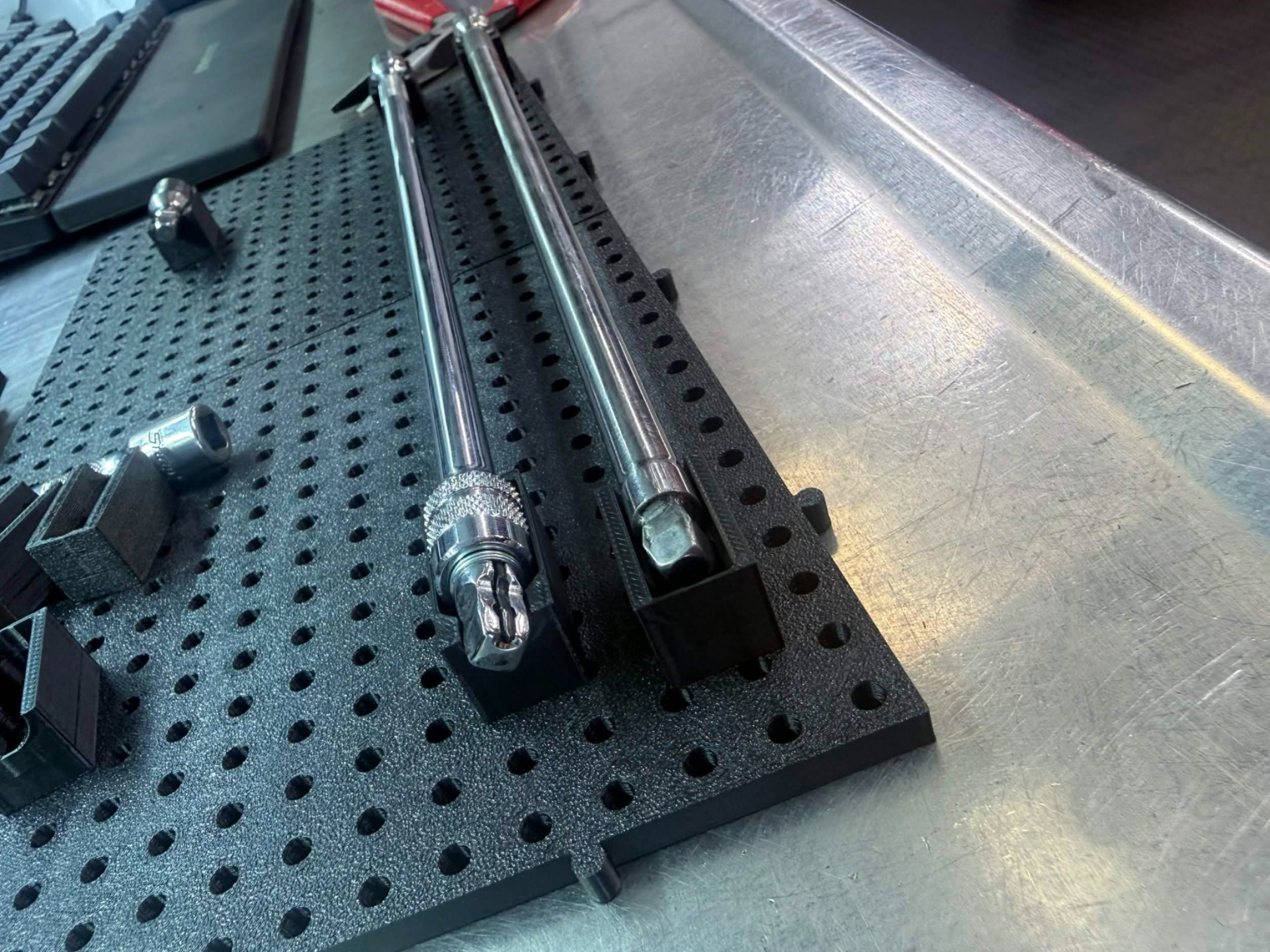

¼ snap on lock on extension holder (See pictured) which also has the same elongated hole  for adjustment

Any reviews/comments would be great, please inform me of any improvements i could make.

likewise if you need anything specific, send me some dimensions and i will knock it up/work with you on creating the perfect item you need.

Happy Boarding and organizing those boxes guys/gals !
