T-34/122 Tank Model

A Standard T-34-85 Soviet Tank that was adapted to carry a 122 mm howitzer 2A18 (D-30), It featured additional armor plating around the turret.

How it was Remixed:

The chassis was taken from Bavaria_3D Tanks own T-34 Magnetic Modular model. I changed the turret into the Modified turret carrying a larger gun.

Assembly:

Check to make sure all parts have been printed and that none are left

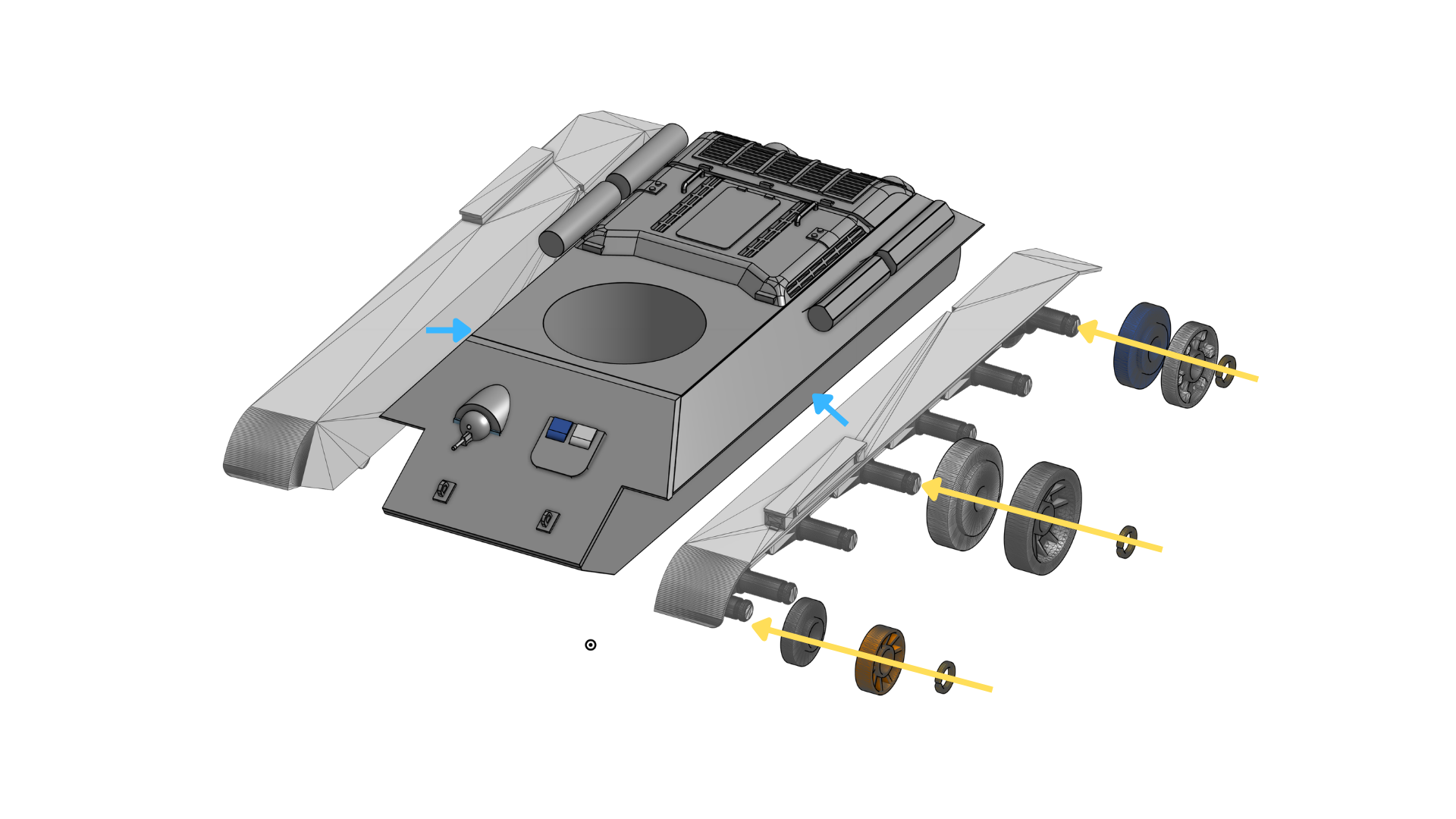

Install Side skirts and wheels as shown

Glue Parts that have the blue arrow, and put the parts with the yellow arrow in the order shown:

the center five wheels repeat as the middle assembly

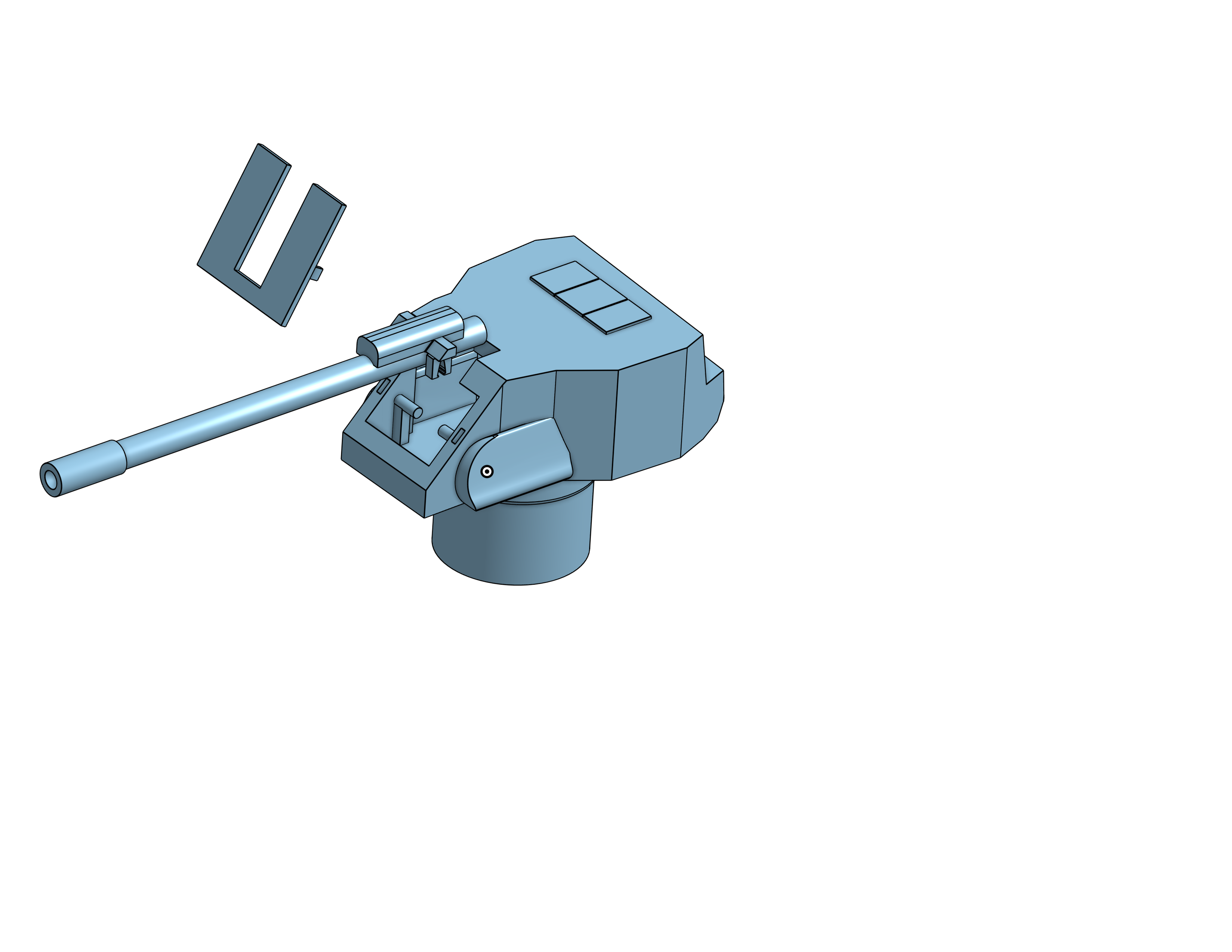

Install Gun onto turret, gun should snap into place on the little pins inside the turret

Then install the plate, using the two pins into the open holes on the outside of the turret.

(Be aware that some prints may come out uneven in these pins/ connections, I suggest using a nail file or anything useful that could file down the pins to get the right fit needed.)

Recommended Settings:

Filament: PLA

Slicer: Bambu Studio

External Temperature: For printers without and enclosure like the Bambu A1 Mini, or A1, or even the new A2L it is recommended to keep the room above 20 °C (68°F)

Print Bed: I would recommend washing the bed with soap and water before printing

Assembly tools: I would HIGHLY recommend a file for the plate on the turret, printers often have inconsistencies when printing so it is helpful to have a tool to adjust it. And I would recommend using super glue for the instalation (and to keep the barrel stationary it you want) while also keeping any parts together so none fly off at the worst time.

Comments and improvements are RECOMMENDED!!!!!!!!

Please give me any feedback on anything I could improve with this model. It will be very important to help me get info from others with their own experiences.
