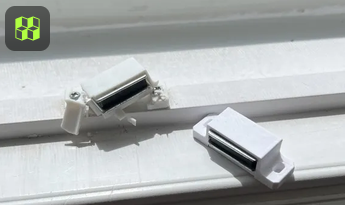

UV-Resistant Magnetic Cabinet Catch Replacement

Designed as a direct replacement for the magnetic catches commonly used on shutter-style windows, cabinets, doors, and similar applications. The original plastic catches tend to become brittle and fail after prolonged UV exposure, especially when installed outdoors or in direct sunlight.

I created this replacement so I could print it in PETG (or another weather-resistant material) and avoid repeatedly replacing the factory parts.

Looking for Another Variation?

If you're looking for another variation of the same concept, checkout my other Replacement Window Latch:

Features

• Direct replacement for the original magnetic catch housing
  • NOTE: This model is for the “cross” housing design only
• Designed to reuse the original magnet and hardware
• Ideal for shutter-style windows exposed to sunlight
• PETG-friendly design for improved outdoor durability
• Easy and inexpensive to reprint if needed

Installation

1. Remove the failed original catch.

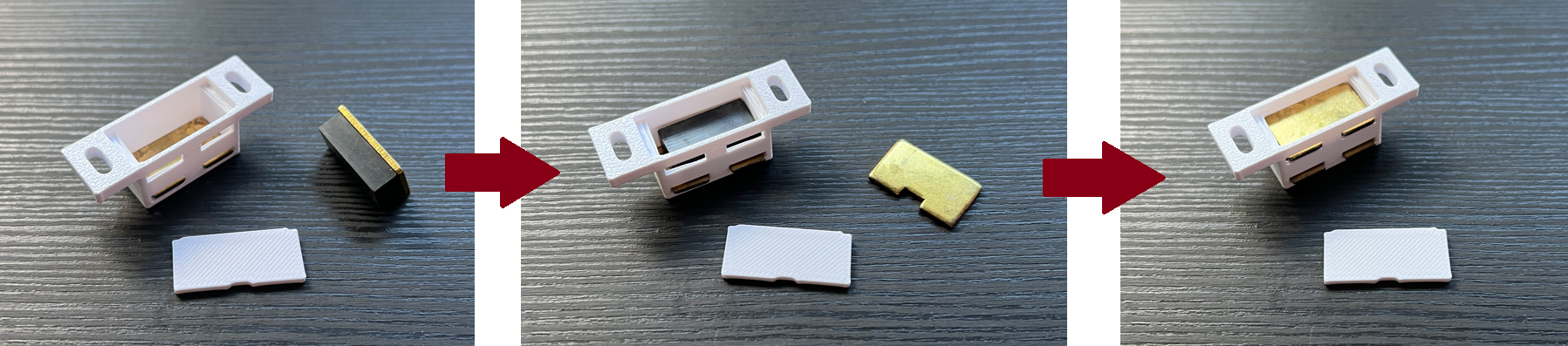

2. Transfer the magnet from the original part.

   1. Add each part of the magnet assembly one at a time



3. Install the printed replacement using the original mounting hardware.
4. Verify proper alignment and latching force.
