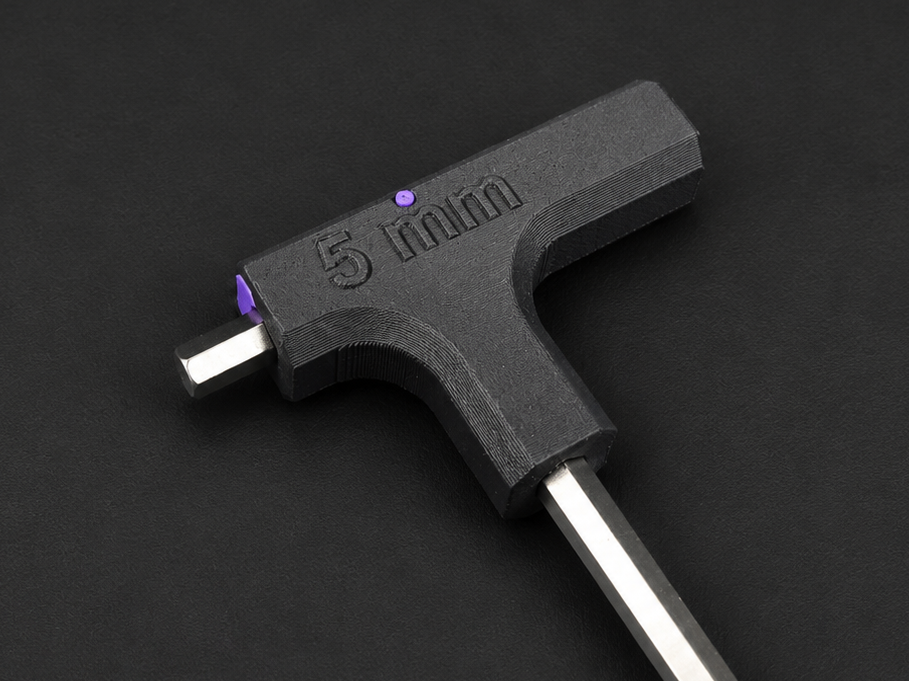

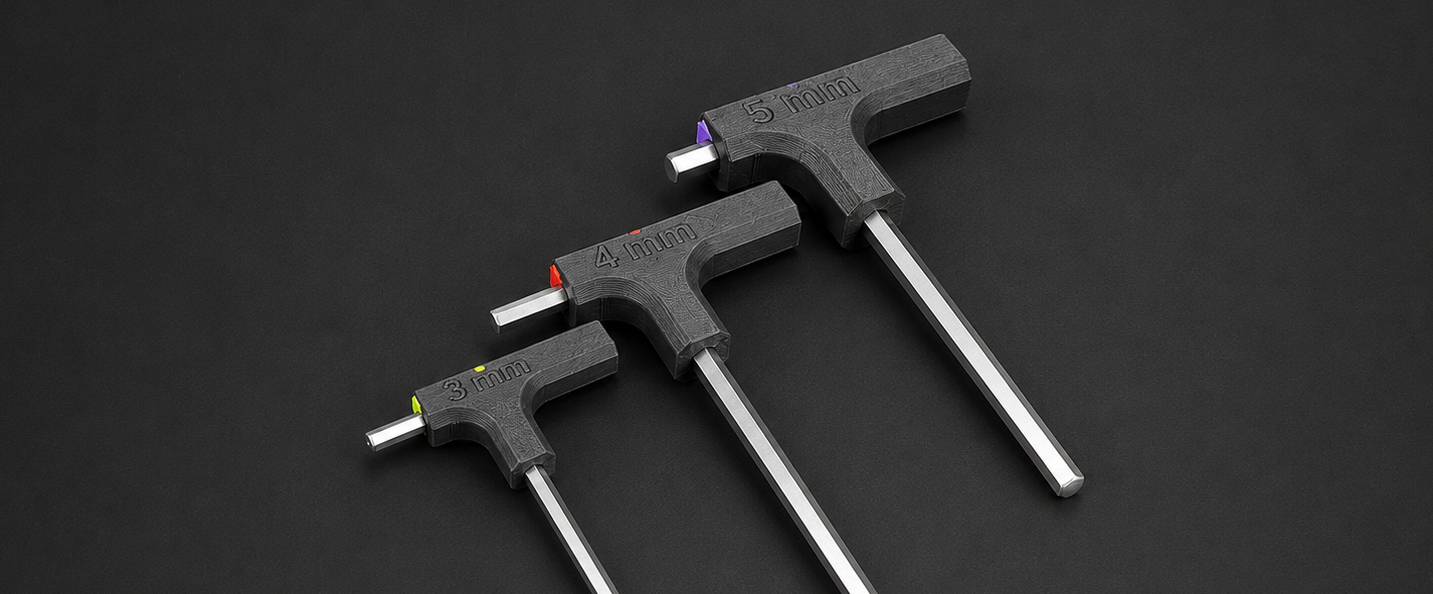

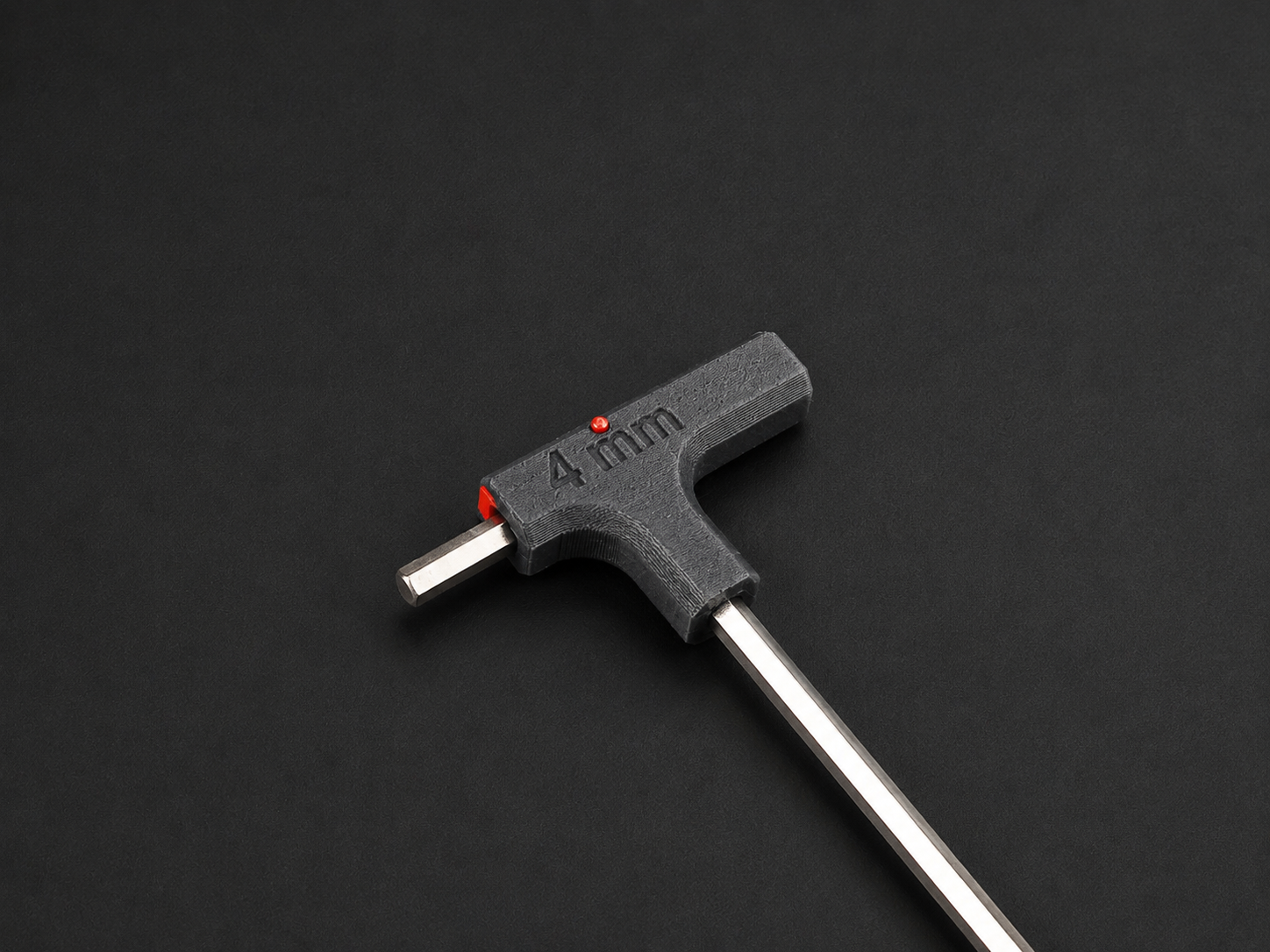

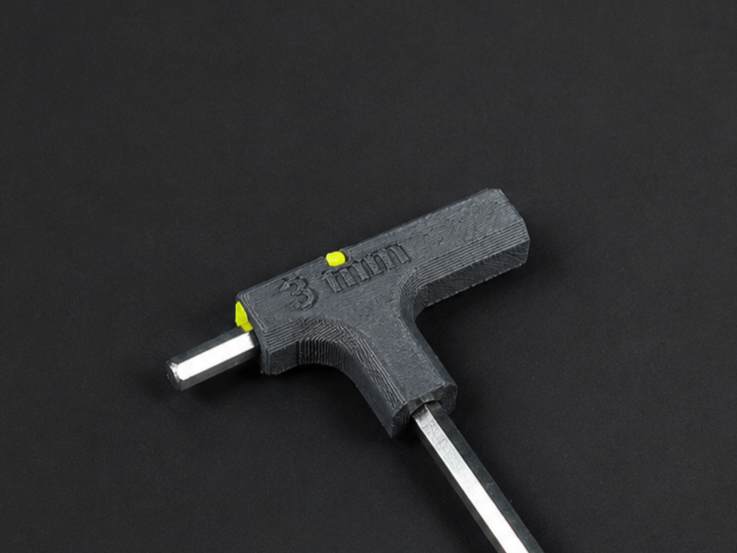

Allen Key Handle

A fully 3D printable handle for Allen keys / hex keys.
The model is customizable, so you can choose any Allen key size and generate a handle that fits your tool.

It makes small hex keys much more comfortable to use and gives you a better grip for tightening or loosening screws.

Features

• Fully 3D printable
• Customizable hex key size
• Comfortable grip
• Simple locking system
• No screws required
• Uses a short piece of 1.75 mm filament as a pin

Assembly

1. Insert the Allen key into the handle.
2. Slide the lock into place.
3. Push a short piece of filament through the hole.
4. Cut the filament flush with the surface.

The filament piece keeps the lock securely in place.
