Hex Tile Display Stand - Modular Figure Riser Set — STL Grátis

Connect hexagon base tiles and freely combine posts of different heights with display discs to build your own custom display layout — a modular stand.

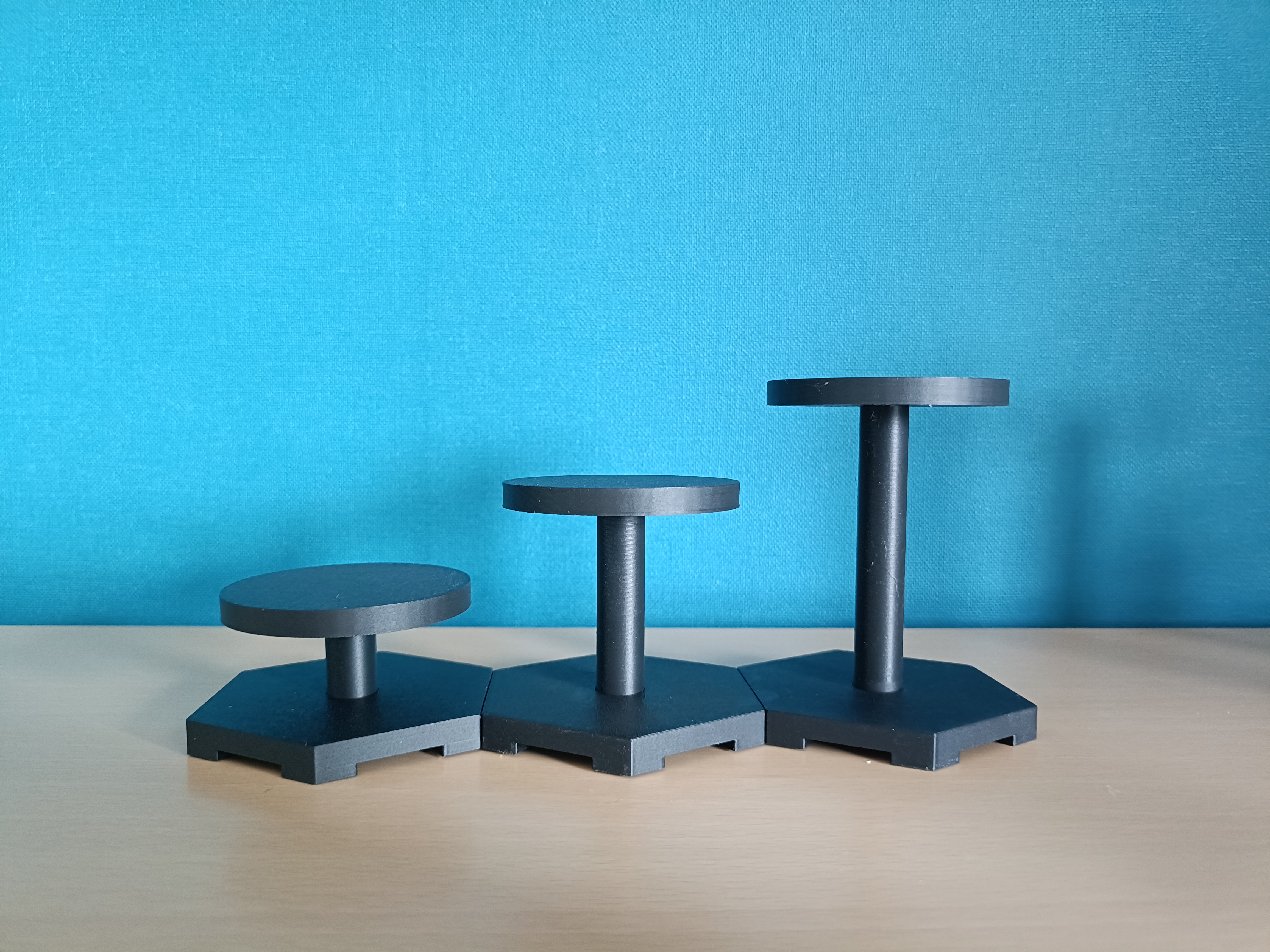

Tiles link together via a clip on the underside, so you can connect as many as you like to expand the base. Posts come in 5 height options — print whichever ones you want, in any quantity, and arrange them freely for a staggered display of figures, perfume bottles, succulents, and more. There are no fixed rules for height or layout; the number of pieces you print and how you arrange them gives you countless display options.

No glue is required for basic assembly — everything fits together as printed. If you're displaying something heavy, or just want extra peace of mind, feel free to use glue for added stability.

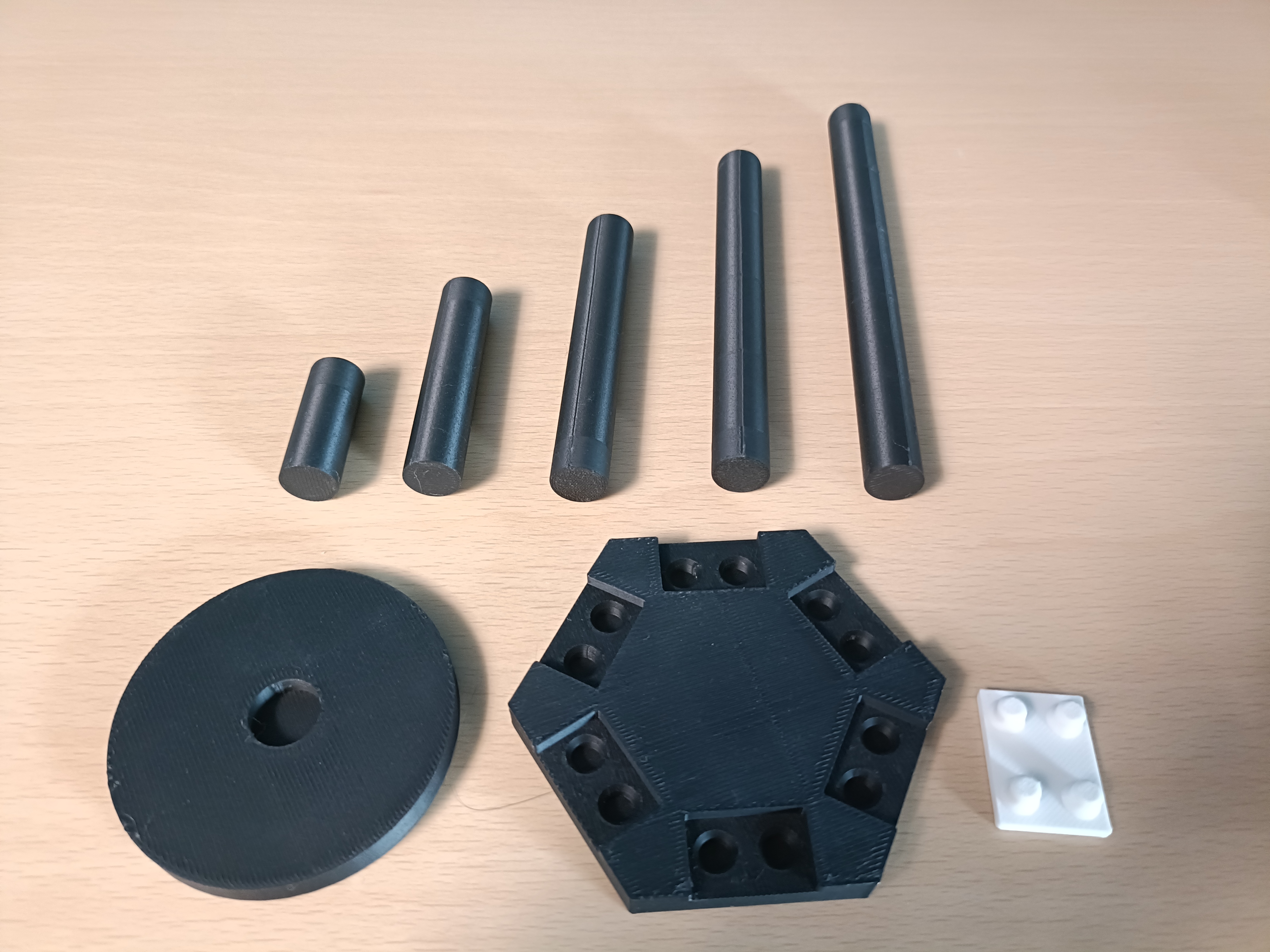

Dimensions

Hex tile: 65mm flat-to-flat
Disc: 58mm diameter

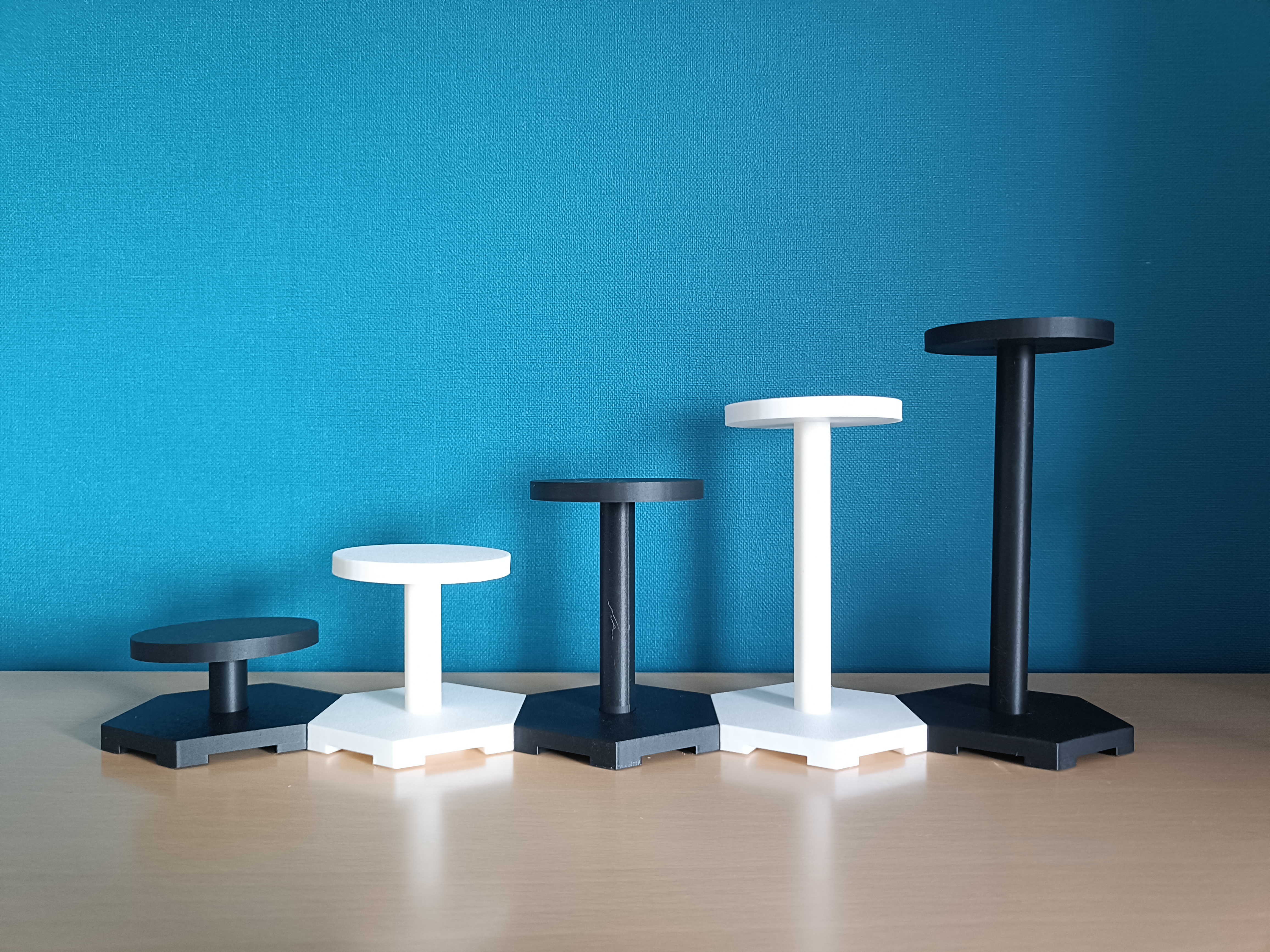

Post heights (exposed): 20 / 45 / 70 / 95 / 120mm
Total assembled height: 34 / 59 / 84 / 109 / 134mm

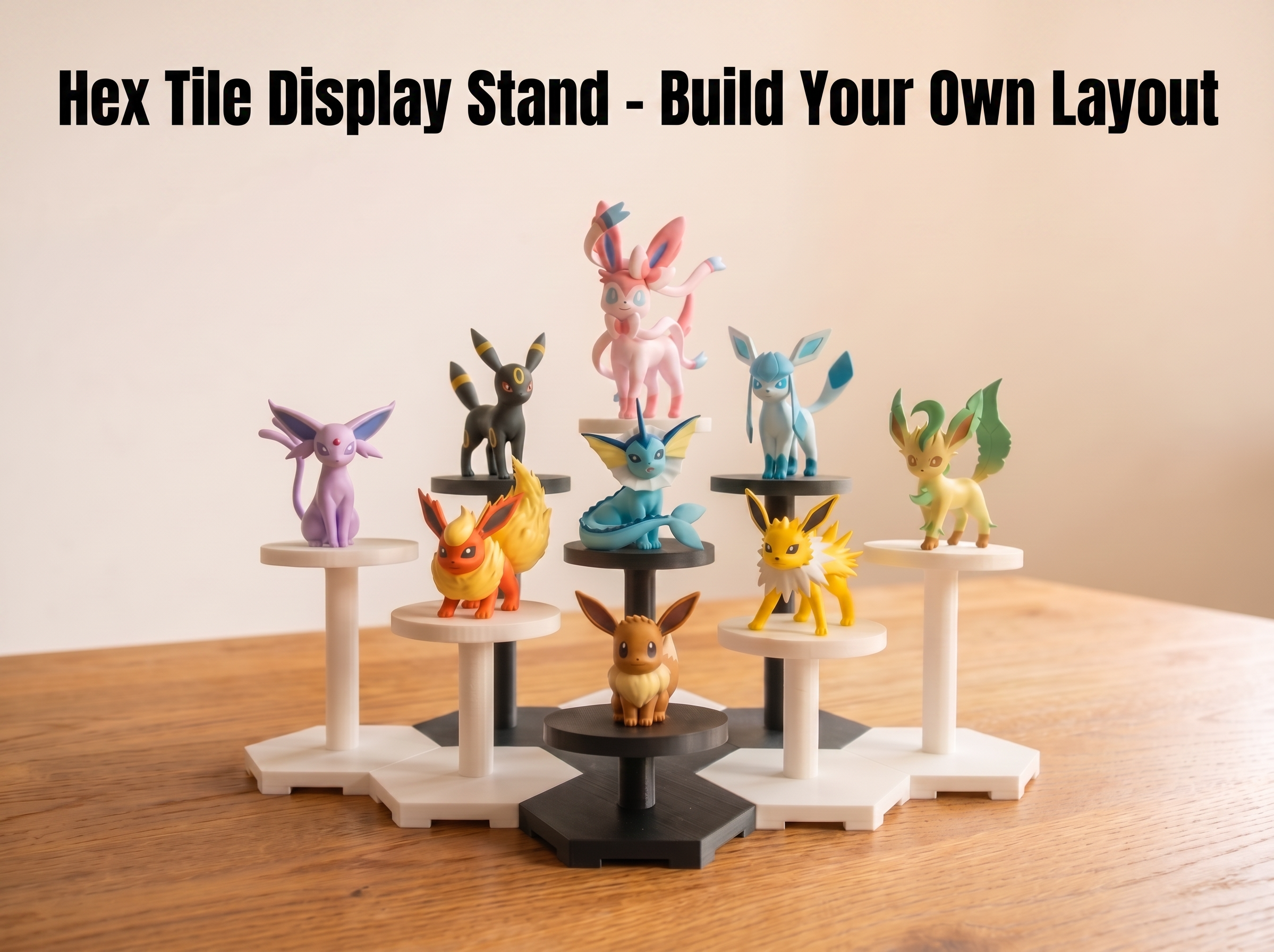

Example uses

Staggered display for figure collections
Mini display stand for perfume bottles and small items
Succulents
Stand for houseplants

Print extra tiles, posts, or discs anytime to expand the layout as your collection grows.

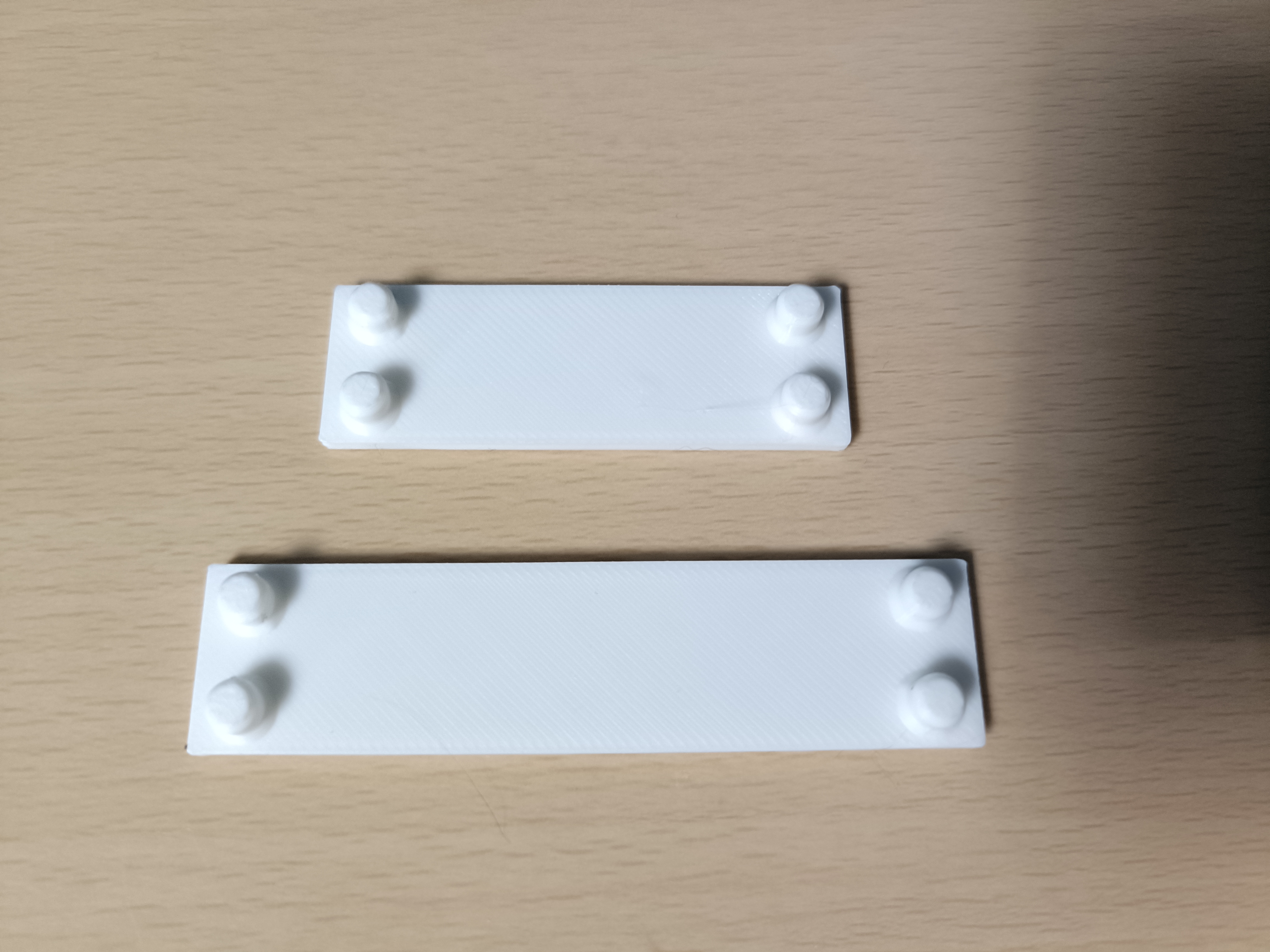

Spacer clips are also available to create roughly a 3 cm or 5 cm gap between blocks, for when you want them spread further apart.

Descrição

Hex Tile Display Stand - Modular Figure Riser Set
