Parametric Cable Pass-Through Frame

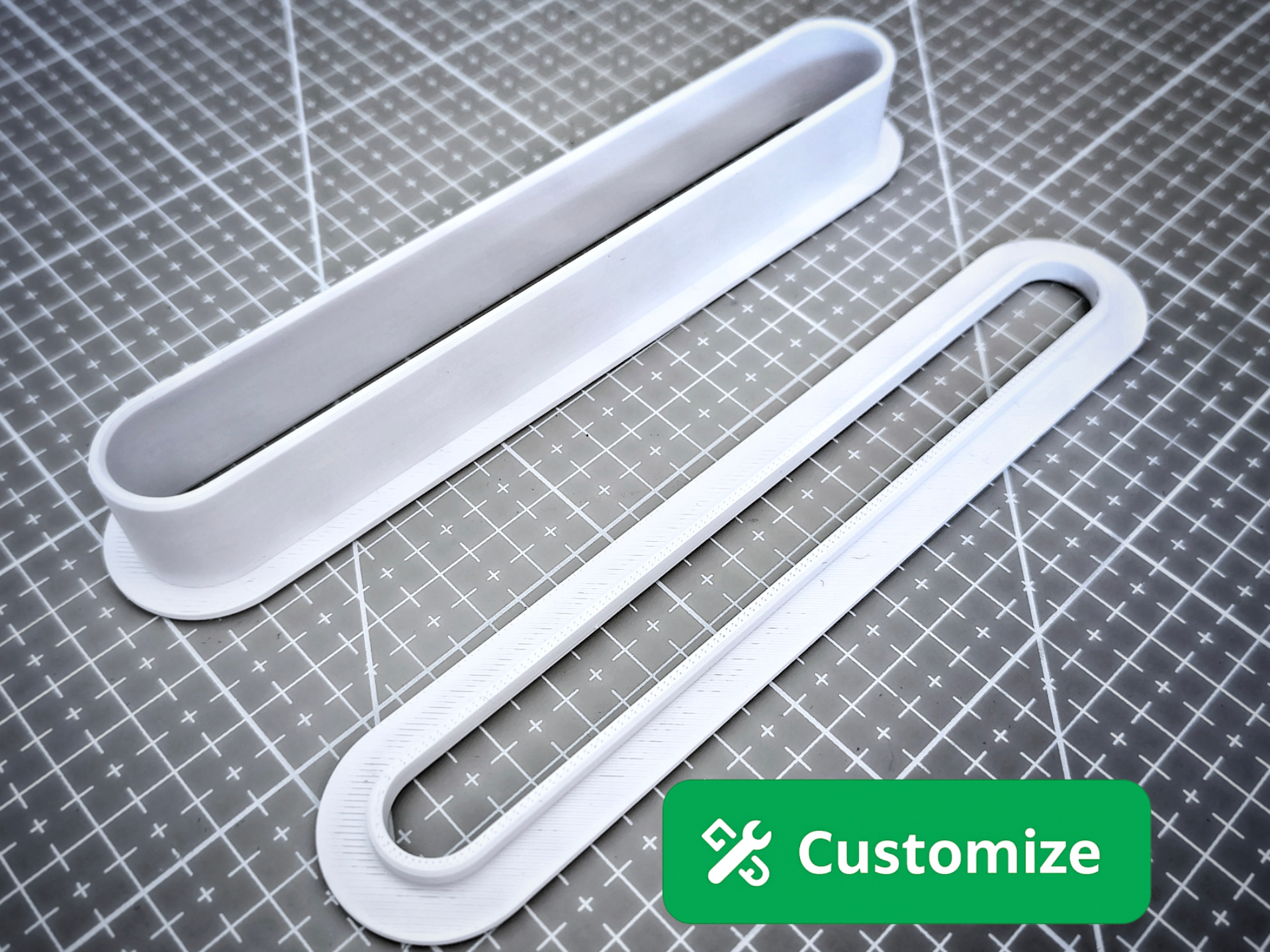

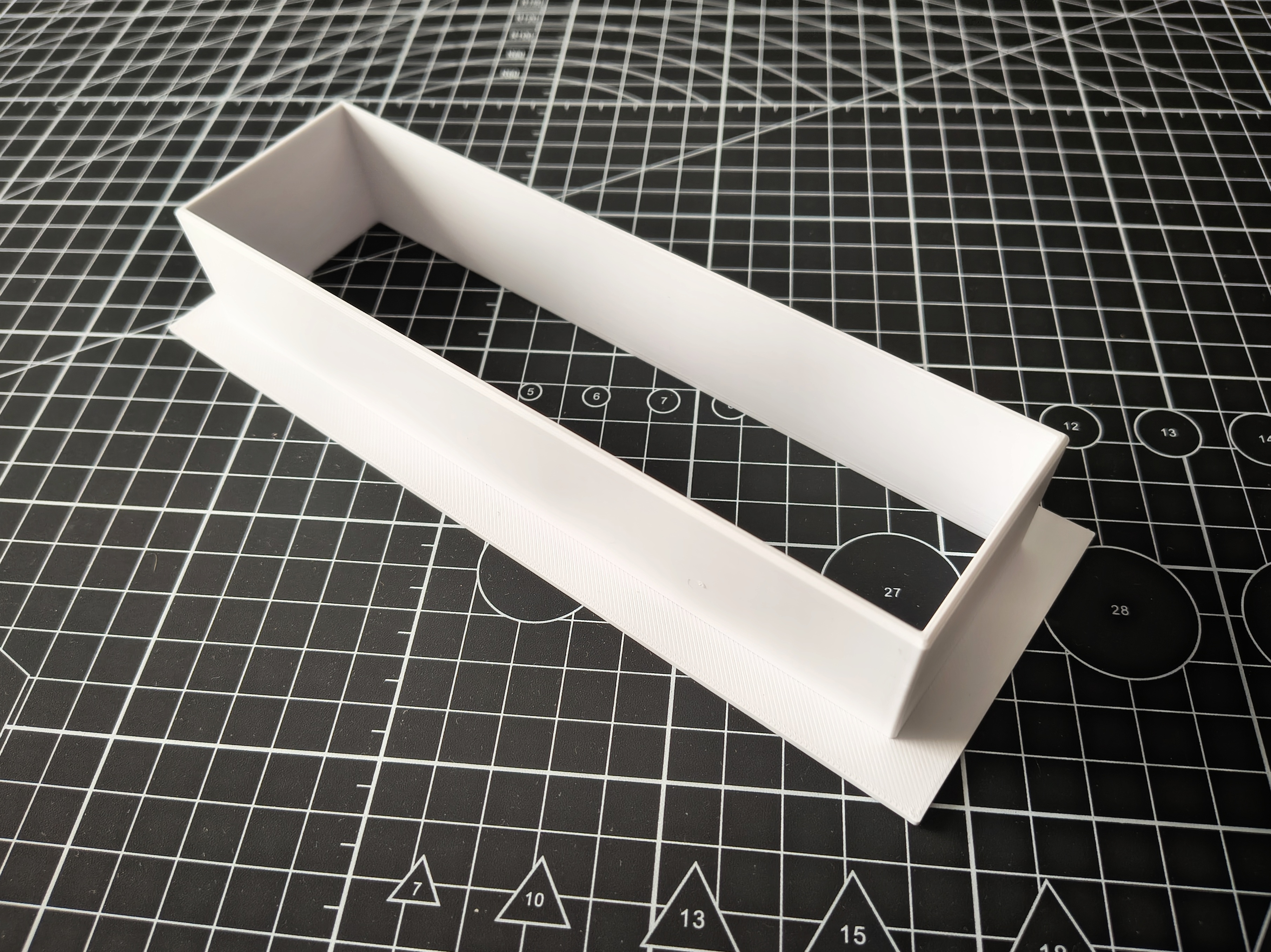

A parametric cable pass-through frame designed to finish the edges of rectangular cutouts in furniture panels, desks, and walls. Press-fit into the opening, or secure with adhesive or silicone for a permanent install. The flange sits flush against the surface and covers the raw edges of the cutout.

Single-sided design, no cover plate on the back.

Use the Customize button to adjust the frame to your exact opening dimensions.

Parameters:

opening_width — inner width of the cable pass-through opening
opening_height — inner height of the cable pass-through opening
sleeve_depth — depth of the sleeve that goes into the wall cutout
wall_thickness — thickness of the sleeve walls
flange_width — width of the flange overhang on each side of the opening
flange_thickness — thickness of the flange plate
