Parametric Pipe Bend

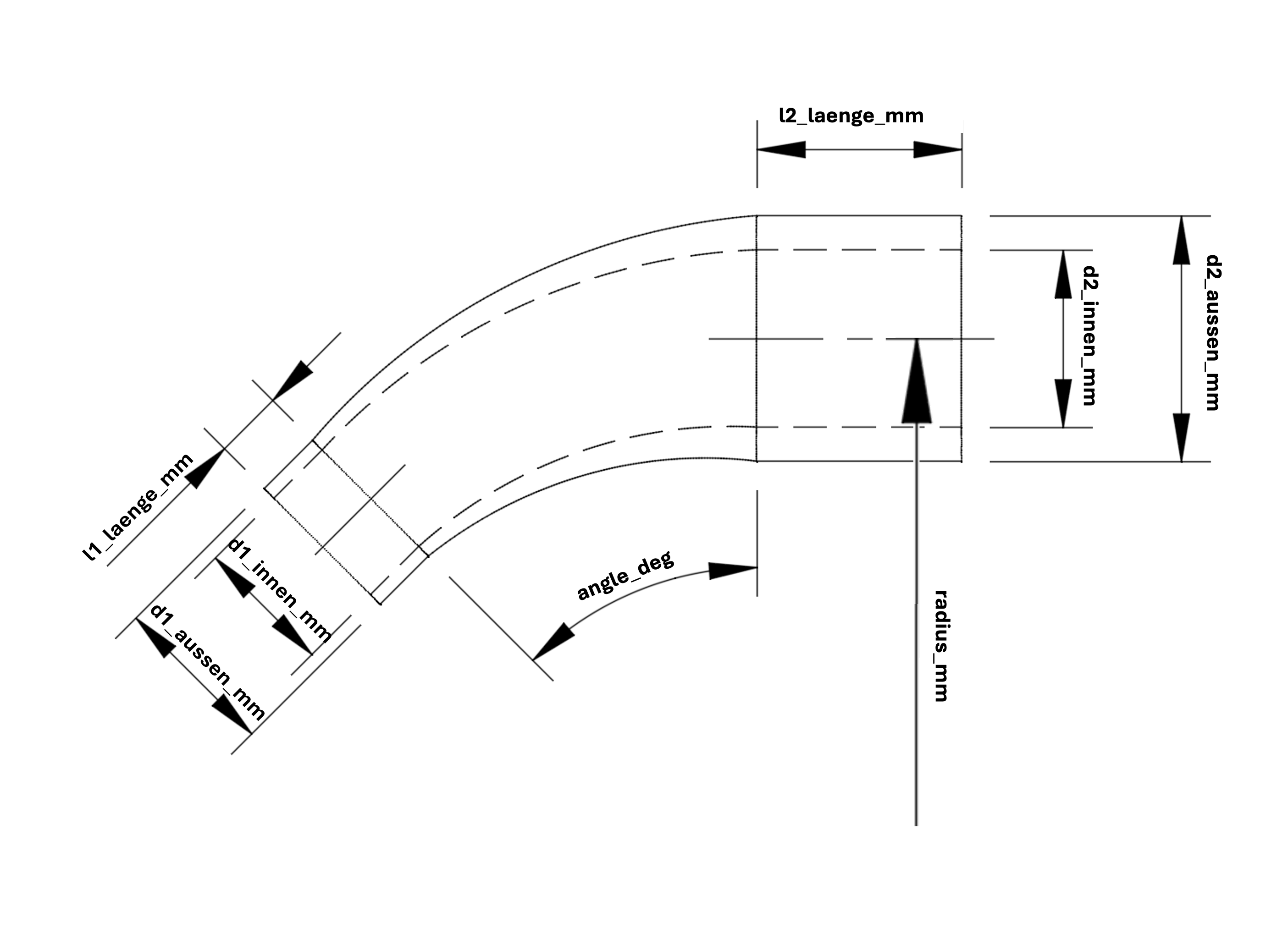

Pipe connector with many customizable dimensions for individual applications. The following parameters can be adjusted:

• d1_innen_mm: Inner diameter of flange 1 in mm
• d1_aussen_mm: Outer diameter of flange 1 in mm
• l1_laenge_mm: Length of flange 1 in mm
• d2_innen_mm: Inner diameter of flange 2 in mm
• d2_aussen_mm: Outer diameter of flange 2 in mm
• l2_laenge_mm: Length of flange 2 in mm
• radius_mm: Bend radius in mm
• angle_deg: Bend angle in °

After customization, I highly recommend to check the orientation on the print bed. Depending on the dimensions, it may be necessary to enable supports. For my application, PLA was sufficient, but in some cases it may make sense to choose a different material.
