📦 Modular Card Wall Display Tiles – Top Loader Version

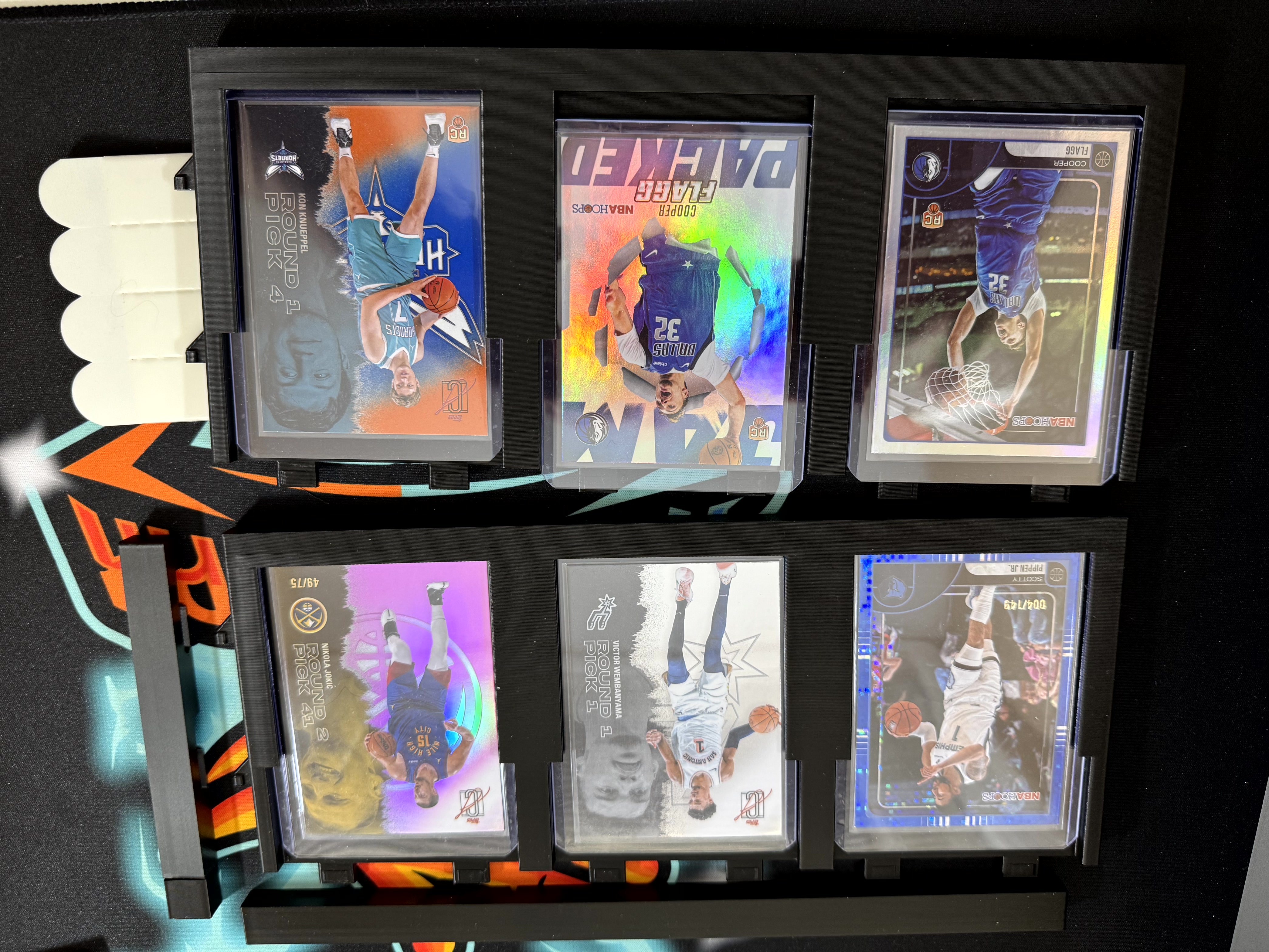

The Modular Wall Display Tile system is a 3D-printed, fully modular wall display for trading cards. Each tile holds one card in a standard top loader and displays it face-out on the wall. Snap tiles together to build a display of any size — from a single card to a full grid wall — with zero glue, screws, or loose hardware.

NOTE: Load each card into its tile BEFORE snapping the tile above it on the wall — once tiles are stacked, the ones below are covered. Plan your layout first! Will need 3M command tape to stick to wall.

🔗 HOW THE SYSTEM WORKS

Every tile is a single printed piece with built-in interlocking connectors — no clips, magnets, glue, or screws required. Tiles lock together in every direction (side-to-side and stacked vertically) to form a grid of any width and height. To add a tile: hook it over the pegs of the tile beside or below it and slide straight down — it locks in place. To remove or rearrange: lift straight up. Edge caps finish the outer edges so the assembled grid looks like one clean framed piece.

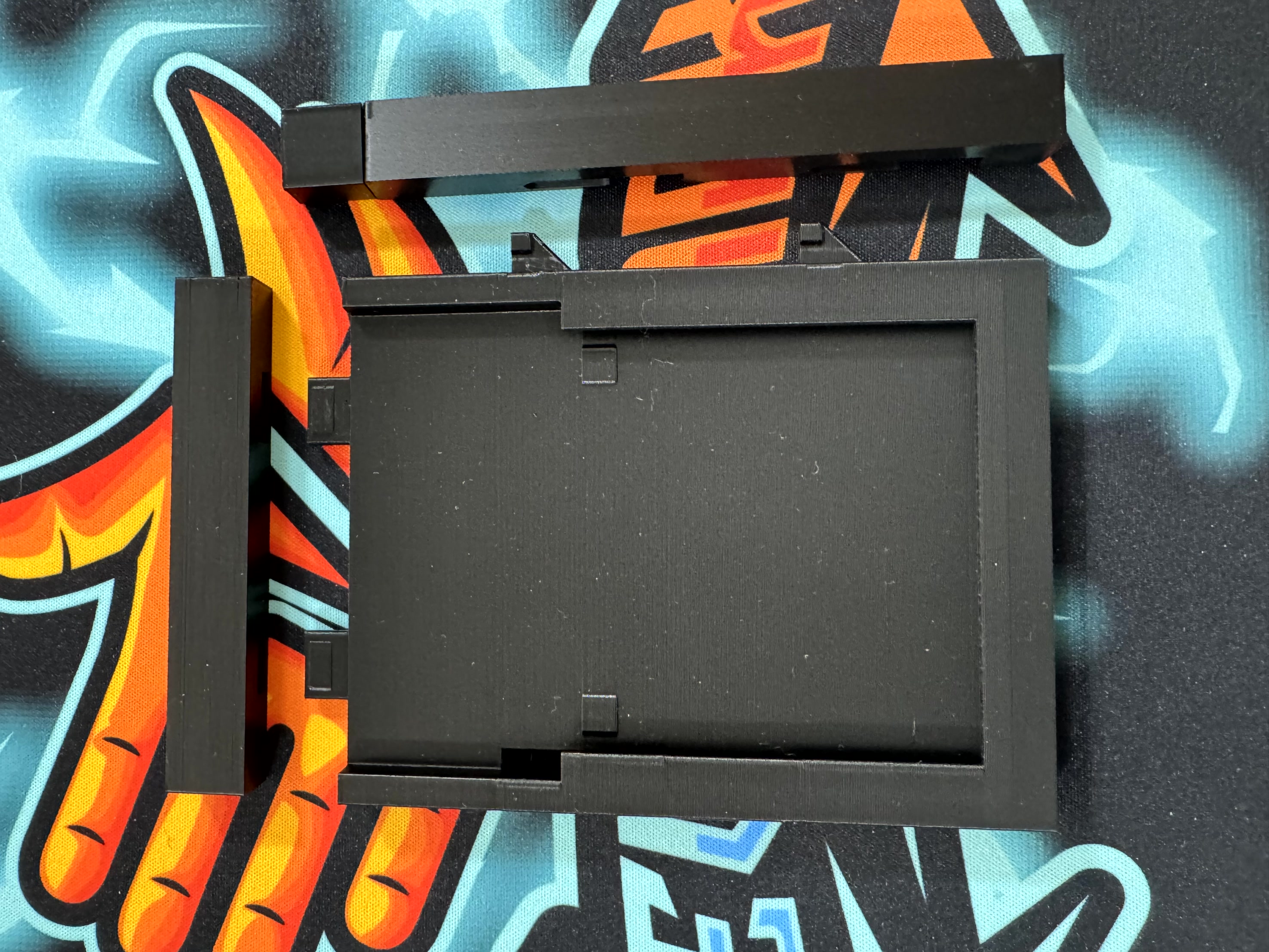

🧩 THE PARTS (Mix and Match Freely)

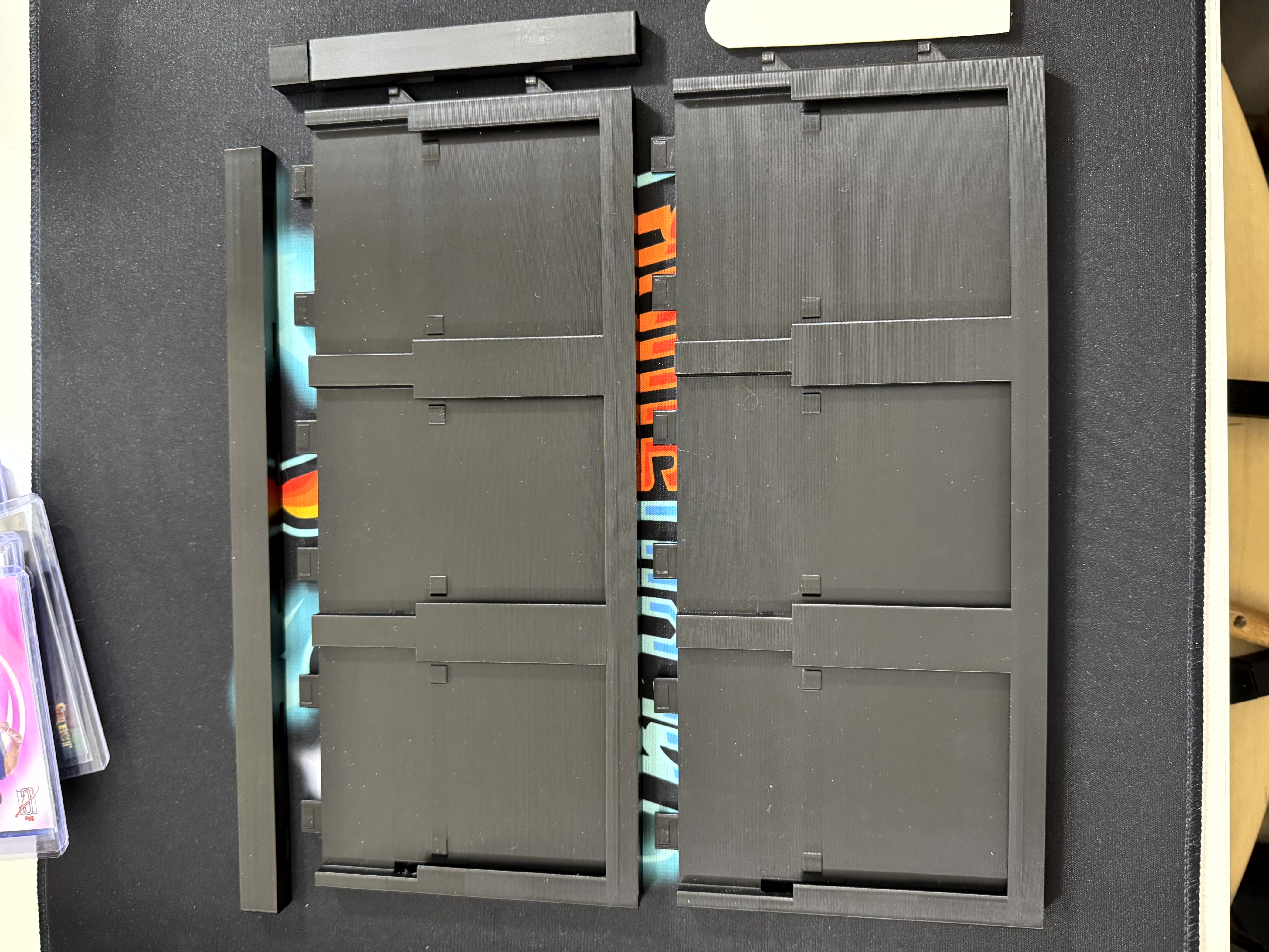

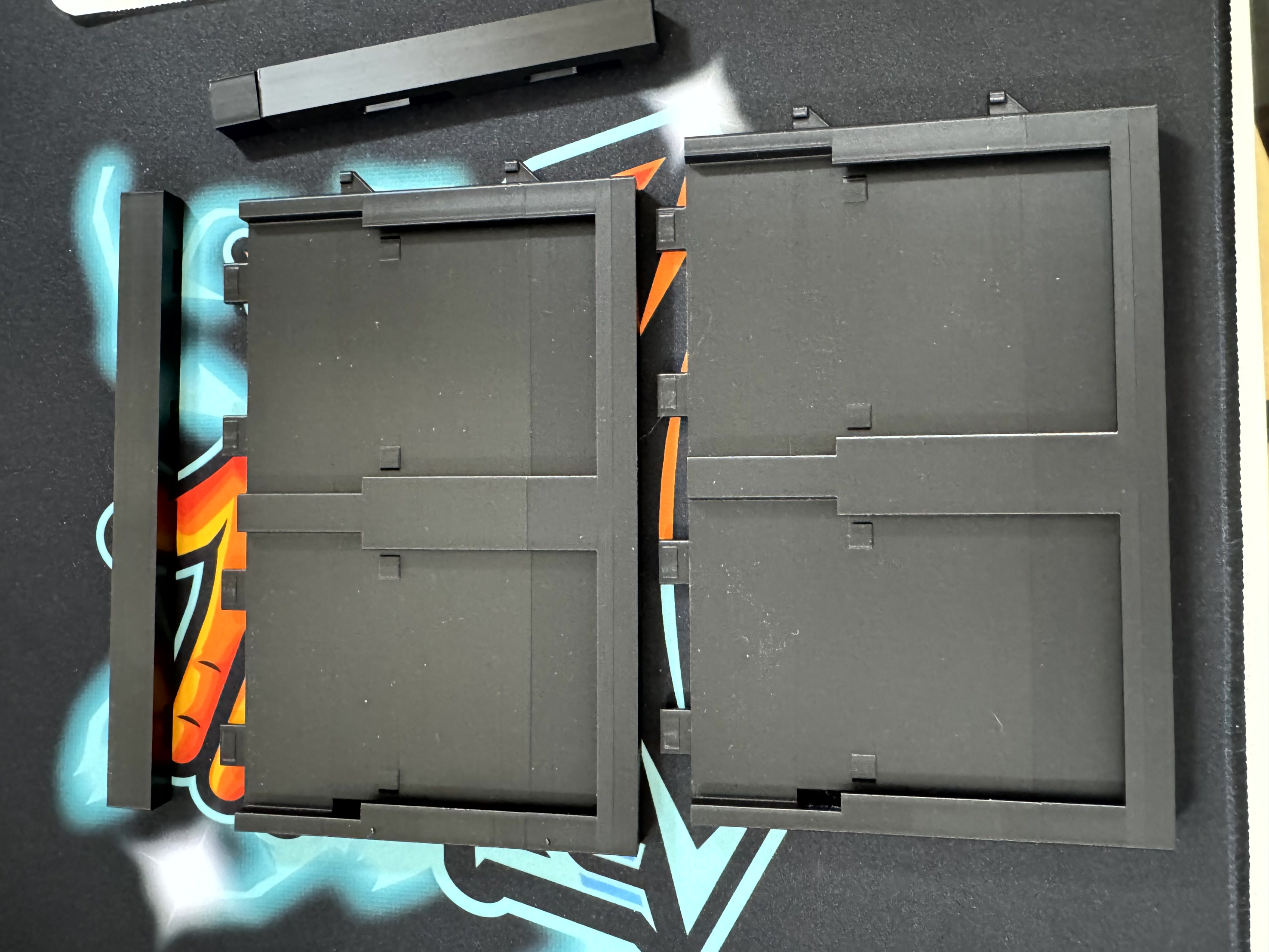

• Tiles — available in 1-wide, 2-wide, and 3-wide. Multi-wide tiles print as one solid piece for added strength and faster printing. All widths line up exactly with single tiles, so any combination fits together (e.g. a 3-wide tile sits perfectly above three singles).
• Top Caps (1/2/3-wide) — clip onto the top row to cover connectors and give a clean top edge.
• Side Caps — clip onto the right edge for a finished side; they also stack vertically for tall displays.
• Corner Piece — caps the top-right corner and locks the top and side caps together.

🚀 WHAT'S NEXT? I'm currently working on PSA graded slab and One Touch magnetic case versions of this same system — same interlocking connectors, different card types. Follow my profile so you don't miss the next drop!

Don't have a printer? Buy physical tiles here: [https://hitprints.com](https://hitprints.com)

The design focuses on clean, modular construction, easy expansion, and reliable printability, making it ideal for personal-use prints.

Notes: I've kept infill at 15% which keeps tiles sturdy while saving filament. If you experience corner lift, adding an 8mm brim and slowing the first layer to 20mm/s is recommended. No supports needed.

🔧 DESIGN FEATURES

• Fully modular — start with one tile, expand to any size
• No hardware required — integrated snap-together design
• Removable & rearrangeable — pull any tile to swap cards or restyle
• 1-wide, 2-wide, and 3-wide tile options included
• Top caps, side caps, and corner piece for a clean framed look
• Holds standard 3"×4" regular top loaders
• Damage-free wall mounting with 3M Command strips
• Tile size: ~88 × 112mm (~3.5 × 4.4 in), ~9.5mm thick
• Clean, modern design optimized for 3D printing

🖨️ PRINTING NOTES

• Designed for standard FDM printers
• No supports required
• Light layer lines are normal and expected
• Works great in PLA and PETG HF

🖼️ MOUNTING
Designed for use with 3M Command picture-hanging strips for damage-free wall mounting. No drilling, no holes, no permanent damage. Strips are not included.

💬 HAVE A REQUEST? I design these for the hobby! If there is a specific card type or display problem you need a solution for, let me know in the comments. I'll be picking the best ideas for my next designs.

⚠️ LICENSE & USAGE
This model is provided for personal use only.

• ❌ No commercial use
• ❌ No selling printed versions
• ❌ No redistribution of files

Please respect the license and the time invested in designing this model.
