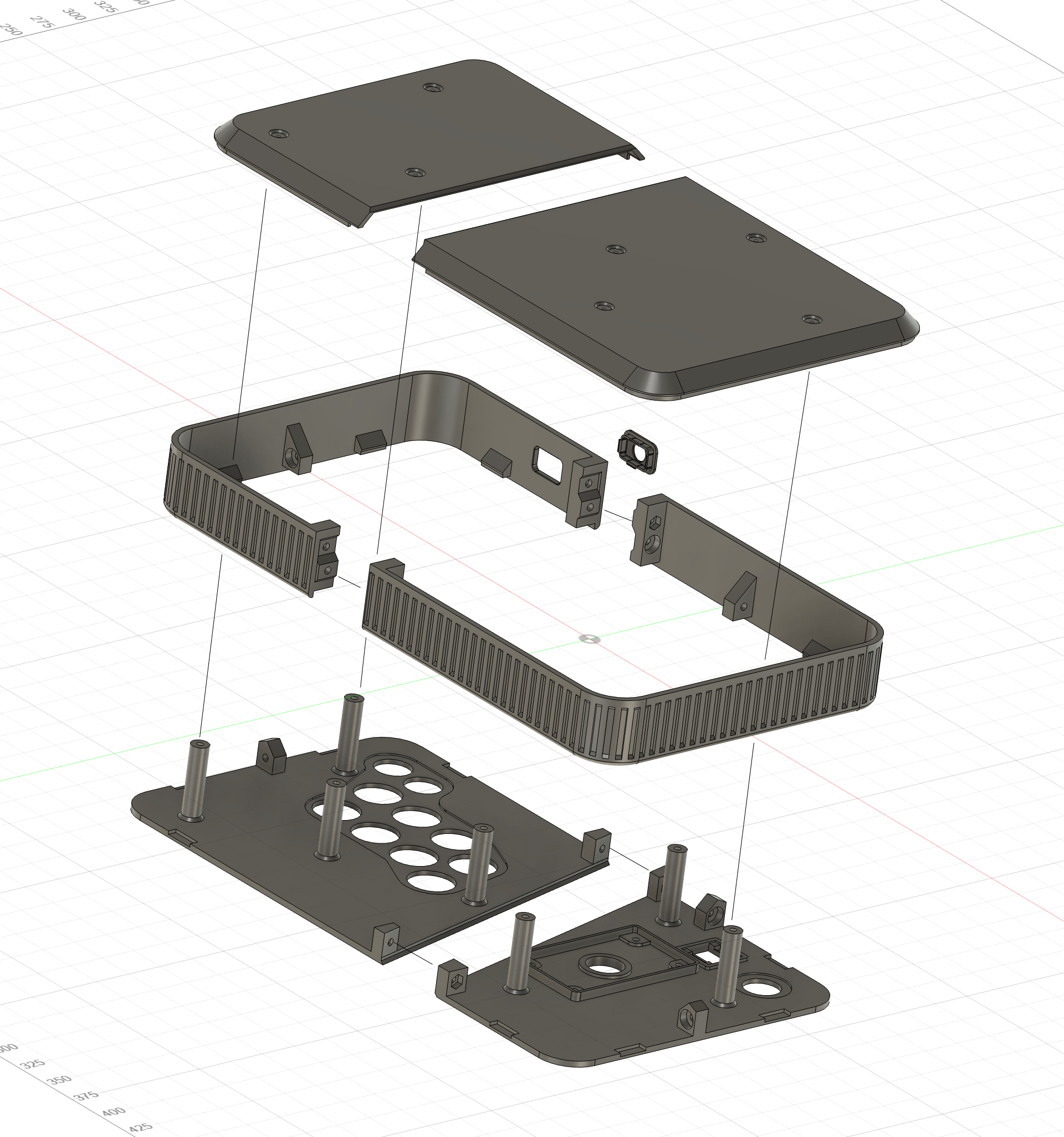

Measuring 37 cm × 22 cm, this arcade stick enclosure offers plenty of resting room for your hands during intense gaming sessions. The model is segmented so it can be printed on standard 256 × 256 mm build plates. See the assembly manual for detailed assembly instructions.

Key Features

• 370 x 220 x 55 mm
• 11-button layout (provides an extra button for console functions, such as a "Home" button for the Nintendo Switch)
• Optional cutout for mounting an LED display
• Designed to fit 256x256 mm print beds
• Provided extra top plates for 53x95 mm and 57x95mm joystick plate and with or without LED display options

Hardware Requirements

Joystick

• Supports joystick bodies up to a maximum height of 46 mm.
• Sanwa JLF / JLX / JLX2 (53 x 95 mm plate)
• Qanba (57 x 95 mm plate)

Buttons

• Supports push-in buttons only. Screw-in buttons are not compatible.
• 8x 30 mm arcade buttons
• 3x 24 mm arcade buttons

Electronics

• I use Arcade Controller Kit (KIT G) from AliExpress
• you may need extra arcade button wires (DuPont to 2.8mm terminal wire in my case)

Additional parts

• 9x (M5x16) Screws (Socket Head)
• 9x M5 Hexagon Nuts
• 11x (M3x5x4) Brass Nut Heat Inserts
• 7x (M3x6) Screws (Flat head)
• 4x (M3x6) Screws (Socket head) ← for joystick mount
• 4x M3 Flat Washer

Note:

Print the top plates using PLA to ensure a rigid surface that will not bend during use.
