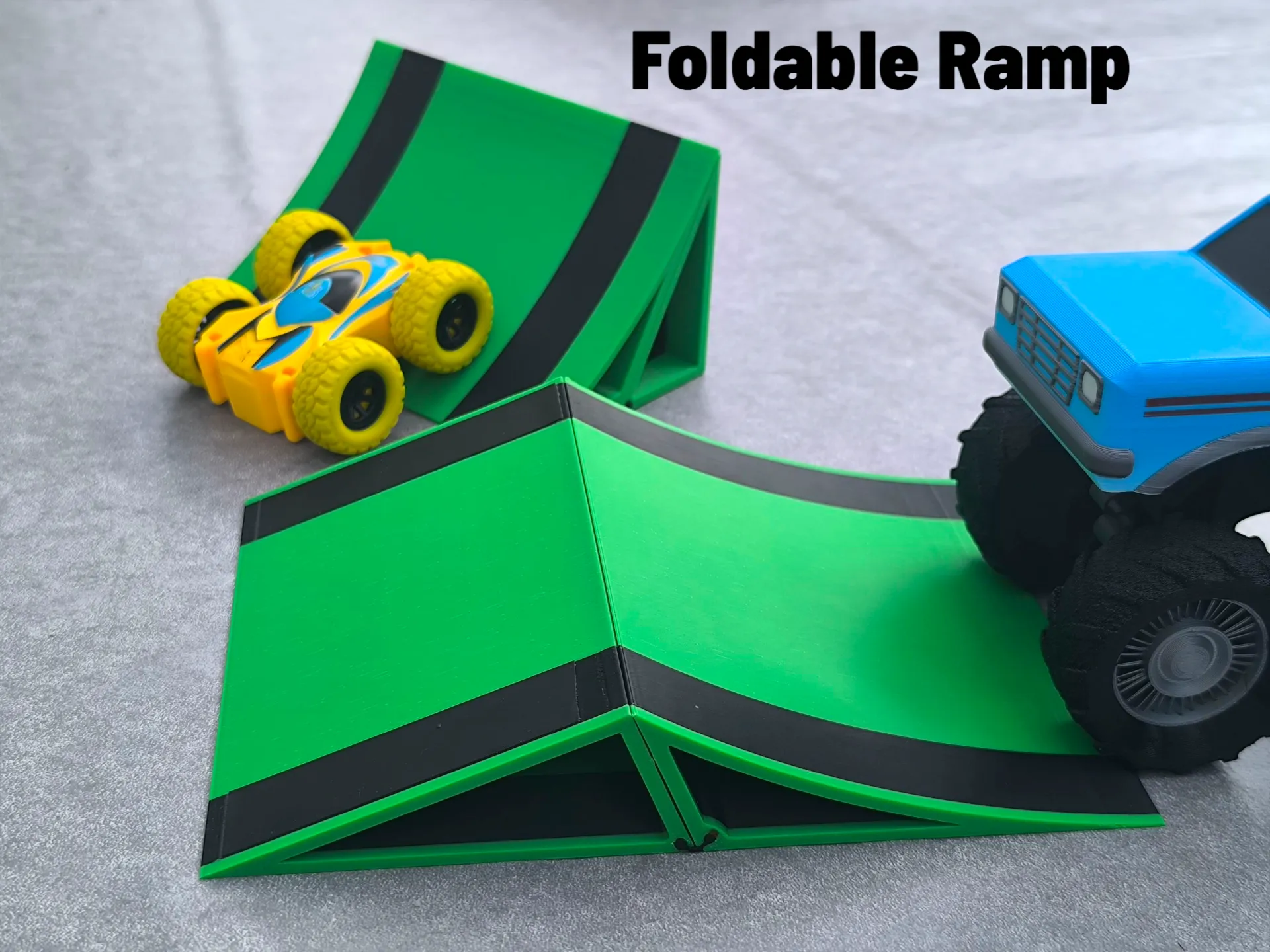

The Foldable Ramp

Recently, I designed and uploaded the Action Monster Truck. And of course, every monster truck needs a ramp for some awesome jumps!

But a simple ramp felt a bit too boring, so I challenged myself to create something more versatile. I wanted a single design that could offer multiple setup options. That’s how the foldable ramp was born.

The ramp consists of two sections connected by TPU strips. These TPU strips act as hinges, allowing the ramp to be folded into different configurations. With a quick adjustment, you can create four different ramp setups, including two inclines and even a teeter-totter.

This gives kids plenty of opportunities to get creative and build their own tracks, while keeping storage space to a minimum.

Two print profiles are included:

• Ramp with a 150 mm track width
• Ramp with a 225 mm track width

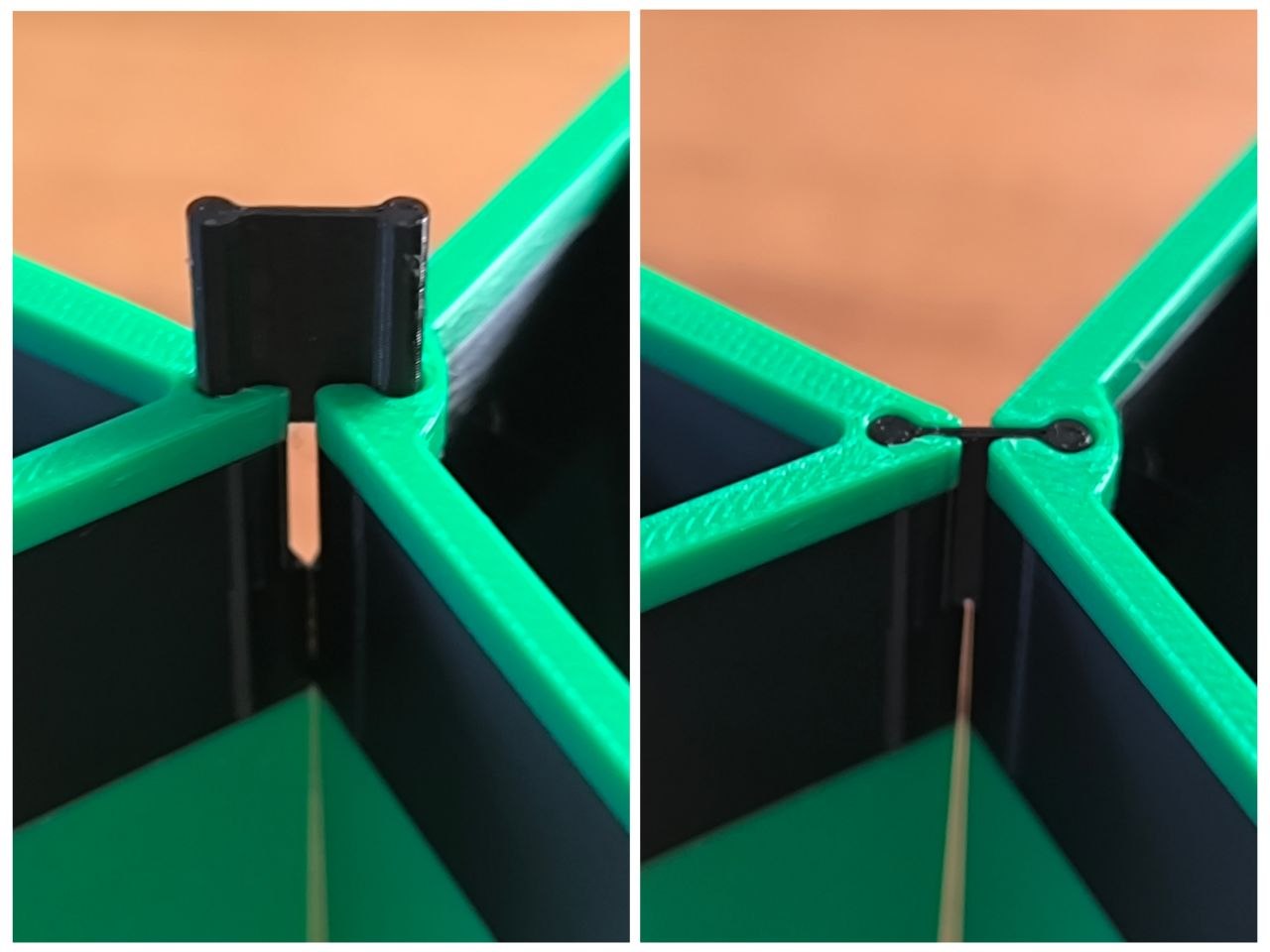

Assembly is easy! Just push the printed TPU connectors into the slots from the ramps to combine.

It is recommend to use the linked Adhesive Foam Sponge Strip Roll.

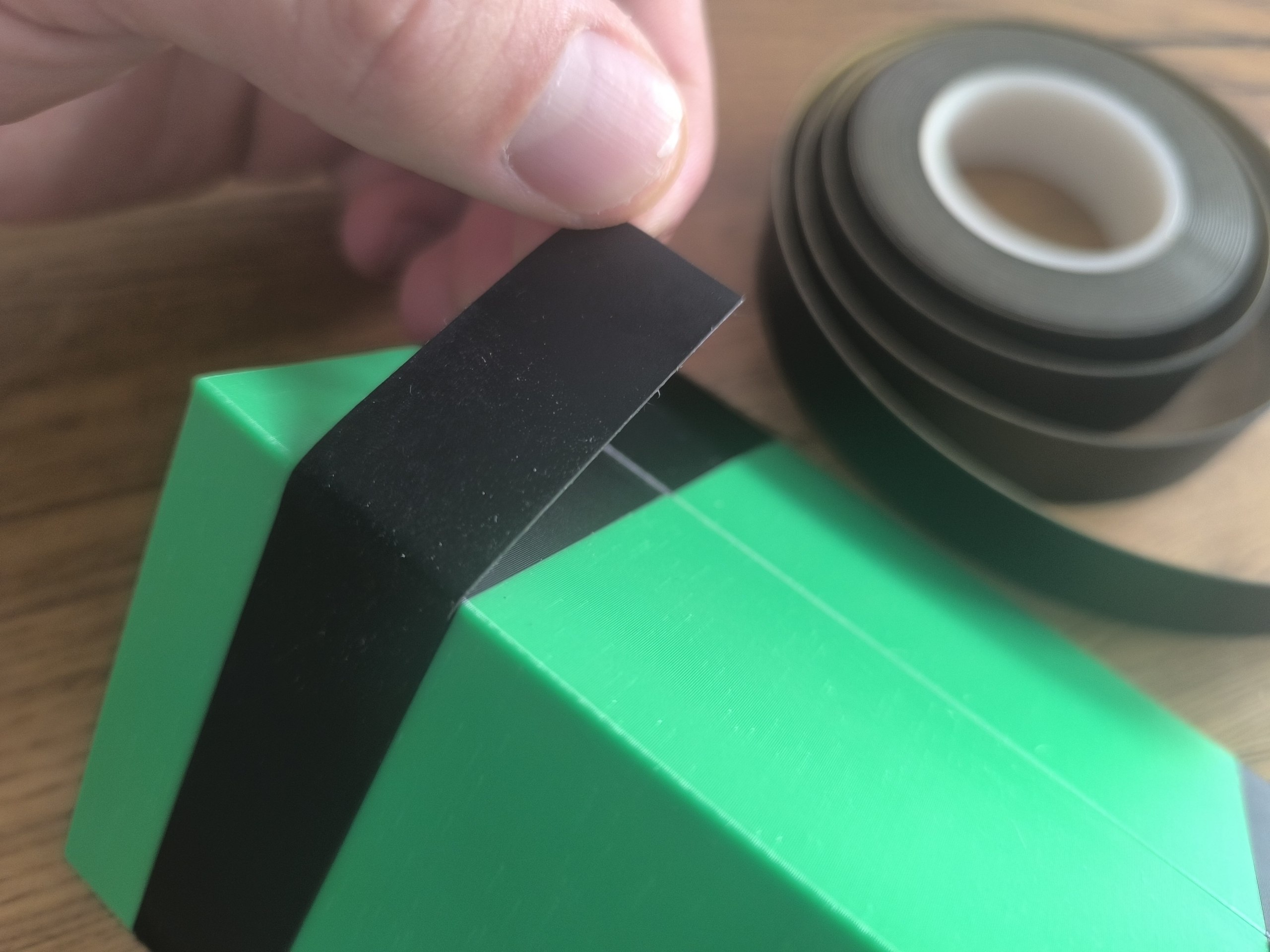

Cut the strips and stick them to the bottom surfaces that will be in contact with the table. This gives the ramps extra grip and helps prevent them from sliding around during play.

Have fun in the playroom and happy printing!
