Modelo 3D KASANE 240 - Lite Dry Storage Module por user_4210848094 no MakerWorld

Descrição

This is a semi-dry storage remix of the excellent [KASANE 240](https://makerworld.com/ja/models/2887381) modular box system, specially optimized for daily filament maintenance and light-dry storage.



Update

'26/7/4

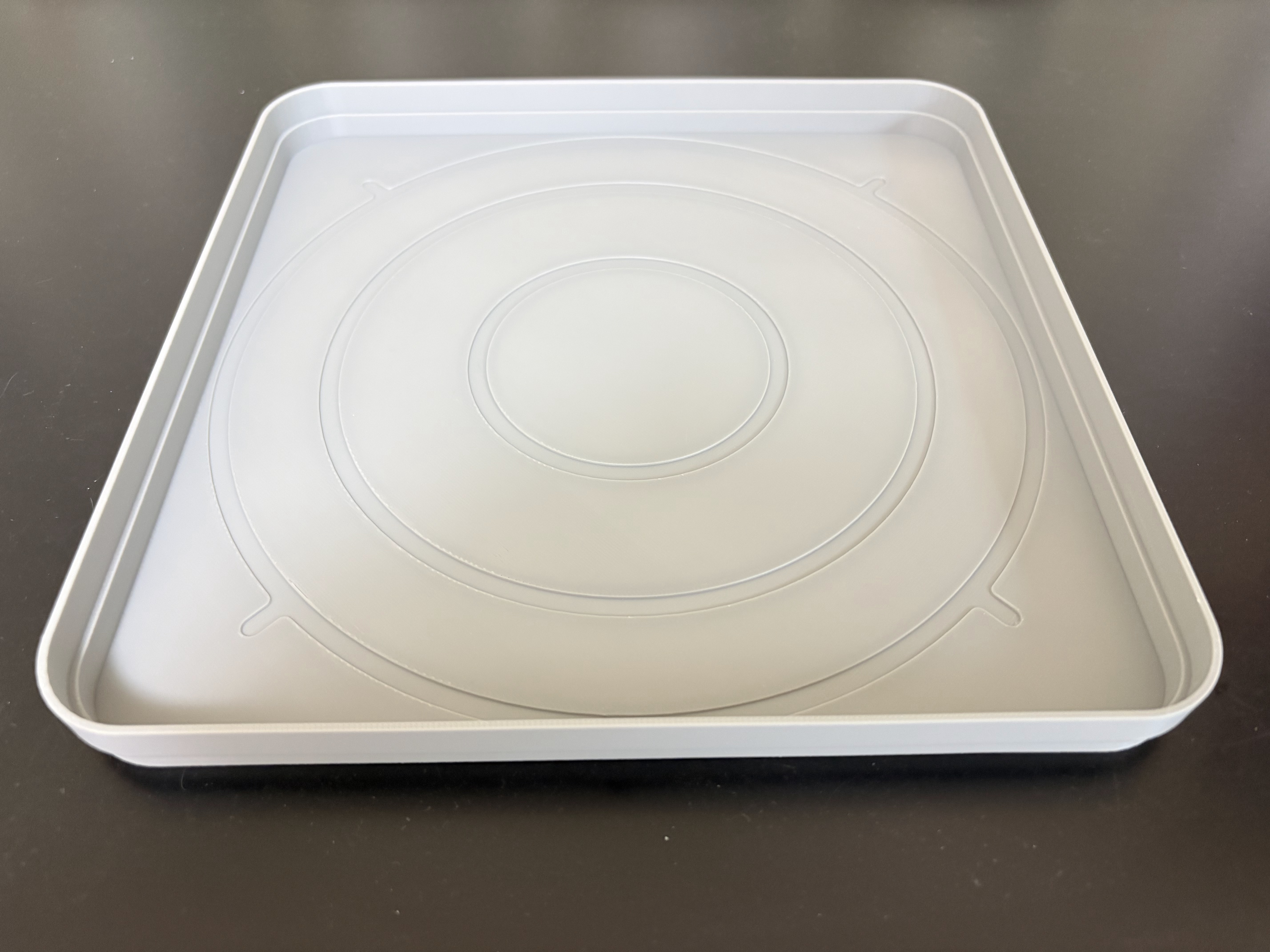

Added a custom 2-color profile for the stacking tray!

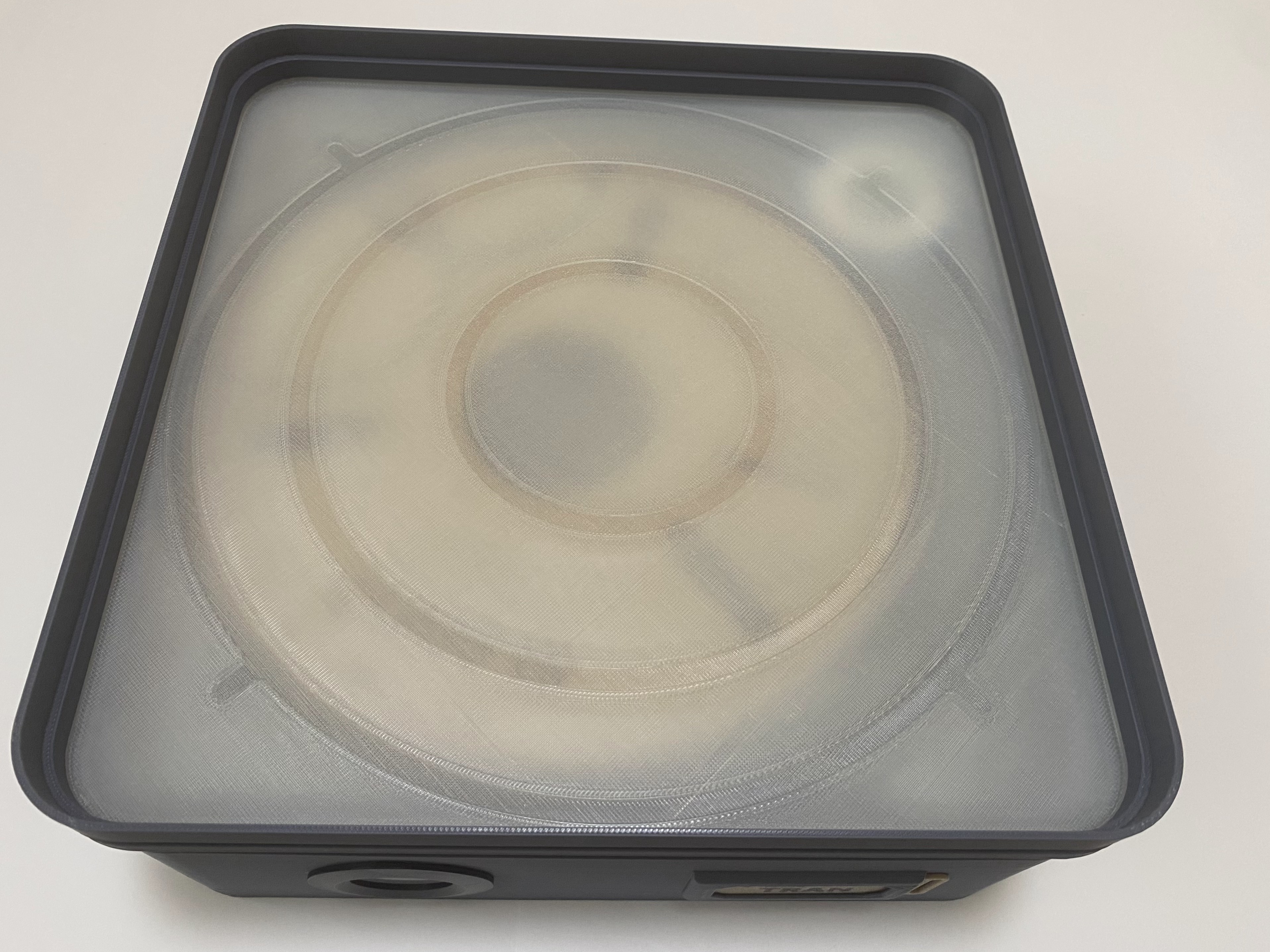

**Clear Bottom: Allows you to easily check inside contents (like filament spools) even when stacked.

**Clean Aesthetics: When stacked, only the rim is visible from the outside for a seamless look.

'26/7/3

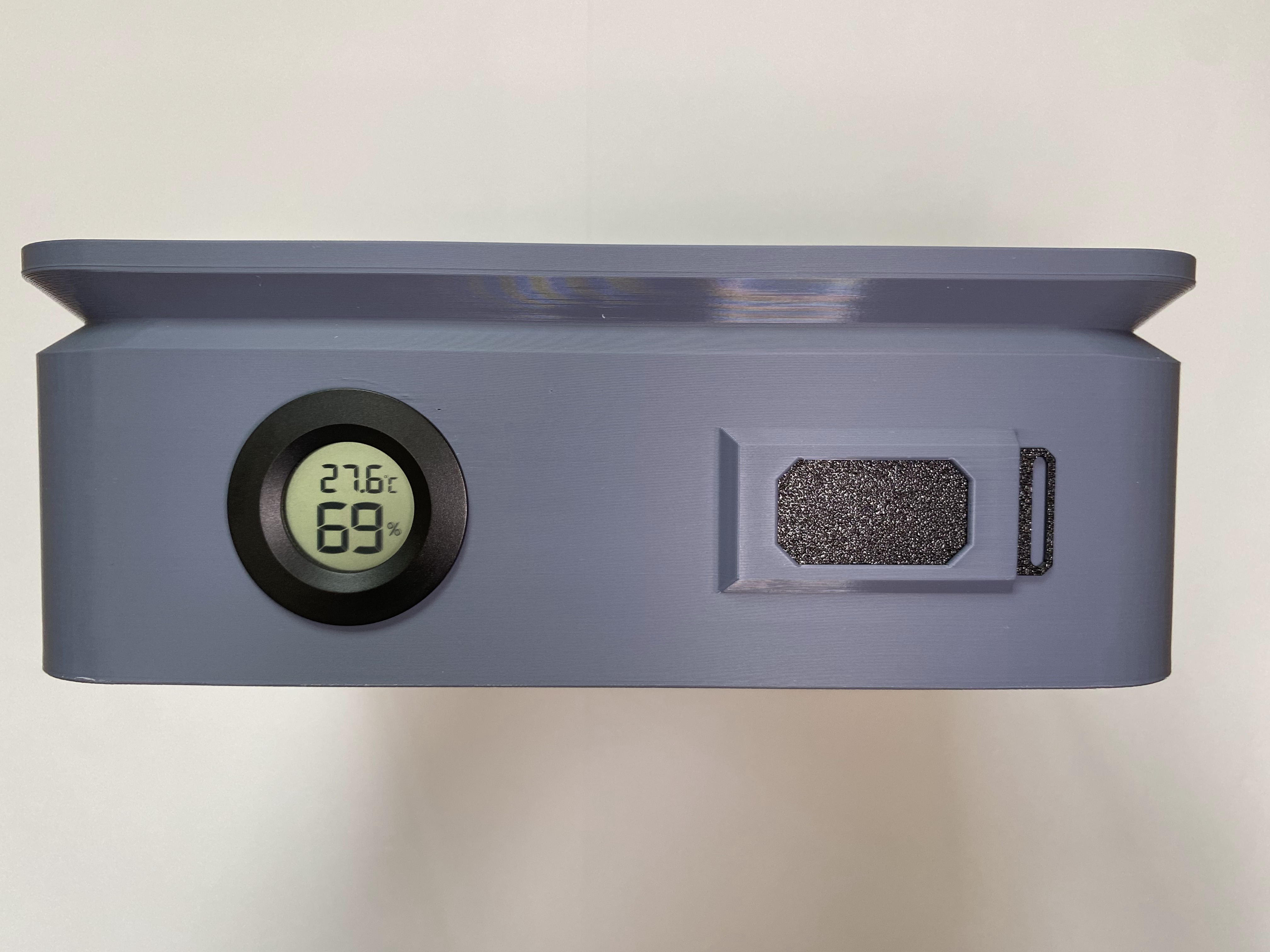

Added a new main box version equipped with a built-in **Name Bracket** to match your personal style!

**For a smart, all-in-one look:** Print the new box version with the built-in bracket.

**For a clean look (hygrometer only) or symmetrical central design:** The original box version is still available and perfect for you.

**For retrofitting older boxes (or adding to your preferred side):** You can simply print the standalone **Name Bracket** included in this profile, and attach it anywhere you like using strong double-sided tape or glue!

 *Note: The label plates for this bracket are perfectly compatible with my other model, **"[Universal Slide-in Label Holders & Tags](https://makerworld.com/ja/models/2958700-kasane-240-lite-dry-storage-module#profileId-3316028)"**.

Please download and print the plates from there to complete your custom storage!*



**【Key Features】**

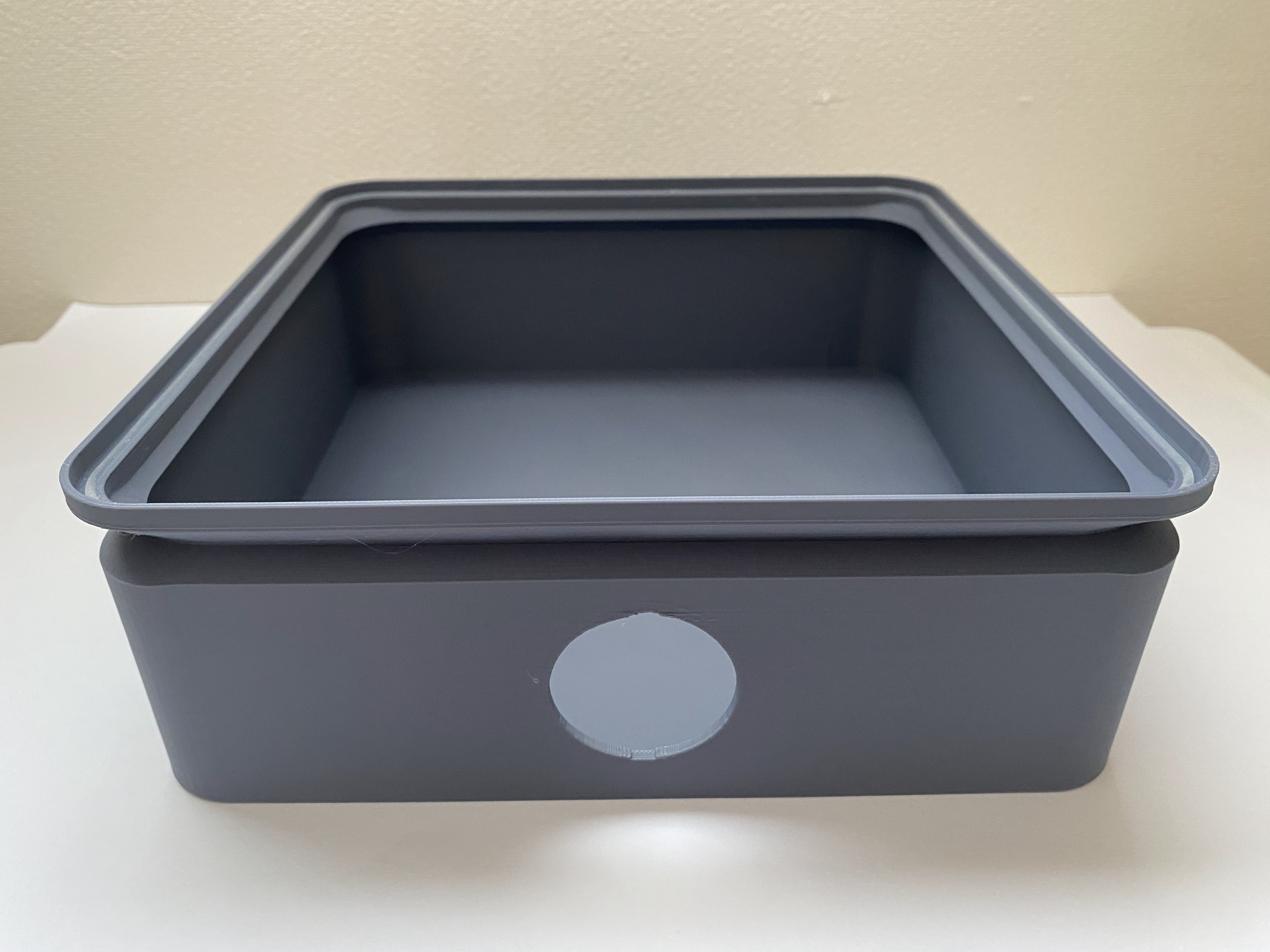

* **Integrated Industrial Design:** Smoothly blends the stacking groove, handle indentation, and a dedicated 43mm round hygrometer hole into a single, cohesive module.
* **Optimized Gasket Clearance:** The gasket groove is fine-tuned to W: 2.0mm / D: 1.3mm, perfectly matching 2.0mm silicone rubber cords (which often measure 1.8mm in reality, such as AS ONE / Tigers Polymer brands). It provides the ideal compression seal without lifting the box above.
* **Perfect Synergy with Spool Container:** Designed to fit popular hygrometer-equipped silica gel spool containers perfectly at the bottom center.



**【How to Use】**
* **Step 1 (Lite Mode):** Use it without a gasket. The precise labyrinth-like fit of the KASANE system provides decent ambient protection on its own.
* **Step 2 (Enhanced Mode):** Insert a 1.8mm–2.0mm silicone cord into the groove to maximize the lifespan of your desiccant.
* *Note: For individual boxes or topmost layers, please use the included "LID_InStack" to maintain the stacking ecosystem.*

MakerWorld

KASANE 240 - Lite Dry Storage Module

Publicado em 21 de jun de 2026

0
Curtidas
3
Downloads
1
Coleções
1
Impressões
Categoria Other House Models
Tags
filament storage dry box stack spool storage gasket hydrometer organizer modular
