🐝 Modular Bee Waterer for Beekeepers

After publishing my previous project, Bee Waterer – Simple Bottle Water Station for Bees, several beekeepers asked if I could create a larger and expandable version better suited for real apiary use. This project is the result of those requests.

The goal was to design a simple, durable, and highly scalable watering system that can be adapted to any apiary size. Thanks to its modular design, you can build exactly the length you need, from a small setup for a few hives to a large watering station serving an entire bee yard.

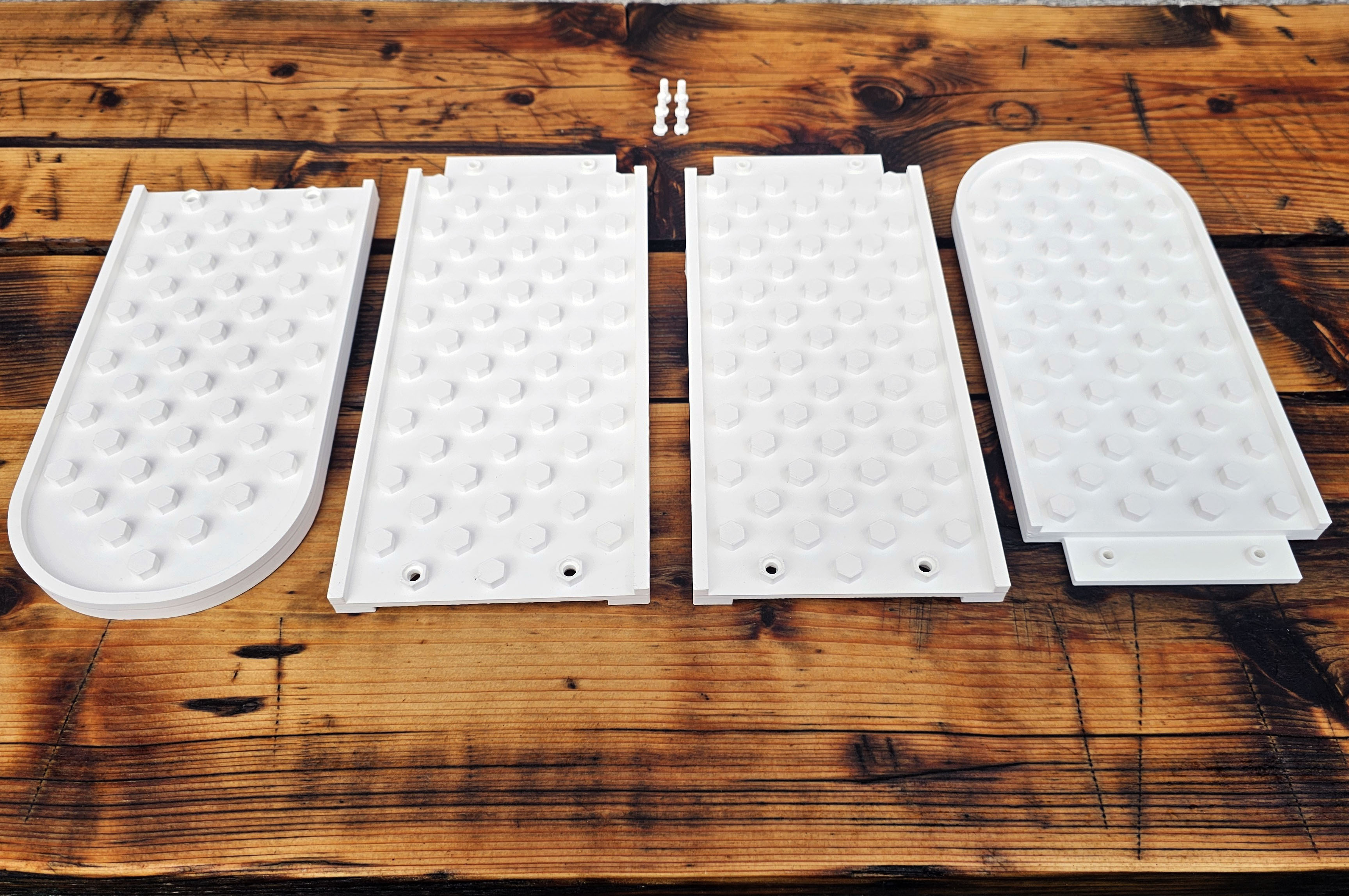

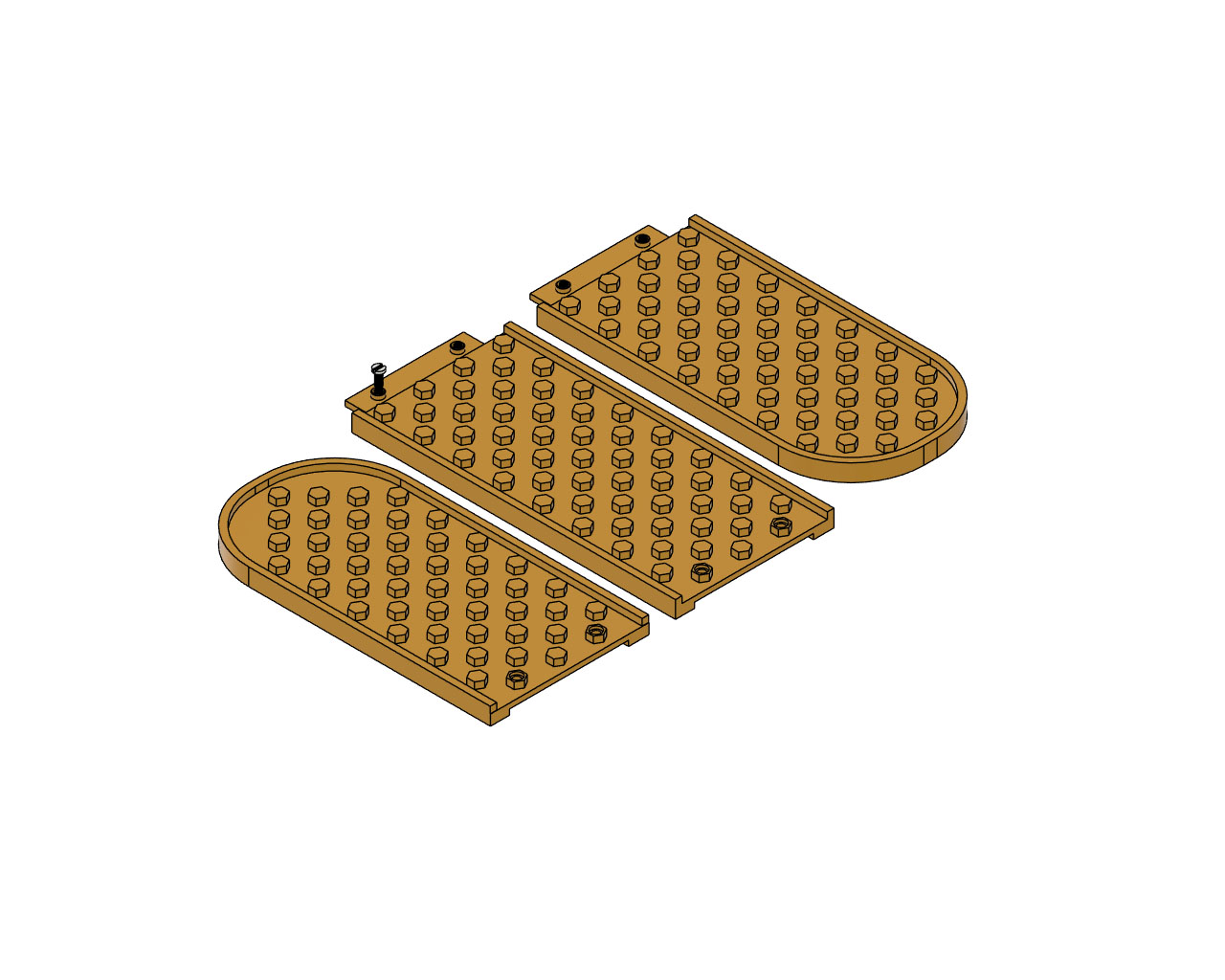

The modules are connected using printed joining pieces and secured with screws. For maximum water tightness, I recommend applying outdoor-grade silicone sealant to each joint before assembly.

✨ Features

• Modular design with virtually unlimited expansion
• Module width: 130 mm
• Center module length: 440 mm
• End pieces included for clean finishing
• Printed connectors for strong assembly
• Suitable for both small and large apiaries
• Easy to assemble and expand
• Alternative version designed for printers with a maximum build length of 215 mm

🔧 Applications

• Seasonal water supply for honey bees
• Small and large apiaries
• Expandable watering systems
• Permanent or portable installations
• Hobby and professional beekeeping

🌍 Community & Compatibility

This model was developed directly from feedback provided by the beekeeping community. If you have ideas for improvements or additional modules, feel free to leave a comment, rating, or share photos of your printed version.

The model is optimized for standard FDM printers and is also available in a version suitable for smaller build plates.

🖨️ Recommended Print Settings

• Layer height: 0.20 mm
• Walls: 4
• Infill: 20%
• Infill pattern: Gyroid
• Material: PETG or ASA
• Supports: Yes

Since the waterer is intended for outdoor use, PETG is recommended. For maximum UV and weather resistance, ASA is the best choice.
