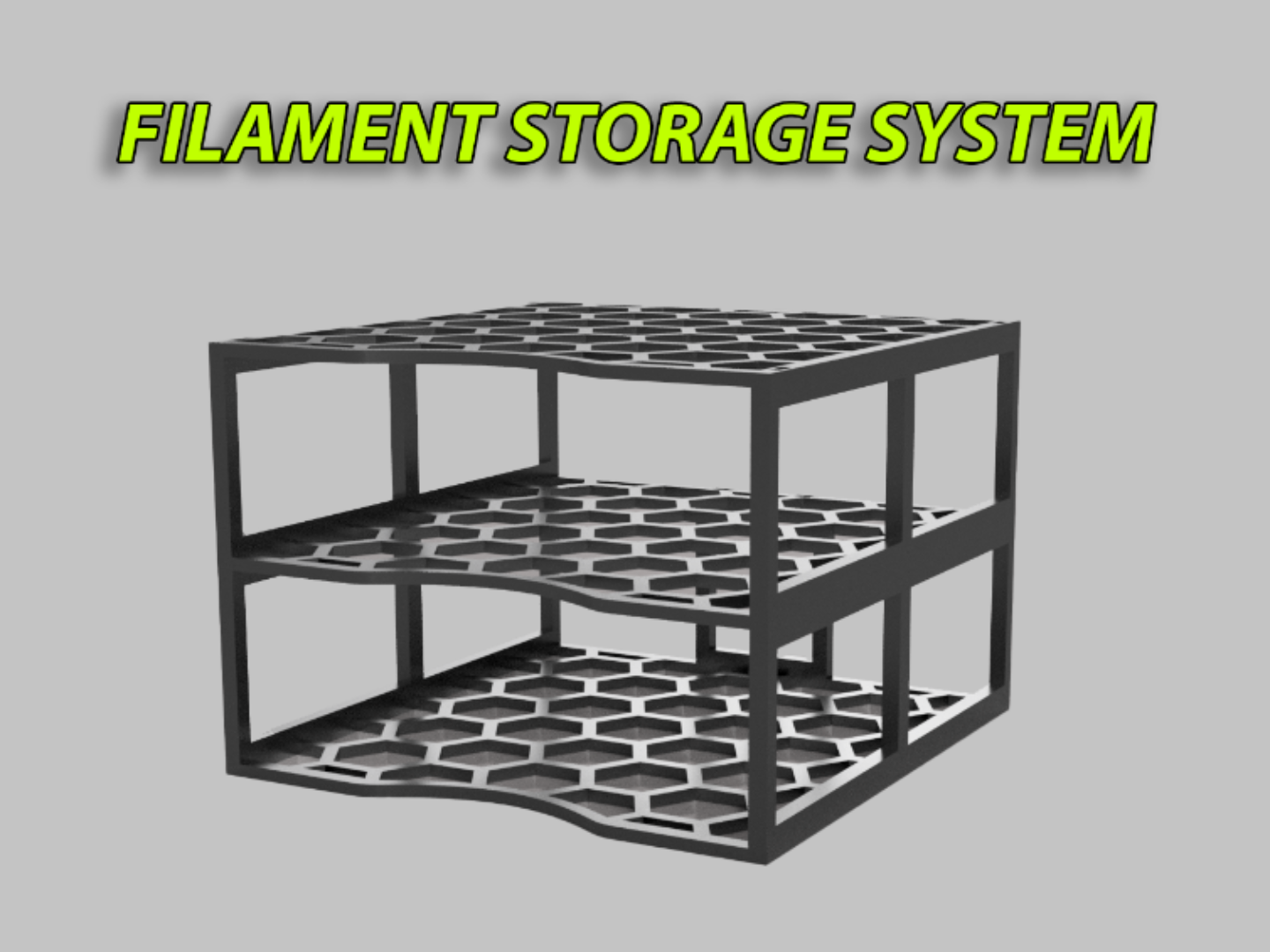

Modular Filament Storage System

A modular storage system designed for safe, organized, and space-efficient storage of 3D printing filament spools in their original packaging.

The system is built around a simple concept - each storage level (box) provides enough space for standard 1 kg filament spools while keeping everything easily accessible. Thanks to its modular design, you can start with a small setup and expand it whenever you need.

Features

• Fully modular design
  • Build as many storage levels as you need.
  • Every level is identical, making future expansion simple.
• Optimized dimensions
  • Internal storage space: 215 × 80 × mm

  • Designed to fit most standard filament spools stored in their original cardboard boxes.



• Tested compatibility
  Successfully tested with:
  • ✅ 3DPower (standard spool)
  • ✅ 3DPower Refill
  • ✅ Alzament (standard spool)
  • ✅ Alzament Refill
  • ✅ Sunlu
  • ✅ Bambu Lab (standard spool)
  • ✅ Bambu Lab Refill

Stability

The construction is intentionally lightweight while remaining rigid enough for everyday use.

Standalone configuration

The storage tower is designed to be safely stacked up to 8 storage levels without additional wall support.

8+ Levels

For taller towers (more than 8 levels), I recommend using the included wall mounting brackets.

These brackets allow the storage system to be securely attached to a cabinet, wall, or another solid surface, significantly improving lateral stability and preventing the tower from tipping when fully loaded.

The mounting brackets are included in the project:

• Left Wall Bracket
• Right Wall Bracket

Customization Options

Everyone has a different taste, so I've included several design options.

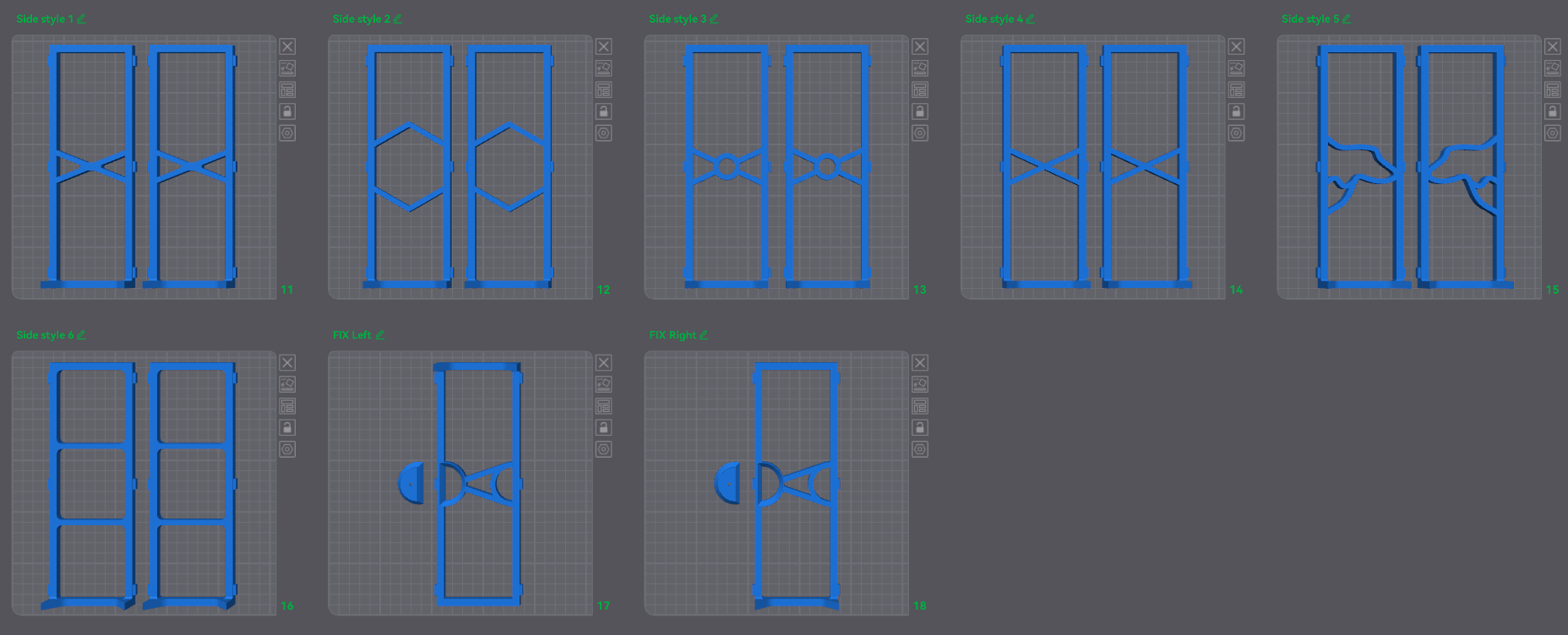

Side Panels

Choose from 6 different side panel styles:

• Style 1
• Style 2
• Style 3
• Style 4
• Style 5
• Style 6

All side panels are fully compatible with the system and can even be mixed within the same build.

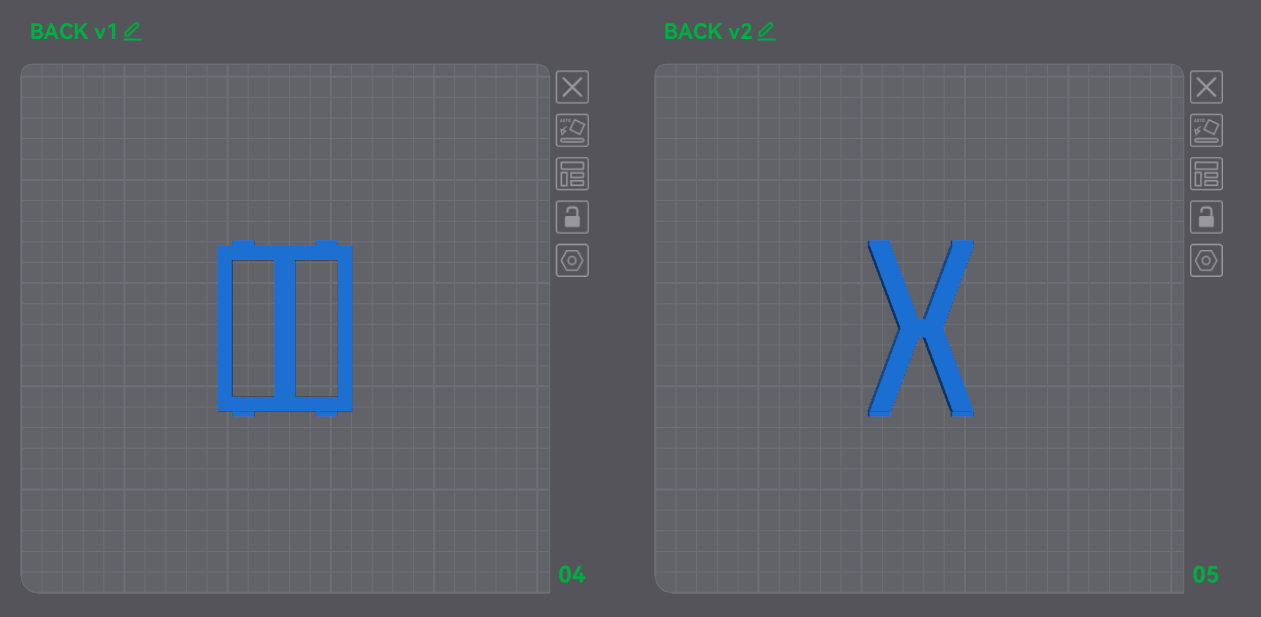

Rear Braces

Two rear reinforcement styles are included:

• Standard Rear Brace

• X-Brace



Both provide structural support while giving the storage system a different appearance.

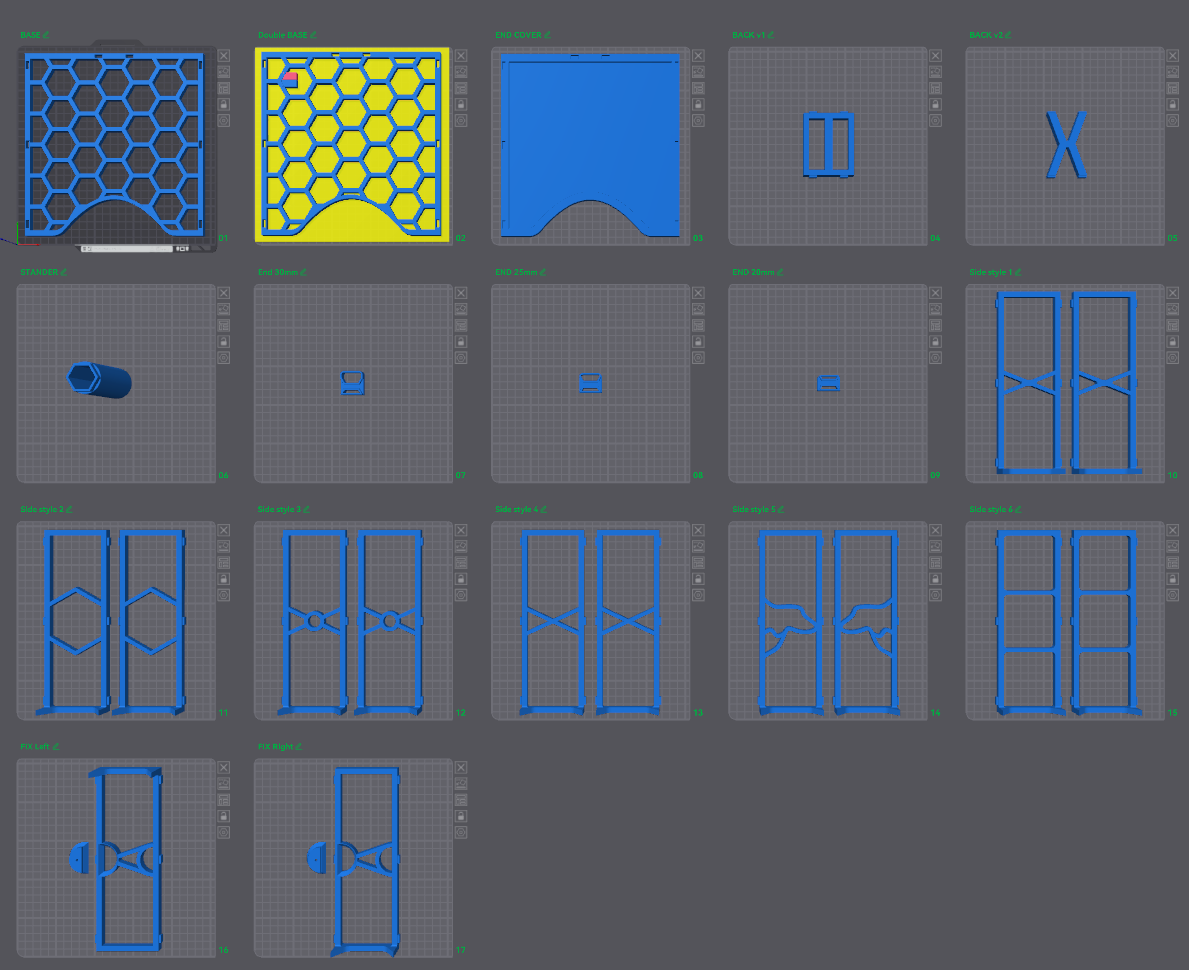

Included Parts

The project contains:

• Base shelf
• Double base shelf
• Top cover
• Rear brace (2 styles)
• Side panels (6 styles)
• Spacer / stand-off
• Left wall mounting bracket
• Right wall mounting bracket

This allows you to build the storage system exactly to your needs.

Printing

Recommended settings:

• Layer height: 0.24 mm
• Walls: 4
• Infill: 10% (Gyroid or Grid recommended)

No special hardware is required.

Notes

• The modular system is intended for storing filament in its original packaging.
• For maximum stability, place the storage on a flat and level surface.
• If building a tower taller than 8 levels, use the included wall brackets.

Future Development

I plan to expand the system with additional accessories and new panel designs over time.

Suggestions and feedback are always welcome!

If you enjoy this model...

⭐ Please consider leaving a rating and posting a photo of your print. Seeing your finished storage systems is always appreciated and helps improve future designs.

Happy printing!
