Turn your favorite photo into a tiny glowing memory box ✨

This model is a compact 3D printed mini light box designed to hold small square lithophane prints.

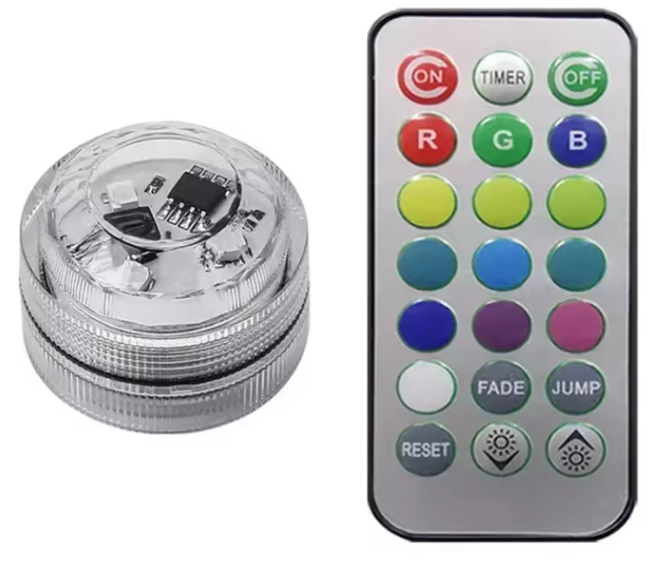

The front opening fits a 38×38mm lithophane panel, and inside the box there is space for a small round RGB LED light bought mine from Aliexpress.

You can create your own lithophane image using MakerLab → Make My Lithophane.
Choose the Mono Lightbox option, then use the Free crop option and set the image to a square size.
Recommended lithophane size: 38mm width × 38mm height.

The box is small, simple, and fun to print.

 It works great as a tiny desk decoration, family photo gift, kids’ room night light, wedding souvenir, birthday gift, or personal memory cube.

The front lithophane fits into the box, and the LED light sits inside behind it.

You can change the lithophane whenever you want and create a full collection of mini glowing photos.

a special cut was made for easy to remove and replace the Lithophane.


The model comes with two box versions: a simple single-color box, and a two-color box with a contrasting top frame, recommended in black.
You can print it with AMS or without AMS.
A separate helper plate is also included for those who prefer to glue the lithophane in place for a stronger hold and a tighter fit inside the box.

Key Features

• Mini light box for small lithophane photos
• Fits 38×38mm square lithophane panels
• Designed for a small round RGB LED light
• Easy print, simple assembly
• No supports needed in most cases
• Replaceable front lithophane panel
• Great for personal gifts, family photos, kids’ portraits, pets, memorial photos, logos, and mini displays
• Works with white PLA / PETG / translucent filaments

• Can be used with different light colors using the remote control



Dimensions

Box size:
40 × 40 × 29 mm

Lithophane panel size:
38 × 38 mm

Recommended lithophane depth/thickness:
around 1.8–2.5 mm depending on your MakerLab settings and filament.

Important Notes

Please check the size of your LED light before printing.
Different sellers may provide slightly different LED dimensions.

Use only low-heat LED lights.
Do not use candles, fire, or any heat-producing light source inside the box.

For best lithophane results, use white filament and avoid very dark photos.

License / Usage Note

For personal use only.
Please do not sell printed copies or redistribute the files without permission.
