Stackable Honeycomb Baskets - 107 Sizes + Custom — STL Grátis

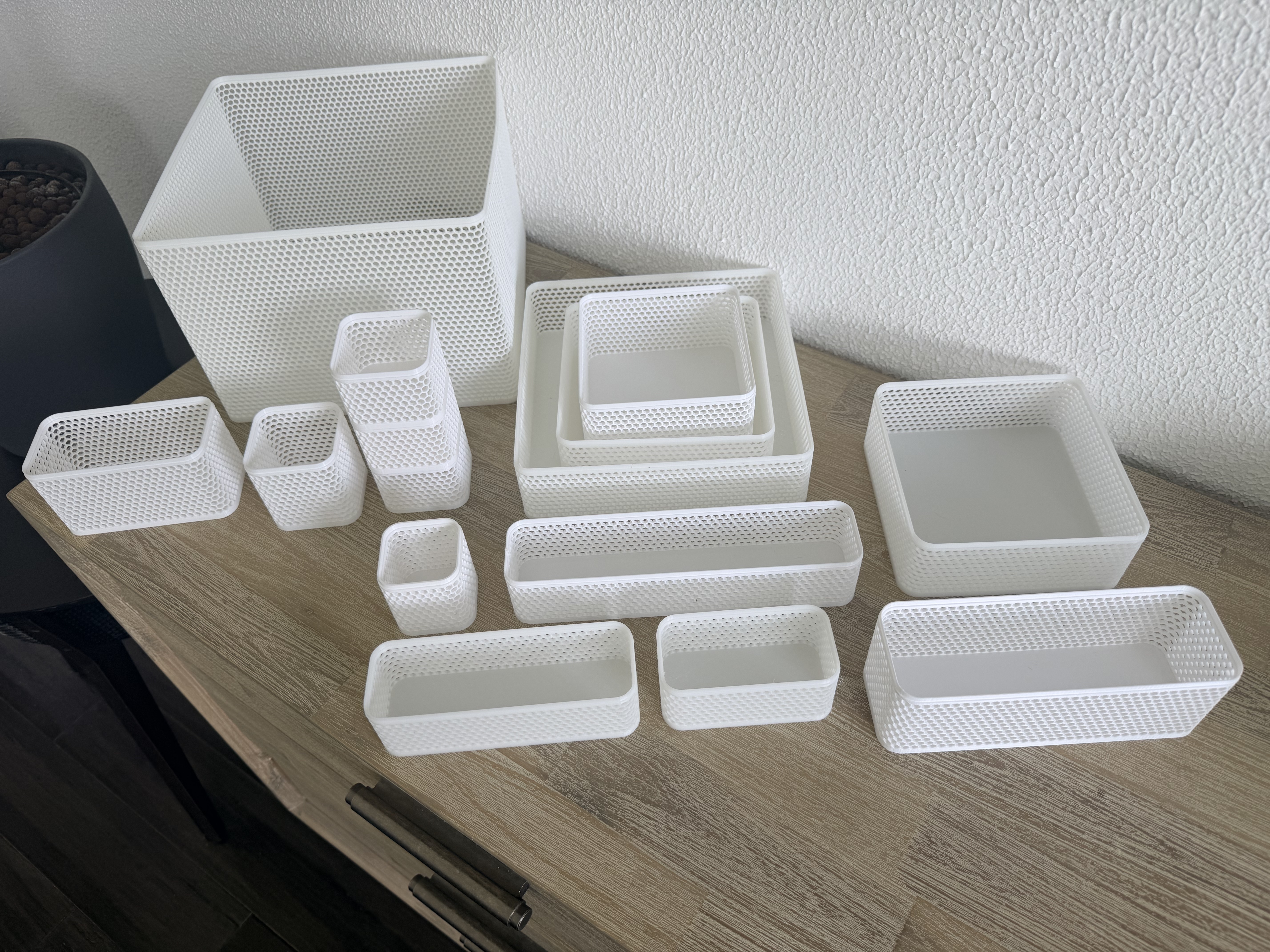

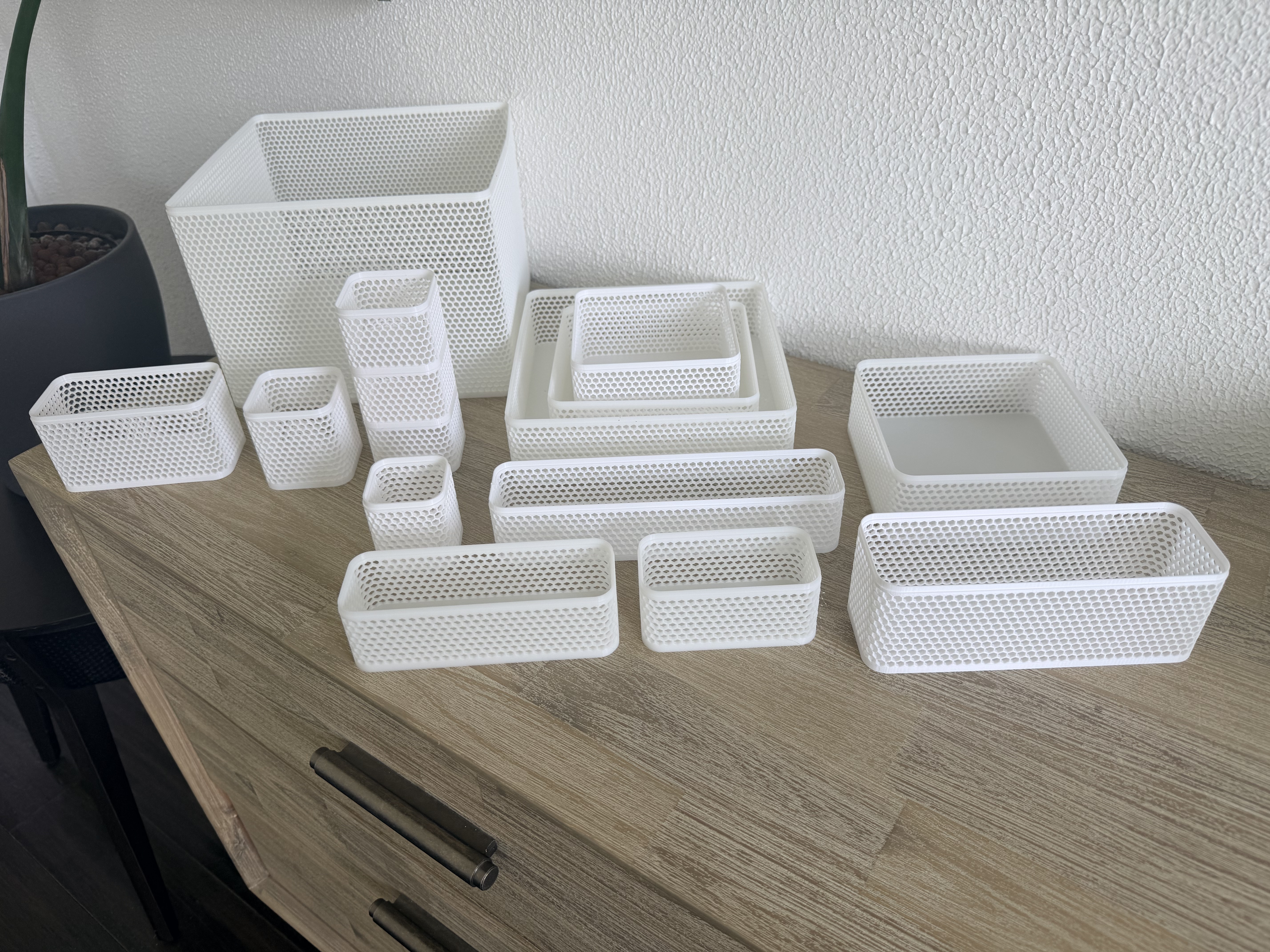

Modular STACKABLE honeycomb storage baskets. Hex mesh walls, solid 4.8mm base, and a 4mm constant-thickness ring lip that drops into the rim of a matching basket below so they stack without sliding. Available with or without a handle, in 25 footprints across Small, Medium, and Large categories.

Great for drawers, shelves, pantries, workshops, bathrooms, craft rooms, and desk organization.

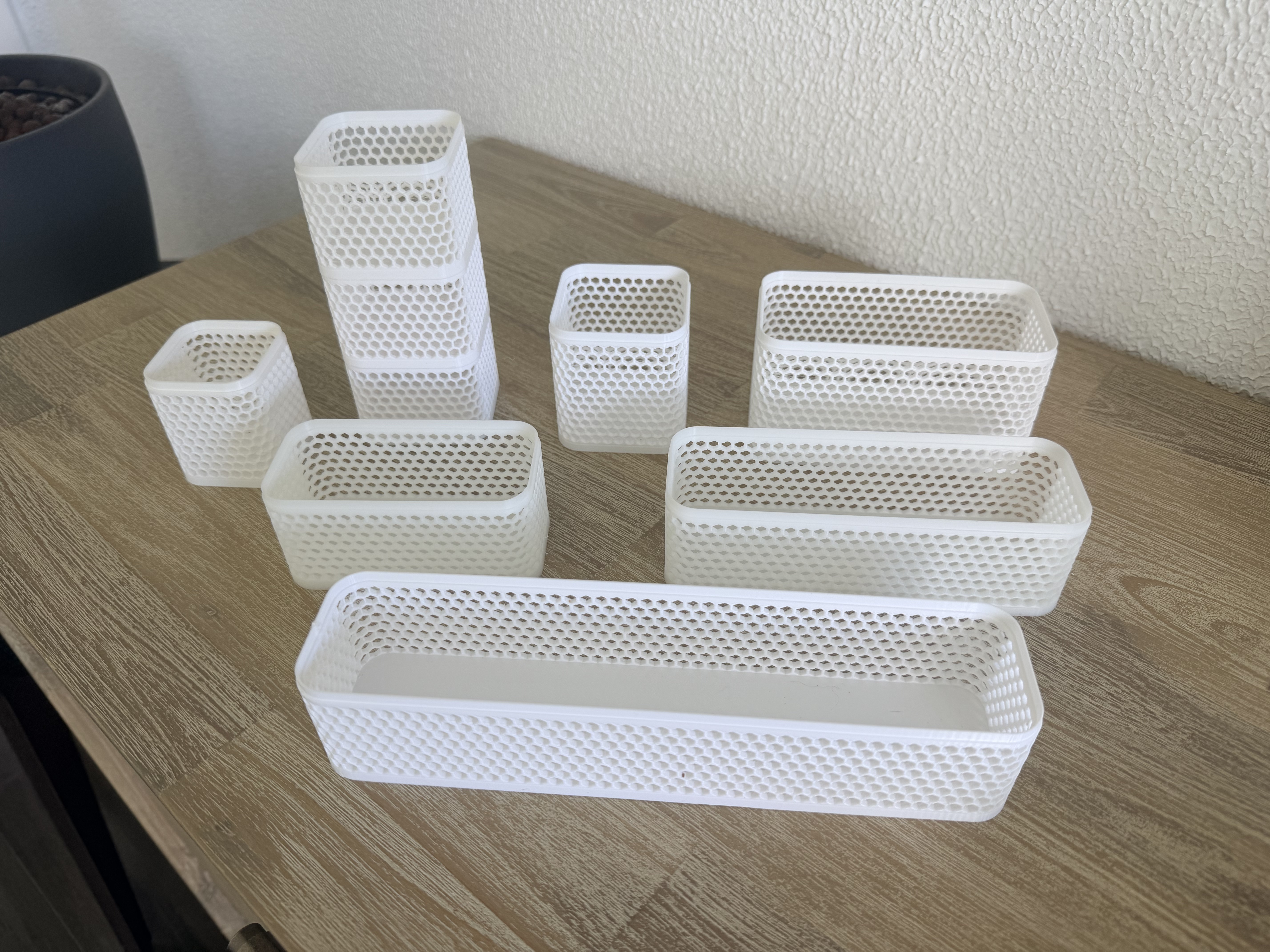

🥞 Stackable Lip System

Every basket has a 4mm-tall ring lip on the bottom that drops into the rim of the basket below.

0.30mm clearance between lip and rim.
Constant-thickness ring (not a V-wedge), so it prints crisp.
The solid base sits on top of the lower basket's rim when stacked.

Mix and match heights within the same footprint to build modular columns. Different footprints sit cleanly side by side.

🪑 Two Variants

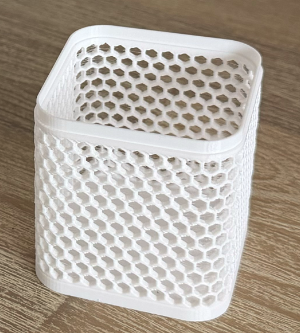

No Handle. Flat top rim.

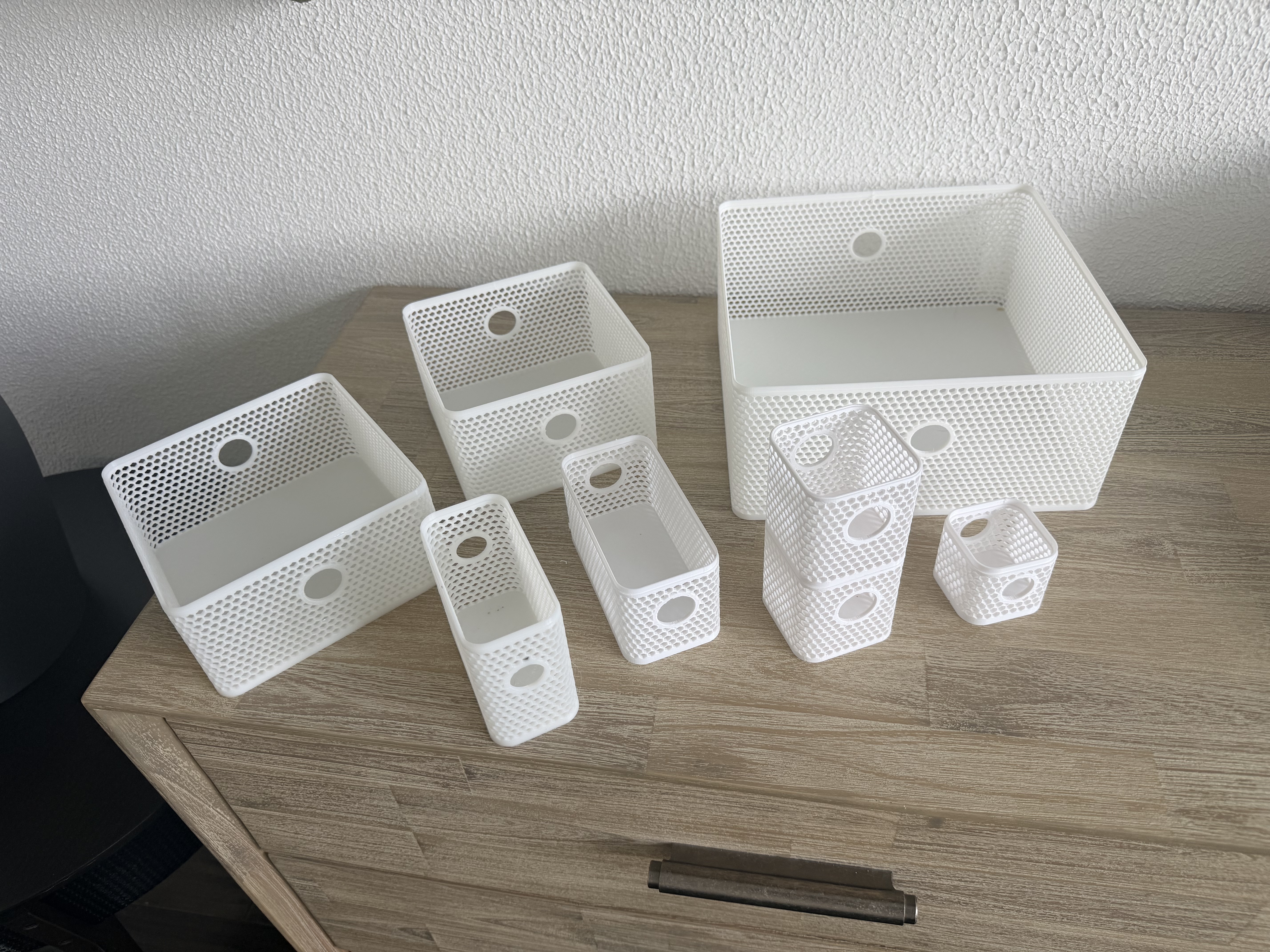

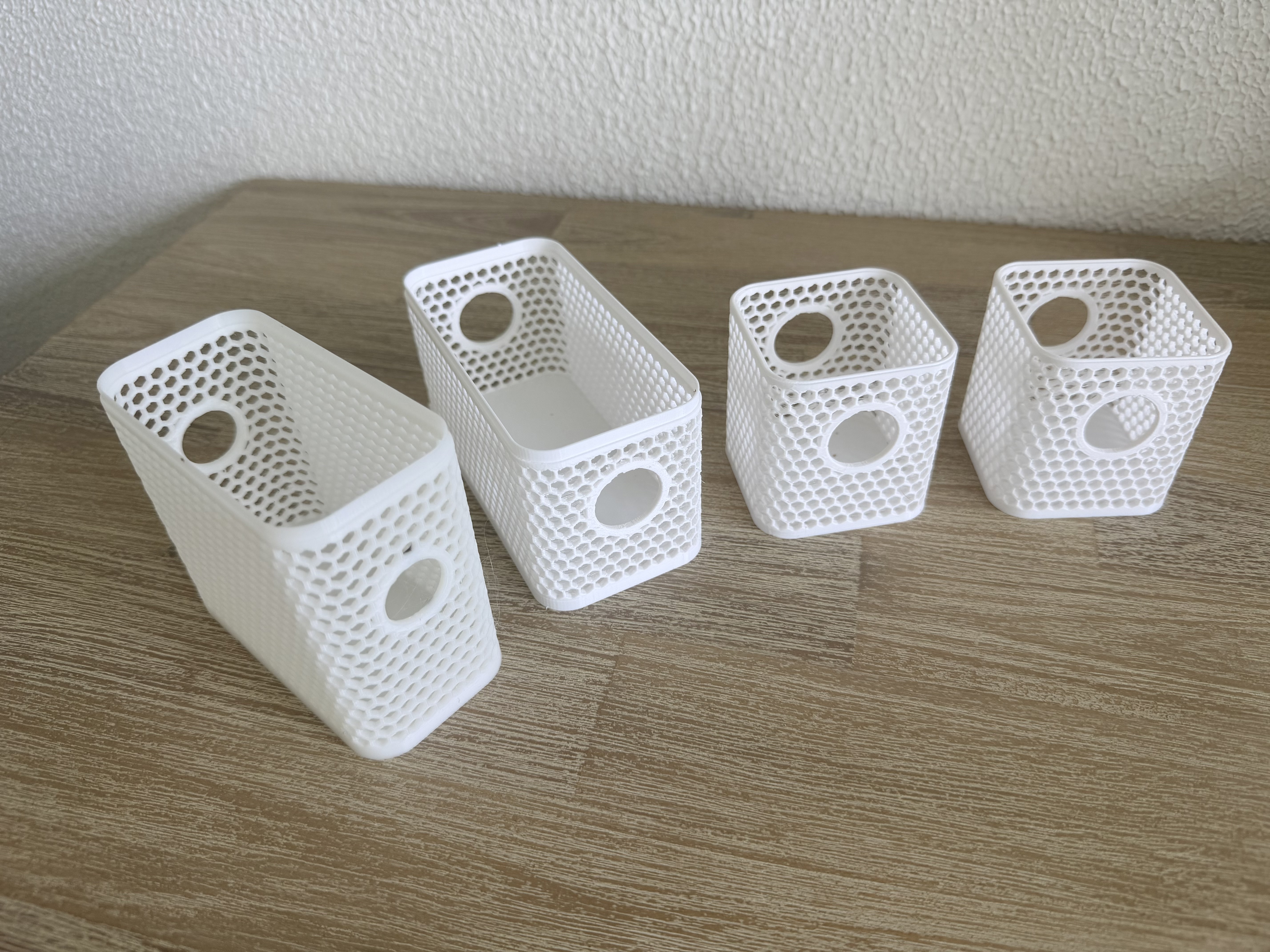

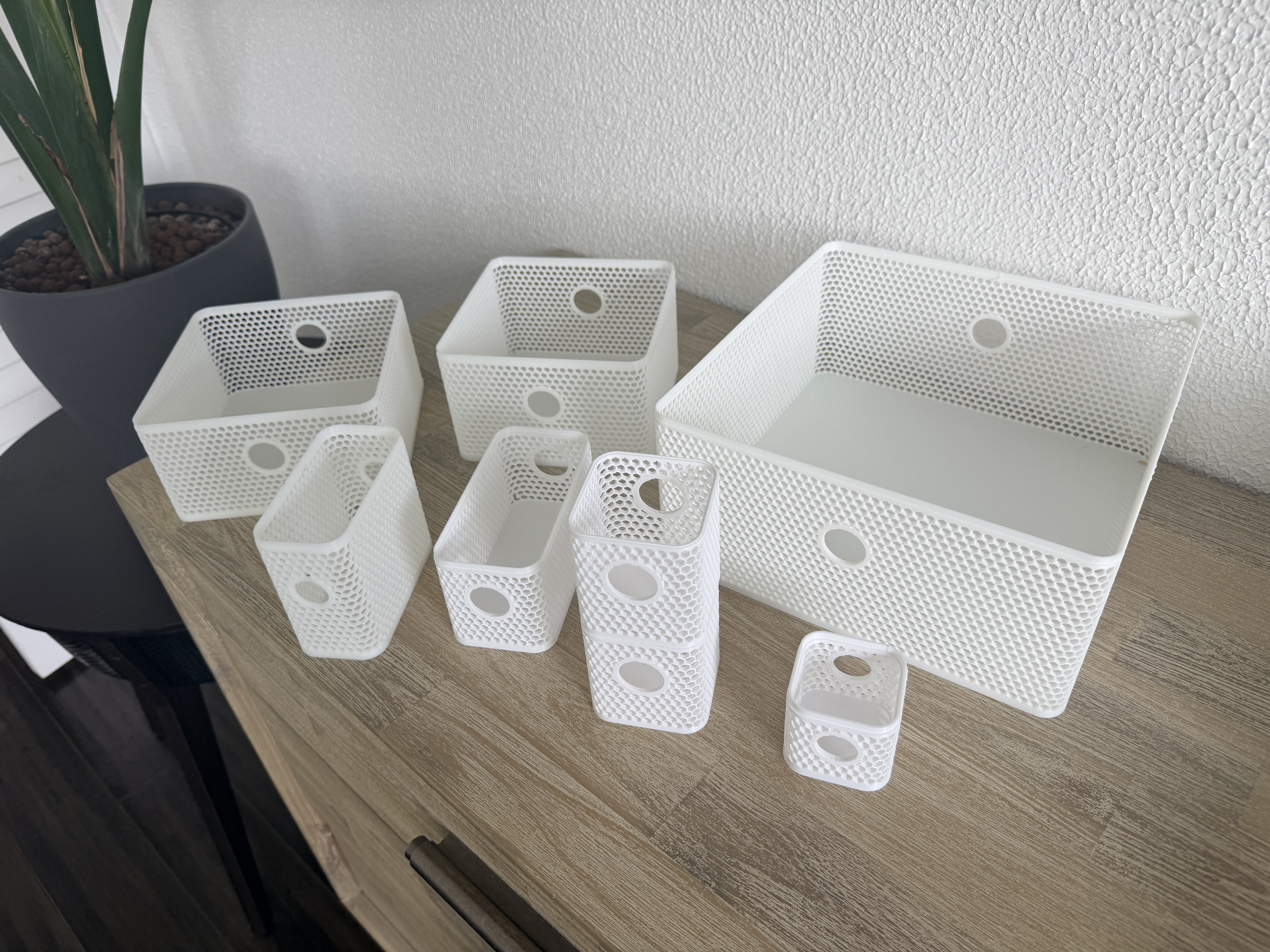

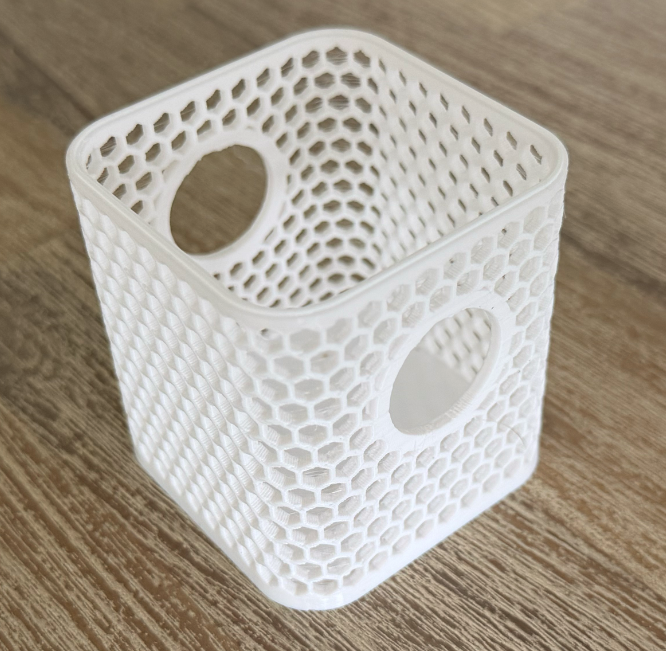

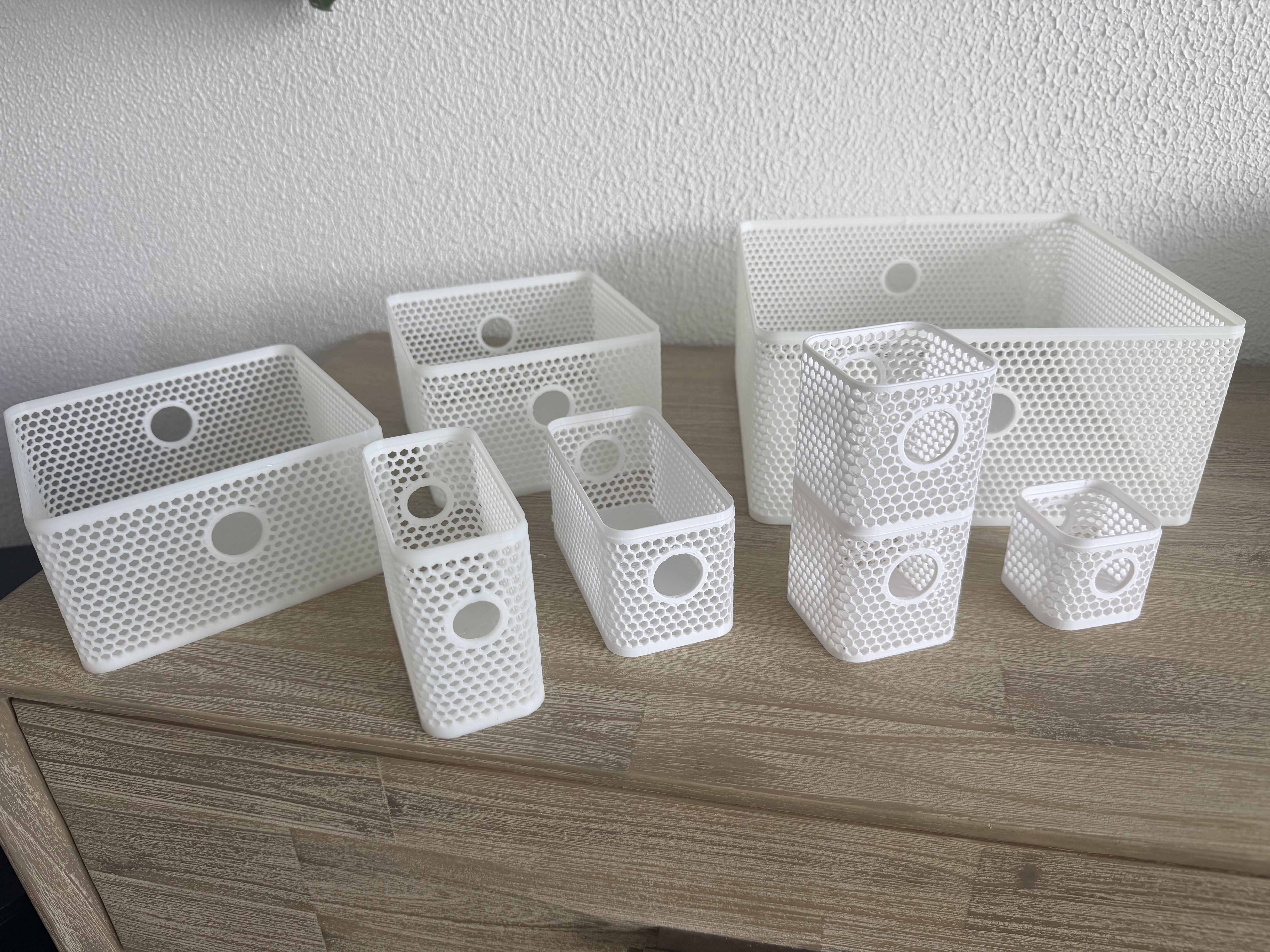

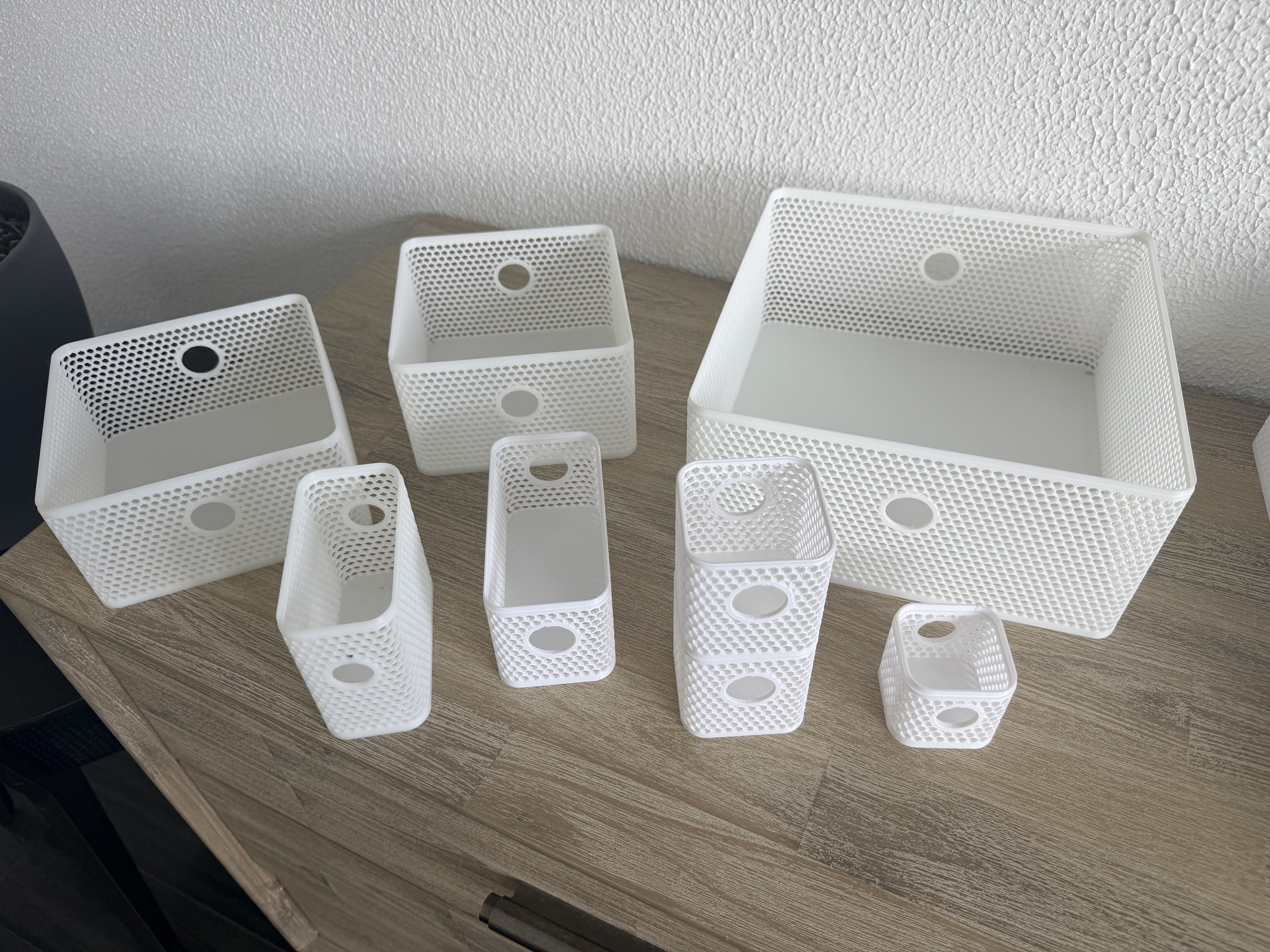

With Handle. 22mm round handle hole on the short side, for pulling out of a deep drawer or shelf.

Footprints are listed as W × L. The handle (when present) is on the shorter W side.

📦 Sizes Included

Small footprints (W × L, mm) — 9 footprints × 4 heights = 36 sizes
Heights: 40 / 50 / 65 / 90 mm
50 × 50	50 × 100	50 × 150
50 × 200	50 × 240	75 × 75
75 × 115	75 × 150	84 × 84

Medium footprints (W × L, mm) — 9 footprints × 4 heights = 36 sizes
Heights: 50 / 75 / 100 / 150 mm
84 × 126	84 × 168	100 × 100
100 × 150	100 × 200	115 × 115
115 × 175	126 × 168	150 × 150

Large footprints (W × L, mm) — 7 footprints × 5 heights = 35 sizes
Heights: 50 / 75 / 100 / 150 / 200 mm
84 × 210	100 × 240	150 × 200	150 × 240
200 × 200	200 × 240	235 × 235

Total: 107 unique size combinations, available as Handle or No Handle.

🗂️ Multi-Plate Bundles

Six combined 3MF files bundle multiple sizes onto one project (open in Bambu Studio, pick the plate you want, print):

File	Plates
[SMALL] No Handle - 36 sizes.3mf	36
[SMALL] Handle - 36 sizes.3mf	36
[MEDIUM] No Handle - 36 sizes.3mf	36
[MEDIUM] Handle - 36 sizes.3mf	36
[LARGE] No Handle - 35 sizes.3mf	35
[LARGE] Handle - 35 sizes.3mf	35

A1 Mini compatible bundles (only sizes that fit the 180×180mm bed):

File	Plates
[A1 Mini][SMALL] No Handle - 28 sizes.3mf	28
[A1 Mini][SMALL] Handle - 28 sizes.3mf	28
[A1 Mini][MEDIUM] No Handle - 32 sizes.3mf	32
[A1 Mini][MEDIUM] Handle - 32 sizes.3mf	32

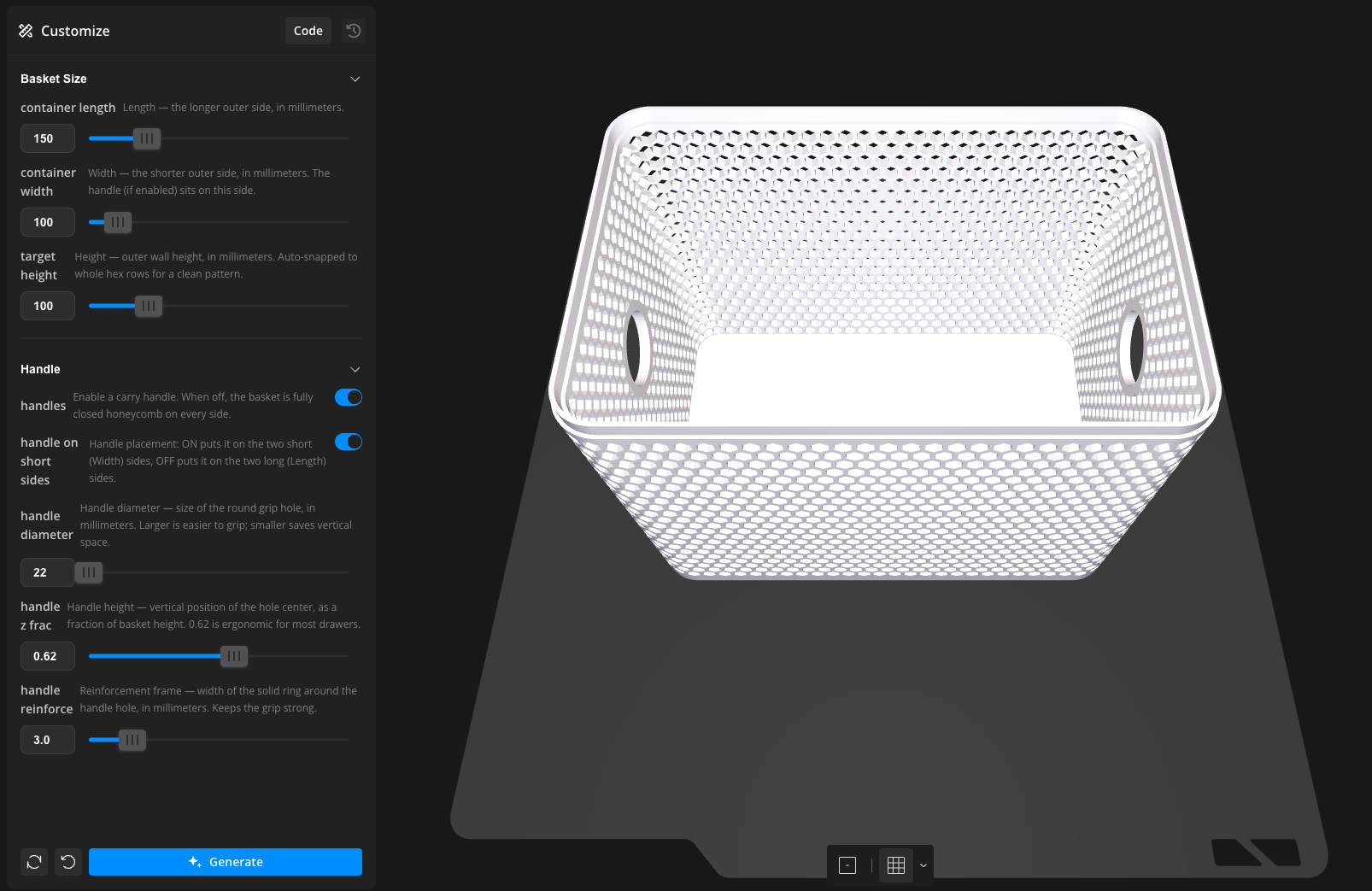

🎛️ Need a Custom Size? Use "Customize"!

Click the green "Customize" button on this page and enter your exact dimensions.

MakerWorld generates a fresh 3MF in your chosen size with the stacking lip included automatically. No CAD software needed.

What you can change:

Length — the longer outer side, in mm.
Width — the shorter outer side, in mm. The handle (if enabled) sits on this side.
Height — outer wall height, in mm.
Handle on / off — enable a round carry hole, or leave the basket fully closed.
Handle placement — on the short Width sides (default) or the long Length sides.
Handle diameter, vertical position, and reinforcement frame width.

All other structural details (wall thickness, floor thickness, hex pattern, stacking lip, clearances) are locked to the values used for the ready-made sizes, so every custom basket stacks cleanly with the rest of the catalog.

How to use Customize:

Click the green "Customize" button above.
Set length, width, and height.
Enable the handle and adjust it if you want one.
Click "Generate" and wait a few seconds.
Download the 3MF and print.

📐 Design Notes

Honeycomb (hex) wall pattern.
Solid base, 4.8mm thick.
4mm constant-thickness stacking lip on the bottom rim.
22mm handle hole (handle variants only) on the short side.
0.30mm stack clearance.
Fully parametric — every dimension exposed in the customizer.

❤️ If you print one, please share a Make and leave a review.

Questions or suggestions? Drop a comment below.
