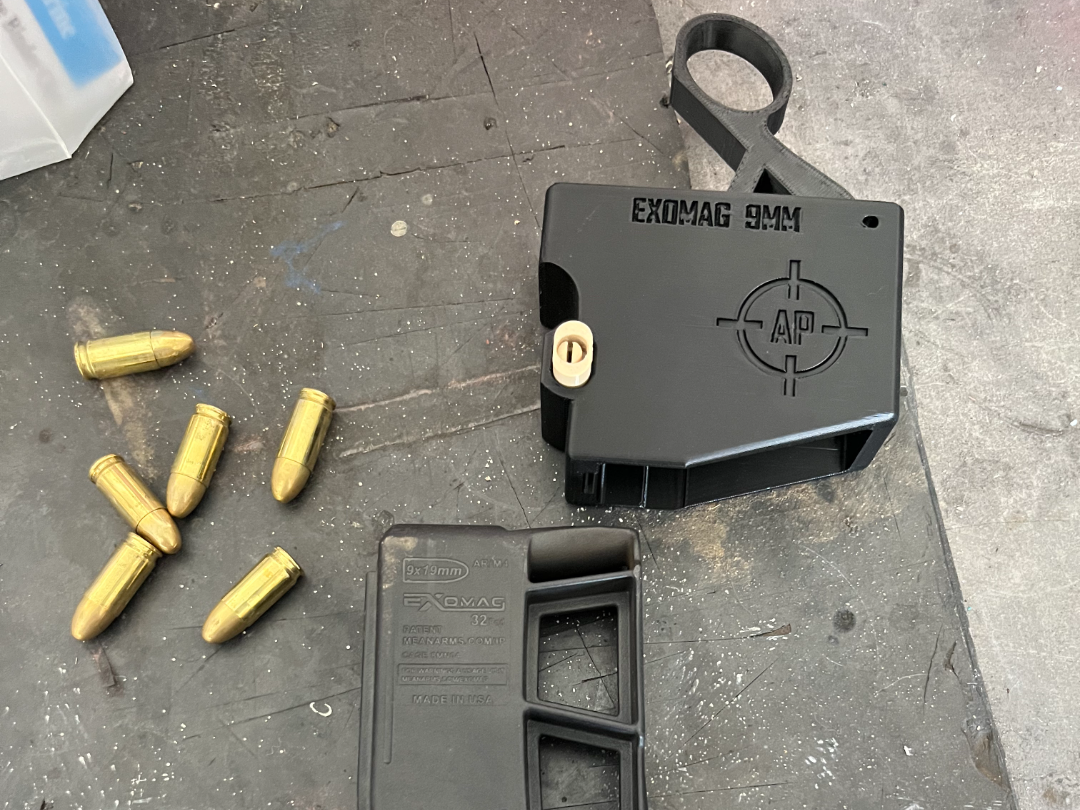

New EXOMAG 9mm Speed Loader Unloader Ejectorless

Special Thanks to ODST | Home - MakerWorld for the collaboration and testing on this loader!

Like my other original designs this one uses minimal hardware to get you up and loading faster!

Designed to be printed in PLA requiring a single spring and a screw.

Like my other Loaders, the Trigger has a notch in the top that allows you to run the mag along the top and strip the rounds out smoothly and quickly if needed.

This Loader can also use either the m4 bolt style or my “Snap Fit” magazine release.

Note, if you use the “Snap Fit” mag release, after installing the button, wedge a piece of material between the prongs to keep them engaged.  i used a cut off piece of zip tie.

Assembly images can be found above

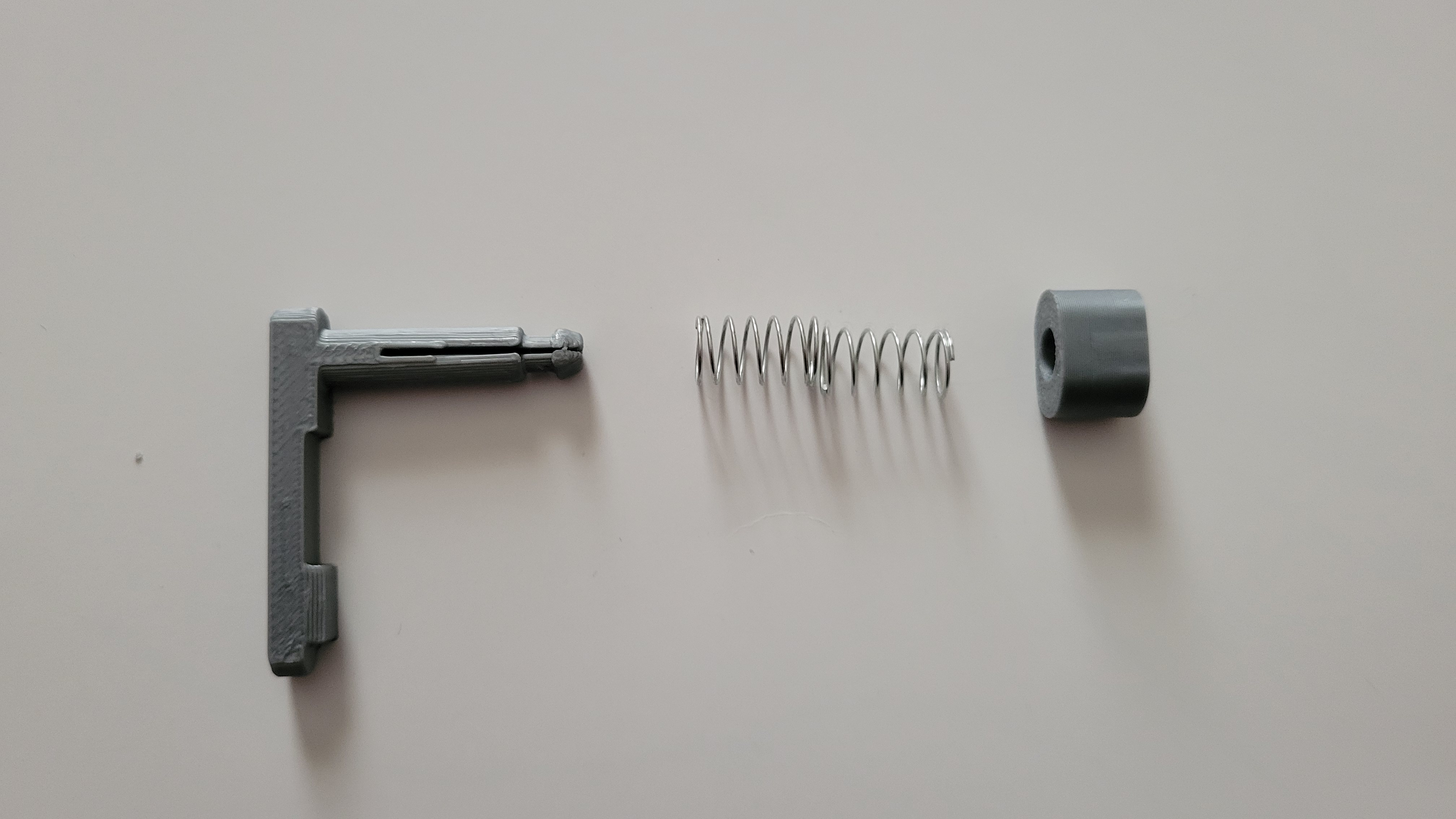

Hardware needed is the same as the others consisting of

1x m3 x 20/25mm socket head screw for Trigger Hinge Pin

1x m4 x 30mm socket head screw for the mag release (if not using the snap fit type"

1x 8mm OD 0.8wire x 15-20mm free length spring

[https://a.co/d/0hX8dGyD](https://a.co/d/0hX8dGyD)

Function Video Below
