ESP32-S3 Case (Base & with extra room)
A clean, and highly-ventilated enclosure system designed for ESP32-S3 Dev Kit boards (dual USB-C / N16R8).

Yes, another one! 😏

🌟 Features

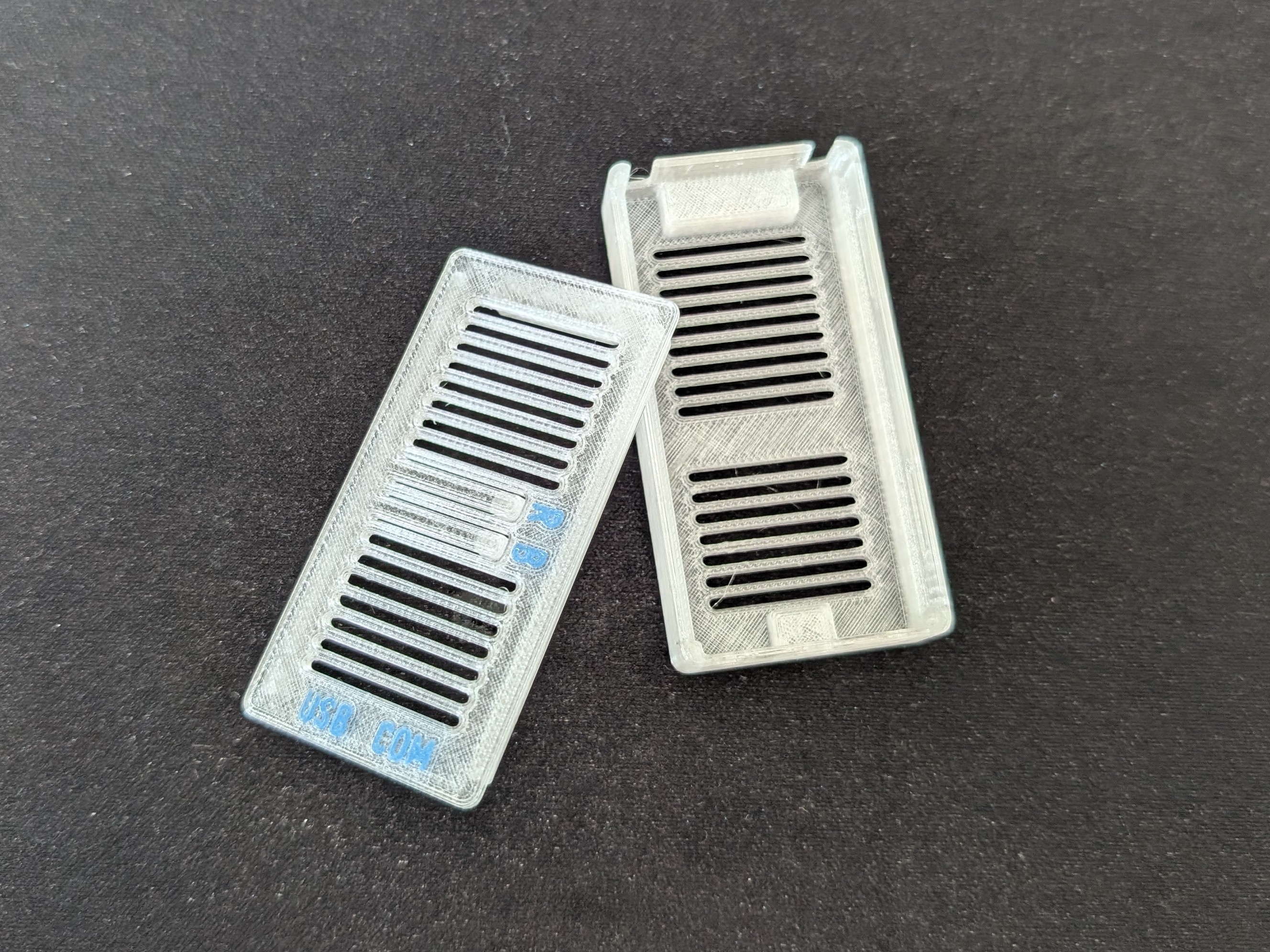

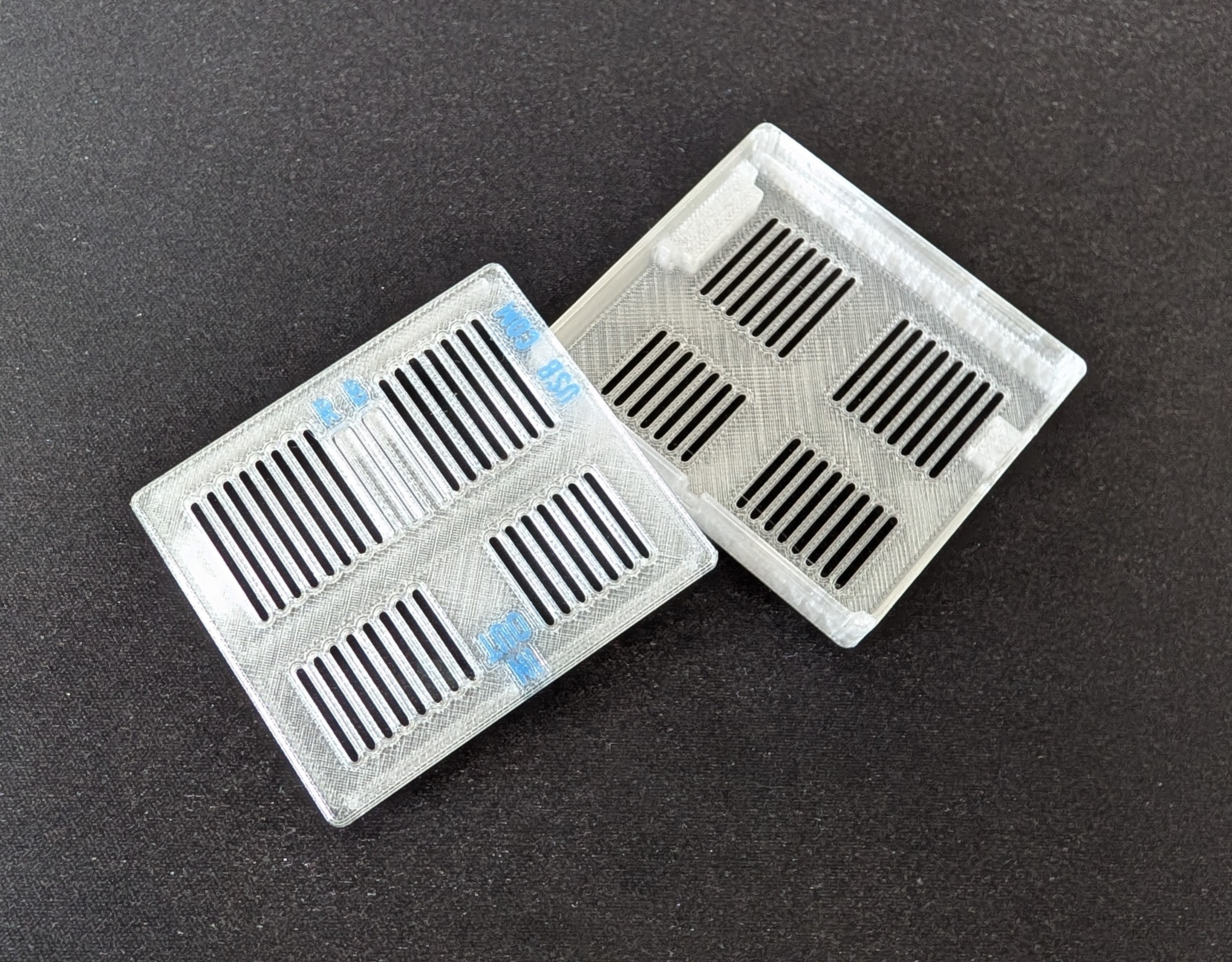

Dual Design: Includes a Slim Single version and a version with extra chamber space for hardware.

Print-in-Place Buttons: Built-in flexible tension bars let you press Reset (R) and Boot (B) directly through the case — no pins needed!

High-Precision Snap-Fit: Features a snug, secure click-lock cover that stays shut but remains easy to open.

AMS-Ready Labels: Clean, embedded text (USB COM, IN OUT, R B) for multi-color setups, the parts is added as modifier, if you dont want it or want to adjust it (dont want IN OUT) simply remove info_logo… from bambu studio.

Maximum Ventilation: Generous cooling slots on top and bottom to ensure optimal passive airflow.

Highly customizable: The Case features optional holes for cables added as negative parts in the slicer. If you don't need them, simply delete hole objects  directly inside Bambu Studio before slicing.

Tolerance Warning: Designed with a tight 0.08mm tolerance for a premium snap-fit feel. Ensure your printer's flow and K-factor/Pressure Advance are well-calibrated for best results!

🙏 Credits & Inspiration

This project was inspired by the work of two makers here on MakerWorld. Huge thanks to:

Jocaru (for ESP32 S3 WROOM + SN65HVD230 CAN Bus Case)

BDizzle (for ESP32-S3-DevKitC : Pins and No Pins Case)

Be sure to check out their designs as well!
