⚙️ Ultimate Parametric Print-in-Place Hinge

Stop searching for the exact hinge size you need – just generate it! This fully customizable, print-in-place hinge is engineered for maximum strength and flawless movement right off the build plate. No assembly required, and absolutely no supports needed.

Powered by MakerLab, you can dial in the exact dimensions you need for your DIY projects, boxes, doors, or quick repairs.

🌟 Smart Features

True Print-in-Place: Carefully calculated internal clearances (0.35mm default) ensure the hinge rotates freely immediately after printing, while maintaining a tight, wobble-free fit.
Auto-Centering Smart Holes: Never worry about bad geometry again! The script automatically centers the mounting holes on the wing plates.
Perfect Countersinks: Designed to fit standard flat-head wood or machine screws perfectly flush.
Fully Customizable: Adjust the total length, width, thickness, and pin diameter to suit your specific mechanical load.

🧠 Advanced Customization: Knuckles & Hole Patterns

Unlike static models, this generator gives you full control over the mechanical structure:

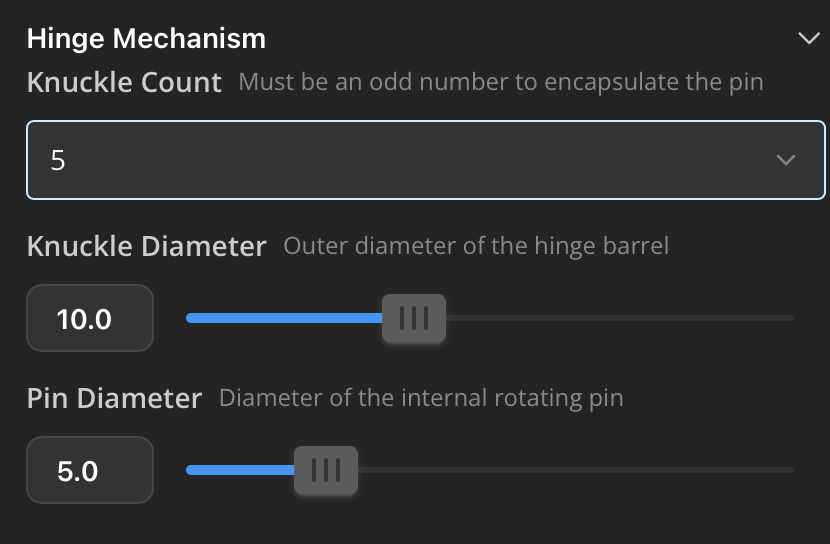

Custom Knuckle Count: You aren't limited to a standard hinge. Choose any odd number of knuckles (3, 5, 7, 9, 11, etc.) to make the hinge as robust as you need. An odd number ensures the central pin is safely locked inside.

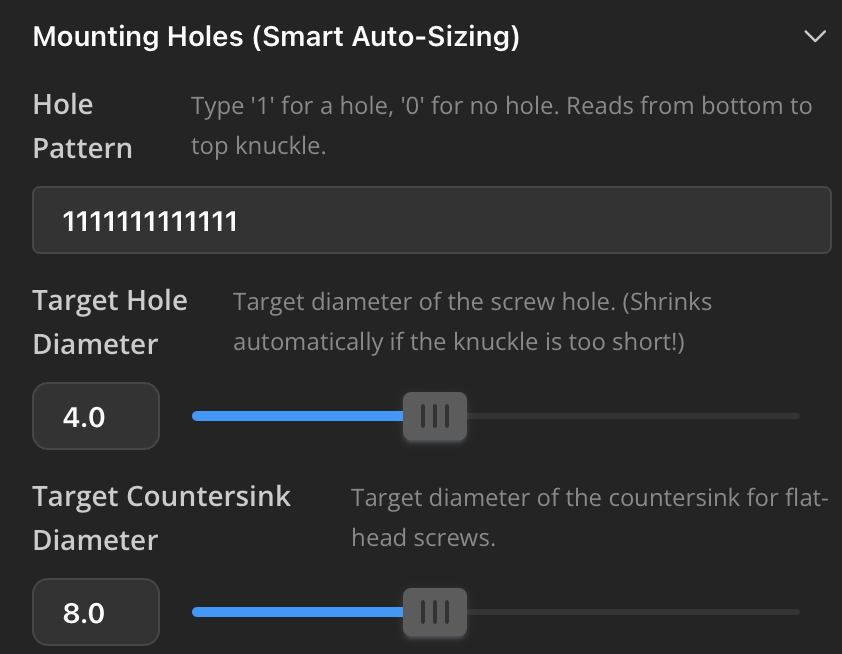

Smart Hole Pattern (1 and 0): You have absolute control over which knuckle gets a screw hole! Using the Hole_Pattern text input, simply type a sequence of 1s (Hole) and 0s (No Hole) from bottom to top.
- Example: Typing 10101 on a 5-knuckle hinge will place holes on the outer and middle segments, leaving the others perfectly solid!
