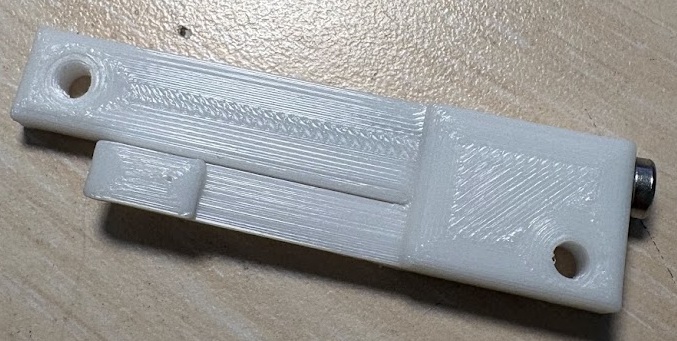

Please note that because the 6374/6384 motor is extremely powerful, the SUP fin pin may break and cause danger. I have uploaded the latest pin design, which requires an M3 * 45mm screw for reinforced fixation. Please print it with at least 6 walls.


適用於6374/6384推進器

M4*16mm 螺絲 4ea
M3*45mm screw 1ea

一體打印

2026/06/20

增加B rev

免除馬達軸心支撐 增加插銷環洞

2026/06/22
update 6374 CCW/CW propeller

2026/6/24
Update SUP 6437 US FIN BOX


2026/7/11
Update Propeller Shroud
Simply clamp the motor and the fin together and tighten the screw.

Here are the components I bought from a local shop:

 Motor: 6374 Brushless Motor (waterproofed both the inner and outer rotors of the brushless motor using epoxy)

 ESC (Speed Controller): 60A ESC

 Receiver: 433MHz Receiver with a watch-style remote controller

 Wires: 12 AWG silicone wire

 Sealant: Epoxy resin

(Note: I'm not entirely sure if these exact brands/models are available in your area, but these are the general specs.)

The seal process for the 6374 brushless motor is divided into two main parts: the stator and the rotor.

• For the rotor: I used a small brush to apply a very thin, even layer of epoxy resin. Keeping this layer thin is crucial to prevent throwing off the rotor's dynamic balance.
• For the stator: I made a custom mold to fit around the entire coil and magnet assembly. First, I sealed the wire connections using 706 RTV silicone glue for flexible strain relief, and then I potted the entire component with epoxy.
   Just a couple of quick tips: make sure to seal or mask off the bearing area beforehand to prevent any epoxy from seeping in and ruining the bearings. Also, remember to thread screws into the screw holes when sealing the stator; this keeps the epoxy from leaking out through them

Parts list
电机    [https://e.tb.cn/h.RDur2WZFdW2k40F?tk=CanXgm0UB3X](https://e.tb.cn/h.RDur2WZFdW2k40F?tk=CanXgm0UB3X)
               [https://www.aliexpress.com/item/1005008855710501.html?](https://www.aliexpress.com/item/1005008855710501.html?)
电调         [https://e.tb.cn/h.REBuwh9ECrF9CFi?tk=0KNtgm0UrU2](https://e.tb.cn/h.REBuwh9ECrF9CFi?tk=0KNtgm0UrU2)
                [https://www.aliexpress.com/item/1005010686461204.html?](https://www.aliexpress.com/item/1005010686461204.html?)
接收器 [https://e.tb.cn/h.REBvG5cSgK31zGy?tk=ld37gm0gMsl](https://e.tb.cn/h.REBvG5cSgK31zGy?tk=ld37gm0gMsl)

                [https://www.aliexpress.com/item/1005010151769598.html?](https://www.aliexpress.com/item/1005010151769598.html?)
