📷 Camera Light Projector 📷

📄 Description:

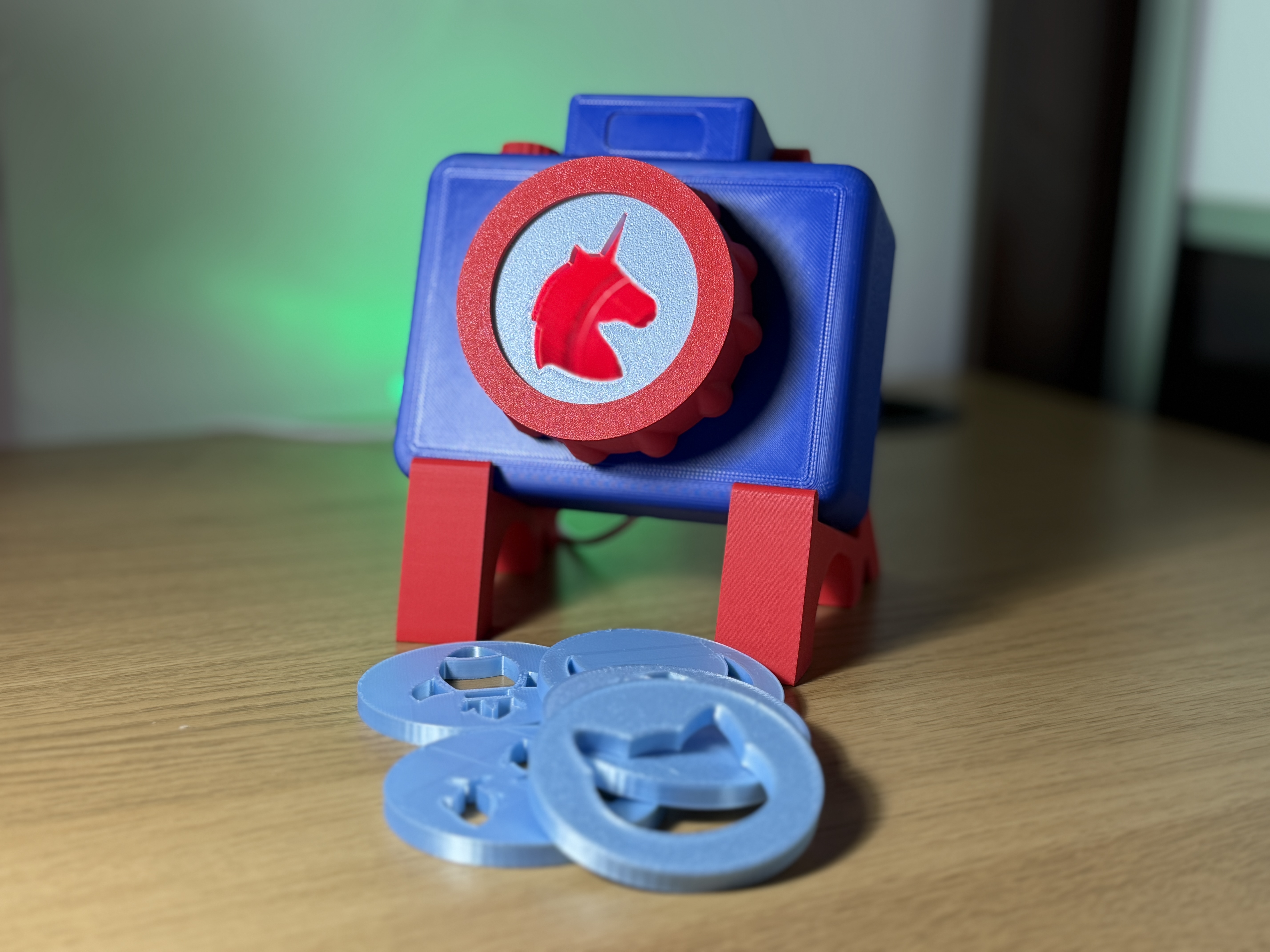

A retro toy concept with a modern twist. This is a fully functional, 3D-printed projector for kids, styled after a classic photo camera. The device allows you to project various shapes using a simple system of interchangeable discs placed inside the front "lens."

• The swappable discs allow for quick theme changes. It works perfectly as a creative toy or a cozy night light for a child's bedroom.

• The model is optimized for easy printing and assembly. The contrasting two-tone color scheme gives it a playful, eye-catching look.

💡 Light source tipps:

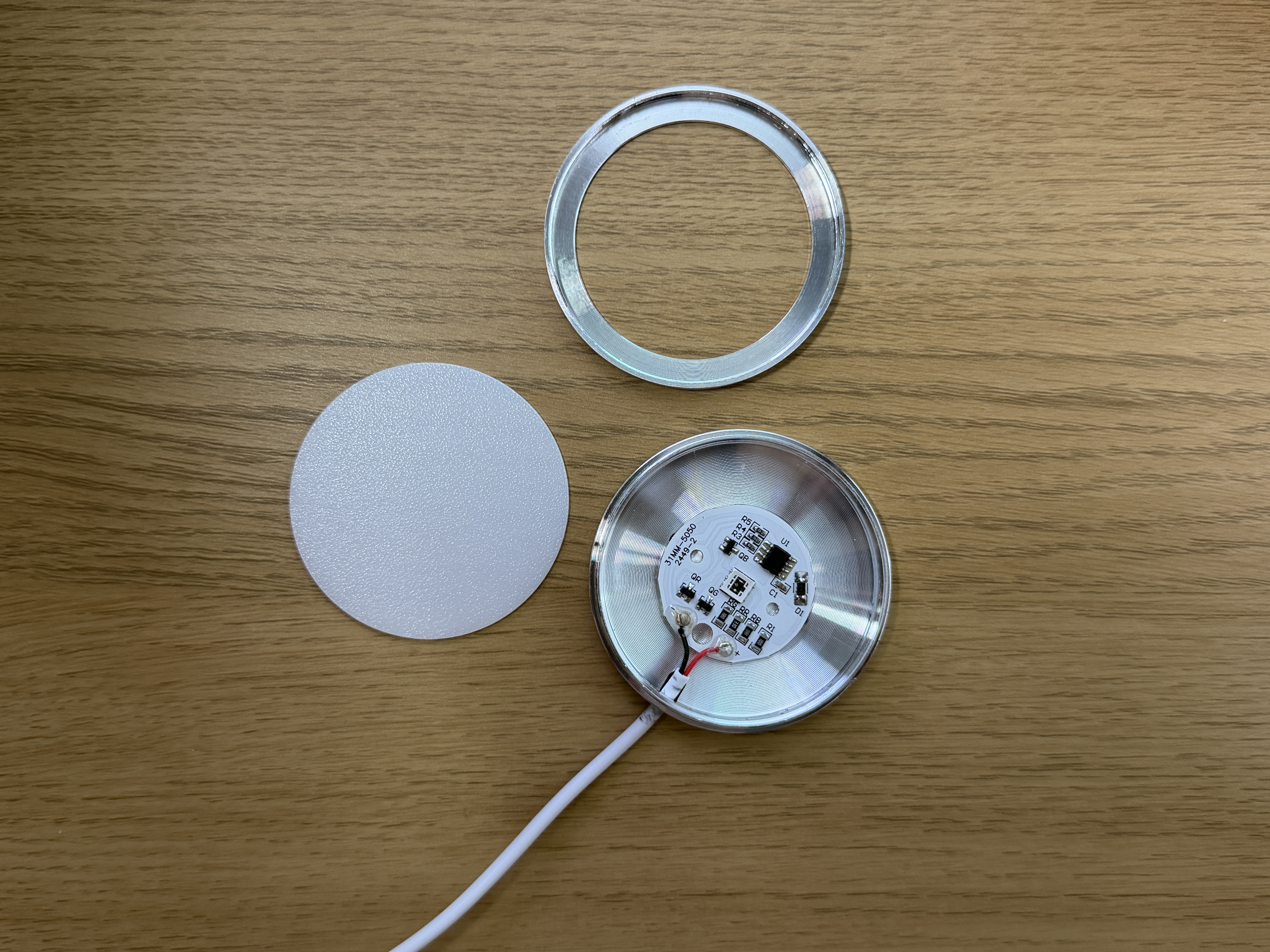

Use a round LED Lamp with diameter of 59mm.

For the best effect, follow these steps:

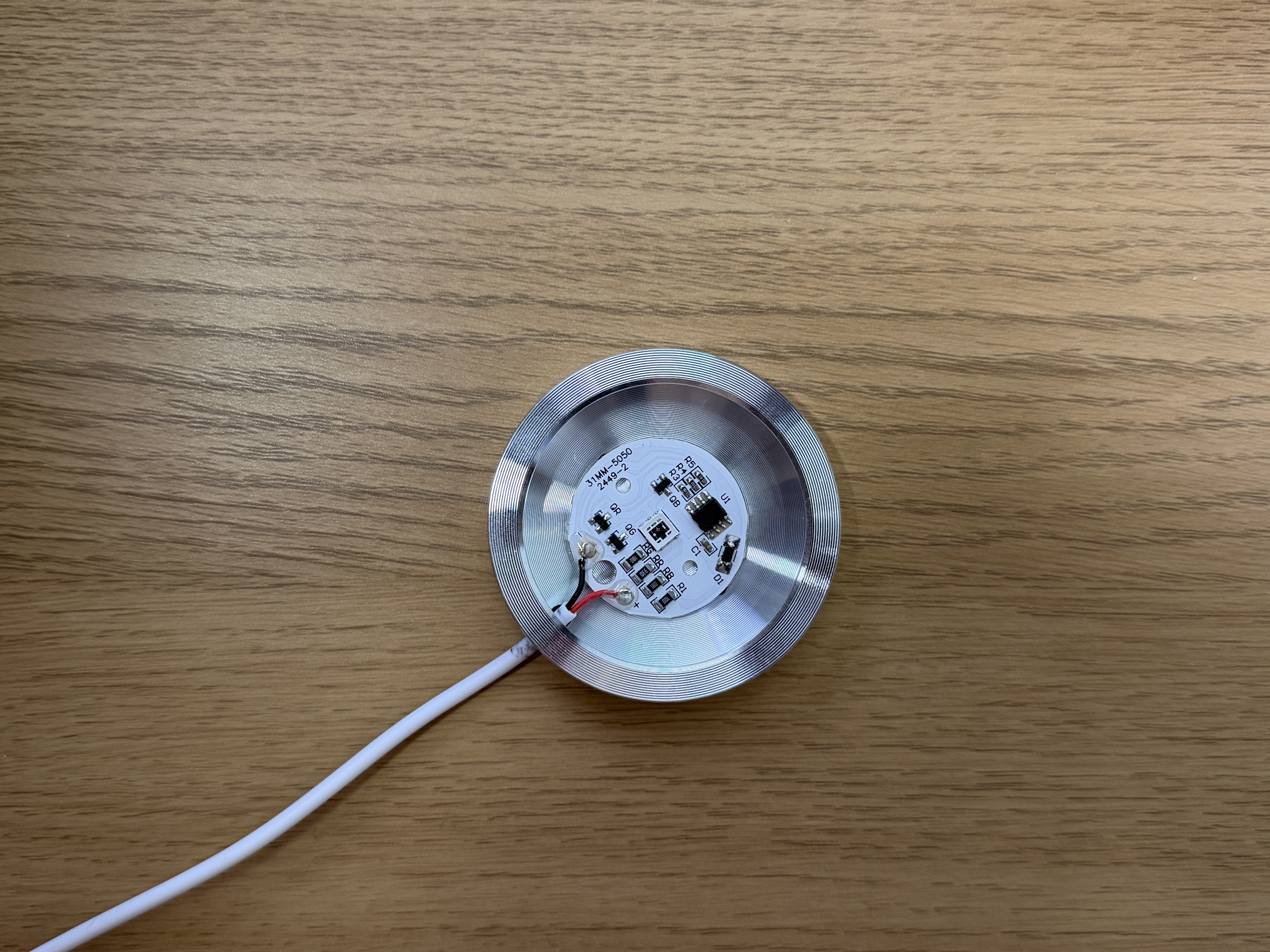

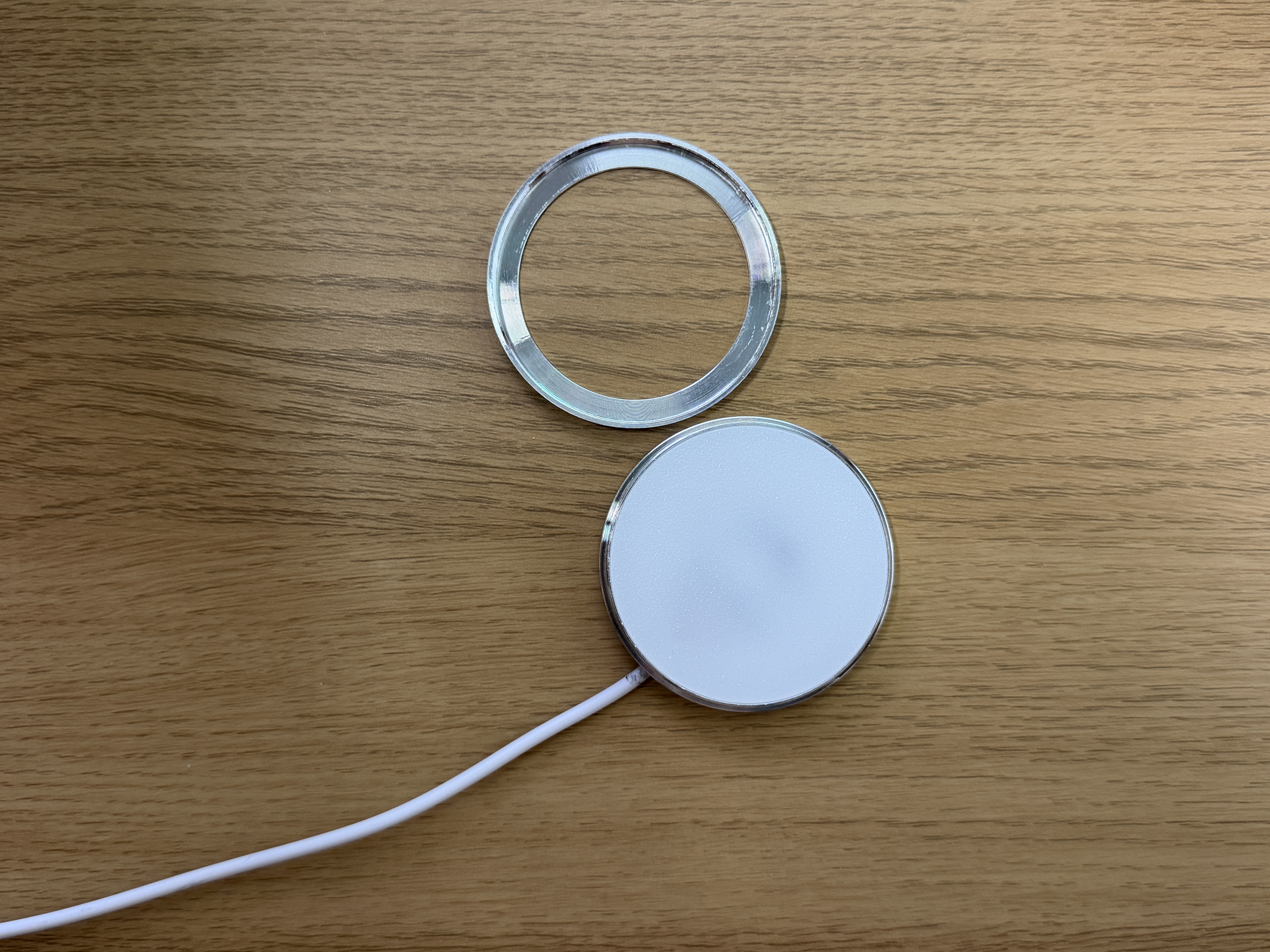

1)  Screw off LED cover

2) Remove white blend

3) Screw on LED cover

Important: USE RED, GREEN OR BLUE LIGHT FOR THE BEST EFFECT.

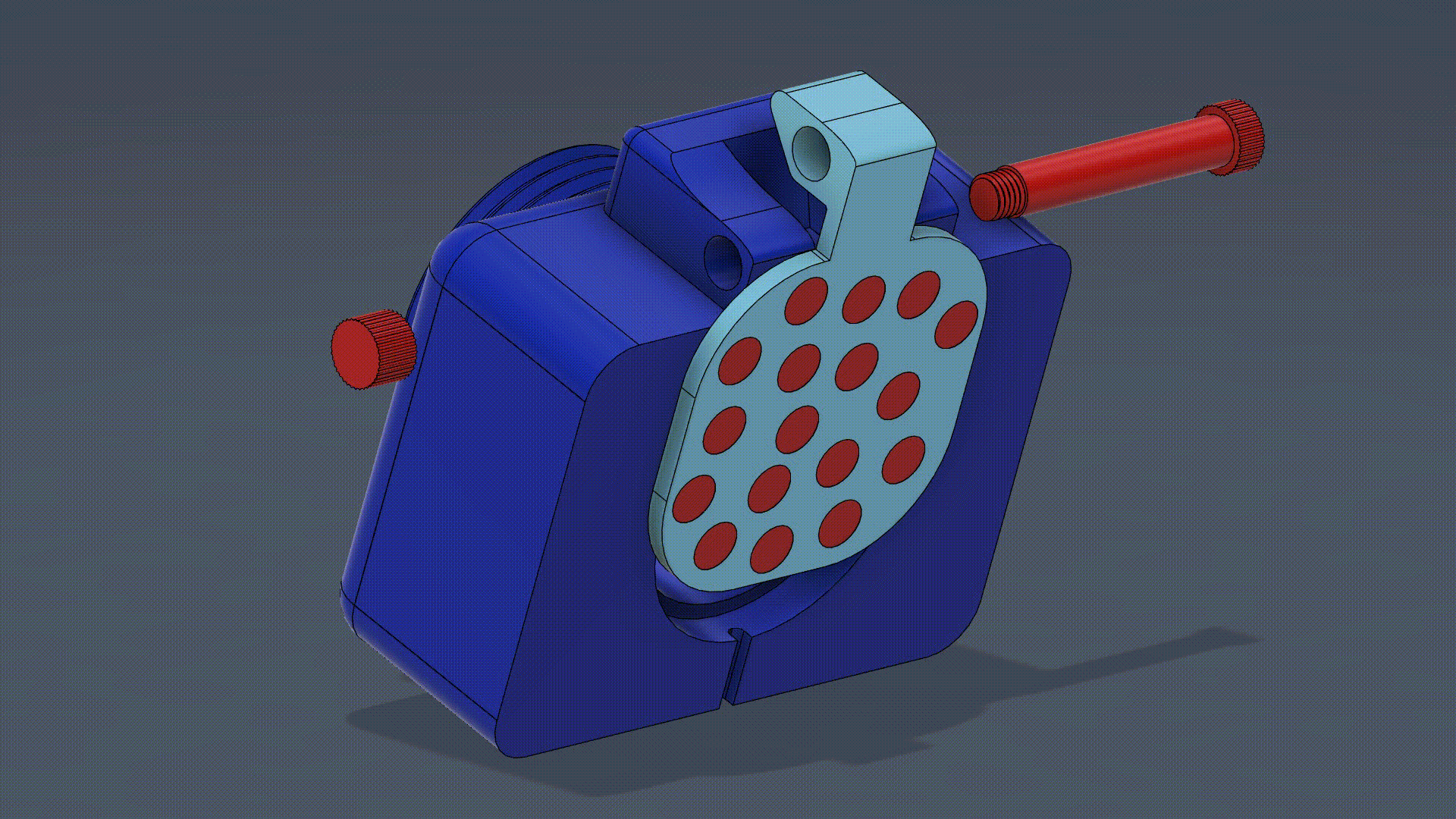

🔨 Assembly Guide 🔨

#1 Secure LED Lamp cover as shown below

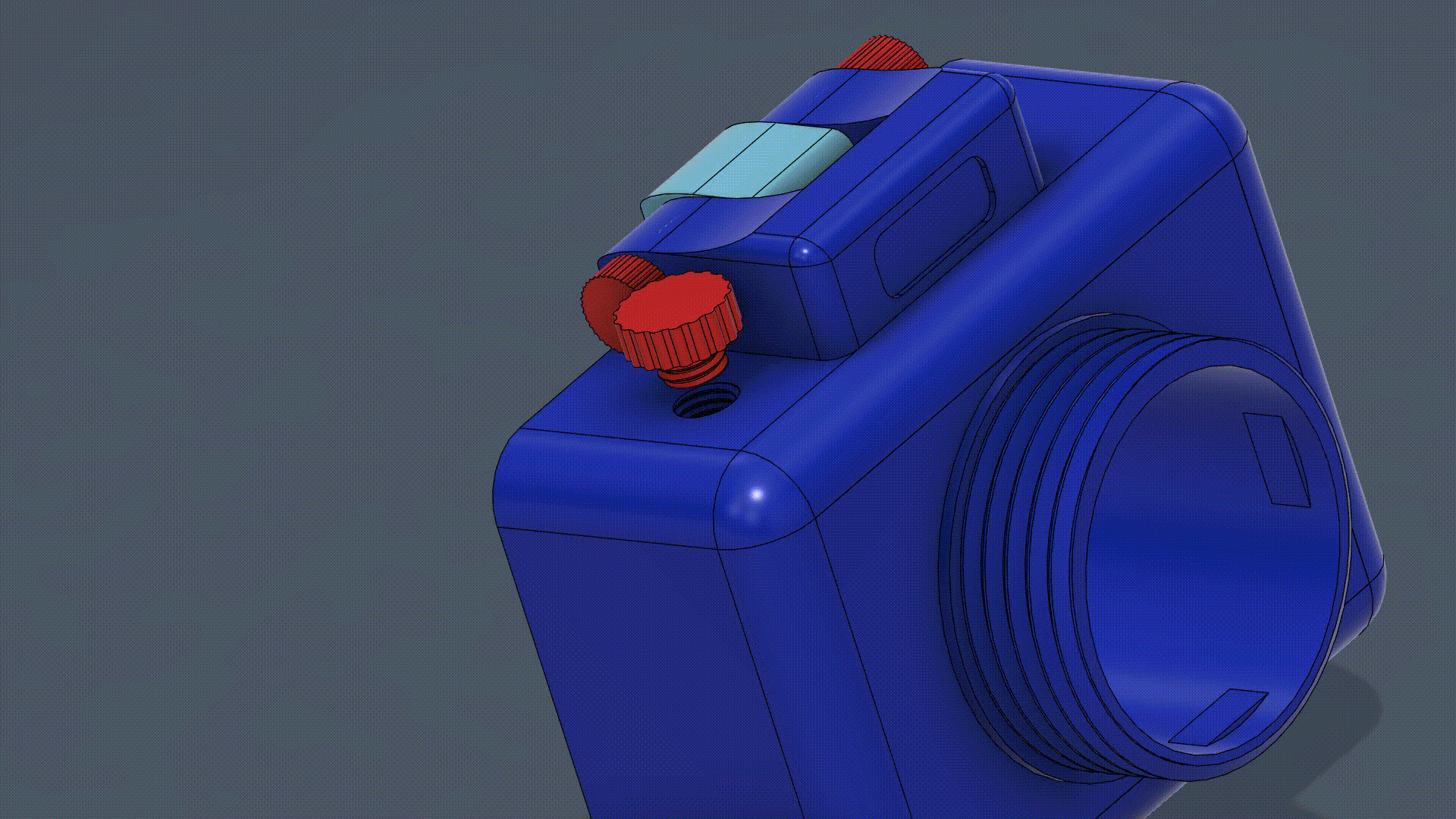

#2 Screw in shutter button in dedicated slot

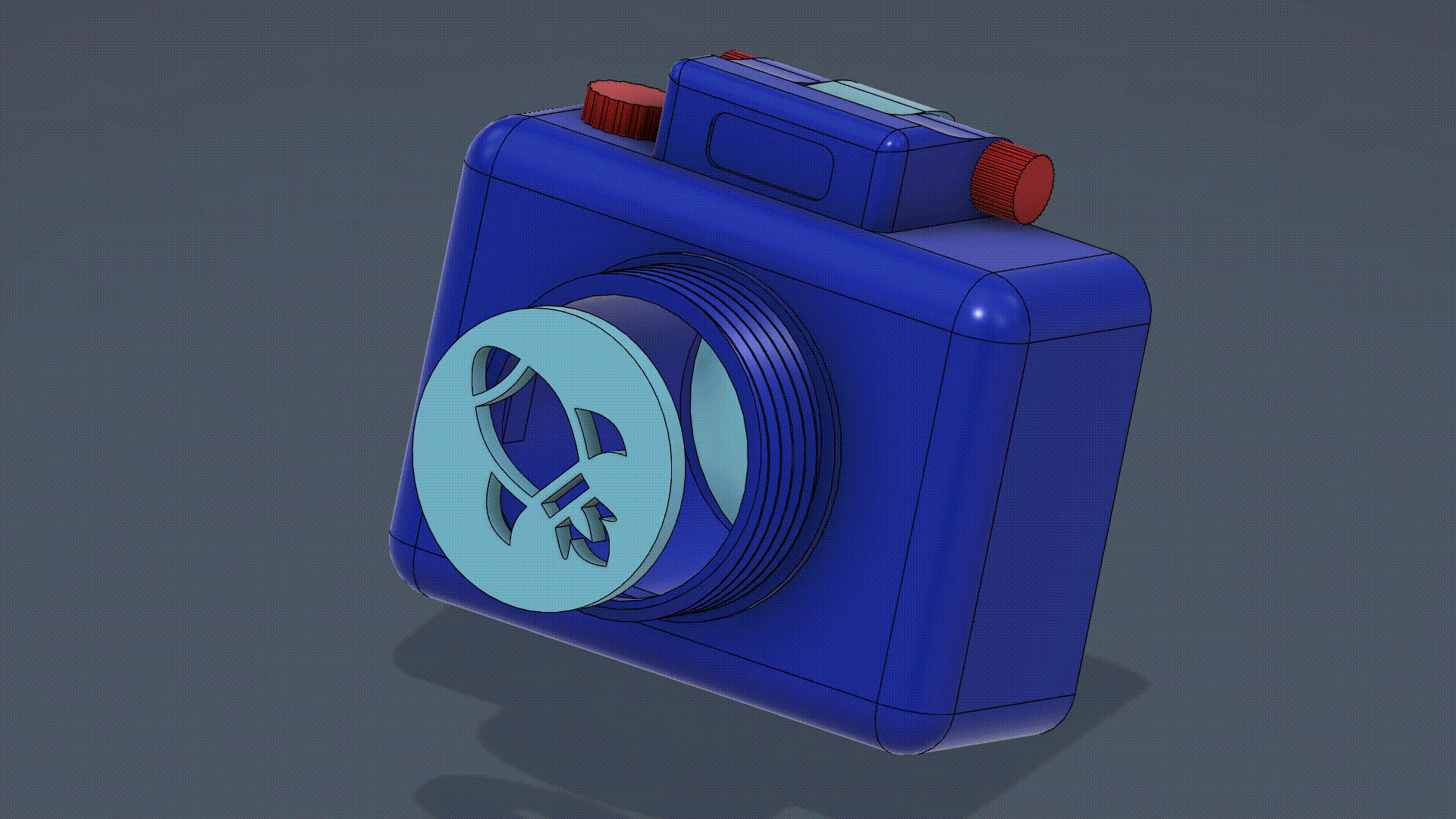

#3 Insert chosen disc into lens and screw on cover

#4 Put LED Lamp into dedicated slot under the cover (It is easy to take off when it needed)

Bring light to your bedroom!

Examples of projections

You can make discs by yourself.

Disc dimensions:

Diameter: 53,60 mm

Thickness: 4,60 mm
