Parametric Fly Screen Mesh / Filter Net

Fully parametric, ultra-thin fly screen mesh for 3D printing. Customize size, shape, mesh opening, and thickness — right here on MakerWorld!

Works as a fly screen, dust filter, vent cover, drain filter, or any application that needs a fine grid. Print it, cut it with scissors to any shape you need.

Features

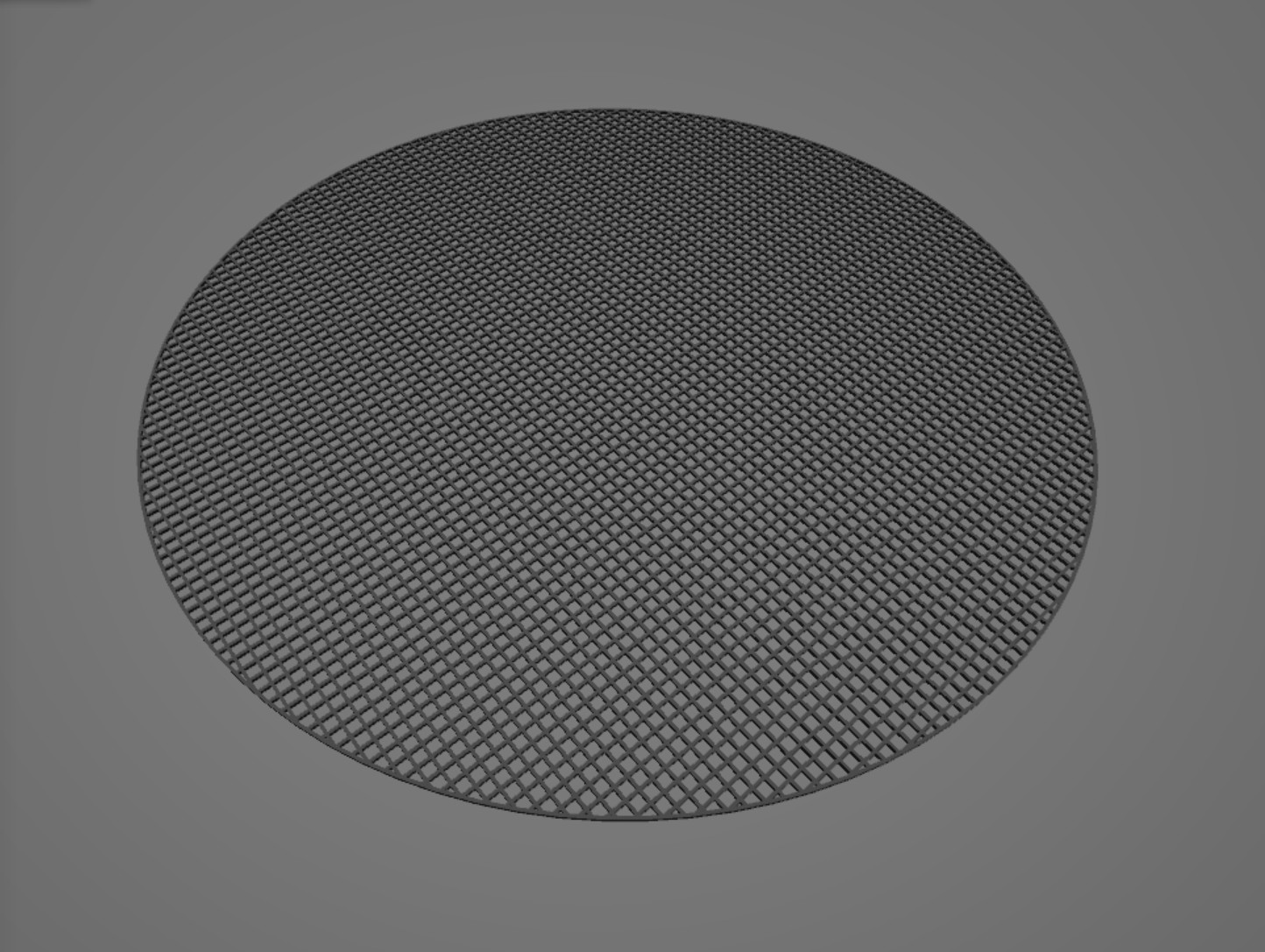

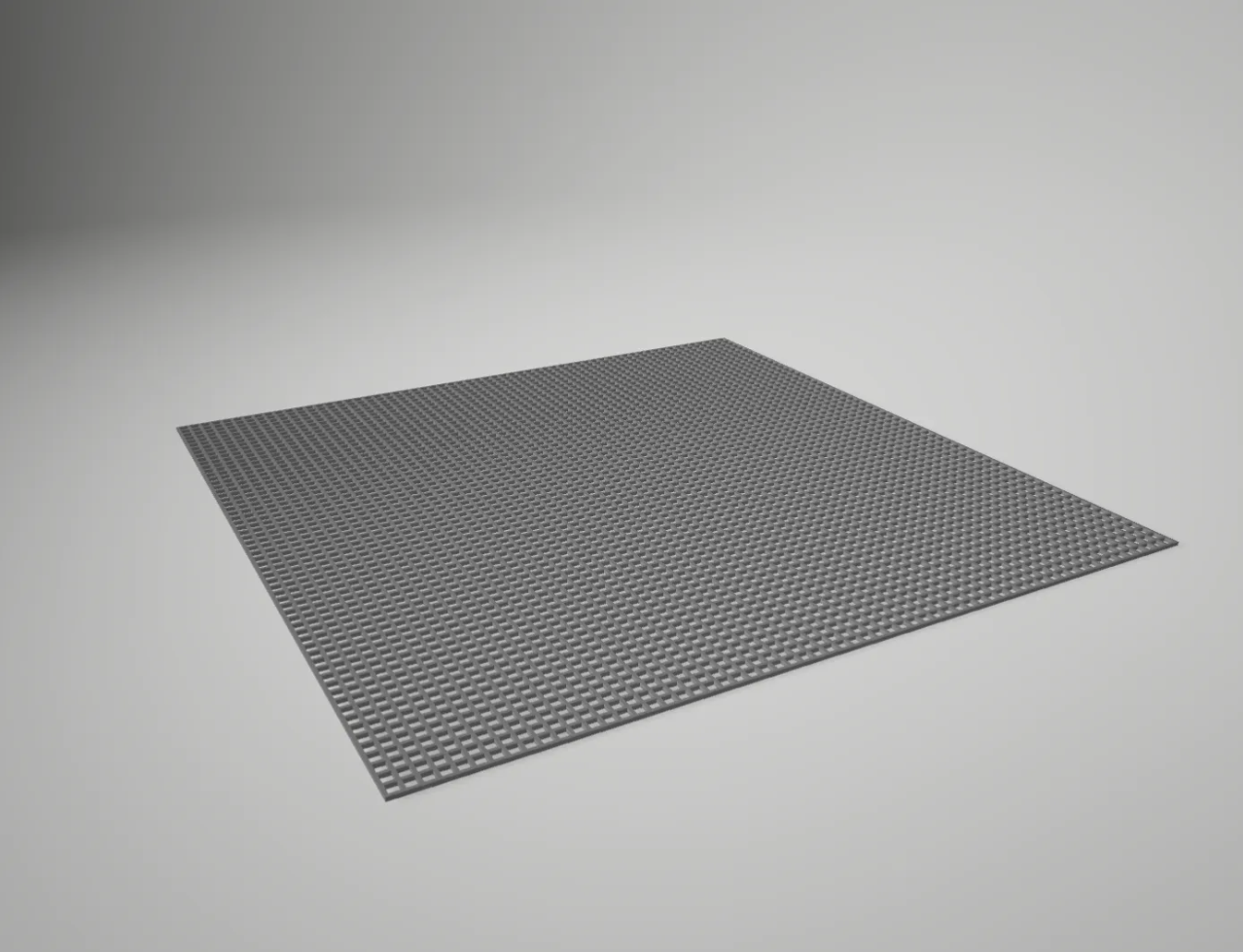

Square or Round shape
Fully parametric: size from 20mm to 320mm, mesh opening from 0.6mm to 5.0mm
Ultra-thin & flexible: default 0.48mm thick (4 layers @ 0.12mm) — bends easily, can be rolled up
Tileable: edges end with a full strand — place tiles side by side for seamless large surfaces
Trimmable: cut with regular scissors to any shape after printing
Presets included: 80mm round, 100mm round/square, 200mm square, full bed 256mm/300mm

Recommended Print Settings

Important: This model requires specific slicer settings — it won't slice correctly with default profiles!

Setting	Value
Material	PETG (recommended) or PLA
Layer height	0.08mm – 0.20mm
Initial layer height	Same as layer height!

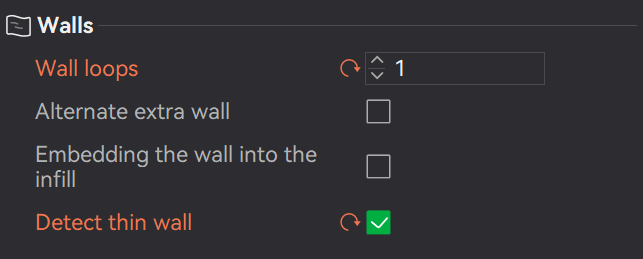

Wall loops	1
Top shell layers	0
Bottom shell layers	0
Sparse infill density	0%
Supports	None
Plate	Textured PEI

Why these settings?

Each strand is only 0.4mm wide (= one nozzle width). The slicer must treat each strand as a single wall line — no infill, no top/bottom shells. If you see an "empty initial layer" error, make sure Initial layer height = Layer height (not the default 0.20mm).

Parametric Options (MakerWorld Customizer)

Parameter	Default	Range	Description
Preset	Custom	7 presets	Quick size+shape selection
Shape	Square	square / round	Mesh outline
Size	100mm	20–320mm	Side length or diameter
Mesh opening	1.2mm	0.6–5.0mm	Gap between strands
Strand width	0.4mm	0.3–1.0mm	Match your nozzle diameter
Layer height	0.12mm	0.08–0.32mm	Must match slicer setting
Layers	4	2–8	More = thicker & stiffer

Thickness Guide

Layers × Height	Total	Flexibility
2 × 0.08mm	0.16mm	Paper-thin, extremely flexible
4 × 0.12mm	0.48mm	Default — flexible, good balance
2 × 0.28mm	0.56mm	Like the original reference model
6 × 0.20mm	1.20mm	Semi-rigid, holds shape
8 × 0.20mm	1.60mm	Stiff grid, structural

Use Cases

Window/door fly screen inserts
Dust filter for electronics enclosures
Drain covers
Vent grilles
Aquarium/terrarium covers
Food dehydrator trays
