Descrição
A NEW RELEASE TO MAKERWORLD:
The ONLY complete system available combining Stacking Interlocking Racking with made to measure DryBoxes and Gridfinity Drawers.
A Unique and very well designed stacking rack system with interlocking Clamps to work as a complete system in conjunction with the DryBox and the optional Filament Spool feeder kit, and also a strong Drawer with Gridfinity matching.
THE ULTIMATE & BEST
The most Complete & Compact Customizable Filament Storage & Handling Solution available
Note:
Now includes the latest v5 DryBox Design incorporating a very neat handle.
MIX ‘n’MATCH - YOUR PERSONAL BUILD.
Need a Compact rack system to tidy your Spools?
No problem - This is a One of a Kind Compact and Interlocking stacking racking Design with strong quick fit Clamps which are easy to assemble or disassemble.
Need Lid Options?

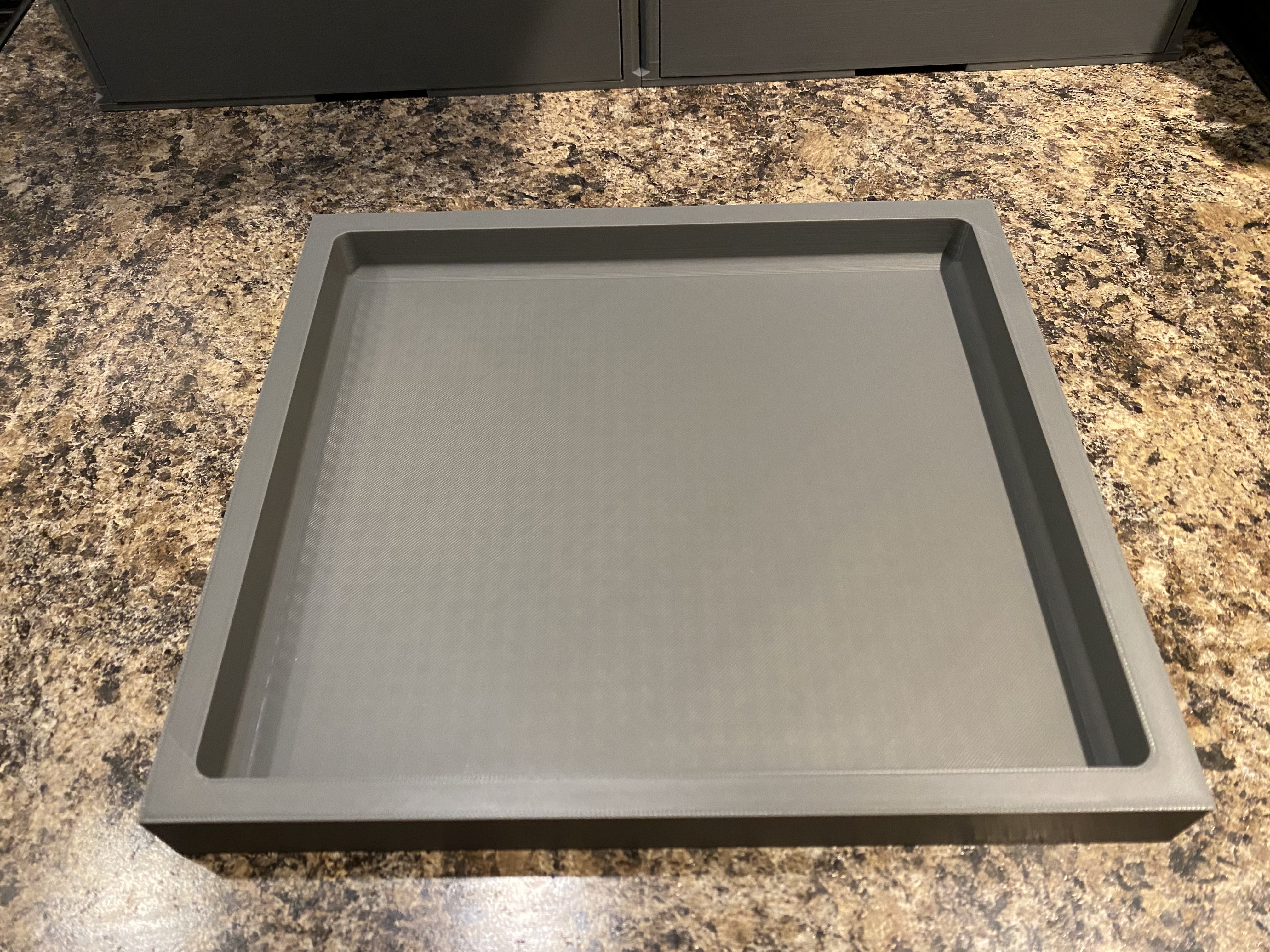

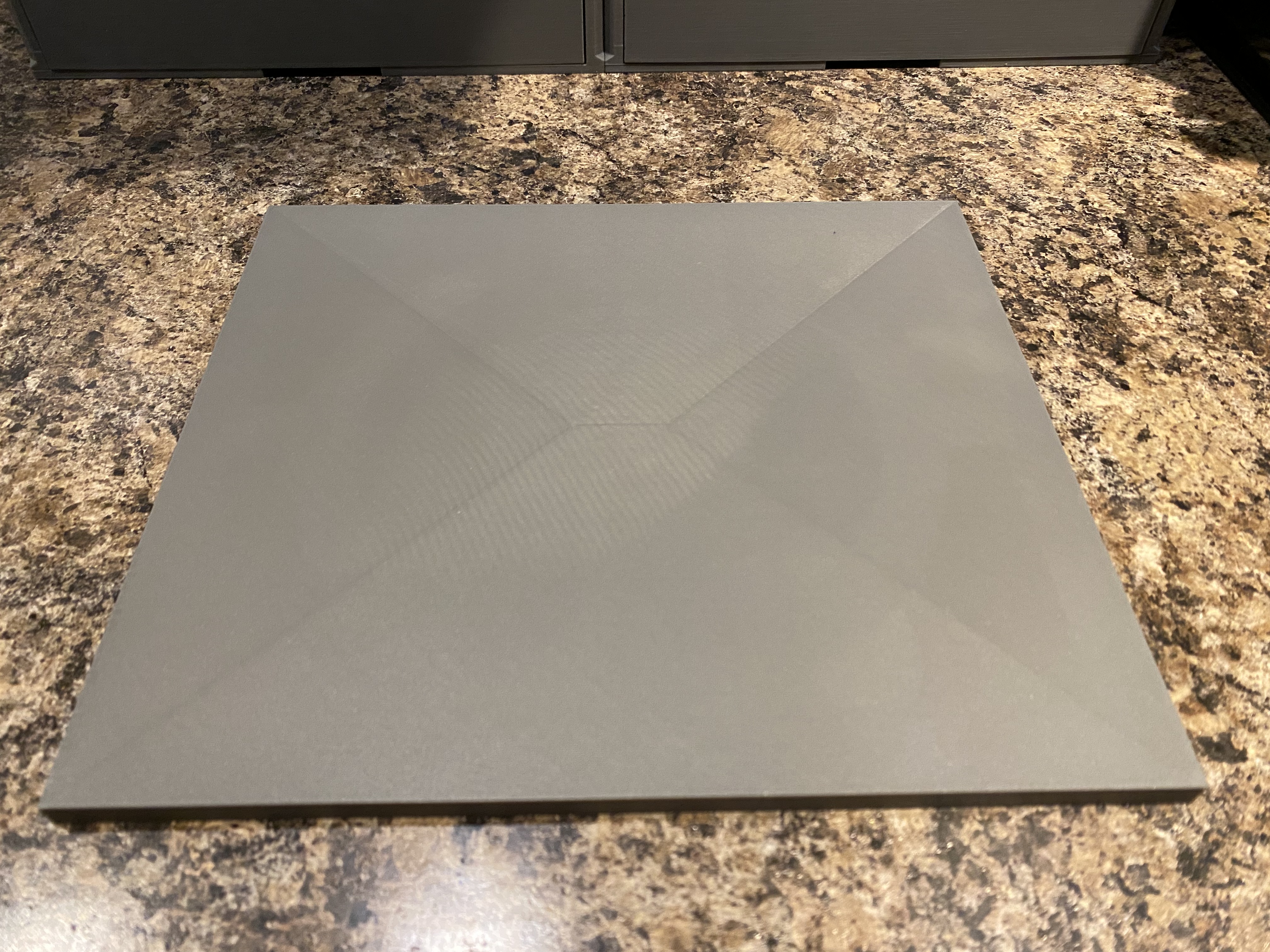

No problem - there are various Lid Design options available including Solid flat style or deep Tray storage Lids.
Need to keep your spools better organized and dry?

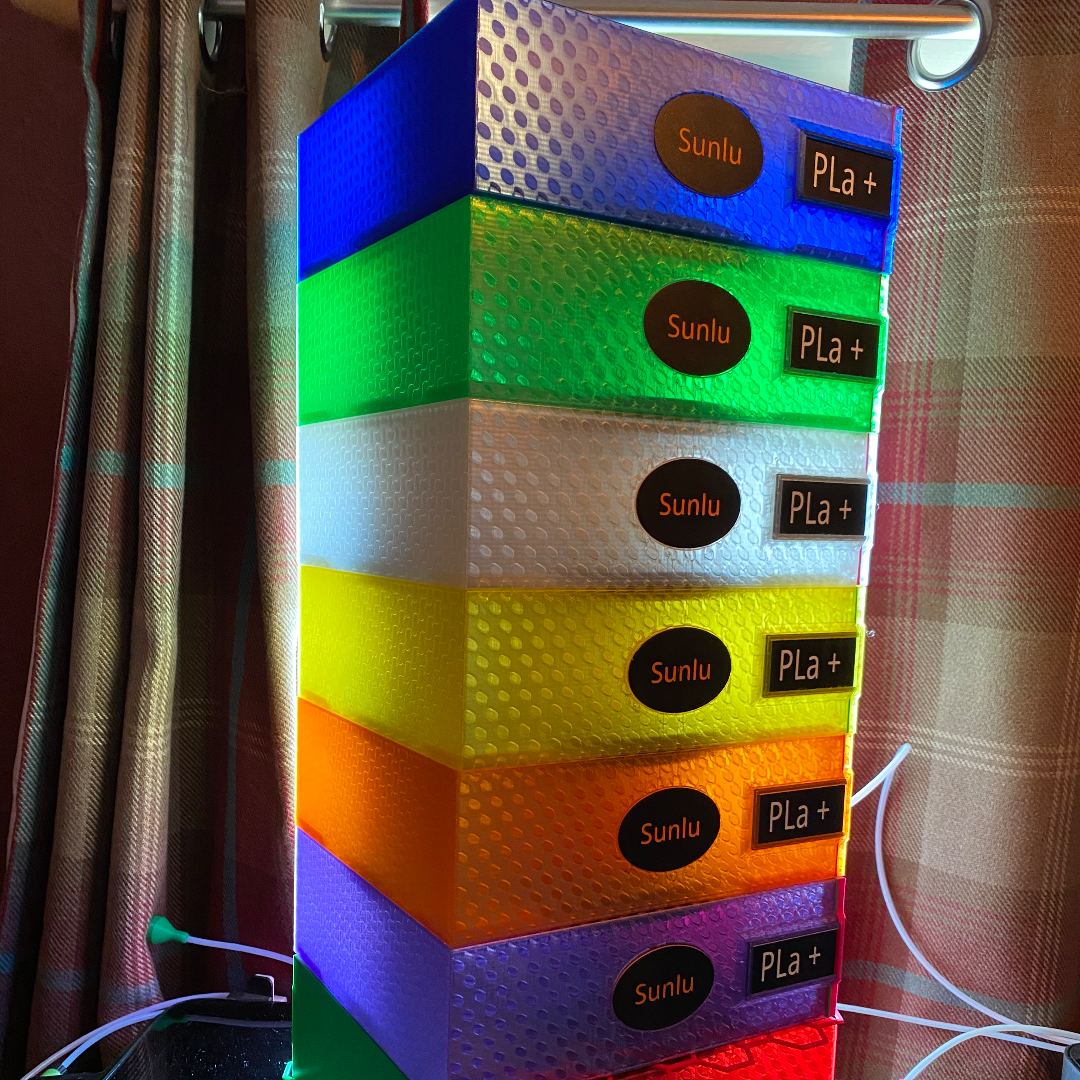

No problem- 3 custom made compact DryBox Designs are available to fit the Racking Perfectly and featuring SnapLock Lids with Gaskets and also a hygrometer DryBox option.
Need some Drawers for tools and Spares?

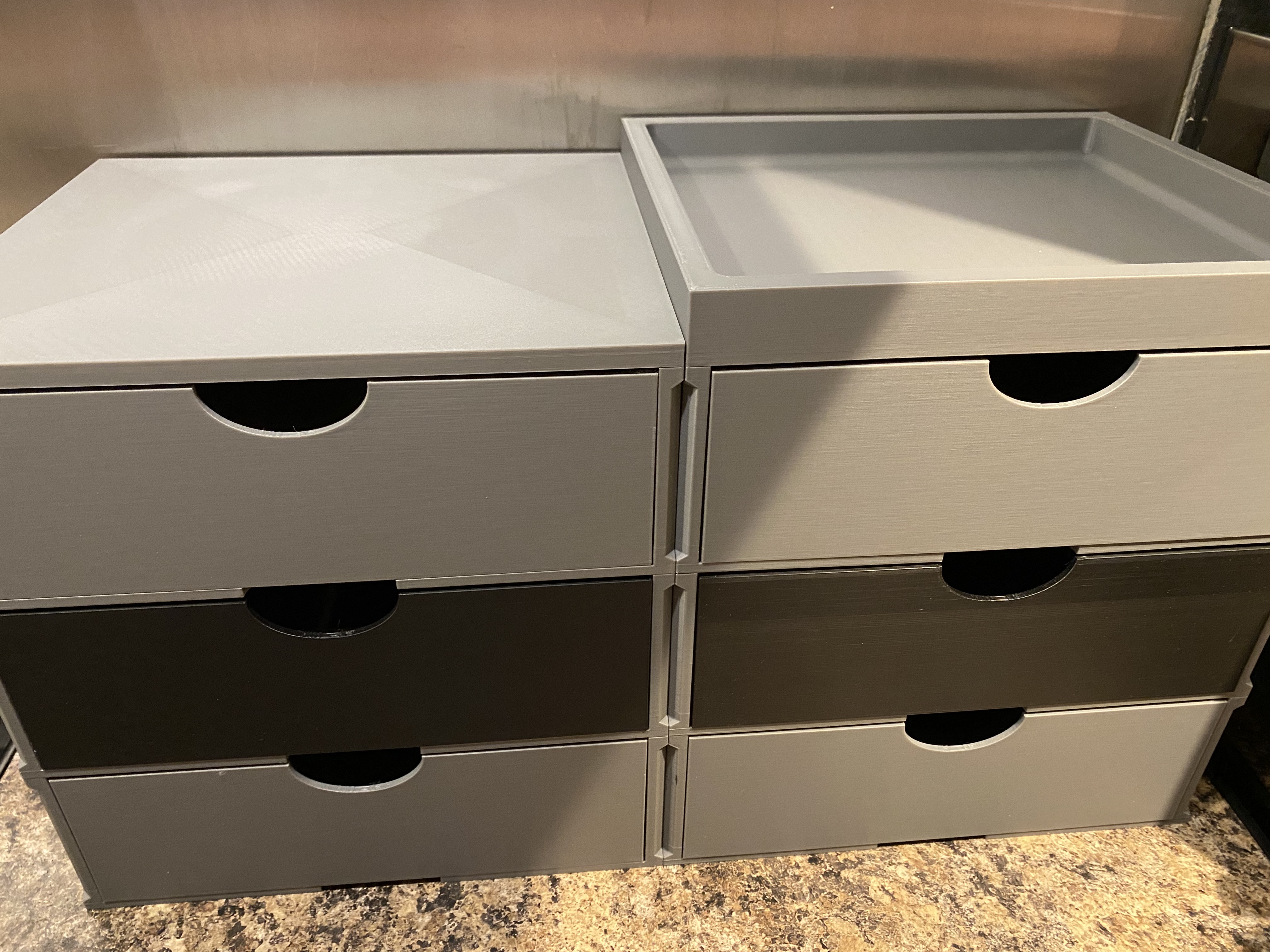

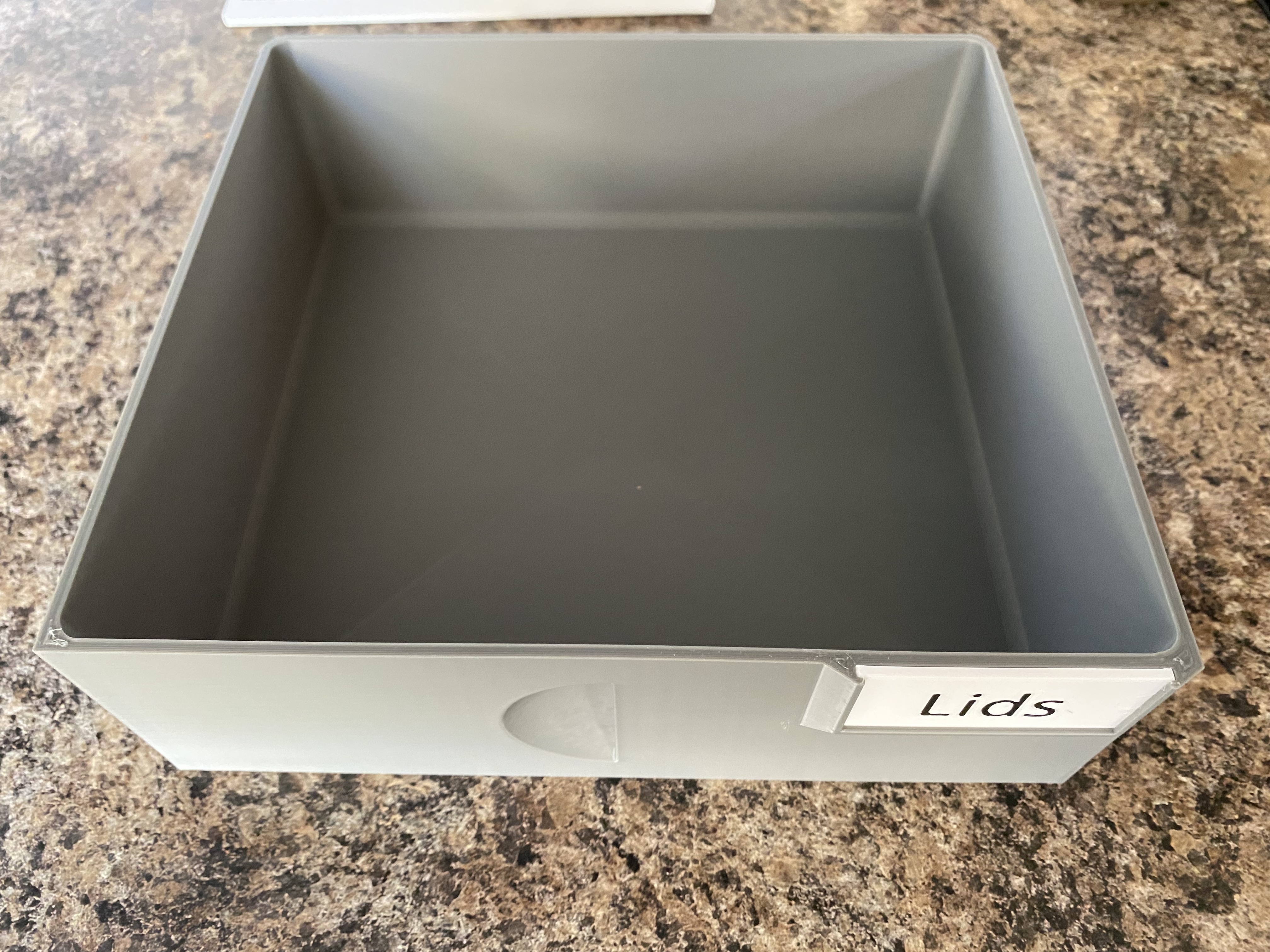

No problem - various Strong Drawer Designs are available made to fit perfectly in the racking, with or without label tags.
Need more Drawer Organization?

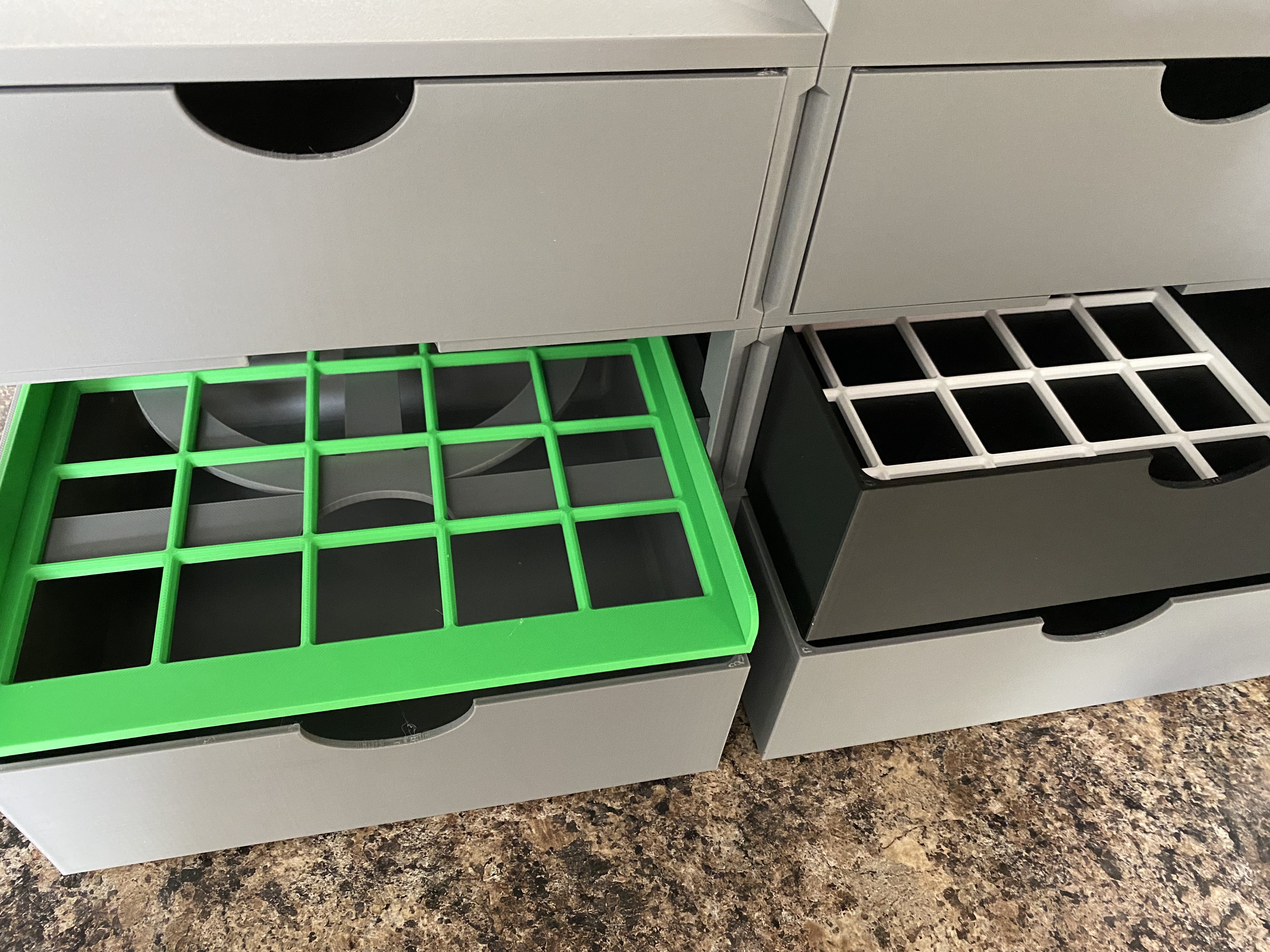

No problem - A Gridfinity Drawer liner is available to fit Gridfinity Bins.
Need Gridfinity without the Drawers?
No problem - A Gridfinity slide out tray Design is available to fit snug Directly on the Racking shelf.
Need a Filament Spooler?
No problem - A very unique Design Compact Cassette Spooler kit is available and will fit each of the DryBox options.
A Unique and complete solution tried and tested for several months with great effect.
Version v5.
Designed from the ground up this is an interlocking ‘Stack a Rack’ System with DryBoxes that can also incorporate a very unique design internal Cassette Spooler with Desiccant jar.

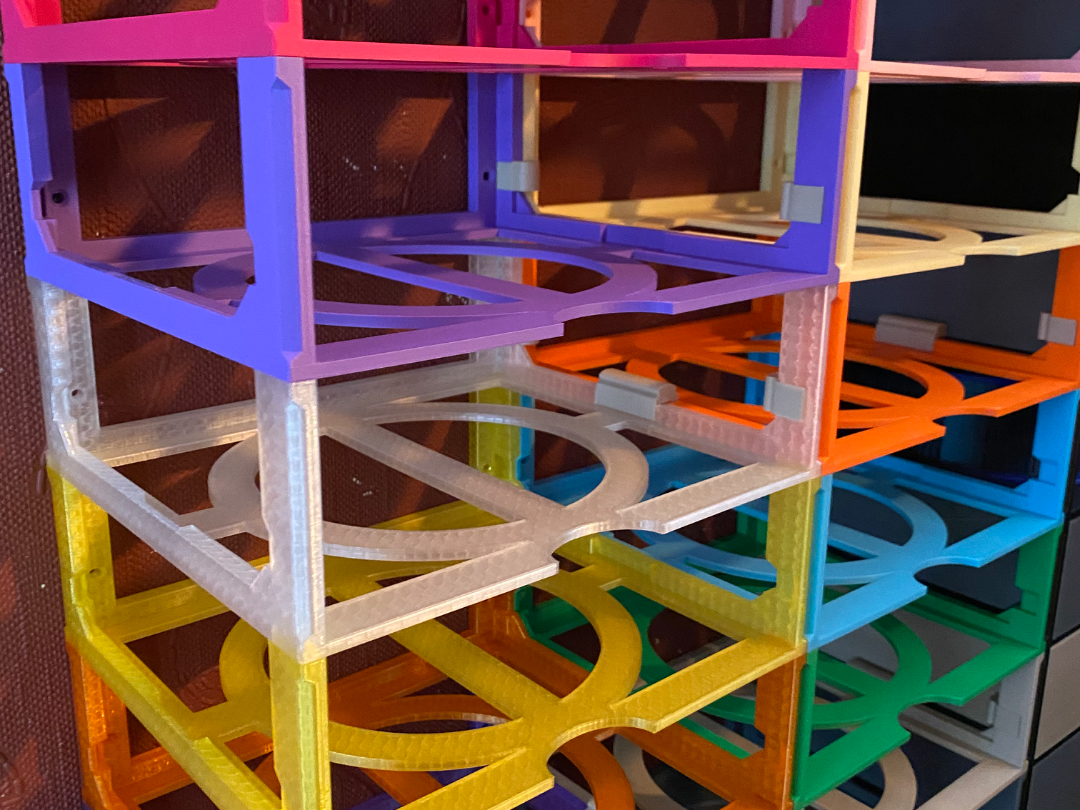

The Racking is very sturdy and stackable and Just 115g for the main Base unit and features very strong location pegs for the Stacking element and easily locks together using the “Bones” clamps which firmly lock the racks together and prevent both forward or sideways movement.
The DryBoxes can also be used as an integral spooler device using the Cassette Spooler Kit and Feeder Lid.
The Box and Lids have a “SNAPLOCK” design which clicks into place and holds the gasket snug.

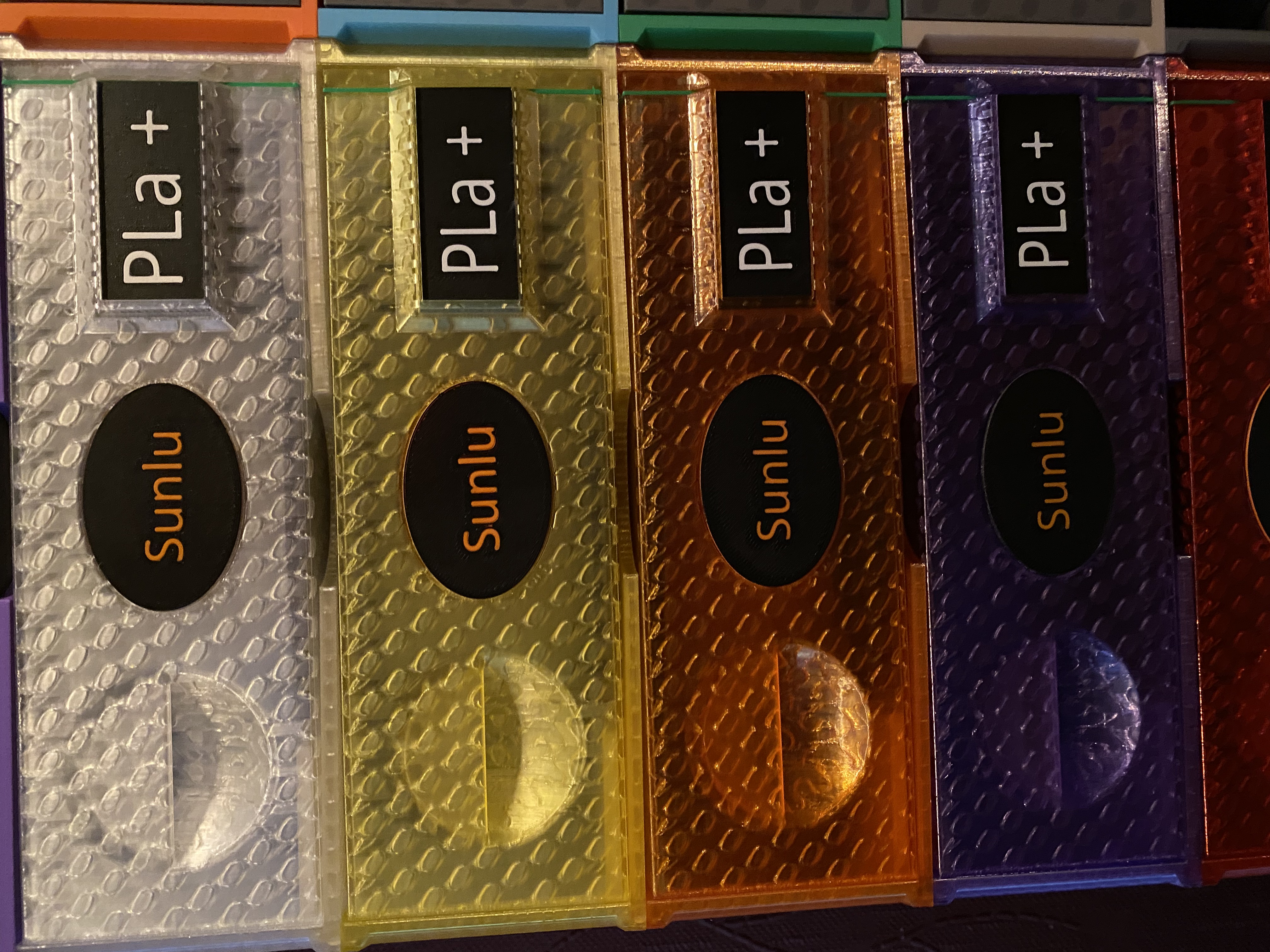

The v5 Drawer unit is also built to be very Sturdy and has the addition of a discreet handle to match the Latest DryBox Design and the optional Gridfinity 5x4 Drawer Liner for extra organization if required.
The v4 Design Drawer Unit is still available here:
The Cassette Spooler Kit will accept a centre high flow Desiccant Jar and is sized to fit 55mm Bambu/ Sunlu spools, I have another spooler/Bearing in the works for other sized Spools which will follow in time……..
The Cassette Spooler Kit can be found here:
Instructions:
For ease of use and understanding I have placed both the Pics and the Print Profiles in order of succession.
Step 1) Profile 1 - Racking & Lid with ‘BONES’ clamps.
Step 2) Profile 2 - Box & Lid

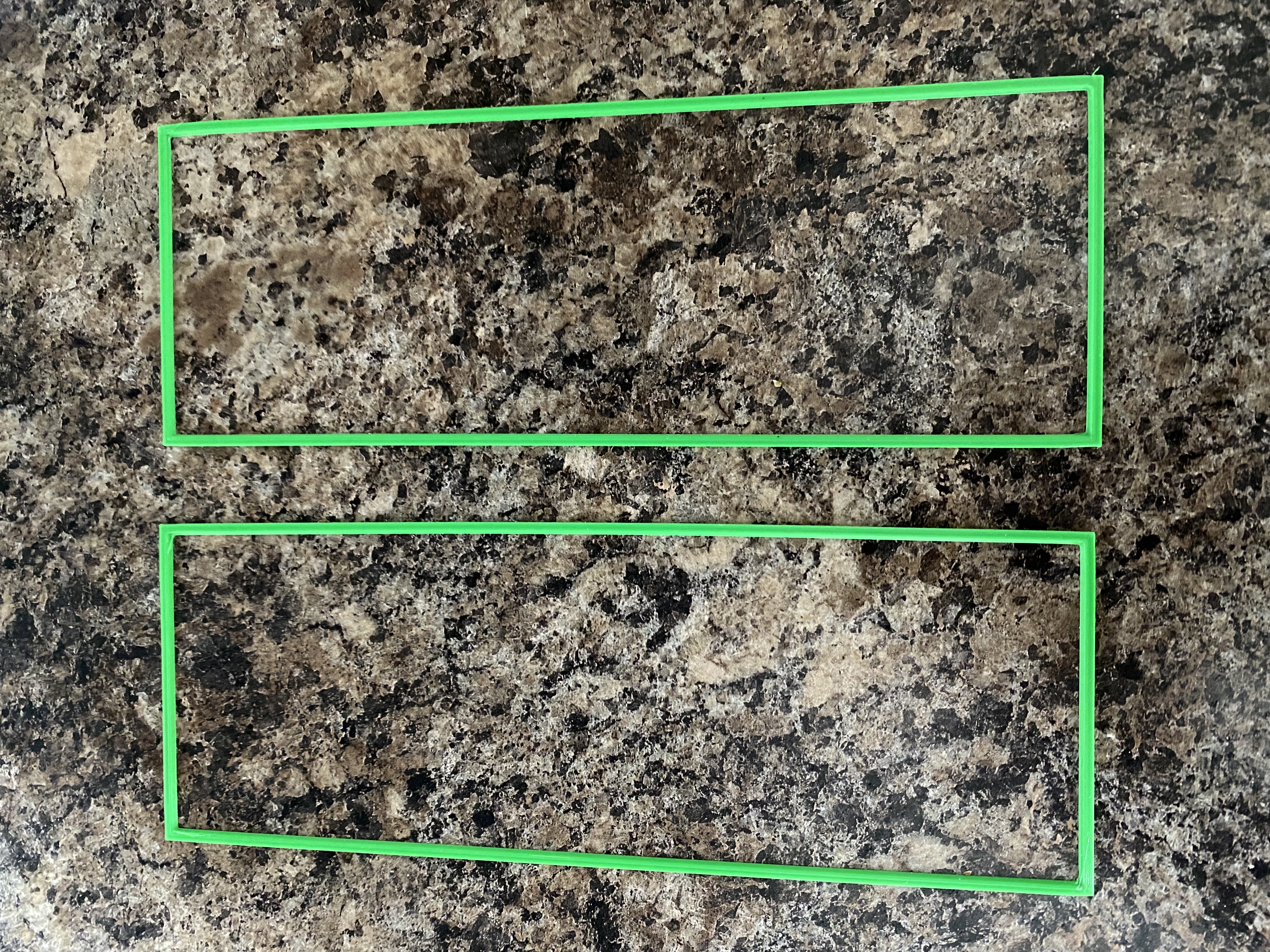

Step 3) Profile 3 - Lid Gaskets

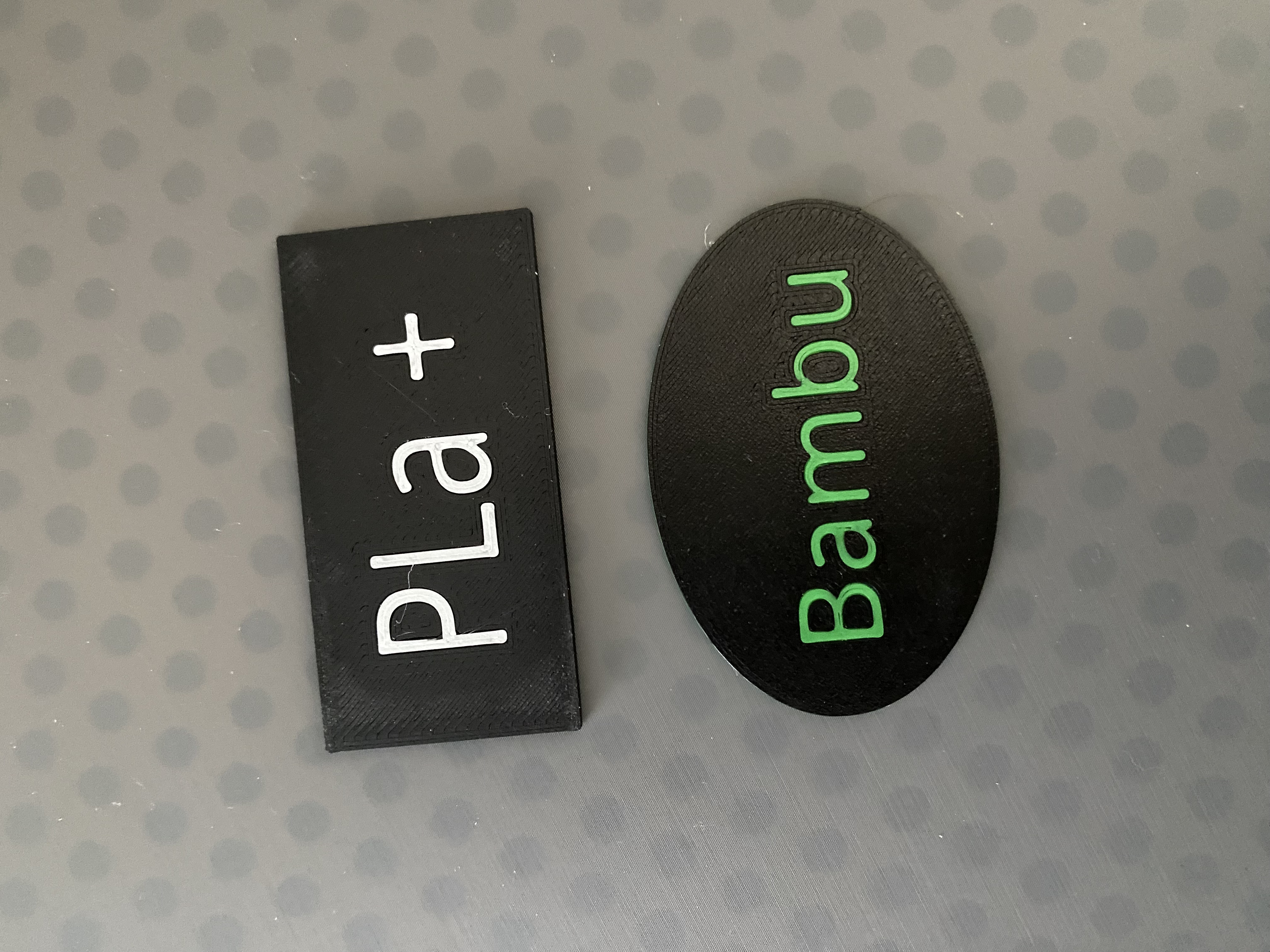

Step 4) Profile 4 - Blank Filament Logo Plates
Step 5) Profile 5 - Drawer Unit
Step 6) Profile 6 - Gridfinity Drawer insert
Box & Drawer Dimensions:
Width 225mm (inc. lid & gasket)
Depth 206mm
Height 75mm
The Racks will accept the Bambu/Sunlu/eSun/Flashforge standard boxes
A great deal of work has gone into this System and lots of R&D before releasing this 5th iteration to Makerworld.
Gridfinity Upgrade:

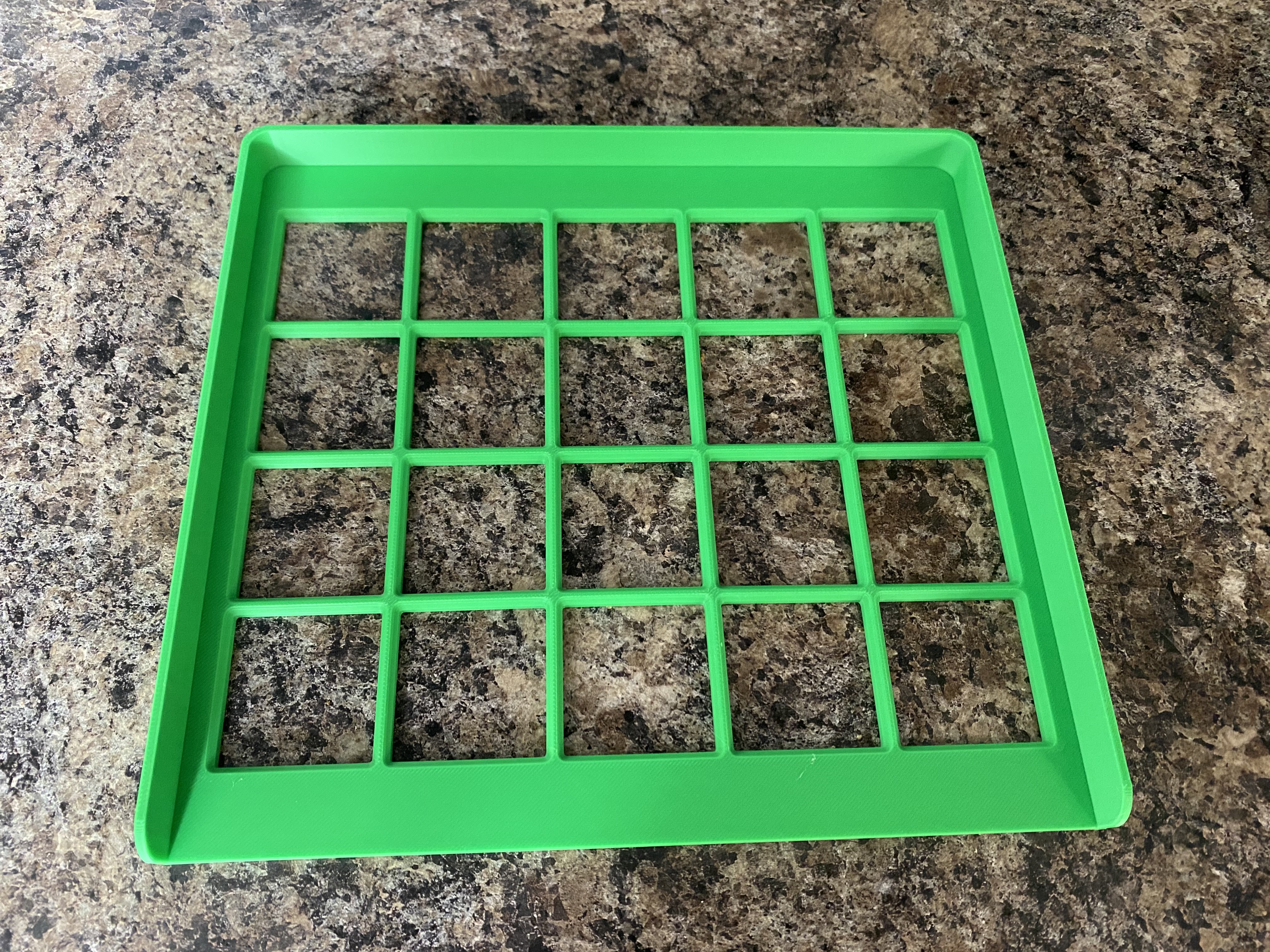

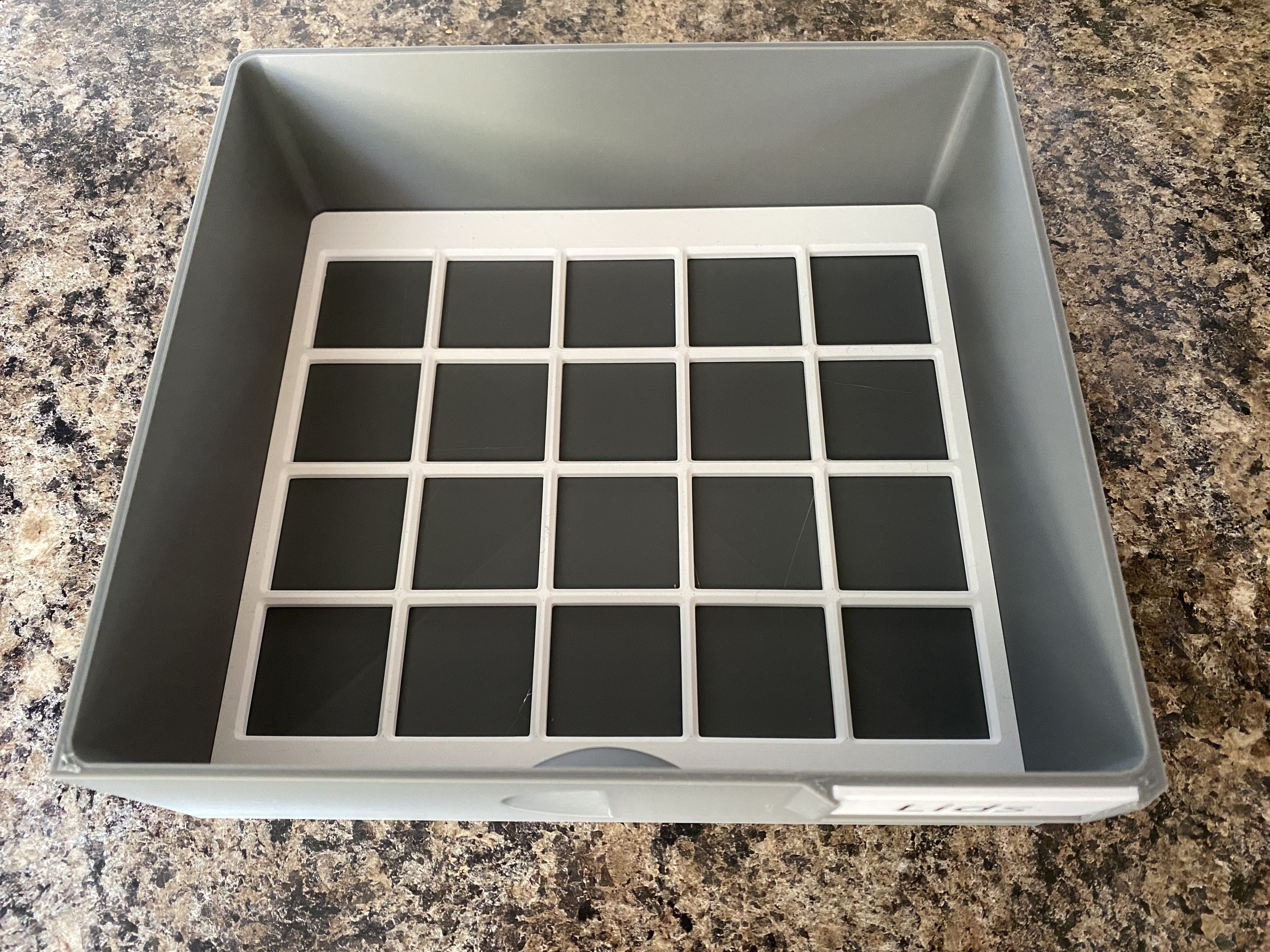

The Gridfinity Upgrade is a very nicely fitted Drawer Base insert that accepts standard Gridfinity bin combinations within the 5x4 range and a combined height value of H10.
Gridfinity Minimalist:
This is a Rack Tray which works without the Drawer option.
A Drybox version with Hygrometer is available here:
I shall continue to update and add instructions if needed and as necessary
Please upload pics of any makes and comments are welcome,
Enjoy!
Complete System Interlocking Rack DryBox & Drawers
