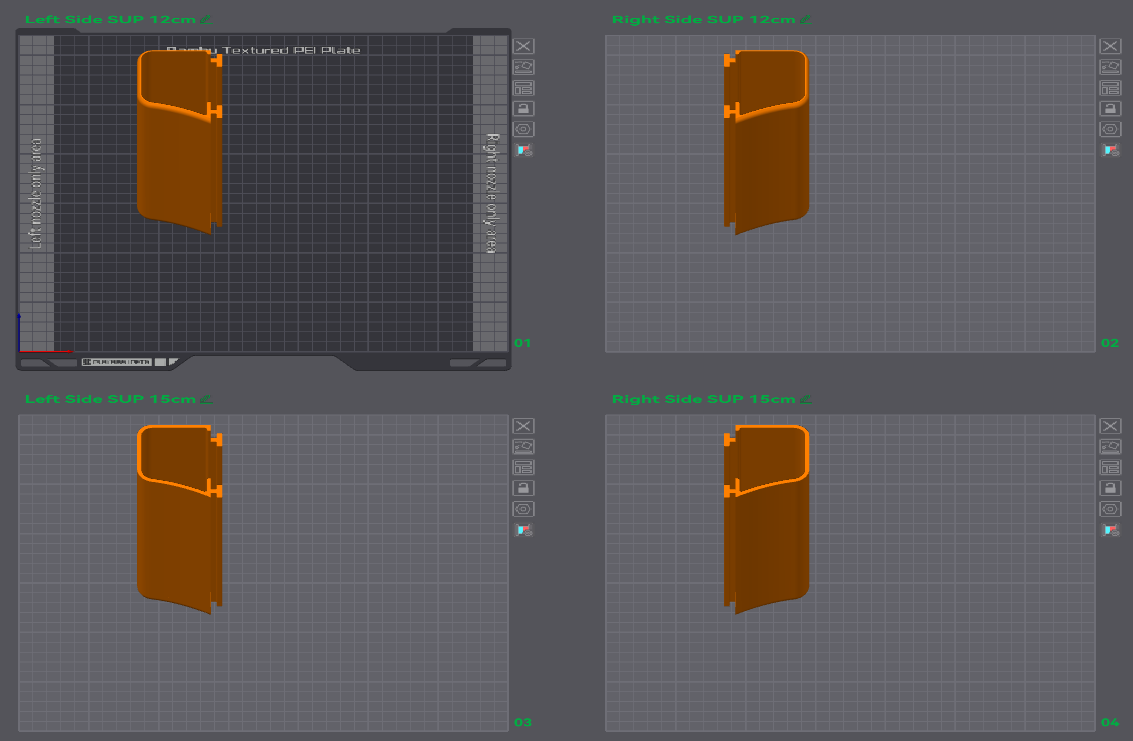

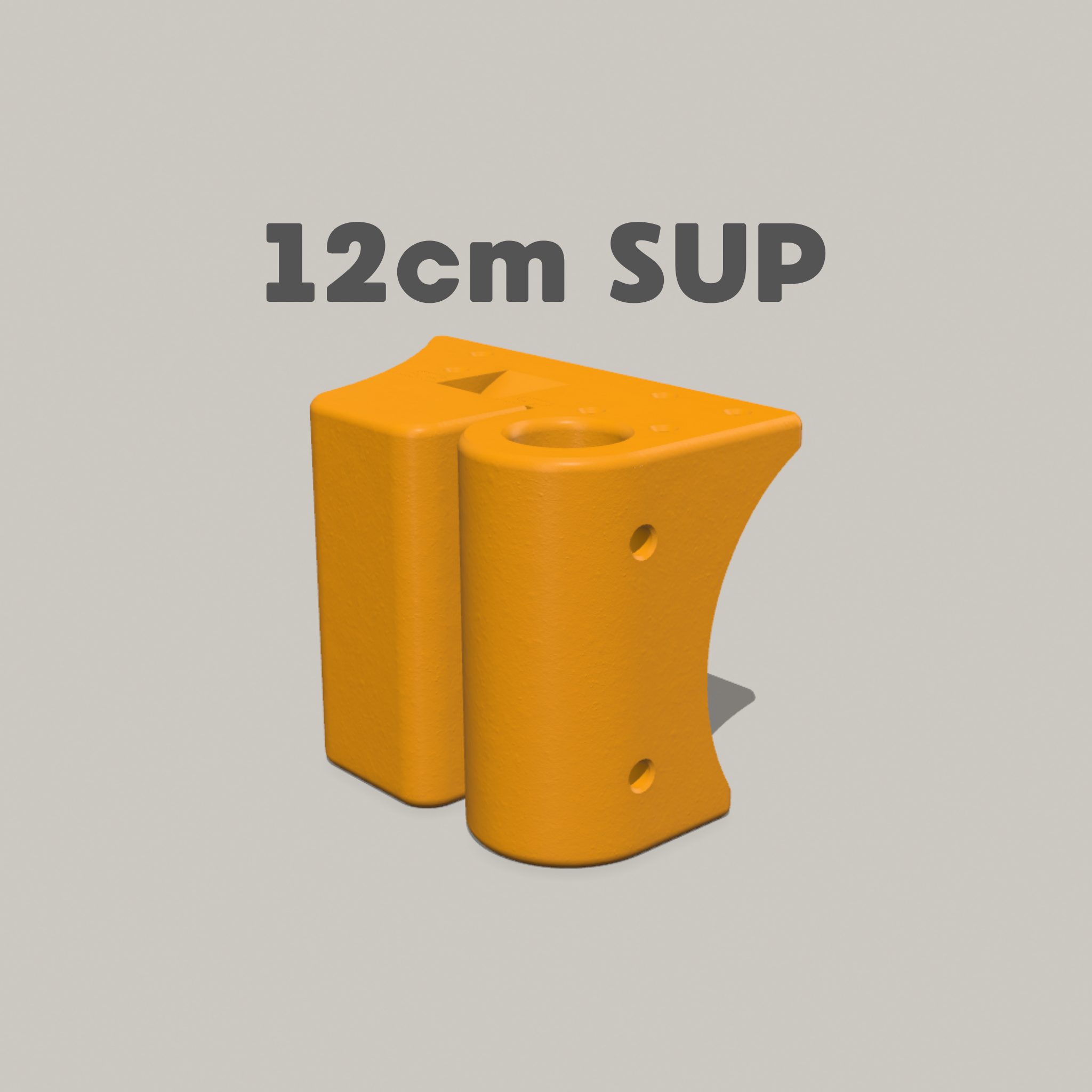

Update 3 — A new version is available for 12 cm (4.7") SUPs.

Update 2 — The ratchet cover now comes in a wider size, accommodating buckles up to 120 × 50 × 50 mm.

Update 1 — The pole holder has been upgraded to support umbrella poles up to 33 mm in diameter. Adapters for 29 mm and 26 mm poles are included.

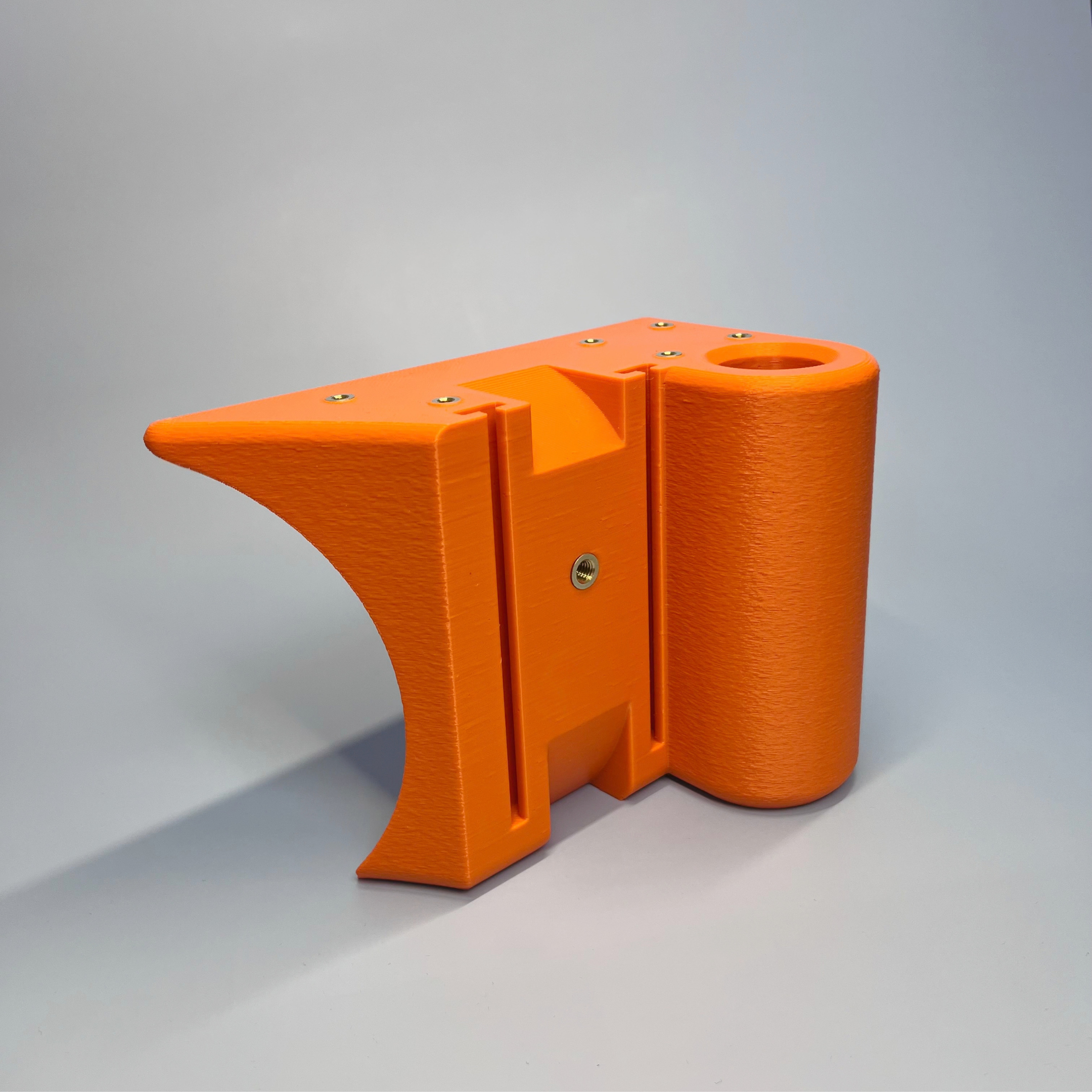

SUP Umbrella Mount

Enjoy your time on the water with extra shade and comfort!

This SUP Umbrella Mount is designed to securely attach a beach umbrella to most inflatable stand-up paddle boards (SUPs) using a standard ratchet strap. The mount features a streamlined shape to minimize water resistance while maintaining excellent stability.

Features

• Easy and tool free everyday use after initial assembly
• Designed for most inflatable SUPs with a thickness of approximately 15 cm (6")
• Available in left-side and right-side versions — each shaped to further reduce water resistance depending on the mounting position
• Two fastening options available:
  • Heat-set threaded inserts
  • Standard hex nut
• Pole holder diameter: 29 mm; includes a 26 mm adapter for smaller umbrella poles
• Made to accommodate ratchet buckles up to 120 × 50 × 40 mm and straps up to  30 mm wide
• Strong and durable design suitable for outdoor use

Required Hardware

• 3 × M6 heat-set threaded inserts OR 3 x M6 nuts
• 3 × M6 A4 stainless steel hex head screws — A4 grade recommended for maximum corrosion resistance in marine environments:
  • 2 x 25 or 30 mm for the umbrella pole (depending on the size)
  • 1 x 10 mm for ratchet buckles
• 6 × M4 heat-set threaded inserts (optional, for future accessories)

Recommended Print Settings

• Material: ASA (recommended for UV and weather resistance)
• Nozzle: 0.6 mm
• Walls: 5

Possible Future Accessories

• Action camera mount
• Cup holder
• Navigation light mount
• Fishing rod holder

Disclaimer

Always use the umbrella responsibly and avoid operation in strong winds or rough water conditions. The user is responsible for ensuring safe installation and operation.
