tejo · pendant lamp

modern minimalist pendant lamp designed for implement mood lighting in your environments, available in three sizes: small, mid and large

important · make sure that:

• your filament is dry and calibrated
• your build plate is properly clean so that there aren't adhesions issues and lifts during the print
• this design is optimised to print the outer shade with a 0.4 nozzle and the inner shade in vase mode with a 0.8 nozzle, which is highly recommended, it can potentially also be printed with a .6 nozzle (increasing the default layer width),
• this lamp is provided “as‑is.” users are solely responsible for ensuring that the final build is safe, complies with local electrical codes, and is used in a manner consistent with their own risk tolerance. use this design at your own risk. no liability is accepted for any damage or injury

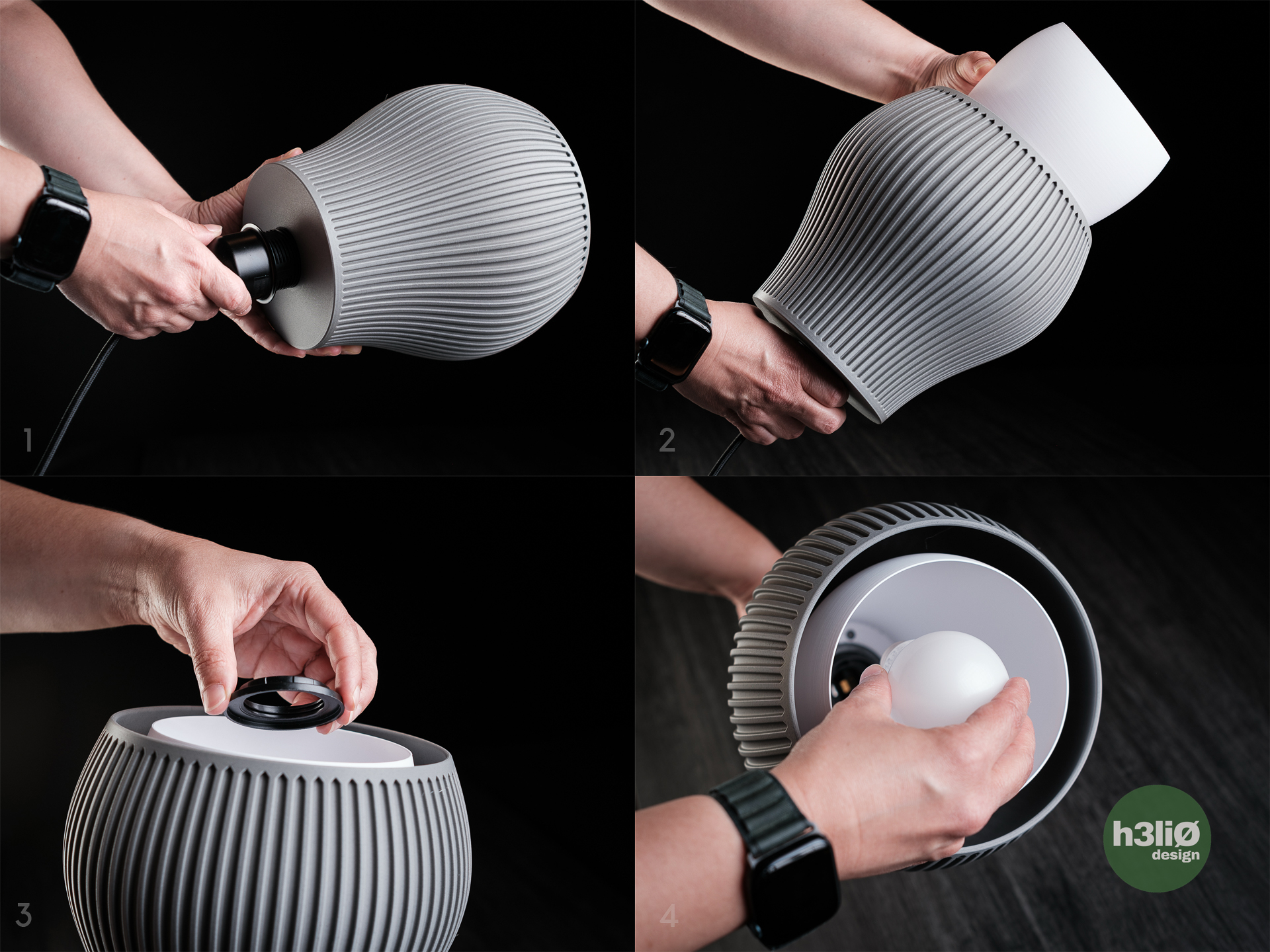

assembly

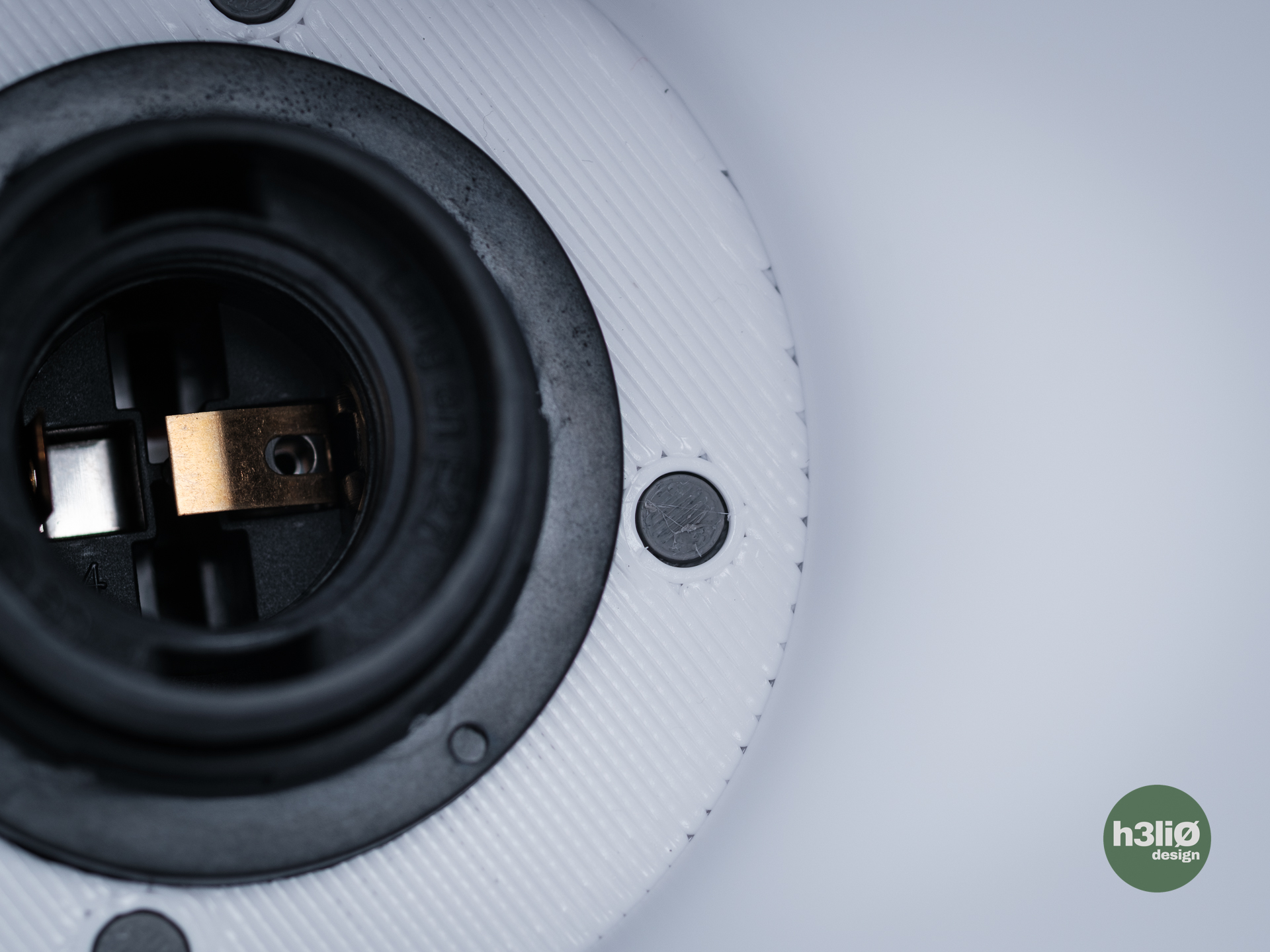

• use a E27 ceiling light fixture kit and put the socket through the outer shade

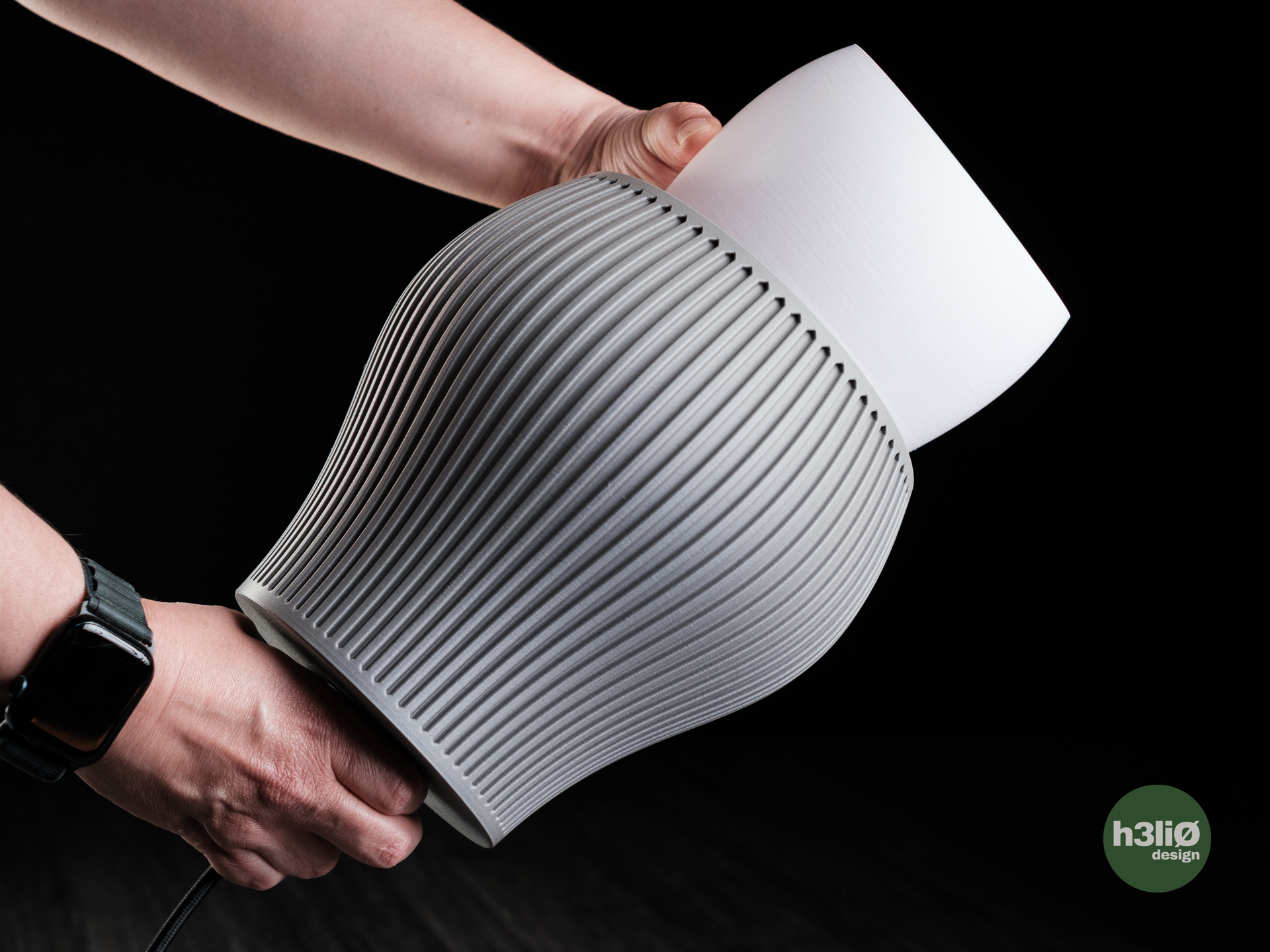

• align the inner shade with the outer shade using the cutours
• secure the inner shade to the base using the light socket threaded connector
• add the lamp

~ dimensions:

• small ~ x: 157 · y: 147 · z: 155
• mid ~ x: 196 · y: 196 · z: 193
• large ~ x: 236 · y: 236 · z: 232

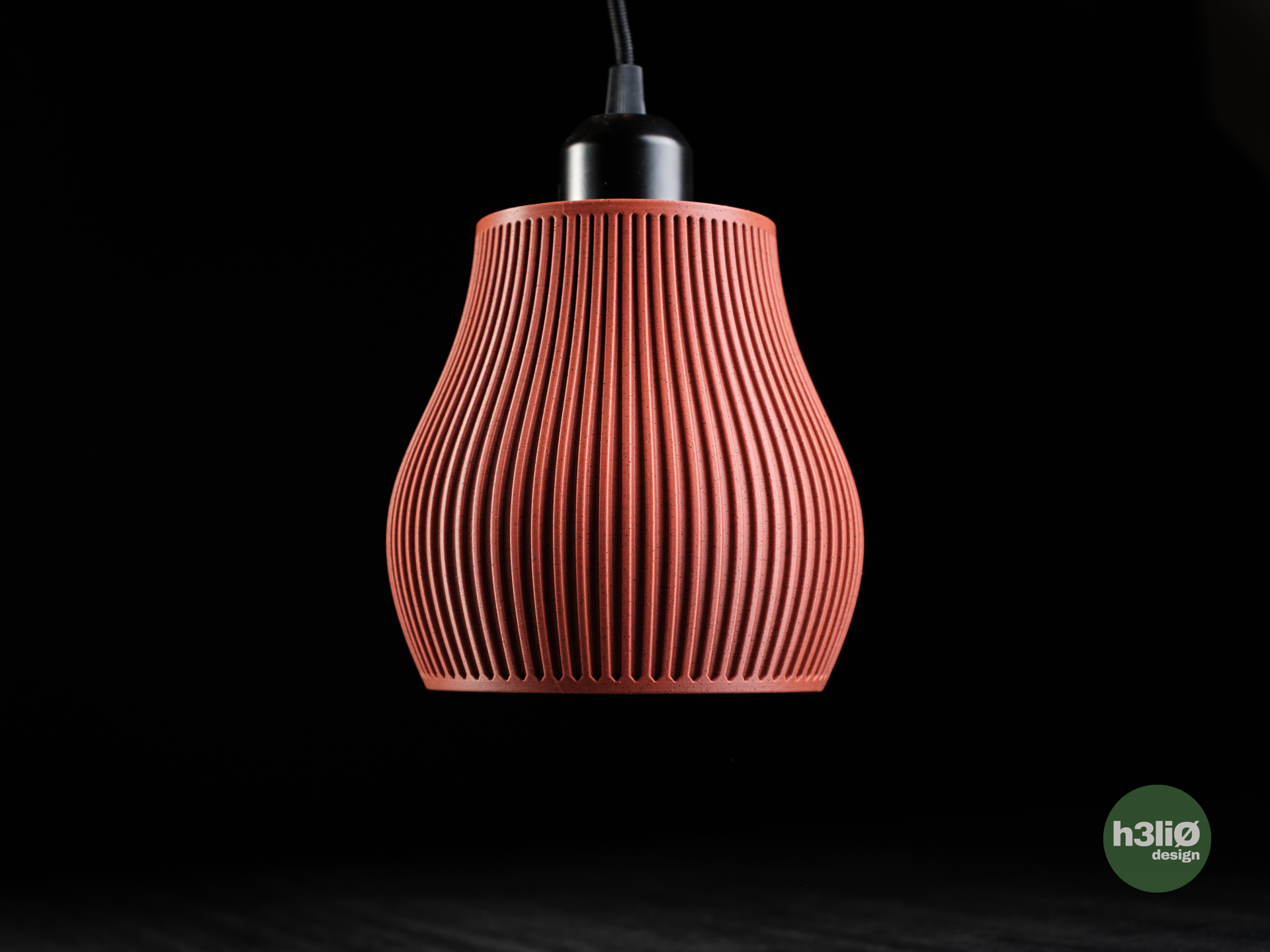

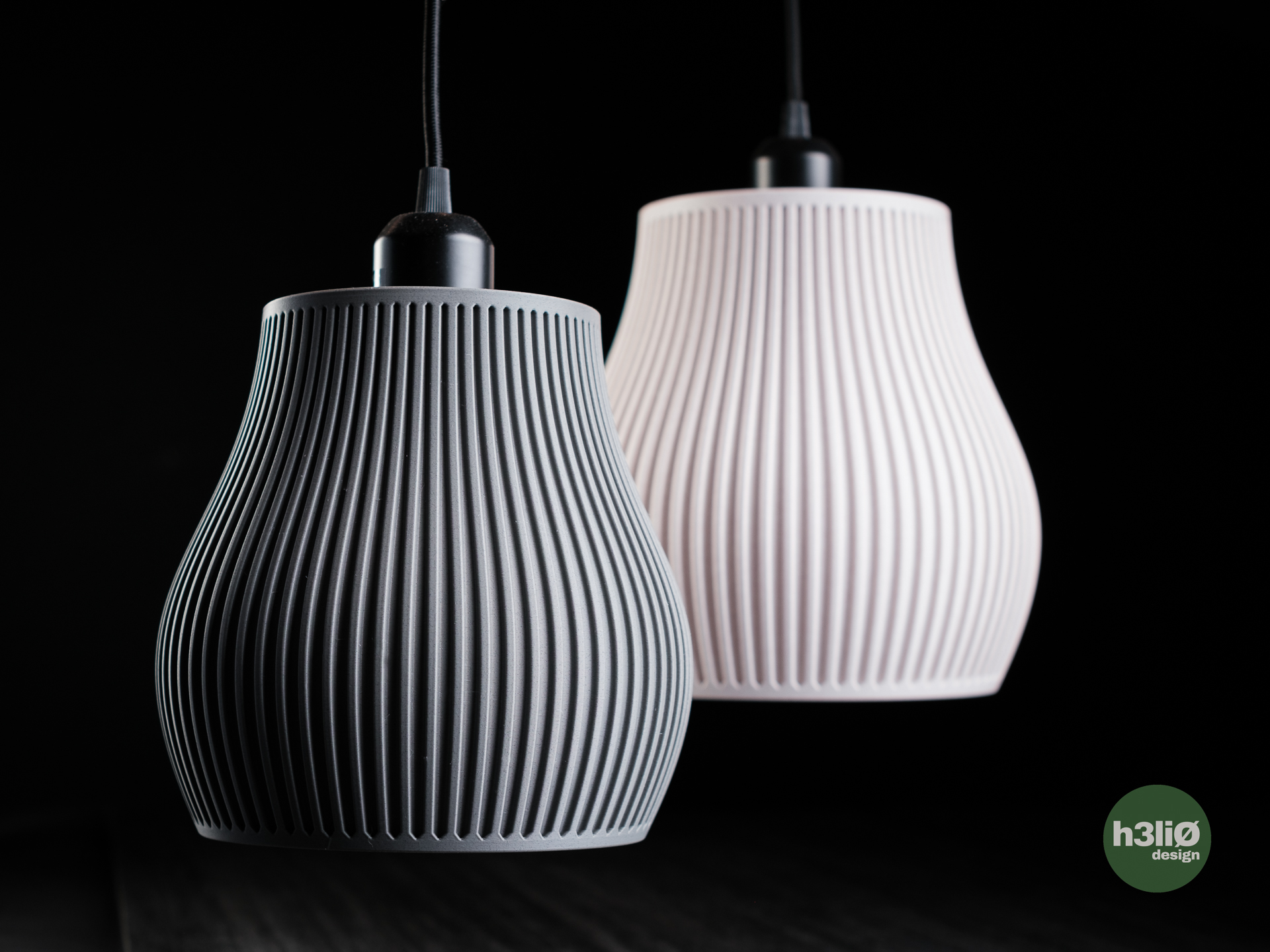

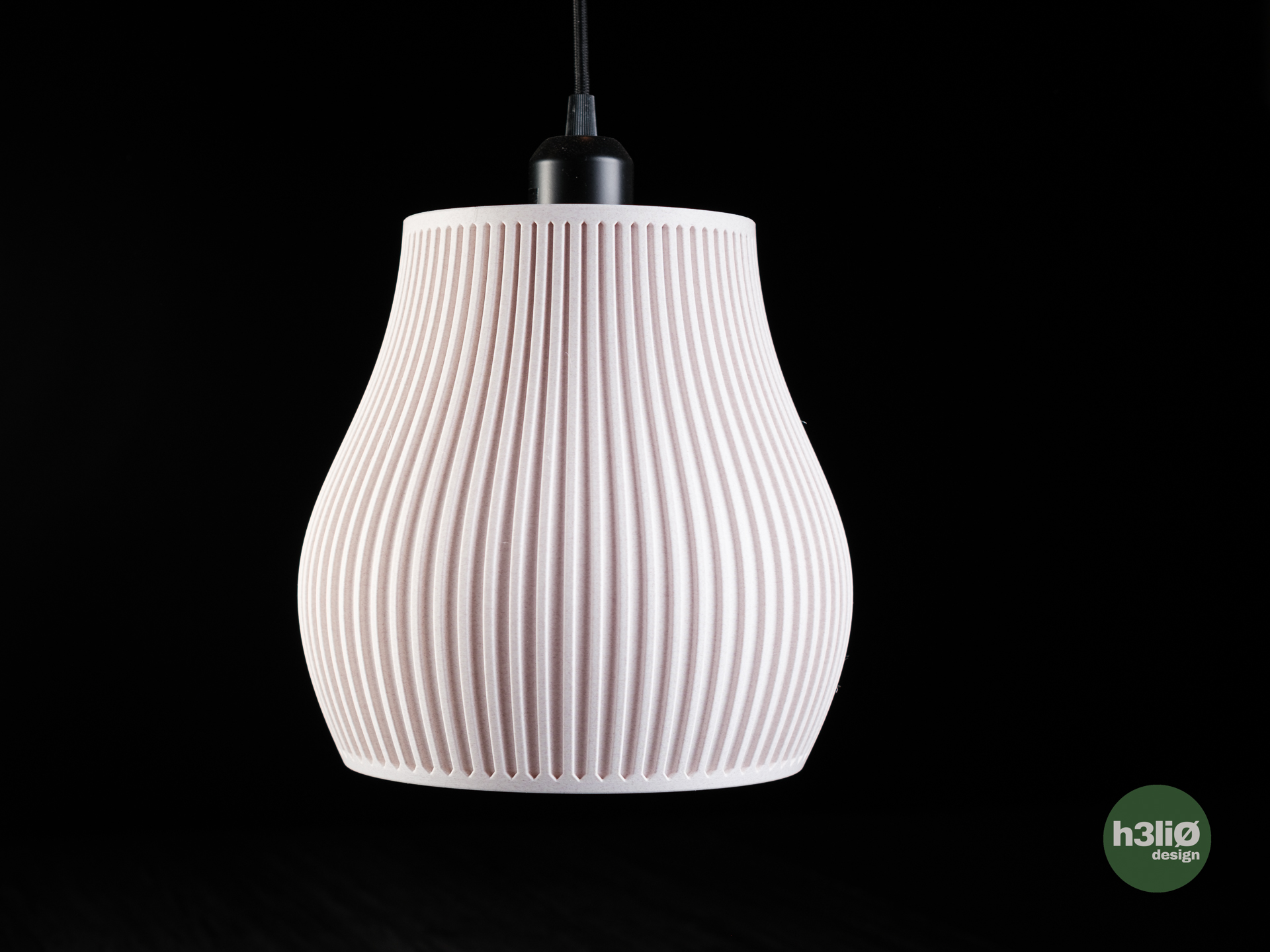

photos show outer shade printed in marble PLA and inner shade in PETG

outer shade settings

• marble PLA
• .40mm nozzle
• variable layer height
• 15% adaptive cubic infill (with modifier to have zero infill in middle section)
• no supports

inner shade settings

• PETG-HF
• .80mm nozzle
• spiral vase mode
• .40mm layer height

• 1.2mm line width



notes

• commercial licence membership available on my patreon
• all photos uploaded are of the actual printed model, and are copyright protected
• if you enjoy this model please consider to buy me a coffee
• includes bambu studio 3mf files and STLs
