The Design:

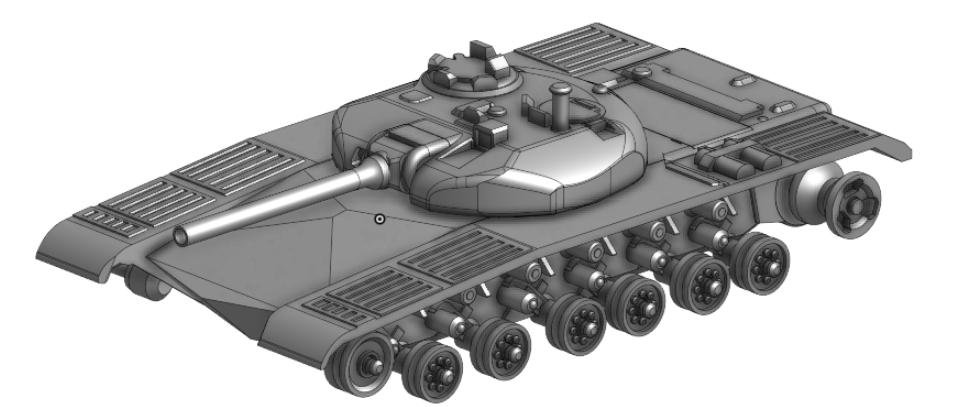

This tank was made from cero using Onshape, The tank parts are all based on their real counterparts using web files as blueprints, models, and photos.

PRINTING:

Filament: PLA.  Using others may generate issues.

Slicer:  I recommend using the default profile.

Print Bed: Wash if necessary, then dry thoroughly for good adhesion. For small parts, apply a glue stick.

Temperature:  keep your room above 20°C (68°F) to prevent issues, especially if you use an open frame printer.

__________________________________

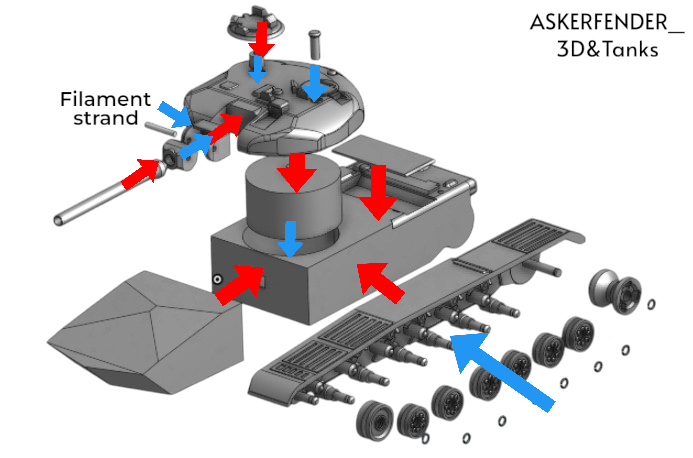

ASSAMBLY:

Red lines indicate glue

Blue lines are moving parts, no glue.

You will need a filament strand to install the cannon of the tank, once the strand is through, cut it.
