Fully Parametric Universal TableTop Grid Base

Tired of non-matching miniature bases on your battlemaps? This Fully Parametric & Customizable TableTop Grid Base is the ultimate solution for Game Masters, terrain builders, and wargamers!

Whether you need a simple 1x1 base for a standard mini, a long capsule-shaped base for mounted cavalry, or a massive 6x6 movement tray/terrain anchor—this OpenSCAD-powered design adapts perfectly to your needs directly inside the MakerWorld Customizer.

Ready-to-Print Profile Included!

To get you started instantly, I have uploaded a finely tuned Print Profile:

• Includes all combinations from 1x1 up to 5x5 fields!
• Pre-configured settings: 3 mm total height, sleek diagonal edge profile, filament-saving hollow bottom, and clean engraved grid lines (no magnet holes).
• Perfectly arranged on the build plate—just select the sizes you need, slice, and print!

Key Features & Customization Options

• Dynamic Grid Sizing: Set your custom dimensions from 1x1 up to 6x6 fields in any combination.
• Smart Edge Profiles: Choose between a clean vertical edge (straight), a sleek 45-degree bevel (diagonal), or a smooth rounded fillet (round).
• Built-in Stand/Holder: Optional integrated riser walls to securely hold flat cardboard minis, standees, terrain pieces, or condition markers.
• Map Inlays / Grid Lines: Toggleable engraved grid lines (Grid / NoGrid) on the top surface to keep the battlemap structure visible under large bases.
• Magnet Readiness: Optional cylindrical recesses centered under each grid square for easy transportation, magnetic storage, or loyalty trays.

Dynamic Safety Boundaries (Print-Optimized)

This model isn't just customizable—it's smart. It includes automatic safety logic to guarantee successful 3D prints every single time:

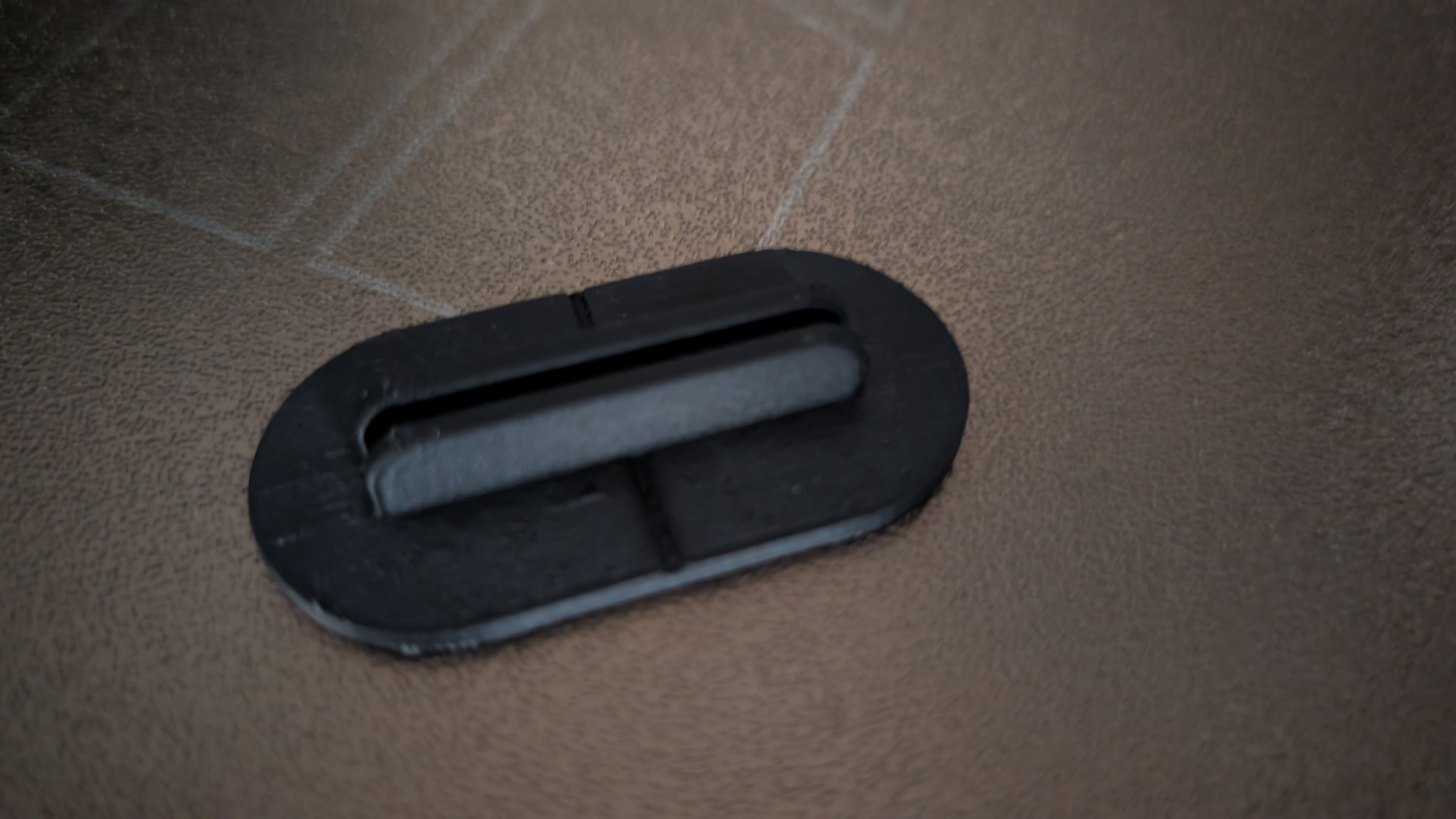

1. Dynamic Corner Radius: If you choose a 1x1 configuration, it automatically renders a perfect circular tabletop base. 1xN or Nx1 configurations turn into clean, capsule/oval-shaped bases.
2. Structural Integrity: The final base height is automatically enforced to be at least 1.0 mm thicker than your desired magnet depth, preventing any structural breakthrough.
3. No Manifold Gaps: The central holder dynamically merges below the top surface layer, completely filling engraved grid lines to avoid slicer artifacts.
4. Grid Line Avoidance: If your holder's support gussets overlap with an engraved grid line, the script automatically shifts their position slightly to ensure maximum mechanical strength and clean aesthetics.
5. Hollow Bottom Optimization: Activating the hollow_bottom feature saves filament and prevents warping, while leaving solid structural walls and supporting "bosses" around the magnet holes.

How to Use

1. Click on "Customize" right here on MakerWorld.
2. Adjust the sliders to match your grid size, field dimensions, and heights (optimized in 0.2 mm steps to perfectly match standard FDM layer heights).
3. Toggle features like the Central Holder, Grid Lines, or Magnet Holes according to your needs.
4. Download the generated STL file, slice it, and print!

Recommended Print Settings

• Material: PLA, PETG, or ABS/ASA
• Layer Height: 0.2 mm (recommended, as all step ranges are optimized for this)
• Infill: 15% - 20% (Grid or Gyroid)
• Supports: No supports needed! The diagonal/rounded profiles and the central holder gussets are fully optimized for printing without any support material.

Designed by Dice & Dragons. Happy gaming!
